MCU15L-AWPGKA (1998)

Toyota Lexus Rx300

Production Jan 1998 - Feb 2003
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9801- )

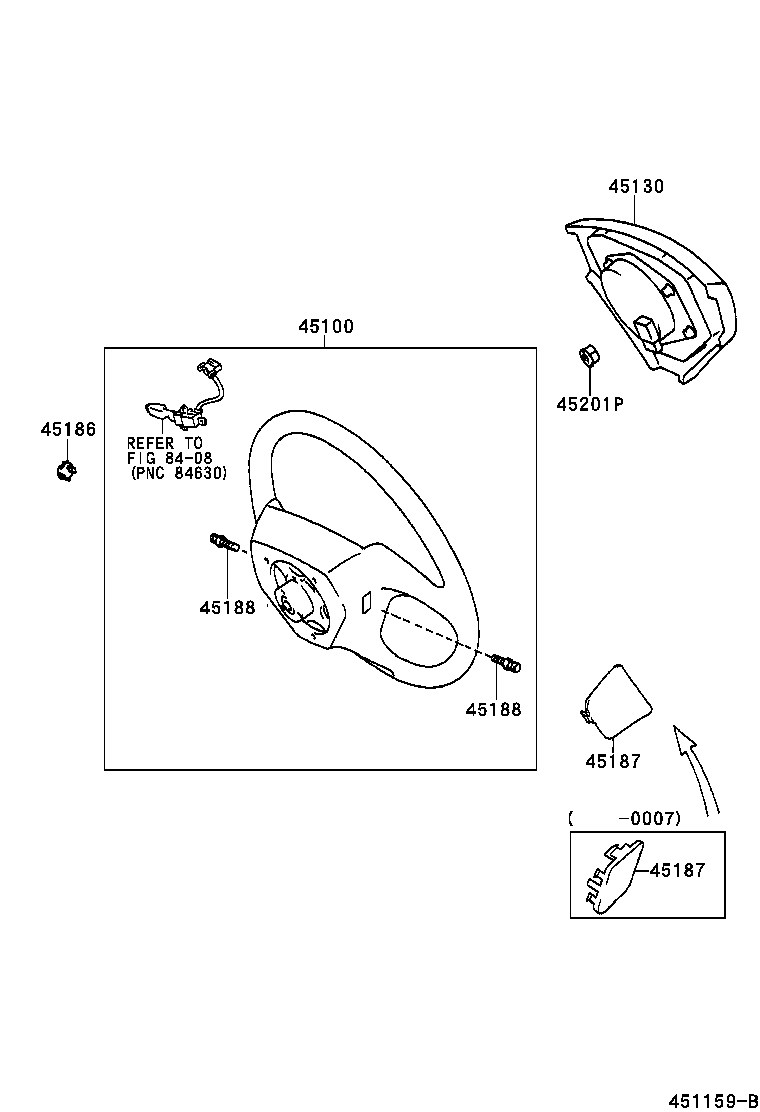

Click highlighted areas on diagram

3-SPOKE

diagram 45100 45130 45186 45187 45187 45188 45188 45201P 8408
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-48110E0

MCU1#

3-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),SANDAL WOOD,TRIM0#

 1
45100-48111C0

MCU1#

3-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),BLACK,TRIM2#

 1
45100-48030E0

MCU1#

3-SPOKE,LEATHER,SANDAL WOOD,TRIM0#

 1
45100-48230C0

MCU1#

3-SPOKE,LEATHER,SILVER SPORTS PACKAGE(USA/HAWAII/P.RICO/TAIWAN),BLACK,TRIM22

 1
45100-48260E0

MCU1#

3-SPOKE,WOOD&LEATHER,COACH EDITION(CANADA),LT.BROWN,TRIM0#

 1
45100-48111E0

MCU1#

3-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),SANDAL WOOD,TRIM0#

 1
45100-48110C0

MCU1#

3-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),BLACK,TRIM2#

 1
45100-48260E0

MCU1#

3-SPOKE,WOOD&LEATHER,COACH EDITION(USA/CANADA),LT.BROWN,TRIM0#

 1
45100-48070E0

MCU1#

3-SPOKE,LEATHER,W(CRUISE CONTROL),SANDAL WOOD,TRIM0#

 1
45100-48070C0

MCU1#

3-SPOKE,LEATHER,W(CRUISE CONTROL),BLACK,TRIM2#

 1
45100-48112E0

MCU1#

3-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM0#

 1
45100-48112C0

MCU1#

3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#

 1
45100-48030B0

MCU1#

3-SPOKE,LEATHER,SHADOW GRAY,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-48020B0

MCU1#

SHADOW GRAY,TRIM1#

 1
45130-48040C0

MCU1#

BLACK,TRIM2#

 1
45130-48040E0

MCU1#

SANDAL WOOD,TRIM0#

 1
45130-48020E0

MCU1#

SANDAL WOOD,TRIM0#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-44010E4

MCU1#

SANDAL WOOD,TRIM0#

 1
45186-44010B2

MCU1#

SHADOW GRAY,TRIM1#

 1
45186-44010C0

MCU1#

BLACK,TRIM2#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-30060B2

MCU1#

SHADOW GRAY,TRIM1#

 1
45187-48010E0

MCU1#

SANDAL WOOD,TRIM0#

 1
45187-30060E1

MCU1#

SANDAL WOOD,TRIM0#

 1
45187-48010C0

MCU1#

BLACK,TRIM2#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-30060B2

MCU1#

SHADOW GRAY,TRIM1#

 1
45187-48010E0

MCU1#

SANDAL WOOD,TRIM0#

 1
45187-30060E1

MCU1#

SANDAL WOOD,TRIM0#

 1
45187-48010C0

MCU1#

BLACK,TRIM2#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60007

MCU1#

L=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60007

MCU1#

L=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

MCU1#

 1
Linked diagrams
8408
