MCU10L-AWPGKA (1998)

Toyota Lexus Rx300

Production Jan 1998 - Feb 2003
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9801- )

Click highlighted areas on diagram

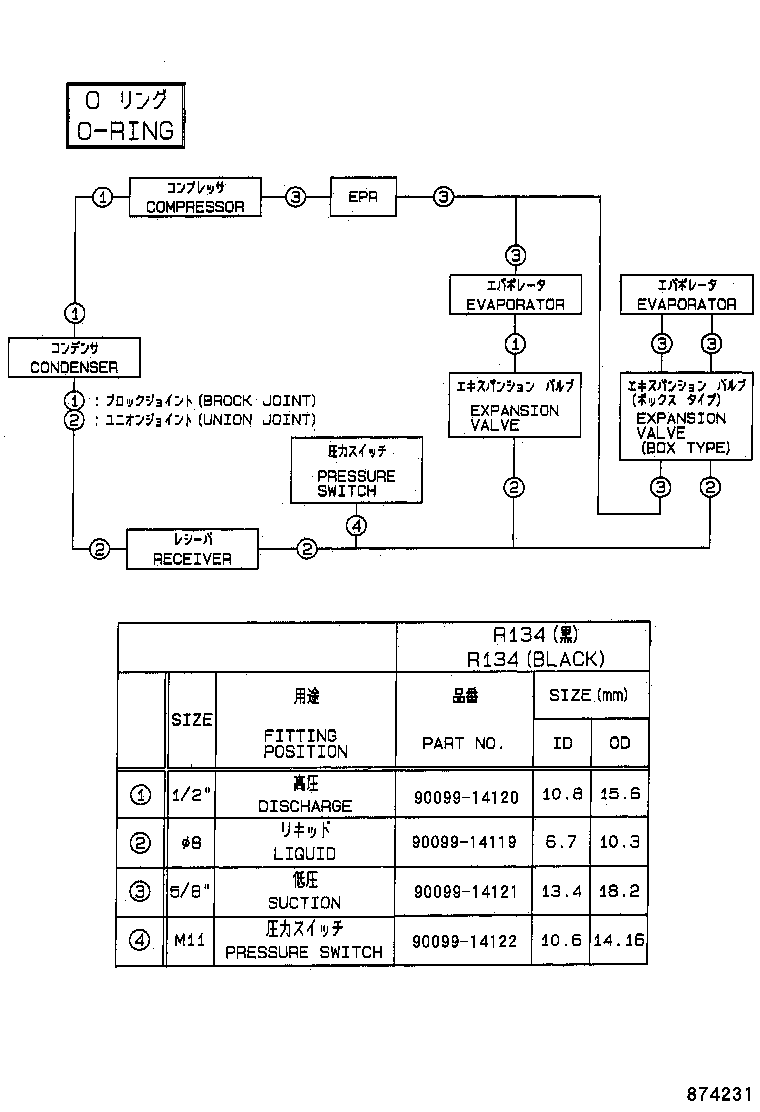

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

ILLUST NO. 1 OF 2(9801- )

Click highlighted areas on diagram

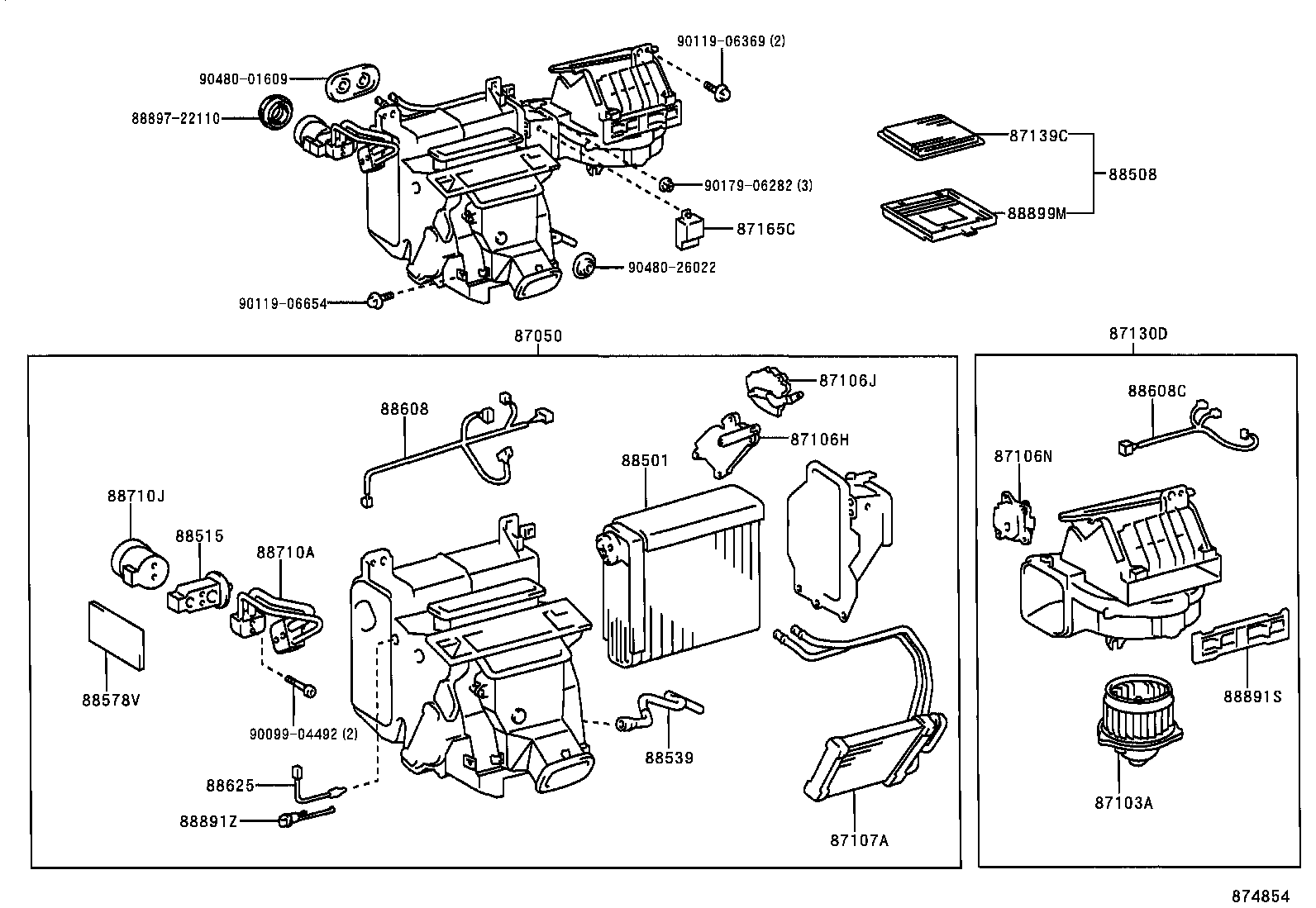

UNIT

diagram 87050 87103A 87106H 87106J 87106N 87107A 87130D 87139C 87165C 88501 88508 88515 88539 88578V 88608 88608C 88625 88710A 88710J 88891S 88891Z 8889722110 88899M 9009904492 9011906369 9011906654 9017906282 9048001609 9048026022
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-48020

MCU1#

 1
87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN
87103-30370

MCU1#

 1
87103-30390

MCU1#

 1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-48020

MCU1#

 1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-30371

MCU1#

 1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-30390

MCU1#

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-48020

MCU1#

 1
87130D - BLOWER ASSY
87130-48020

MCU1#

 1
87139C - FILTER, CLEAN AIR
87139-48020

MCU1#

 1
87165C - CONTROL, BLOWER MOTOR
87165-22050

MCU1#

 1
87165-22040

MCU1#

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-48010

MCU1#

 1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-48020

MCU1#

 1
88515 - VALVE, COOLER EXPANSION
88515-48040

MCU1#

 1
88515-48010

MCU1#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-48020

MCU1#

 1
88578V - PACKING, COOLING UNIT, NO.3
88578-48080

MCU1#

 1
88608 - HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88608-48011

MCU1#

 1
88608C - HARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2
88608-48020

MCU1#

 1
88625 - THERMISTOR, COOLER, NO.1
88625-48010

MCU1#

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-48030

MCU1#

 1
88710J - TUBE, AIR CONDITIONER CONNECTOR
88899-48020

MCU1#

 1
88891S - COVER, COOLER, NO.1
88891-30680

MCU1#

 1
88891Z - BRACKET, COOLER THERMISTOR
88891-44050

MCU1#

 1
88891-20240

MCU1#

 1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-30870

MCU1#

 1
Common parts
88897-22110
90099-04492
90119-06369
90119-06654
90179-06282
90480-01609
90480-26022
