MCU10L-AWPGKA (1998)

Toyota Lexus Rx300

Production Jan 1998 - Feb 2003
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9801- )

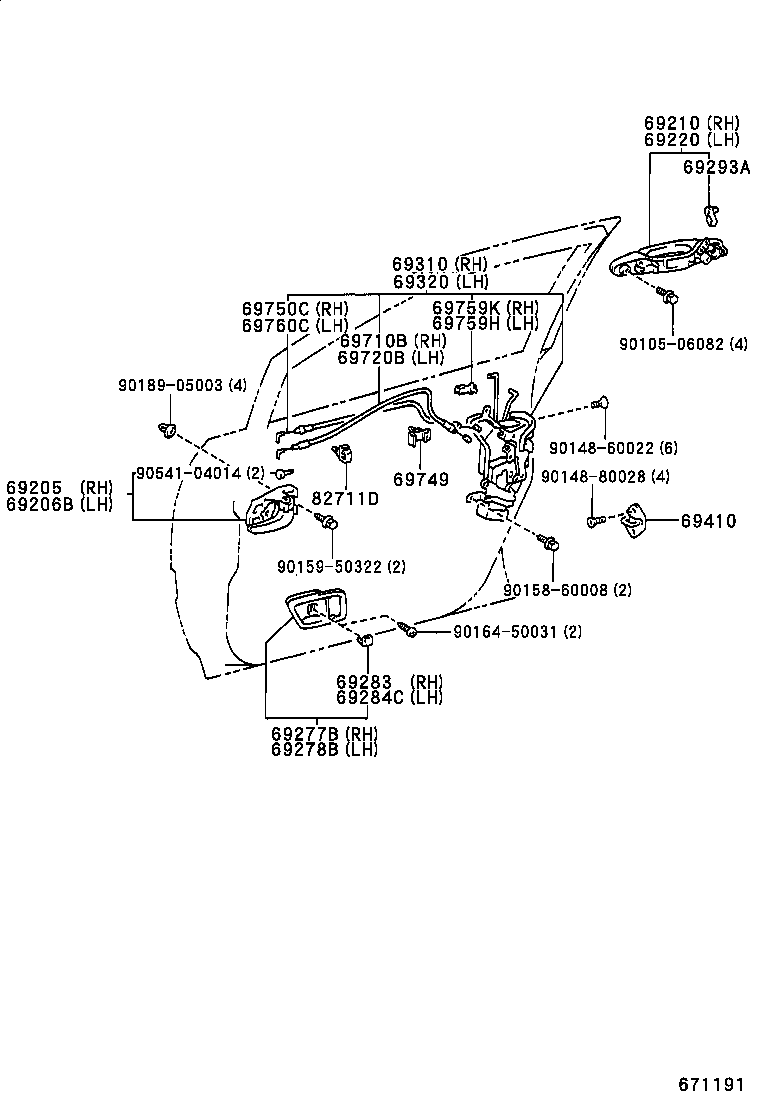

Click highlighted areas on diagram

diagram 69205 69206B 69210 69220 69277B 69278B 69283 69284C 69293A 69310 69320 69410 69710B 69720B 69749 69750C 69759H 69759K 69760C 82711D 9010506082 9014860022 9014880028 9015860008 9015950322 9016450031 9018905003 9054104014
Part # Description Qty Price
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-30150B2

MCU1#

MD.GRAY,TRIM1#

 1
69205-30150B5

MCU1#

BLUE GRAY,TRIM1#

 1
69205-48010A0

MCU1#

IVORY,TRIM0#

 1
69205-30150A1

MCU1#

IVORY,TRIM0#

 1
69205-48010C0

MCU1#

BLACK,TRIM2#

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-30150A1

MCU1#

IVORY,TRIM0#

 1
69206-30150B2

MCU1#

MD.GRAY,TRIM1#

 1
69206-48010A0

MCU1#

IVORY,TRIM0#

 1
69206-48010C0

MCU1#

BLACK,TRIM2#

 1
69206-30150B5

MCU1#

BLUE GRAY,TRIM1#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-48010D0

MCU1#

RED MC.,3M8

 1
69210-48010A0

MCU1#

WHITE PM.,057

 1
69210-48010B0

MCU1#

SILVER ME.,1C0

 1
69210-48010G1

MCU1#

GRAYISH GREEN M.M.OP,6R6

 1
69210-48010G0

MCU1#

GREEN MC.,6R1

 1
69210-48010E1

MCU1#

BROWN ME.,4P3

 1
69210-48030D1

MCU1#

RED MC.,3M8

 1
69210-48030B0

MCU1#

SILVER ME.,1C0

 1
69210-48030B1

MCU1#

COACH EDITION(CANADA),DK.GRAY M.M.,1C6

 1
69210-48010C0

MCU1#

BLACK,202

 1
69210-48010E0

MCU1#

BEIGE SF.,4P2

 1
69210-48030A1

MCU1#

WHITE PM.,057

 1
69210-48030A0

MCU1#

WHITE PEARL CS.,065

 1
69210-48030J1

MCU1#

GRAYISH BLUE ME.,8P6

 1
69210-48010J1

MCU1#

BLUE M.M.,8M8

 1
69210-48030D0

MCU1#

ROSE M.M.,3P4

 1
69210-48030A4

MCU1#

COACH EDITION(USA/CANADA),WHITE PEARL CS,062

 1
69210-48030B1

MCU1#

COACH EDITION(USA/CANADA),DK.GRAY M.M.,1C6

 1
69210-48030J0

MCU1#

DK.BLUE M.M.,8P4

 1
69210-48030G1

MCU1#

GRAYISH GREEN M.M.OP,6R6

 1
69210-48030E0

MCU1#

BEIGE SF.,4P2

 1
69210-48030G0

MCU1#

GREEN MC.,6R1

 1
69210-48030C0

MCU1#

BLACK,202

 1
69210-48030A4

MCU1#

COACH EDITION(CANADA),WHITE PEARL CS,062

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-48010E1

MCU1#

BROWN ME.,4P3

 1
69220-48010A0

MCU1#

WHITE PM.,057

 1
69220-48010J1

MCU1#

BLUE M.M.,8M8

 1
69220-48010B0

MCU1#

SILVER ME.,1C0

 1
69220-48010E0

MCU1#

BEIGE SF.,4P2

 1
69220-48030A4

MCU1#

COACH EDITION(CANADA),WHITE PEARL CS,062

 1
69220-48010D0

MCU1#

RED MC.,3M8

 1
69220-48030A1

MCU1#

WHITE PM.,057

 1
69220-48010G1

MCU1#

GRAYISH GREEN M.M.OP,6R6

 1
69220-48010G0

MCU1#

GREEN MC.,6R1

 1
69220-48030B1

MCU1#

COACH EDITION(USA/CANADA),DK.GRAY M.M.,1C6

 1
69220-48030A0

MCU1#

WHITE PEARL CS.,065

 1
69220-48030D1

MCU1#

RED MC.,3M8

 1
69220-48030G0

MCU1#

GREEN MC.,6R1

 1
69220-48030A4

MCU1#

COACH EDITION(USA/CANADA),WHITE PEARL CS,062

 1
69220-48010C0

MCU1#

BLACK,202

 1
69220-48030G1

MCU1#

GRAYISH GREEN M.M.OP,6R6

 1
69220-48030B0

MCU1#

SILVER ME.,1C0

 1
69220-48030C0

MCU1#

BLACK,202

 1
69220-48030J1

MCU1#

GRAYISH BLUE ME.,8P6

 1
69220-48030D0

MCU1#

ROSE M.M.,3P4

 1
69220-48030E0

MCU1#

BEIGE SF.,4P2

 1
69220-48030B1

MCU1#

COACH EDITION(CANADA),DK.GRAY M.M.,1C6

 1
69220-48030J0

MCU1#

DK.BLUE M.M.,8P4

 1
69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH
69277-30150B4

MCU1#

MD.GRAY,TRIM1#

 1
69277-30150A0

MCU1#

IVORY,TRIM0#

 1
69277-22090C0

MCU1#

BLACK,TRIM2#

 1
69277-30150B6

MCU1#

BLUE GRAY,TRIM1#

 1
69277-22090A1

MCU1#

IVORY,TRIM0#

 1
69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH
69278-30080A0

MCU1#

IVORY,TRIM0#

 1
69278-30080B6

MCU1#

BLUE GRAY,TRIM1#

 1
69278-30080B4

MCU1#

MD.GRAY,TRIM1#

 1
69278-22050C0

MCU1#

BLACK,TRIM2#

 1
69278-22050A1

MCU1#

IVORY,TRIM0#

 1
69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
69283-30040B6

MCU1#

MD.GRAY,TRIM1#

 1
69283-30040C0

MCU1#

BLACK,TRIM2#

 1
69283-30040A1

MCU1#

IVORY,TRIM0#

 1
69283-30040B3

MCU1#

MD. MOON MIST,TRIM1#

 1
69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69284-30040C0

MCU1#

BLACK,TRIM2#

 1
69284-30040B3

MCU1#

MD.MOON MIST,TRIM1#

 1
69284-30040A1

MCU1#

IVORY,TRIM0#

 1
69284-30040B6

MCU1#

MD.GRAY,TRIM1#

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12050

MCU1#

NATURAL

 1
69293-12060

MCU1#

YELLOW

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69030-48020

MCU1#

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69040-48020

MCU1#

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-47010

MCU1#

 2
69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69710-48010

MCU1#

 1
69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69710-48010

MCU1#

 1
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-30050

MCU1#

 2
69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69750-48010

MCU1#

 1
69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2
69759-24050

MCU1#

 1
69759K - SNAP, DOOR LOCK CONTROL LINK
69759-24060

MCU1#

 1
69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH
69750-48010

MCU1#

 1
82711D - CLAMP, WIRING HARNESS
82711-16790

MCU1#

 2
82711-1E260

MCU1#

 2
Common parts
90105-06082
90148-60022
90148-80028
90158-60008
90159-50322
90164-50031
90189-05003
90541-04014
