MCU10L-AWPGKA (1998)

Toyota Lexus Rx300

Production Jan 1998 - Feb 2003
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9801- )

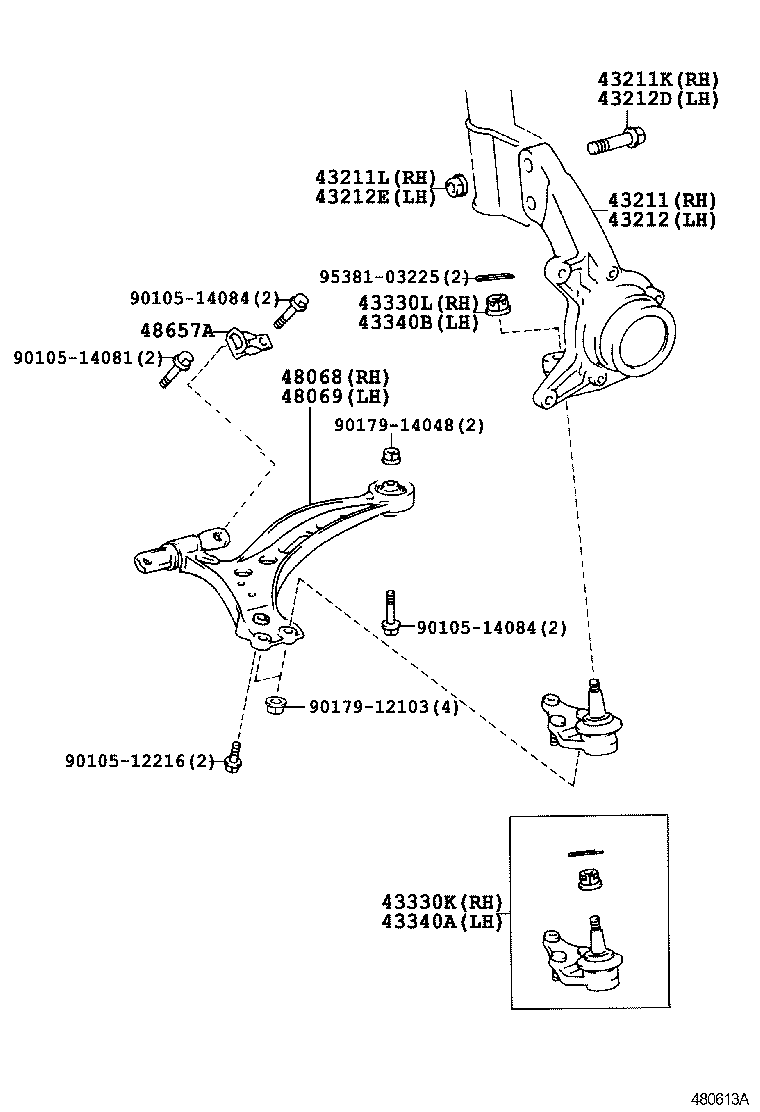

Click highlighted areas on diagram

diagram 43211 43211K 43211L 43212 43212D 43212E 43330K 43330L 43340A 43340B 48068 48069 48657A 9010512216 9010514081 9010514084 9010514084 9017912103 9017914048 9538103225
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-33070

MCU1#

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-17004

MCU1#

OD=15

 1
90105-17005

MCU1#

OD=14

 1
90105-17001

MCU1#

OD=17

 2
90105-17003

MCU1#

OD=15.9

 1
43211L - NUT (FOR STEERING KNUCKLE RH)
90179-17001

MCU1#

 2
43212 - KNUCKLE, STEERING, LH
43212-33070

MCU1#

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-17001

MCU1#

OD=17

 2
90105-17005

MCU1#

OD=14

 1
90105-17003

MCU1#

OD=15.9

 1
90105-17004

MCU1#

OD=15

 1
43212E - NUT (FOR STEERING KNUCKLE LH)
90179-17001

MCU1#

 2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-39435

MCU1#

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14003

MCU1#

 1
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43330-39435

MCU1#

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14003

MCU1#

 1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-48010

MCU1#

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-48010

MCU1#

 1
48657A - STOPPER, FRONT LOWER ARM BUSH
48657-33020

MCU1#

 2
Common parts
90105-12216
90105-14081
90105-14084
90179-12103
90179-14048
95381-03225
