MCU10L-AWPGKA (1998)
Toyota Lexus Rx300
Production
Jan 1998
-
Feb 2003
Engine
1MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

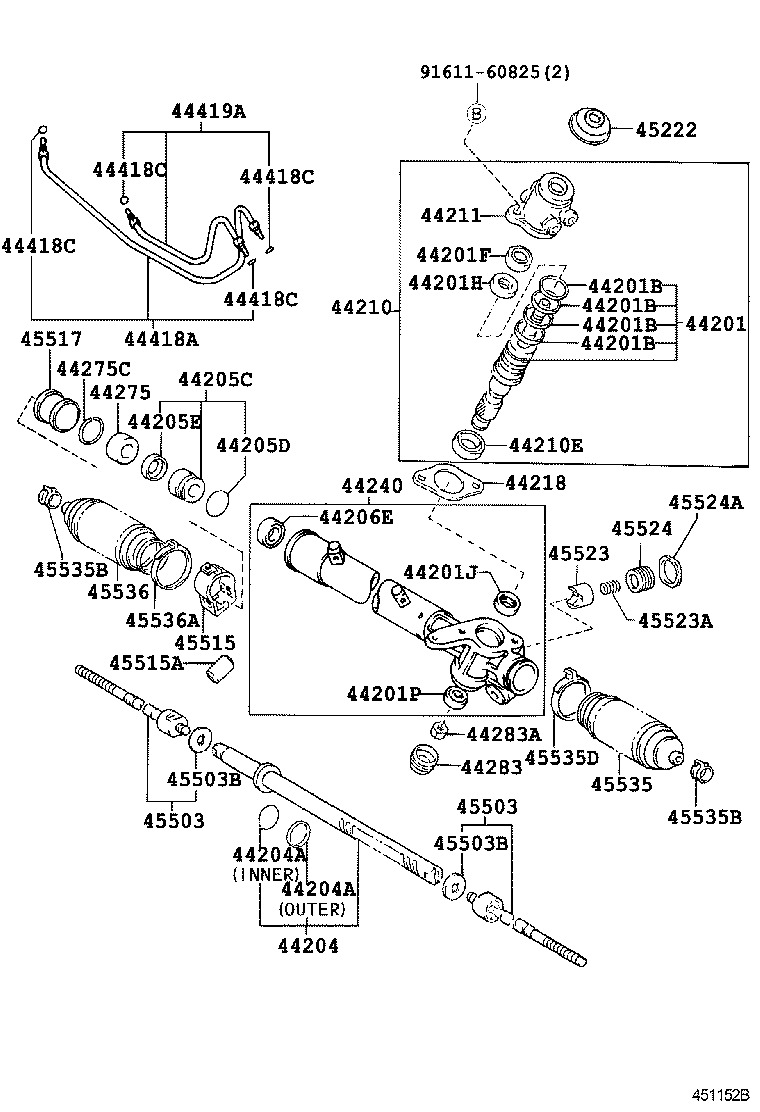

ILLUST NO. 2 OF 2(9801-0007)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-48021 |
MCU1# |
1 | ||
| 44201-48020 |
MCU1# |
1 | ||
| 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-33003 |
MCU1# |
4 | ||
| 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-33003 |
MCU1# |
4 | ||
| 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-33003 |
MCU1# |
4 | ||
| 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-33003 |
MCU1# |
4 | ||
| 44201F - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19010 |
MCU1# |
1 | ||
| 44201H - BEARING(FOR POWER STEERING CONTROL VALVE UPPER) | ||||
| 90365-19001 |
MCU1# |
1 | ||
| 90363-19007 |
MCU1# |
1 | ||
| 44201J - BEARING(FOR POWER STEERING CONTROL VALVE CENTER) | ||||
| 90364-25014 |
MCU1# |
1 | ||
| 44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER) | ||||
| 90363-12013 |
MCU1# |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-48020 |
MCU1# |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-36008 |
MCU1# INNER |
1 | ||
| 90562-40003 |
MCU1# OUTER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-36008 |
MCU1# INNER |
1 | ||
| 90562-40003 |
MCU1# OUTER |
1 | ||
| 44205C - BUSH SUB-ASSY, POWER STEERING RACK | ||||
| 44205-33010 |
MCU1# |
1 | ||
| 44205D - RING, O(FOR POWER STEERING RACK BUSH) | ||||
| 90301-36009 |
MCU1# |
1 | ||
| 44205E - SEAL, OIL(FOR POWER STEERING RACK BUSH) | ||||
| 90311-27001 |
MCU1# (J) |
1 | ||
| 90080-31010 |
MCU1# (L) |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90311-27006 |
MCU1# |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-48021 |
MCU1# |
1 | ||
| 44210-48020 |
MCU1# |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-26003 |
MCU1# |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-33011 |
MCU1# |
1 | ||
| 44211-33010 |
MCU1# |
1 | ||
| 44218 - GASKET, VALVE HOUSING | ||||
| 44218-12020 |
MCU1# |
1 | ||
| 44240 - HOUSING ASSY, POWER STEERING RACK | ||||
| 44240-48020 |
MCU1# |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-33020 |
MCU1# |
1 | ||
| 44275C - WIRE(FOR CYLINDER END STOPPER) | ||||
| 90580-18002 |
MCU1# |
1 | ||
| 44283 - CAP, RACK HOUSING | ||||
| 44283-33010 |
MCU1# |
1 | ||
| 44283A - NUT(FOR RACK HOUSING CAP) | ||||
| 90179-10048 |
MCU1# |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-48020 |
MCU1# |
1 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90301-03001 |
MCU1# |
4 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90301-03001 |
MCU1# |
4 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90301-03001 |
MCU1# |
4 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90301-03001 |
MCU1# |
4 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-48020 |
MCU1# |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-33010 |
MCU1# |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-49025 |
MCU1# |
2 | ||
| 45503-49095 |
MCU1# |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-49025 |
MCU1# |
2 | ||
| 45503-49095 |
MCU1# |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14002 |
MCU1# OD=37 |
2 | ||
| 90214-14009 |
MCU1# OD=35.2 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14002 |
MCU1# OD=37 |
2 | ||
| 90214-14009 |
MCU1# OD=35.2 |
2 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-33011 |
MCU1# |
1 | ||
| 45515A - COLLAR, STEERING RACK HOUSING BRACKET | ||||
| 90386-15004 |
MCU1# |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-33021 |
MCU1# |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45504-06010 |
MCU1# (L) |
1 | ||
| 45504-33010 |
MCU1# (J) |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-26075 |
MCU1# |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-33020 |
MCU1# |
1 | ||
| 45524-33010 |
MCU1# |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
MCU1# |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-07010 |
MCU1# (L) |
1 | ||
| 45535-33020 |
MCU1# (J) |
1 | ||
| 45535-06020 |
MCU1# (L) |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19017 |
MCU1# |
2 | ||
| 90467-19021 |
MCU1# |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19017 |
MCU1# |
2 | ||
| 90467-19021 |
MCU1# |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-58006 |
MCU1# |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-07010 |
MCU1# (L) |
1 | ||
| 45535-06020 |
MCU1# (L) |
1 | ||
| 45535-33020 |
MCU1# (J) |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-58006 |
MCU1# |
1 | ||
| Common parts | ||||
| 91611-60825 | ||||

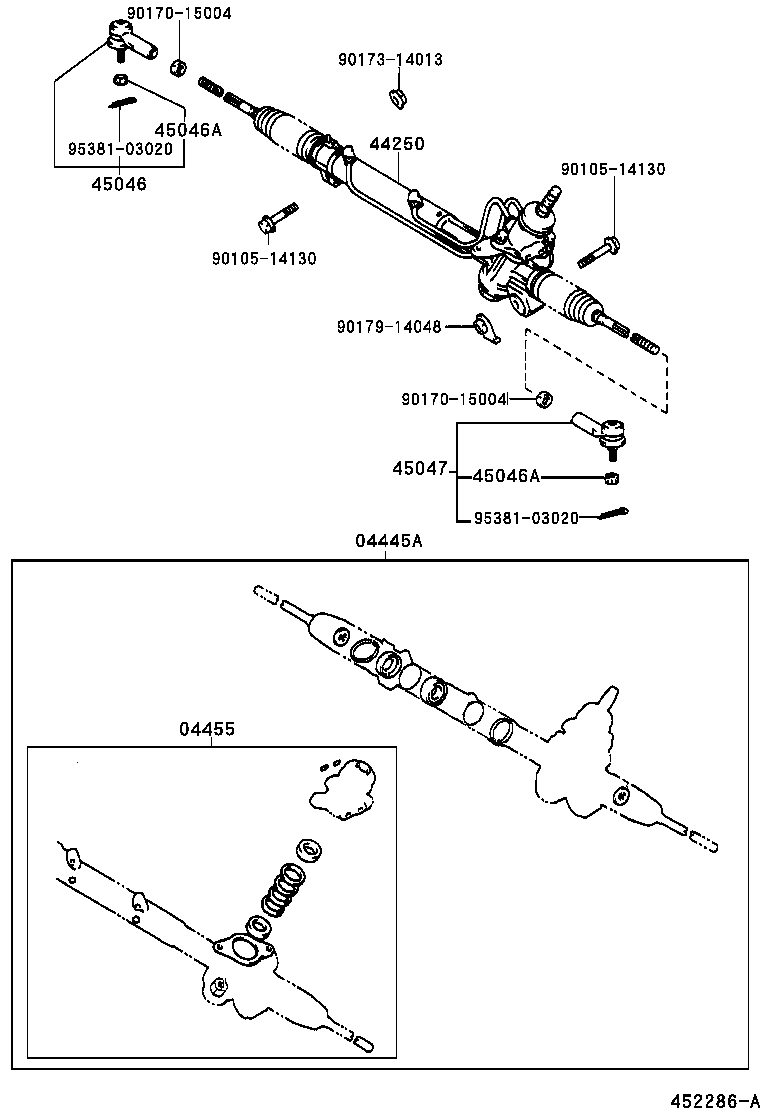

ILLUST NO. 1 OF 2(9801-0007)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-48030 |
MCU1# |
1 | ||
| 04445-33080 |
MCU1# |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-33020 |
MCU1# |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-48041 |
MCU1# |
1 | ||
| 44250-48021 |
MCU1# |
1 | ||
| 44250-48040 |
MCU1# |
1 | ||
| 44250-48020 |
MCU1# |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29255 |
MCU1# |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
MCU1# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
MCU1# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-29255 |
MCU1# |
1 | ||
| Common parts | ||||
| 90105-14130 | ||||
| 90170-15004 | ||||
| 90173-14013 | ||||
| 90179-14048 | ||||
| 95381-03020 | ||||

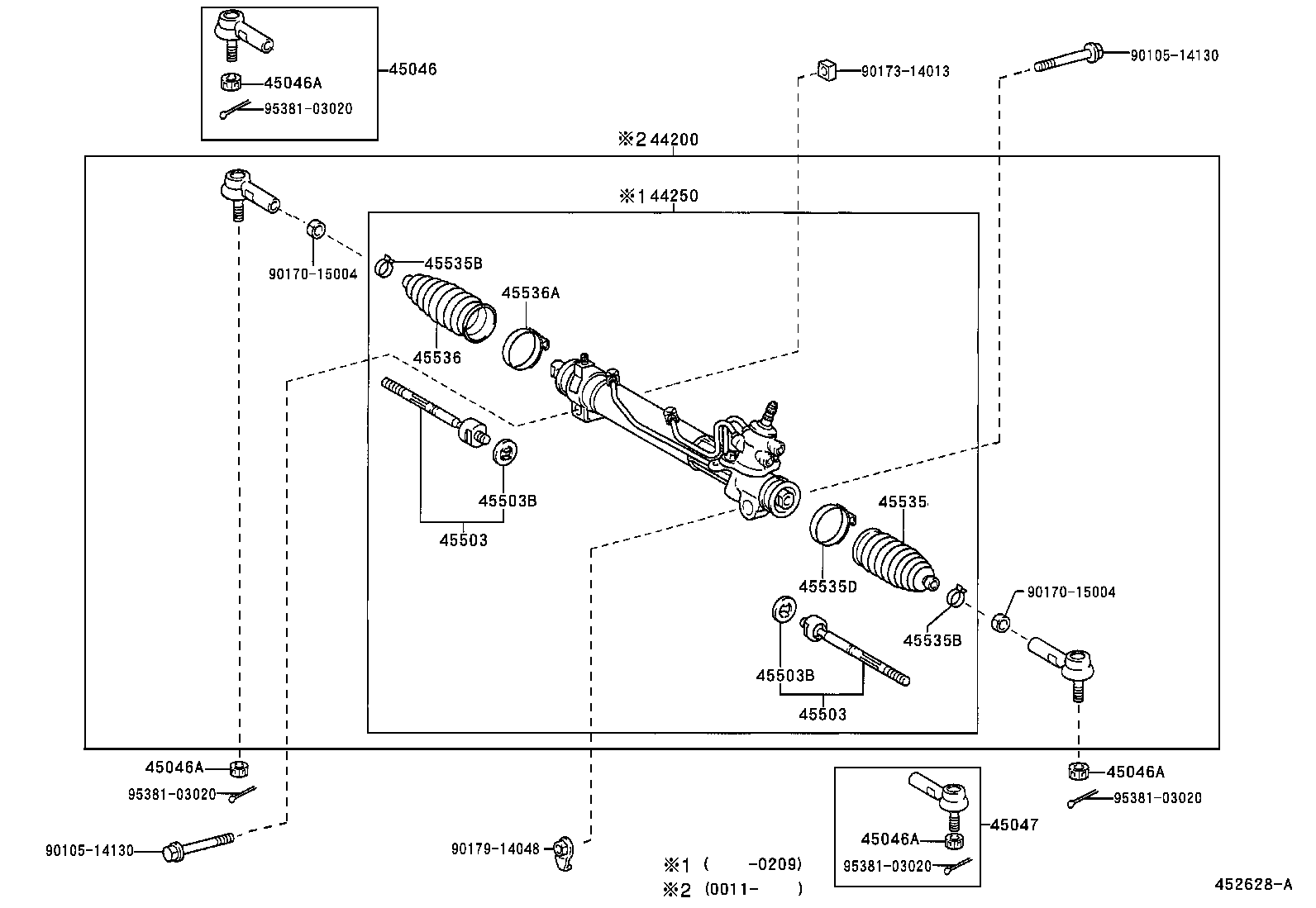

ILLUST NO. 1 OF 2(0007- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44200 - LINK ASSY, POWER STEERING | ||||
| 44200-48041 |
MCU1# |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-48041 |
MCU1# |
1 | ||
| 44250-48021 |
MCU1# |
1 | ||
| 44250-48040 |
MCU1# |
1 | ||
| 44250-48020 |
MCU1# |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29255 |
MCU1# |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
MCU1# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
MCU1# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
MCU1# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
MCU1# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-29255 |
MCU1# |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-49025 |
MCU1# |
2 | ||
| 45503-49095 |
MCU1# |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-49025 |
MCU1# |
2 | ||
| 45503-49095 |
MCU1# |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14002 |
MCU1# OD=37 |
2 | ||
| 90214-14009 |
MCU1# OD=35.2 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14002 |
MCU1# OD=37 |
2 | ||
| 90214-14009 |
MCU1# OD=35.2 |
2 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-07010 |
MCU1# (L) |
1 | ||
| 45535-33020 |
MCU1# (J) |
1 | ||
| 45535-06020 |
MCU1# (L) |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19017 |
MCU1# |
2 | ||
| 90467-19021 |
MCU1# |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19017 |
MCU1# |
2 | ||
| 90467-19021 |
MCU1# |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-58006 |
MCU1# |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-07010 |
MCU1# (L) |
1 | ||
| 45535-06020 |
MCU1# (L) |
1 | ||
| 45535-33020 |
MCU1# (J) |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-58006 |
MCU1# |
1 | ||
| Common parts | ||||
| 90105-14130 | ||||
| 90170-15004 | ||||
| 90173-14013 | ||||
| 90179-14048 | ||||
| 95381-03020 | ||||

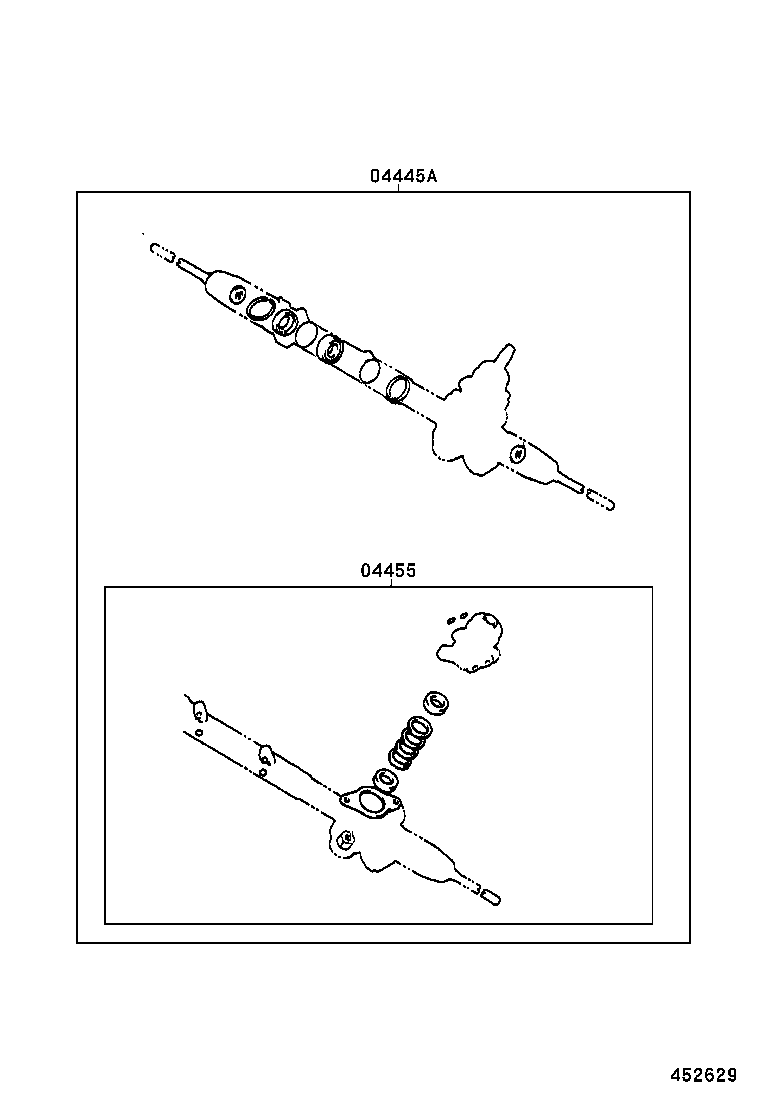

ILLUST NO. 2 OF 2(0007- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-48030 |
MCU1# |
1 | ||
| 04445-33080 |
MCU1# |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-33020 |
MCU1# |
1 | ||
