MCU10L-AWPGKA (1998)
Toyota Lexus Rx300
Production
Jan 1998
-
Feb 2003
Engine
1MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 5(9801-0007)
Click highlighted areas on diagram
U140E,U140F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35211D - SLEEVE, LOCK UP CONTROL VALVE | ||||
| 35211-21010 |
MCU1# |
1 | ||
| 35212 - VALVE, LOCK UP RELAY | ||||
| 35212-21010 |
MCU1# |
1 | ||
| 35212A - SEAT, PLUG (FOR LOCK UP RELAY VALVE) | ||||
| 90339-04058 |
MCU1# |
1 | ||
| 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) | ||||
| 90501-09033 |
MCU1# |
1 | ||
| 35214 - VALVE, LOCK UP CONTROL | ||||
| 35214-21010 |
MCU1# |
1 | ||
| 35214A - KEY, STRAIGHT (FOR LOCK UP CONTROL VALVE) | ||||
| 90282-03027 |
MCU1# |
1 | ||
| 35214C - SPRING, COMPRESSION (FOR LOCK UP CONTROL VALVE) | ||||
| 90501-06094 |
MCU1# |
1 | ||
| 35218A - KEY, STRAIGHT (FOR LOCK UP RELAY VALVE PLUG) | ||||
| 90282-03027 |
MCU1# |
1 | ||
| 35219D - PLUNGER, LOCK UP CONTROL VALVE | ||||
| 35219-21010 |
MCU1# |
1 | ||
| 35275 - VALVE, SOLENOID MODULATOR | ||||
| 35275-21010 |
MCU1# |
1 | ||
| 35275A - SPRING, COMPRESSION (FOR SOLENOID MODULATOR VALVE) | ||||
| 90501-13045 |
MCU1# |
1 | ||
| 35275B - PLUG (FOR SOLENOID MODULATOR VALVE) | ||||
| 90339-04058 |
MCU1# |
1 | ||
| 35275C - KEY, STRAIGHT | ||||
| 90282-03018 |
MCU1# |
1 | ||
| 35284D - VALVE, C-2 EXHAUST CHECK | ||||
| 35284-21010 |
MCU1# |
1 | ||
| 35284E - KEY, STRAIGHT (FOR C-2 EXHAUST CHECK VALVE) | ||||
| 90282-03018 |
MCU1# |
1 | ||
| 35284F - PLUG (FOR C-2 EXHAUST CHECK VALVE) | ||||
| 90339-04058 |
MCU1# |
1 | ||
| 35284G - SPRING, COMPRESSION (FOR C-2 EXHAUST CHECK VALVE) | ||||
| 90501-05048 |
MCU1# |
1 | ||
| 35284H - SPRING, COMPRESSION (FOR C-2 LOCK VALVE) | ||||
| 90501-20144 |
MCU1# OUTER |
1 | ||
| 90501-13046 |
MCU1# INNER |
1 | ||
| 35284H - SPRING, COMPRESSION (FOR C-2 LOCK VALVE) | ||||
| 90501-20144 |
MCU1# OUTER |
1 | ||
| 90501-13046 |
MCU1# INNER |
1 | ||
| 35286 - VALVE, B-1 LOCK | ||||
| 35286-21010 |
MCU1# |
1 | ||
| 35286A - PLUG (FOR B-1 LOCK VALVE) | ||||
| 90339-04058 |
MCU1# |
1 | ||
| 35286B - KEY, STRAIGHT (FOR B-1 LOCK VALVE) | ||||
| 90282-03018 |
MCU1# |
1 | ||
| 35286C - SPRING, COMPRESSION (FOR B-1 LOCK VALVE) | ||||
| 90501-06096 |
MCU1# |
1 | ||
| 35286D - SPRING, COMPRESSION (FOR B-1 LOCK VALVE) | ||||
| 90501-21026 |
MCU1# OUTER |
1 | ||
| 90501-15024 |
MCU1# INNER |
1 | ||
| 35286D - SPRING, COMPRESSION (FOR B-1 LOCK VALVE) | ||||
| 90501-21026 |
MCU1# OUTER |
1 | ||
| 90501-15024 |
MCU1# INNER |
1 | ||
| 35287 - VALVE, C-2 LOCK | ||||
| 35287-21010 |
MCU1# |
1 | ||
| 35287A - KEY, STRAIGHT (FOR C-2 LOCK VALVE) | ||||
| 90282-03027 |
MCU1# |
1 | ||
| 35287B - PLUG (FOR C-2 LOCK VALVE) | ||||
| 90339-04058 |
MCU1# |
1 | ||
| 35287C - SPRING, COMPRESSION (FOR C-2 LOCK VALVE) | ||||
| 90501-06093 |
MCU1# |
1 | ||
| 35419D - VALVE, CHECK, NO.2 | ||||
| 35419-50030 |
MCU1# |
1 | ||
| 35419E - VALVE, CHECK, NO.3 | ||||
| 35419-50020 |
MCU1# |
1 | ||
| 35419F - BALL, CHECK VALVE | ||||
| 90360-06004 |
MCU1# |
1 | ||
| 35425F - VALVE, ACCUMULATOR | ||||
| 35425-21010 |
MCU1# |
2 | ||
| 35425F - VALVE, ACCUMULATOR | ||||
| 35425-21010 |
MCU1# |
2 | ||
| 35425G - RING, SNAP (FOR ACCUMULATOR VALVE) | ||||
| 96151-02500 |
MCU1# |
2 | ||
| 35425G - RING, SNAP (FOR ACCUMULATOR VALVE) | ||||
| 96151-02500 |
MCU1# |
2 | ||
| 35466K - VALVE, CLUTCH APPLY CONTROL | ||||
| 35466-21010 |
MCU1# |
1 | ||
| 35466L - SPRING, COMPRESSION (FOR CLUTCH APPLY CONTROL VALVE) | ||||
| 90501-06092 |
MCU1# |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-21010 |
MCU1# |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-12177 |
MCU1# |
1 | ||
| 35468E - KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE) | ||||
| 90282-03018 |
MCU1# |
1 | ||
| 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) | ||||
| 90339-04060 |
MCU1# |
1 | ||
| 35469M - SPACER (FOR ACCUMULATOR VALVE) | ||||
| 35469-21010 |
MCU1# |
2 | ||
| 35469M - SPACER (FOR ACCUMULATOR VALVE) | ||||
| 35469-21010 |
MCU1# |
2 | ||
| 35476H - PLUNGER, CLUTCH APPLY CONTROL VALVE | ||||
| 35476-21010 |
MCU1# |
1 | ||
| 35489M - VALVE, B-3 ORIFICE CONTROL | ||||
| 35489-21010 |
MCU1# |
1 | ||
| 35489N - KEY, STRAIGHT (FOR B-3 ORIFICE CONTROL VALVE) | ||||
| 35478-21010 |
MCU1# |
1 | ||
| 35489Q - SPRING, COMPRESSION (FOR B-3 ORIFICE CONTROL VALVE) | ||||
| 90501-05047 |
MCU1# |
1 | ||
| 35492G - SLEEVE, CLUTCH APPLY CONTROL VALVE | ||||
| 35492-21010 |
MCU1# |
1 | ||
| 35492H - PIN, STRAIGHT (FOR CLUTCH APPLY CONTROL VALVE) | ||||
| 90250-03092 |
MCU1# |
1 | ||
| 35493V - SEAT, CHECK VALVE, NO.2 | ||||
| 90282-03018 |
MCU1# |
1 | ||
ILLUST NO. 3 OF 5(9801-0007)
Click highlighted areas on diagram
U140E,U140F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35415F - VALVE, PRIMARY REGULATOR | ||||
| 35415-21010 |
MCU1# |
1 | ||
| 35415H - SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE) | ||||
| 90501-16155 |
MCU1# |
1 | ||
| 35415Q - SPACER (FOR PRIMARY REGULATOR VALVE) | ||||
| 90560-07028 |
MCU1# |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-21010 |
MCU1# |
1 | ||
| 35417A - SLEEVE, PRIMARY REGULATOR VALVE | ||||
| 35417-21010 |
MCU1# |
1 | ||
| 35417B - PIN, STRAIGHT (FOR PRIMARY REGULATOR VALVE SLEEVE) | ||||
| 90250-03093 |
MCU1# |
1 | ||
| 35417C - PLUG(FOR PRIMARY REGULATOR VALVE) | ||||
| 90339-06020 |
MCU1# |
1 | ||
| 35445K - VALVE, B-2 CONTROL | ||||
| 35445-21010 |
MCU1# |
1 | ||
| 35445L - KEY, STRAIGHT (FOR B-2 CONTROL VALVE) | ||||
| 90282-03026 |
MCU1# |
1 | ||
| 35445M - PLUG (FOR B-2 CONTROL VALVE) | ||||
| 90339-04058 |
MCU1# |
1 | ||
| 35445N - SPRING, COMPRESSION (FOR B-2 CONTROL VALVE) | ||||
| 90501-06095 |
MCU1# |
1 | ||
| 35456H - VALVE, C-2 CONTROL | ||||
| 35456-21010 |
MCU1# |
1 | ||
| 35456J - KEY, STRAIGHT (FOR C-2 CONTROL VALVE) | ||||
| 90282-03026 |
MCU1# |
1 | ||
| 35456K - PLUG (FOR C-2 CONTROL VALVE) | ||||
| 90339-04059 |
MCU1# |
1 | ||
| 35456L - SPRING, COMPRESSION (FOR C-2 CONTROL VALVE) | ||||
| 90501-09137 |
MCU1# |
1 | ||
| 35464F - VALVE, B-1 CONTROL | ||||
| 35464-21010 |
MCU1# |
1 | ||
| 35464G - KEY, STRAIGHT (FOR B-1 CONTROL VALVE) | ||||
| 90282-03026 |
MCU1# |
1 | ||
| 35464H - PLUG (FOR B-1 CONTROL VALVE) | ||||
| 90339-04060 |
MCU1# |
1 | ||
| 35464J - SPRING, COMPRESSION (FOR B-1 CONTROL VALVE) | ||||
| 90501-07124 |
MCU1# |
1 | ||
| 35486B - SEAT, PRESSURE RELIEF VALVE SPRING | ||||
| 35486-21010 |
MCU1# |
1 | ||
| 35486C - SPRING, COMPRESSION(FOR PRESSURE RELIFE VALVE) | ||||
| 90501-15013 |
MCU1# |
1 | ||
| 35486D - BALL (FOR PRESSURE RELIFE VALVE) | ||||
| 90360-10006 |
MCU1# |
1 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-21010 |
MCU1# |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-09033 |
MCU1# |
1 | ||
| 35497F - KEY, STRAIGHT (FOR 3-4 SHIFT VALVE) | ||||
| 35479-21010 |
MCU1# |
1 | ||
| Common parts | ||||
| 90105-05023 | ||||

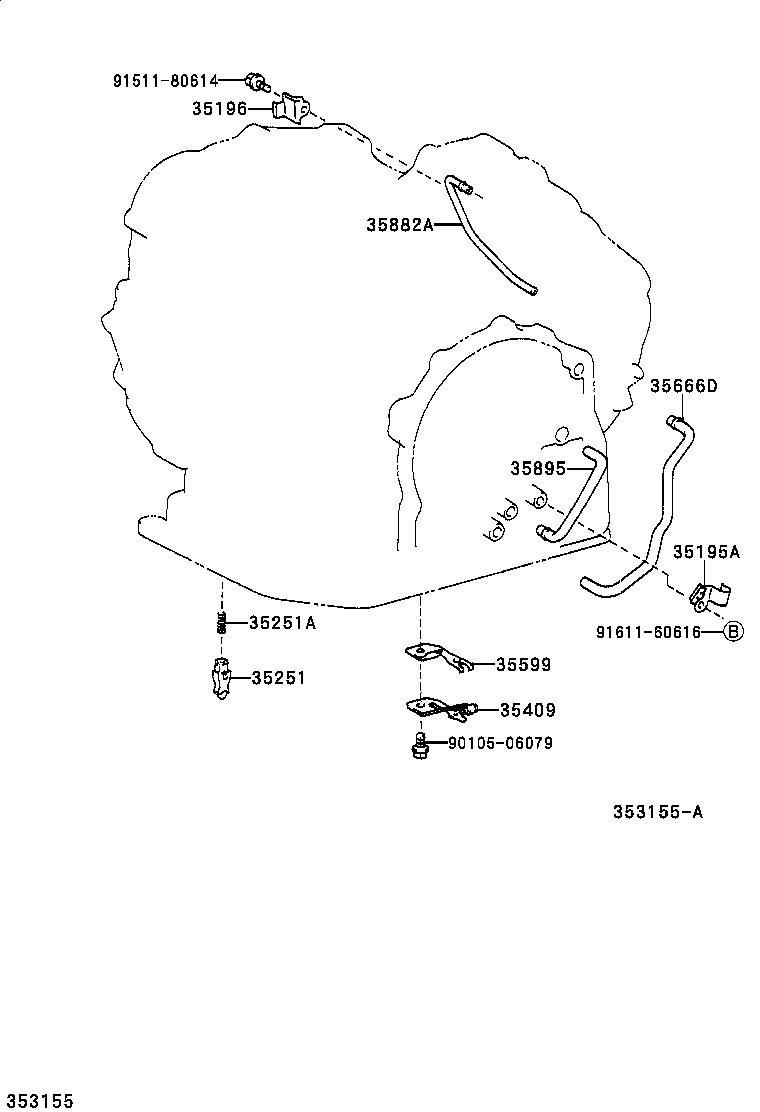

ILLUST NO. 4 OF 5(9801-0007)
Click highlighted areas on diagram
U140E,U140F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35195A - CLAMP, TRANSAXLE APPLY TUBE, NO.1 | ||||
| 35195-21010 |
MCU1# |
1 | ||
| 35196 - CLAMP, TRANSAXLE APPLY TUBE, NO.2 | ||||
| 35196-21010 |
MCU1# |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
MCU1# |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
MCU1# |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-21010 |
MCU1# |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-21010 |
MCU1# |
1 | ||
| 35666D - TUBE, BRAKE APPLY | ||||
| 35666-21010 |
MCU1# |
1 | ||
| 35882A - TUBE, DIFFERENTIAL GEAR LUBE APPLY | ||||
| 35882-21010 |
MCU1# |
1 | ||
| 35895 - TUBE, FRONT CLUTCH APPLY | ||||
| 35895-21010 |
MCU1# |
1 | ||
| Common parts | ||||
| 90105-06030 | ||||
| 90105-06079 | ||||
| 91611-60616 | ||||
ILLUST NO. 5 OF 5(9801-0007)
Click highlighted areas on diagram
U140E,U140F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-05004 | ||||
| 90105-06017 | ||||
| 90105-06020 | ||||
| 90105-06028 | ||||
| 90105-06070 | ||||
| 90105-06071 | ||||
| 90119-05027 | ||||

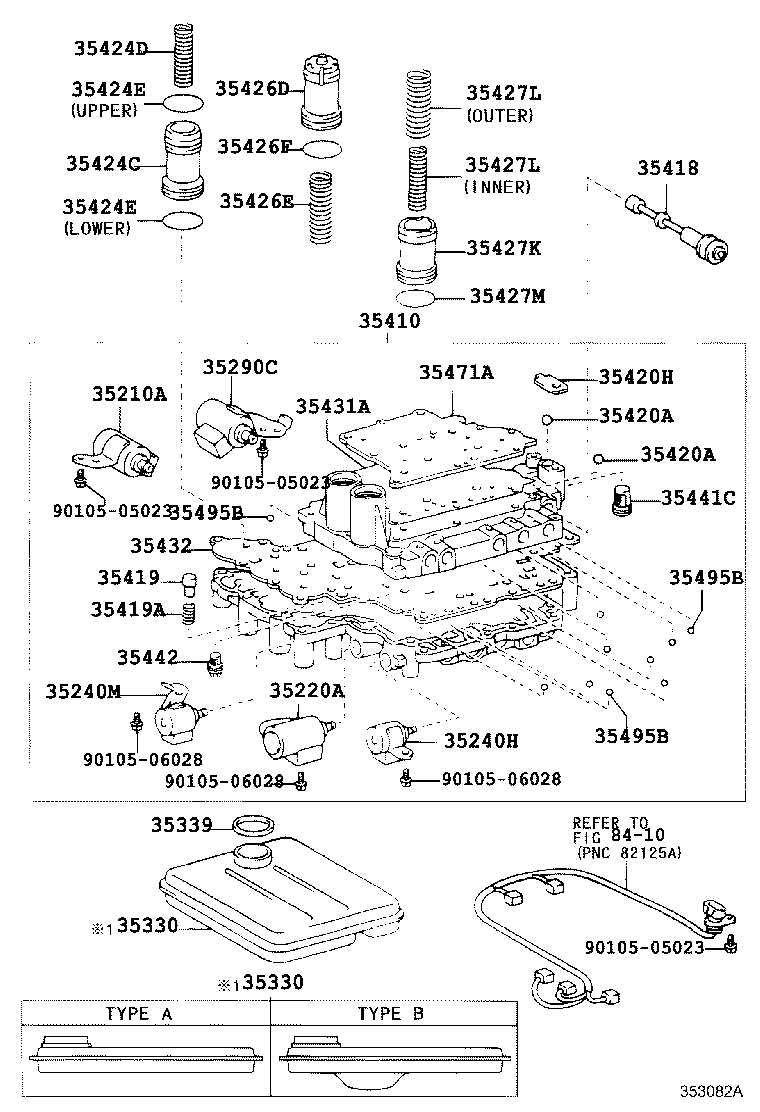

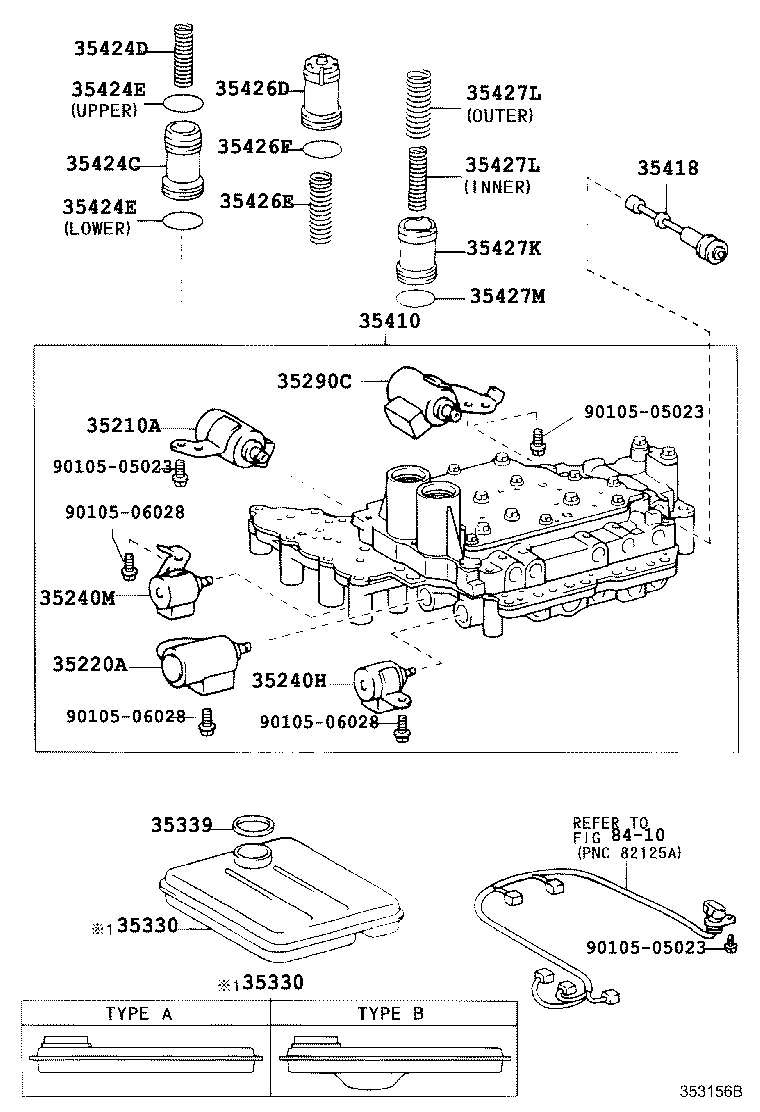

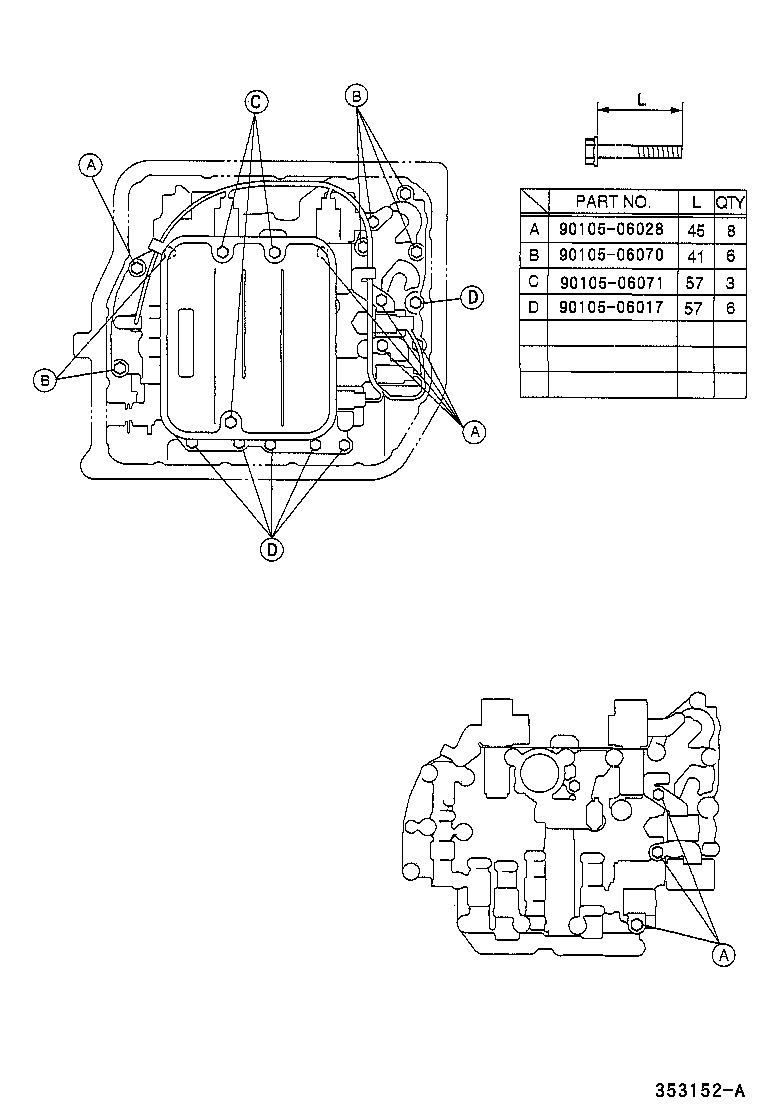

ILLUST NO. 1 OF 5(9801-0007)
Click highlighted areas on diagram
U140E,U140F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35210A - VALVE, SOLENOID(SL1) | ||||
| 35210-21010 |
MCU1# |
1 | ||
| 35220A - VALVE, SOLENOID(SL2) | ||||
| 35220-21010 |
MCU1# |
1 | ||
| 35240H - VALVE, SOLENOID(S4) | ||||
| 35230-21010 |
MCU1# |
1 | ||
| 35240M - VALVE, SOLENOID(DSL) | ||||
| 35240-21010 |
MCU1# |
1 | ||
| 35290C - VALVE, SOLENOID(SLT) | ||||
| 35290-21010 |
MCU1# |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-06010 |
MCU1# TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 35330-21011 |
MCU1# TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 35330-21020 |
MCU1# TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 35330-21020 |
MCU10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-06010 |
MCU1# TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 35330-21011 |
MCU1# TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 35330-21020 |
MCU1# TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 35330-21020 |
MCU10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 90301-32010 |
MCU1# |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-48011 |
MCU1# |
1 | ||
| 35410-48010 |
MCU1# |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-21010 |
MCU1# |
1 | ||
| 35418-21011 |
MCU1# |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-32010 |
MCU1# |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-10214 |
MCU1# |
1 | ||
| 35420A - BALL (FOR PRESSURE RELIEF) | ||||
| 90360-10006 |
MCU1# |
2 | ||
| 35420A - BALL (FOR PRESSURE RELIEF) | ||||
| 90360-10006 |
MCU1# |
2 | ||
| 35420H - COVER, CHECK BALL | ||||
| 35493-21010 |
MCU1# |
1 | ||
| 35424C - PISTON, C-1 ACCUMULATOR | ||||
| 35424-21010 |
MCU1# |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-20151 |
MCU1# |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-27008 |
MCU1# UPPER |
1 | ||
| 90301-30007 |
MCU1# LOWER |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-30007 |
MCU1# LOWER |
1 | ||
| 90301-27008 |
MCU1# UPPER |
1 | ||
| 35426D - PISTON, C-3 ACCUMULATOR | ||||
| 35406-21010 |
MCU1# |
1 | ||
| 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90905-01035 |
MCU1# |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-30007 |
MCU1# |
1 | ||
| 35427K - PISTON, B-3 ACCUMULATOR | ||||
| 35427-21010 |
MCU1# |
1 | ||
| 35427L - SPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90501-25053 |
MCU1# OUTER |
1 | ||
| 90501-22041 |
MCU1# INNER |
1 | ||
| 35427L - SPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90501-25053 |
MCU1# OUTER |
1 | ||
| 90501-22041 |
MCU1# INNER |
1 | ||
| 35427M - RING, O (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90301-28008 |
MCU1# |
1 | ||
| 35431A - GASKET, UPPER VALVE BODY COVER | ||||
| 35431-21010 |
MCU1# |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-48010 |
MCU1# |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-21010 |
MCU1# |
1 | ||
| 35442 - STRAINER, THROTTLE MODULATOR OIL | ||||
| 35442-21010 |
MCU1# |
1 | ||
| 35471A - COVER, UPPER VALVE BODY | ||||
| 35471-21011 |
MCU1# |
1 | ||
| 35471-21010 |
MCU1# |
1 | ||
| 35495B - BALL, CHECK, NO.1 | ||||
| 35495-22020 |
MCU1# |
10 | ||
| 35495B - BALL, CHECK, NO.1 | ||||
| 35495-22020 |
MCU1# |
10 | ||
| 35495B - BALL, CHECK, NO.1 | ||||
| 35495-22020 |
MCU1# |
10 | ||
| Common parts | ||||
| 90105-05023 | ||||
| 90105-06028 | ||||
| Linked diagrams | ||||
| 8410 | ||||
ILLUST NO. 3 OF 3(0007- )
Click highlighted areas on diagram
U140E,U140F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-06017 | ||||
| 90105-06028 | ||||
| 90105-06070 | ||||
| 90105-06071 | ||||
ILLUST NO. 2 OF 3(0007- )
Click highlighted areas on diagram
U140E,U140F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35195A - CLAMP, TRANSAXLE APPLY TUBE, NO.1 | ||||
| 35195-21010 |
MCU1# |
1 | ||
| 35196 - CLAMP, TRANSAXLE APPLY TUBE, NO.2 | ||||
| 35196-21010 |
MCU1# |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
MCU1# |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
MCU1# |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-21010 |
MCU1# |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-21010 |
MCU1# |
1 | ||
| 35666D - TUBE, BRAKE APPLY | ||||
| 35666-21010 |
MCU1# |
1 | ||
| 35882A - TUBE, DIFFERENTIAL GEAR LUBE APPLY | ||||
| 35882-21010 |
MCU1# |
1 | ||
| 35895 - TUBE, FRONT CLUTCH APPLY | ||||
| 35895-21010 |
MCU1# |
1 | ||
| Common parts | ||||
| 90105-06079 | ||||
| 91511-80614 | ||||
| 91611-60616 | ||||
ILLUST NO. 1 OF 3(0007- )
Click highlighted areas on diagram
U140E,U140F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35210A - VALVE, SOLENOID(SL1) | ||||
| 35210-21010 |
MCU1# |
1 | ||
| 35220A - VALVE, SOLENOID(SL2) | ||||
| 35220-21010 |
MCU1# |
1 | ||
| 35240H - VALVE, SOLENOID(S4) | ||||
| 35230-21010 |
MCU1# |
1 | ||
| 35240M - VALVE, SOLENOID(DSL) | ||||
| 35240-21010 |
MCU1# |
1 | ||
| 35290C - VALVE, SOLENOID(SLT) | ||||
| 35290-21010 |
MCU1# |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-06010 |
MCU1# TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 35330-21011 |
MCU1# TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 35330-21020 |
MCU1# TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 35330-21020 |
MCU10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-06010 |
MCU1# TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 35330-21011 |
MCU1# TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 35330-21020 |
MCU1# TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 35330-21020 |
MCU10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 90301-32010 |
MCU1# |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-48011 |
MCU1# |
1 | ||
| 35410-48010 |
MCU1# |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-21010 |
MCU1# |
1 | ||
| 35418-21011 |
MCU1# |
1 | ||
| 35424C - PISTON, C-1 ACCUMULATOR | ||||
| 35424-21010 |
MCU1# |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-20151 |
MCU1# |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-30007 |
MCU1# LOWER |
1 | ||
| 90301-27008 |
MCU1# UPPER |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-30007 |
MCU1# LOWER |
1 | ||
| 90301-27008 |
MCU1# UPPER |
1 | ||
| 35426D - PISTON, C-3 ACCUMULATOR | ||||
| 35406-21010 |
MCU1# |
1 | ||
| 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90905-01035 |
MCU1# |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-30007 |
MCU1# |
1 | ||
| 35427K - PISTON, B-3 ACCUMULATOR | ||||
| 35427-21010 |
MCU1# |
1 | ||
| 35427L - SPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90501-25053 |
MCU1# OUTER |
1 | ||
| 90501-22041 |
MCU1# INNER |
1 | ||
| 35427L - SPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90501-25053 |
MCU1# OUTER |
1 | ||
| 90501-22041 |
MCU1# INNER |
1 | ||
| 35427M - RING, O (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90301-28008 |
MCU1# |
1 | ||
| Common parts | ||||
| 90105-05023 | ||||
| 90105-06028 | ||||
| Linked diagrams | ||||
| 8410 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
