MCU10L-AWPGKA (1998)
Toyota Lexus Rx300
Production
Jan 1998
-
Feb 2003
Engine
1MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

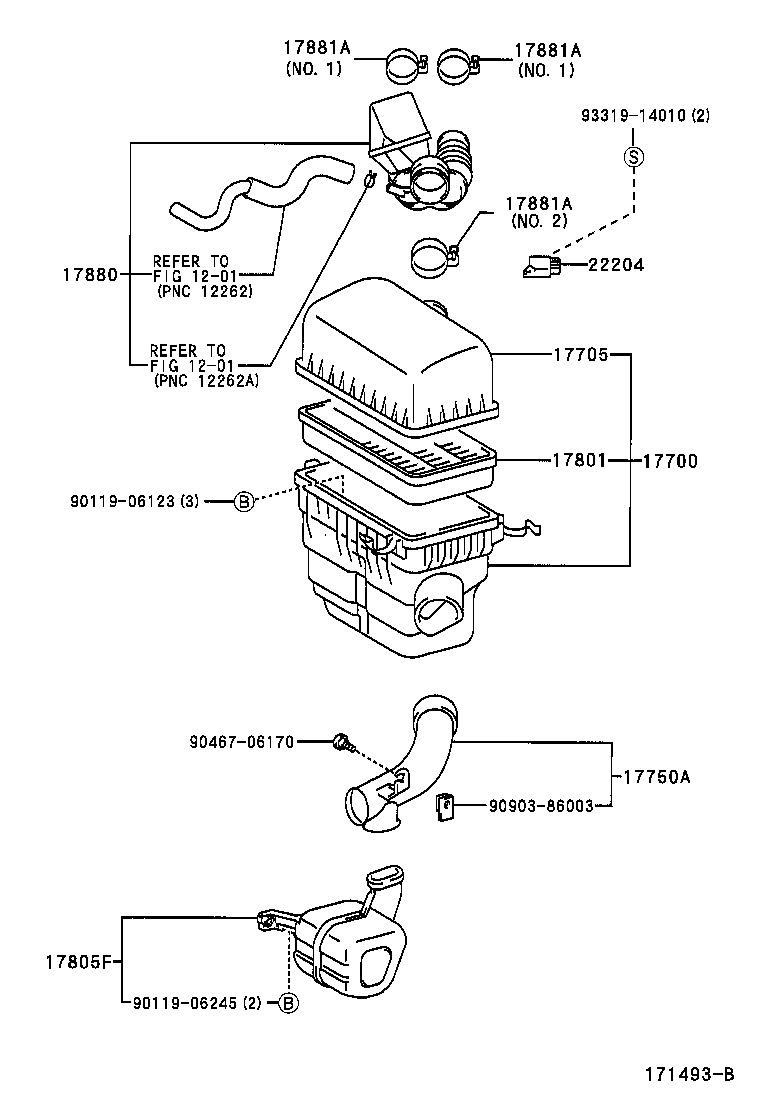

(9801-9908)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-20080 |
1MZFE..MCU1# |
1 | ||
| 17700-20130 |
1MZFE..MCU1# |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-20140 |
1MZFE..MCU1# |
1 | ||
| 17705-20070 |
1MZFE..MCU1# |
1 | ||
| 17705-20100 |
1MZFE..MCU1# |
1 | ||
| 17750A - INLET ASSY, AIR CLEANER | ||||
| 17750-20050 |
1MZFE..MCU1# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-03010 |
1MZFE..MCU1# (L) |
1 | ||
| 17801-74060 |
1MZFE..MCU1# (J) |
1 | ||
| 17801-74060 |
1MZFE..MCU1# |
1 | ||
| 17805F - RESONATOR SUB-ASSY, INTAKE AIR | ||||
| 17805-20030 |
1MZFE..MCU1# |
1 | ||
| 17880 - HOSE ASSY, AIR CLEANER | ||||
| 17880-20080 |
1MZFE..MCU1# |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10850 |
1MZFE..MCU1# NO.2 |
1 | ||
| 96111-10620 |
1MZFE..MCU1# NO.1 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10850 |
1MZFE..MCU1# NO.2 |
1 | ||
| 96111-10620 |
1MZFE..MCU1# NO.1 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10850 |
1MZFE..MCU1# NO.2 |
1 | ||
| 96111-10620 |
1MZFE..MCU1# NO.1 |
2 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-21010 |
1MZFE..MCU1# |
1 | ||
| Common parts | ||||
| 90119-06123 | ||||
| 90119-06245 | ||||
| 90467-06170 | ||||
| 90903-86003 | ||||
| 93319-14010 | ||||
| Linked diagrams | ||||
| 1201 | ||||

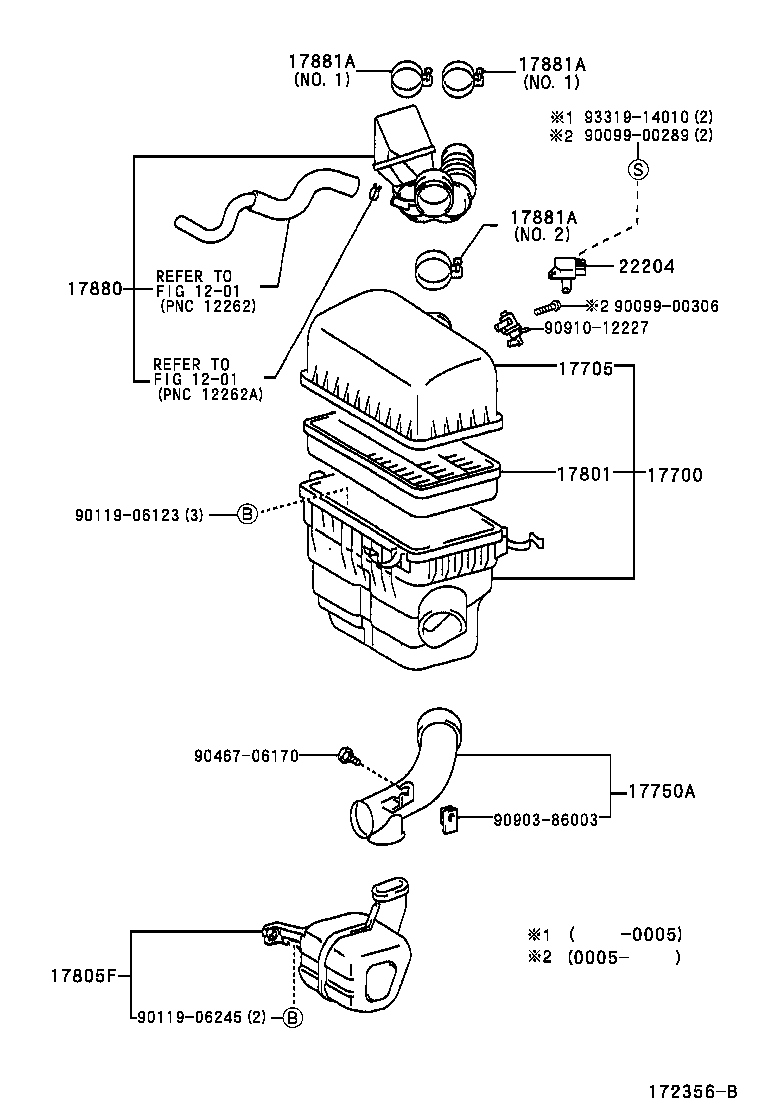

(9908- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-20080 |
1MZFE..MCU1# |
1 | ||
| 17700-20130 |
1MZFE..MCU1# |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-20140 |
1MZFE..MCU1# |
1 | ||
| 17705-20070 |
1MZFE..MCU1# |
1 | ||
| 17705-20100 |
1MZFE..MCU1# |
1 | ||
| 17750A - INLET ASSY, AIR CLEANER | ||||
| 17750-20050 |
1MZFE..MCU1# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-03010 |
1MZFE..MCU1# (L) |
1 | ||
| 17801-74060 |
1MZFE..MCU1# (J) |
1 | ||
| 17801-74060 |
1MZFE..MCU1# |
1 | ||
| 17805F - RESONATOR SUB-ASSY, INTAKE AIR | ||||
| 17805-20030 |
1MZFE..MCU1# |
1 | ||
| 17880 - HOSE ASSY, AIR CLEANER | ||||
| 17880-20080 |
1MZFE..MCU1# |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10850 |
1MZFE..MCU1# NO.2 |
1 | ||
| 96111-10620 |
1MZFE..MCU1# NO.1 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10850 |
1MZFE..MCU1# NO.2 |
1 | ||
| 96111-10620 |
1MZFE..MCU1# NO.1 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10850 |
1MZFE..MCU1# NO.2 |
1 | ||
| 96111-10620 |
1MZFE..MCU1# NO.1 |
2 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-21010 |
1MZFE..MCU1# |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90099-00306 | ||||
| 90119-06123 | ||||
| 90119-06245 | ||||
| 90467-06170 | ||||
| 90903-86003 | ||||
| 90910-12227 | ||||
| 93319-14010 | ||||
| Linked diagrams | ||||
| 1201 | ||||
