GSC16L-RCTLHA (2015)
Toyota Lexus Rc350/300/200t
Production
Oct 2015
-
Oct 2018
Engine
2GRF
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

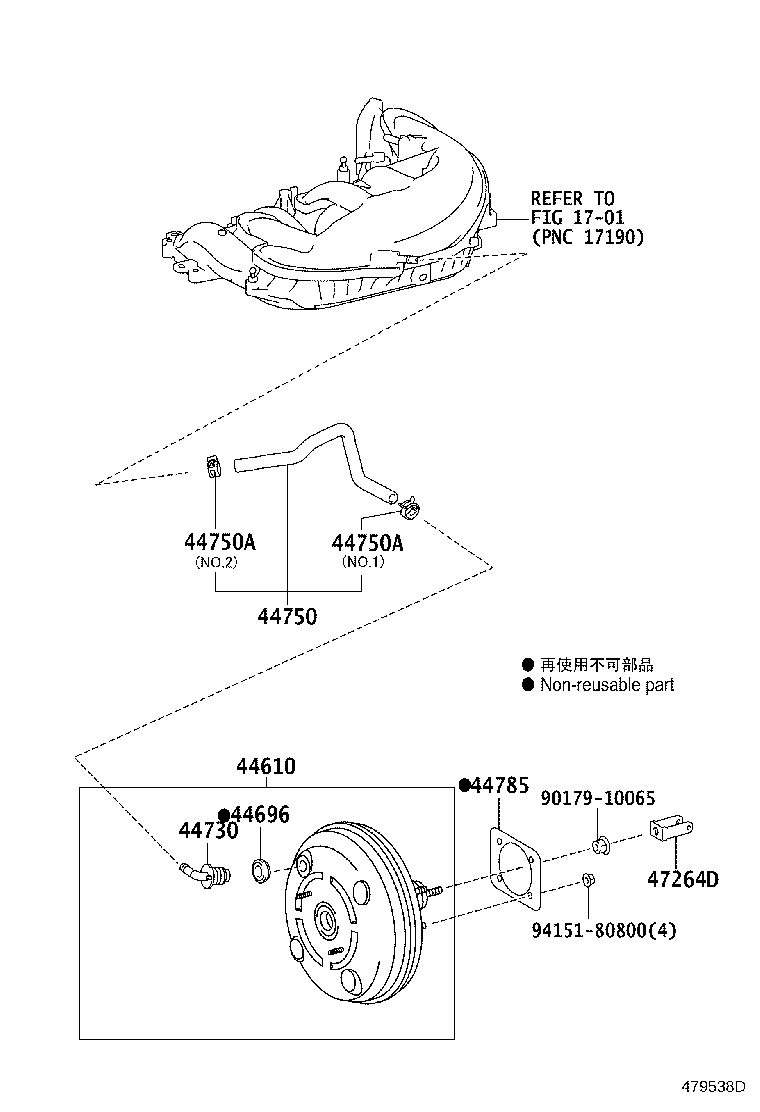

(1409-1711)GSC1#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-53450 |
GSC1# |
1 | ||
| 44610-24190 |
GSC1# |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
ASC10,GSC1# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20170 |
GSC1# |
1 | ||
| 44730-12070 |
GSC1# |
1 | ||
| 44750 - HOSE ASSY, VACUUM | ||||
| 44750-53140 |
GSC1# |
1 | ||
| 44750A - CLIP(FOR VACUUM HOSE ASSY) | ||||
| 90467-16014 |
GSC1# NO.2:REFER ILLUST. |
1 | ||
| 96133-41500 |
GSC1# NO.1:REFER ILLUST. |
1 | ||
| 90467-16014 |
GSC1# |
4 | ||
| 44750A - CLIP(FOR VACUUM HOSE ASSY) | ||||
| 90467-16014 |
GSC1# NO.2:REFER ILLUST. |
1 | ||
| 96133-41500 |
GSC1# NO.1:REFER ILLUST. |
1 | ||
| 90467-16014 |
GSC1# |
4 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-47010 |
ASC10,GSC1# |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-22040 |
ASC10,GSC1# |
1 | ||
| Common parts | ||||
| 90179-10065 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1701 | ||||

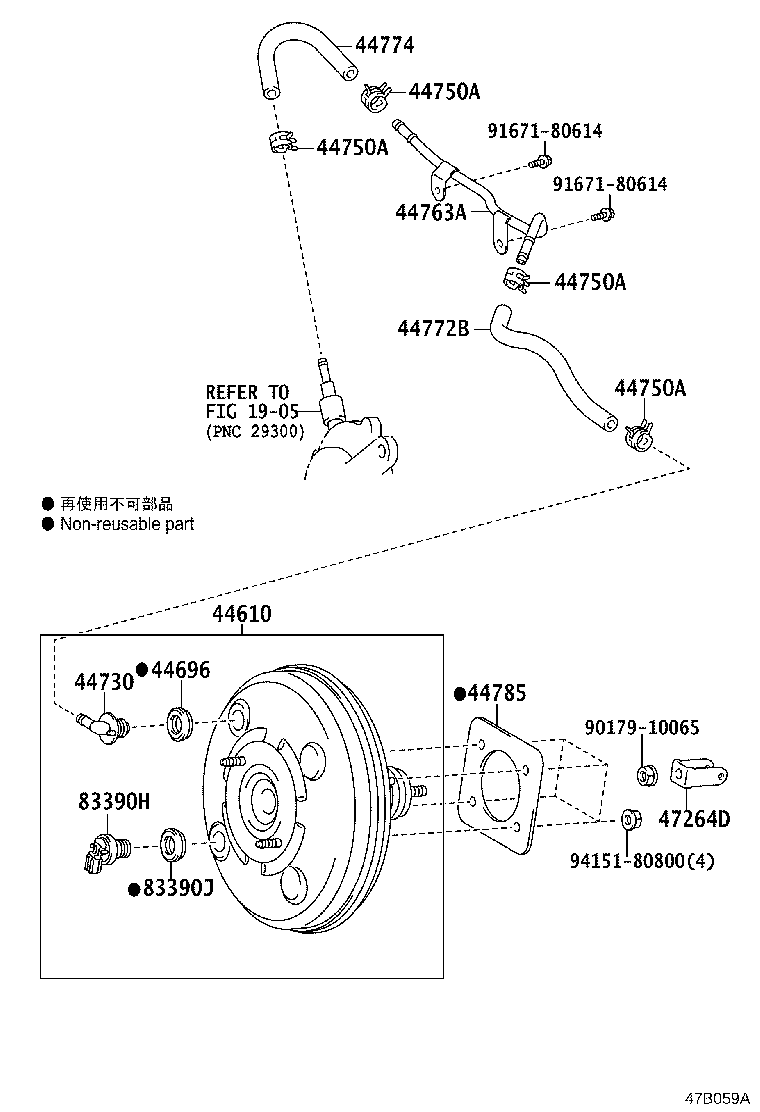

(1711- )GSC1#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-53450 |
GSC1# |
1 | ||
| 44610-24190 |
GSC1# |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
ASC10,GSC1# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20170 |
GSC1# |
1 | ||
| 44730-12070 |
GSC1# |
1 | ||
| 44750A - CLIP(FOR VACUUM HOSE ASSY) | ||||
| 90467-16014 |
GSC1# NO.2:REFER ILLUST. |
1 | ||
| 96133-41500 |
GSC1# NO.1:REFER ILLUST. |
1 | ||
| 90467-16014 |
GSC1# |
4 | ||
| 44750A - CLIP(FOR VACUUM HOSE ASSY) | ||||
| 90467-16014 |
GSC1# NO.2:REFER ILLUST. |
1 | ||
| 96133-41500 |
GSC1# NO.1:REFER ILLUST. |
1 | ||
| 90467-16014 |
GSC1# |
4 | ||
| 44750A - CLIP(FOR VACUUM HOSE ASSY) | ||||
| 90467-16014 |
GSC1# NO.2:REFER ILLUST. |
1 | ||
| 96133-41500 |
GSC1# NO.1:REFER ILLUST. |
1 | ||
| 90467-16014 |
GSC1# |
4 | ||
| 44750A - CLIP(FOR VACUUM HOSE ASSY) | ||||
| 90467-16014 |
GSC1# NO.2:REFER ILLUST. |
1 | ||
| 96133-41500 |
GSC1# NO.1:REFER ILLUST. |
1 | ||
| 90467-16014 |
GSC1# |
4 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-30110 |
GSC1# |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-30210 |
GSC1# |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-30190 |
GSC1# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-47010 |
ASC10,GSC1# |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-22040 |
ASC10,GSC1# |
1 | ||
| 83390H - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-28120 |
GSC1# |
1 | ||
| 83390J - GROMMET, VACUUM WARNING SWITCH | ||||
| 90480-24439 |
GSC1# |
1 | ||
| Common parts | ||||
| 90179-10065 | ||||
| 91671-80614 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1905 | ||||
