GSC15L-RCTLHA (2014)

Toyota Lexus Rc350/300/200t

Production Sep 2014 - Oct 2015
Engine 2GRF
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1409- )

Click highlighted areas on diagram

BRAKE ACTUATOR

diagram 44510 4452112050 4452112050 4452112050 44546A 44546A 44546A 44590 44595 4478648010 9011906844 9011906844 9011906844 9017908241 9155380812 9155380812 91673A0820
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-24040

GSC15

"F SPORT"

 1
44050-24020

GSC1#

 1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12120

GSC1#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12120

GSC1#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12120

GSC1#

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-24020

GSC1#

 1
44595 - BRACKET, BRAKE ACTUATOR, NO.5
44595-24010

GSC1#

 1
Common parts
44521-12050
44786-48010
90119-06844
90179-08241
91553-80812
91673-A0820

ILLUST NO. 1 OF 2(1409-1711)

Click highlighted areas on diagram

BRAKE TUBE

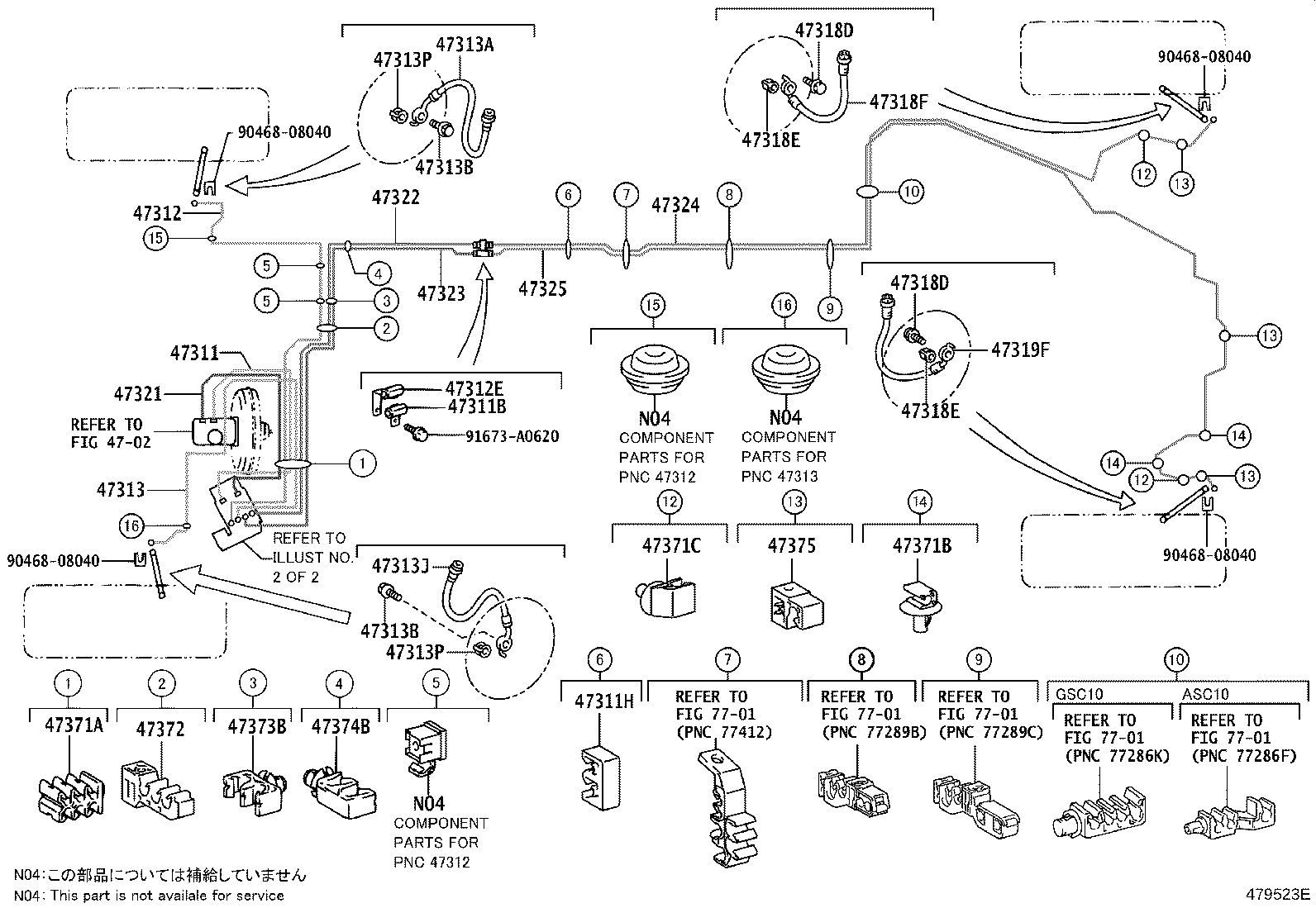

diagram 4702 47311 47311B 47311H 47312 47312E 47313 47313A 47313B 47313B 47313J 47313P 47313P 47318D 47318D 47318E 47318E 47318F 47319F 47321 47322 47323 47324 47325 47371A 47371B 47371C 47372 47373B 47374B 47375 7701 7701 7701 7701 7701 9046808040 9046808040 9046808040 9046808040 91673A0620
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-24140

GSC1#

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10292

GSC1#

 1
47311H - GROMMET(FOR BRAKE TUBE)
90480-01621

GSC1#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-24170

GSC15

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10297

GSC1#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-24180

GSC15

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02G58

GSC15

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

GSC1#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

GSC1#

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02G59

GSC15

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

GSC1#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

GSC1#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

GSC1#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

GSC1#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

GSC1#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

GSC1#

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02G54

GSC1#

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02G54

GSC1#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-24130

GSC1#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-24160

GSC1#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-24070

GSC1#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-24050

GSC1#

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-24030

GSC1#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00880

GSC1#

 1
47371B - CLAMP, BRAKE TUBE, NO.6
90949-01D17

GSC1#

 2
47371C - CLAMP, BRAKE TUBE, NO.7
90949-01D46

GSC1#

 2
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01D08

GSC1#

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D12

GSC1#

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01D13

GSC1#

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90949-01C82

GSC1#

 3
Common parts
90468-08040
91673-A0620
