GSC15L-RCTLHA (2014)
Toyota Lexus Rc350/300/200t

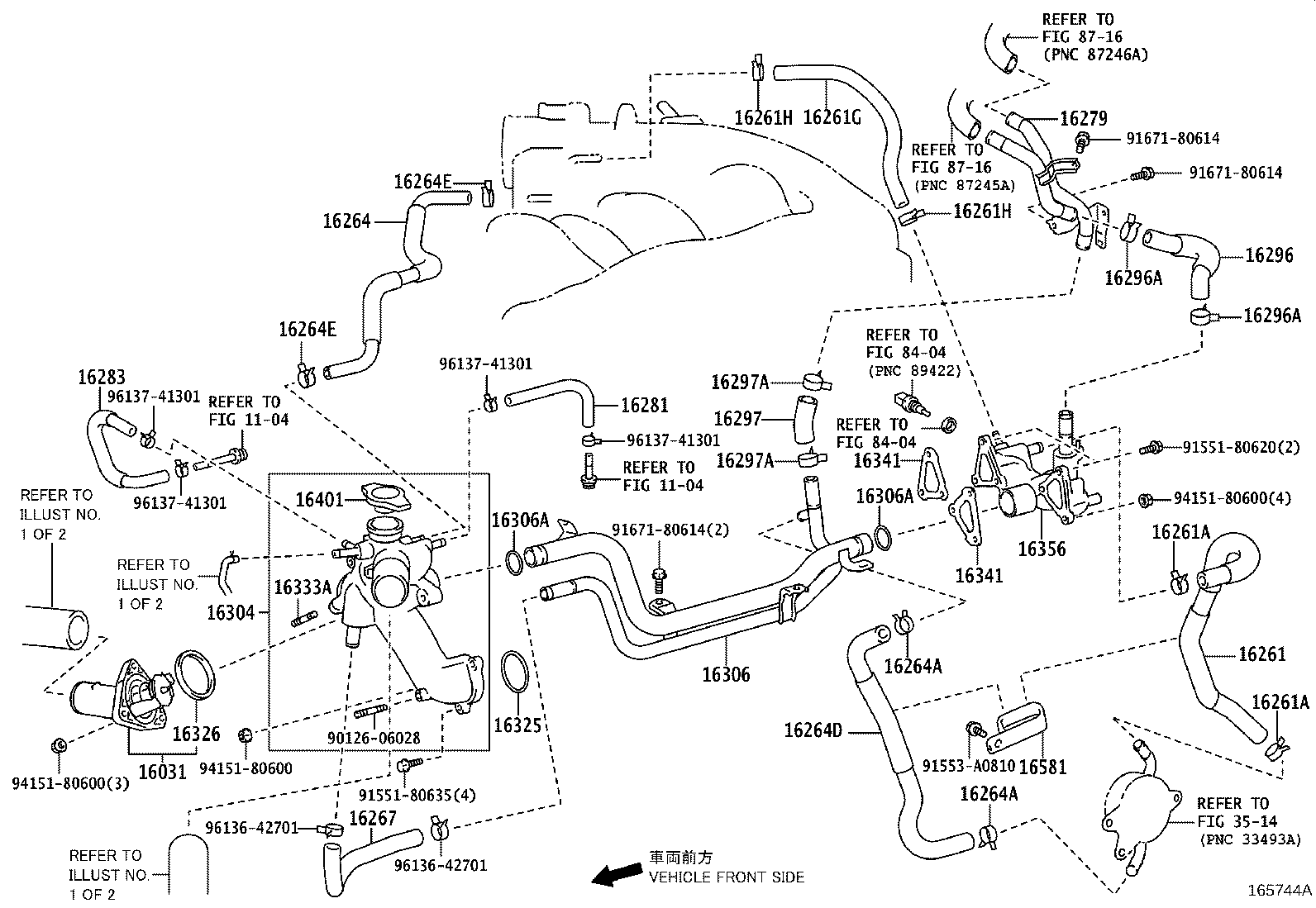

ILLUST NO. 2 OF 2(1409-1711)2GRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16031-31020 |
2GRF..GSC1# |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-31040 |
2GRF..GSC15 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-42101 |
2GRF..GSC1# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-42101 |
2GRF..GSC1# |
2 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-31071 |
2GRF..GSC1# |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96137-51501 |
2GRF..GSC1# |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96137-51501 |
2GRF..GSC1# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-31120 |
2GRF..GSC1# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-42101 |
2GRF..GSC1# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-42101 |
2GRF..GSC1# |
2 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-31030 |
2GRF..GSC15 |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-51501 |
2GRF..GSC1# |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-51501 |
2GRF..GSC1# |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-31021 |
2GRF..GSC1# |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-31160 |
2GRF..GSC1# |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-31021 |
2GRF..GSC1# |
1 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-31010 |
2GRF..GSC1# |
1 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-31050 |
2GRF..GSC1# |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-42701 |
2GRF..GSC1# |
2 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-42701 |
2GRF..GSC1# |
2 | ||
| 16297 - HOSE, WATER BY-PASS, NO.9 | ||||
| 16297-31031 |
2GRF..GSC1# |
1 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96136-42701 |
2GRF..GSC1# |
2 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96136-42701 |
2GRF..GSC1# |
2 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-31036 |
2GRF..GSC1# |
1 | ||
| 16306 - PIPE SUB-ASSY, WATER OUTLET | ||||
| 16306-31050 |
2GRF..GSC1# |
1 | ||
| 16306A - RING, O(FOR WATER OUTLET PIPE) | ||||
| 96761-35025 |
2GRF..GSC1# |
2 | ||
| 16306A - RING, O(FOR WATER OUTLET PIPE) | ||||
| 96761-35025 |
2GRF..GSC1# |
2 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-31010 |
2GRF..GSC1# |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-31020 |
2GRF..GSC1# |
1 | ||
| 16333A - BOLT, STUD(FOR WATER OUTLET HOUSING) | ||||
| 92122-80618 |
2GRF..GSC1# |
3 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-31010 |
2GRF..GSC1# |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-31010 |
2GRF..GSC1# |
2 | ||
| 16356 - JOINT, WATER BY-PASS, REAR | ||||
| 16356-31021 |
2GRF..GSC1# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-31792 |
2GRF..GSC1# |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-31010 |
2GRF..GSC1# |
1 | ||
| Common parts | ||||
| 90126-06028 | ||||
| 91551-80620 | ||||
| 91551-80635 | ||||
| 91553-A0810 | ||||
| 91671-80614 | ||||
| 94151-80600 | ||||
| 96136-42701 | ||||
| 96137-41301 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 3514 | ||||
| 8404 | ||||
| 8716 | ||||

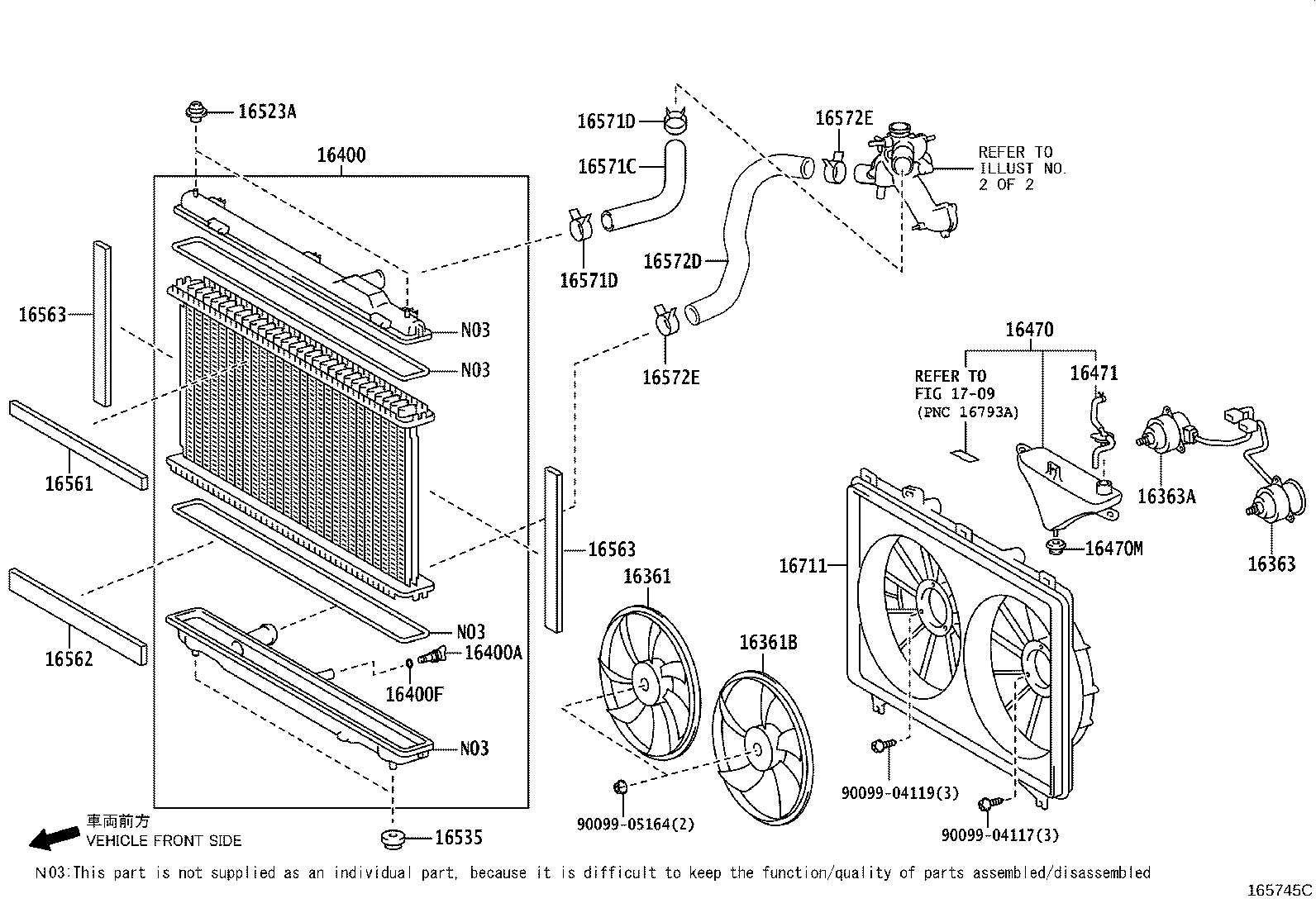

ILLUST NO. 1 OF 2(1409-1711)2GRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-31430 |
2GRF..GSC1# |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-31410 |
2GRF..GSC1# |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-31300 |
2GRF..GSC1# |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-50040 |
2GRF..GSC1# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-31A00 |
2GRF..GSC1# |
1 | ||
| 16400A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 16417-21280 |
2GRF..GSC1# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2GRF..GSC1# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-31190 |
2GRF..GSC1# |
1 | ||
| 16470M - GROMMET | ||||
| 90480-18010 |
2GRF..GSC1# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-31140 |
2GRF..GSC1# |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-38010 |
2GRF..GSC1# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-40021 |
2GRF..GSC1# |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-31130 |
2GRF..GSC1# |
1 | ||
| 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16562-31060 |
2GRF..GSC1# |
1 | ||
| 16563 - SEAL, RADIATOR TO SUPPORT, NO.3 | ||||
| 16563-31050 |
2GRF..GSC1# |
2 | ||
| 16563 - SEAL, RADIATOR TO SUPPORT, NO.3 | ||||
| 16563-31050 |
2GRF..GSC1# |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-31320 |
2GRF..GSC1# |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-39002 |
2GRF..GSC1# |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-39002 |
2GRF..GSC1# |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-31400 |
2GRF..GSC1# |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-39002 |
2GRF..GSC1# |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-39002 |
2GRF..GSC1# |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-31630 |
2GRF..GSC1# |
1 | ||
| Common parts | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| Linked diagrams | ||||
| 1709 | ||||
