Toyota Lexus rc350/300/200t GSC10 CLEARANCE & BACK SONAR

GSC10L-RCZLHA (2015)

Toyota Lexus Rc350/300/200t

Production Oct 2015 - Oct 2018

Engine 2GRF

Transmission 8FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

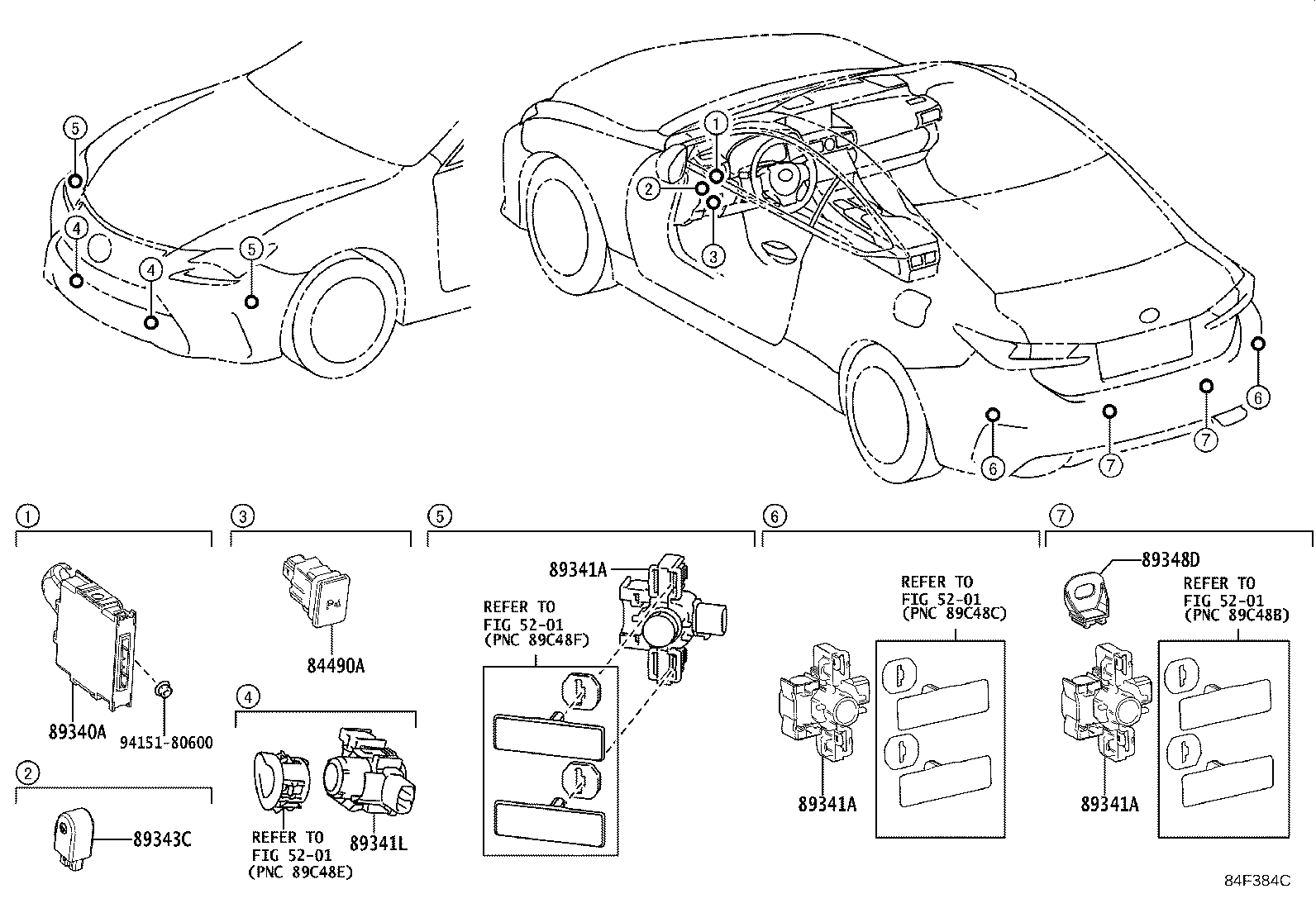

(1409-1609)

Click highlighted areas on diagram

Part #	Description	Period	Qty
84490A - SWITCH ASSY, BACK SONAR OR CLEARANCE SONAR
84490-53011	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH	10/2015 - 10/2018	1
89340A - COMPUTER ASSY, CLEARANCE WARNING
89340-24020	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH	10/2015 - 11/2017	1
89340-24060	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH	11/2017 - 10/2018	1
89341A - SENSOR, ULTRASONIC, NO.1
89341-53010A1	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083	10/2015 - 09/2016	6
89341-53010B0	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,MERCURY GRAY MC.,1H9	10/2015 - 09/2016	6
89341-53010A2	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,SONIC QUARTZ,085	10/2015 - 09/2016	6
89341-53010D2	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,RED,3T5	10/2015 - 09/2016	6
89341-53010B1	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,PLATINUM SILVER ME.,1J4	10/2015 - 09/2016	6
89341-53010C0	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,BLACK,212	10/2015 - 09/2016	6
89341-53010E2	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,ORANGE,4W7	10/2015 - 09/2016	6
89341-53010J3	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,BLUE,8X1	10/2015 - 09/2016	6
89341-53010B2	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,SONIC TITANIUM,1J7	10/2015 - 09/2016	6
89341-53010C1	ASC10,GSC10 CLEARANCE & BACK SONAR-WITH,STARLIGHT BLACK GF.,217	10/2015 - 09/2016	6
89341A - SENSOR, ULTRASONIC, NO.1
89341-53010A1	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083	10/2015 - 09/2016	6
89341-53010B0	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,MERCURY GRAY MC.,1H9	10/2015 - 09/2016	6
89341-53010A2	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,SONIC QUARTZ,085	10/2015 - 09/2016	6
89341-53010D2	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,RED,3T5	10/2015 - 09/2016	6
89341-53010B1	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,PLATINUM SILVER ME.,1J4	10/2015 - 09/2016	6
89341-53010C0	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,BLACK,212	10/2015 - 09/2016	6
89341-53010E2	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,ORANGE,4W7	10/2015 - 09/2016	6
89341-53010J3	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,BLUE,8X1	10/2015 - 09/2016	6
89341-53010B2	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,SONIC TITANIUM,1J7	10/2015 - 09/2016	6
89341-53010C1	ASC10,GSC10 CLEARANCE & BACK SONAR-WITH,STARLIGHT BLACK GF.,217	10/2015 - 09/2016	6
89341A - SENSOR, ULTRASONIC, NO.1
89341-53010A1	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083	10/2015 - 09/2016	6
89341-53010B0	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,MERCURY GRAY MC.,1H9	10/2015 - 09/2016	6
89341-53010A2	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,SONIC QUARTZ,085	10/2015 - 09/2016	6
89341-53010D2	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,RED,3T5	10/2015 - 09/2016	6
89341-53010B1	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,PLATINUM SILVER ME.,1J4	10/2015 - 09/2016	6
89341-53010C0	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,BLACK,212	10/2015 - 09/2016	6
89341-53010E2	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,ORANGE,4W7	10/2015 - 09/2016	6
89341-53010J3	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,BLUE,8X1	10/2015 - 09/2016	6
89341-53010B2	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,SONIC TITANIUM,1J7	10/2015 - 09/2016	6
89341-53010C1	ASC10,GSC10 CLEARANCE & BACK SONAR-WITH,STARLIGHT BLACK GF.,217	10/2015 - 09/2016	6
89341L - SENSOR, ULTRASONIC, FRONT CENTER
89341-53030	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH	10/2015 - 10/2018	2
89343C - BUZZER, CLEARANCE WARNING, NO.1
89343-72010	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH	10/2015 - 10/2018	1
89348D - CLIP, ULTRASONIC SENSOR
89348-35030	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH	10/2015 - 10/2018	2
Common parts
94151-80600
Linked diagrams
5201

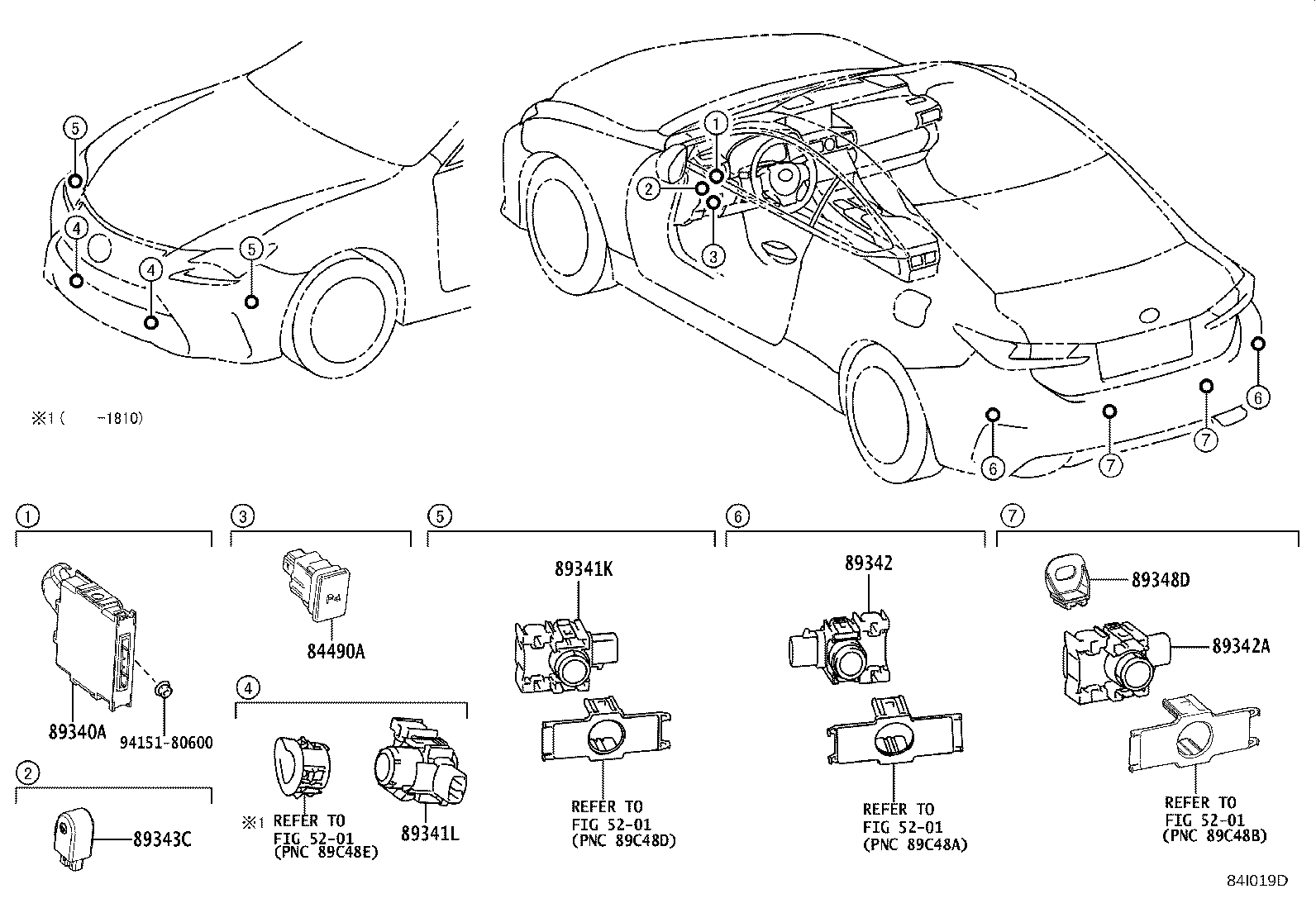

(1609- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
84490A - SWITCH ASSY, BACK SONAR OR CLEARANCE SONAR
84490-53011	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH	10/2015 - 10/2018	1
89340A - COMPUTER ASSY, CLEARANCE WARNING
89340-24020	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH	10/2015 - 11/2017	1
89340-24060	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH	11/2017 - 10/2018	1
89341K - SENSOR, ULTRASONIC, FRONT CORNER
89341-78010A1	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083	09/2016 - 10/2018	2
89341-78010B0	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,MERCURY GRAY MC.,1H9	09/2016 - 10/2018	2
89341-78010A0	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,SONIC QUARTZ,085	09/2016 - 10/2018	2
89341-78010J3	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,HEAT BLUE CONTRAST LAYERI,8X1	09/2016 - 10/2018	2
89341-78010C1	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,BLACK,212	09/2016 - 10/2018	2
89341-78010E3	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,LAVA ORANGE CS.,4W7	09/2016 - 10/2018	2
89341-78010B1	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,PLATINUM SILVER ME.,1J4	09/2016 - 10/2018	2
89341-78010B2	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,SONIC TITANIUM,1J7	09/2016 - 10/2018	2
89341-78010D1	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,RADIANT RED CONTRAST LAYE,3T5	09/2016 - 10/2018	2
89341-78010F1	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,NAPLES YELLOW,5C1	11/2017 - 10/2018	2
89341-78010C3	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,GRAPHITE BLACK GF.,223	09/2016 - 10/2018	2
89341L - SENSOR, ULTRASONIC, FRONT CENTER
89341-53030	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH	10/2015 - 10/2018	2
89342 - SENSOR, ULTRASONIC, REAR CORNER
89341-78010A1	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083	09/2016 - 10/2018	2
89341-78010A0	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,SONIC QUARTZ,085	09/2016 - 10/2018	2
89341-78010B1	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,PLATINUM SILVER ME.,1J4	09/2016 - 10/2018	2
89341-78010E3	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,LAVA ORANGE CS.,4W7	09/2016 - 10/2018	2
89341-78010F1	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,NAPLES YELLOW,5C1	11/2017 - 10/2018	2
89341-78010C3	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,GRAPHITE BLACK GF.,223	09/2016 - 10/2018	2
89341-78010D1	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,RADIANT RED CONTRAST LAYE,3T5	09/2016 - 10/2018	2
89341-78010C1	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,BLACK,212	09/2016 - 10/2018	2
89341-78010B0	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,MERCURY GRAY MC.,1H9	09/2016 - 10/2018	2
89341-78010J3	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,HEAT BLUE CONTRAST LAYERI,8X1	09/2016 - 10/2018	2
89341-78010B2	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,SONIC TITANIUM,1J7	09/2016 - 10/2018	2
89342A - SENSOR, ULTRASONIC, REAR CENTER
89341-78010A1	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083	09/2016 - 10/2018	2
89341-78010E3	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,LAVA ORANGE CS.,4W7	09/2016 - 10/2018	2
89341-78010A0	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,SONIC QUARTZ,085	09/2016 - 10/2018	2
89341-78010C1	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,BLACK,212	09/2016 - 10/2018	2
89341-78010B2	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,SONIC TITANIUM,1J7	09/2016 - 10/2018	2
89341-78010B1	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,PLATINUM SILVER ME.,1J4	09/2016 - 10/2018	2
89341-78010C3	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,GRAPHITE BLACK GF.,223	09/2016 - 10/2018	2
89341-78010B0	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,MERCURY GRAY MC.,1H9	09/2016 - 10/2018	2
89341-78010J3	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,HEAT BLUE CONTRAST LAYERI,8X1	09/2016 - 10/2018	2
89341-78010D1	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,RADIANT RED CONTRAST LAYE,3T5	09/2016 - 10/2018	2
89341-78010F1	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH,NAPLES YELLOW,5C1	11/2017 - 10/2018	2
89343C - BUZZER, CLEARANCE WARNING, NO.1
89343-72010	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH	10/2015 - 10/2018	1
89348D - CLIP, ULTRASONIC SENSOR
89348-35030	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH	10/2015 - 10/2018	2
Common parts
94151-80600
Linked diagrams
5201
