GSC10L-RCZLHA (2018)

Toyota Lexus Rc350/300/200t

Production Oct 2018 - Sep 9999
Engine 2GRF
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1409- )GSC10

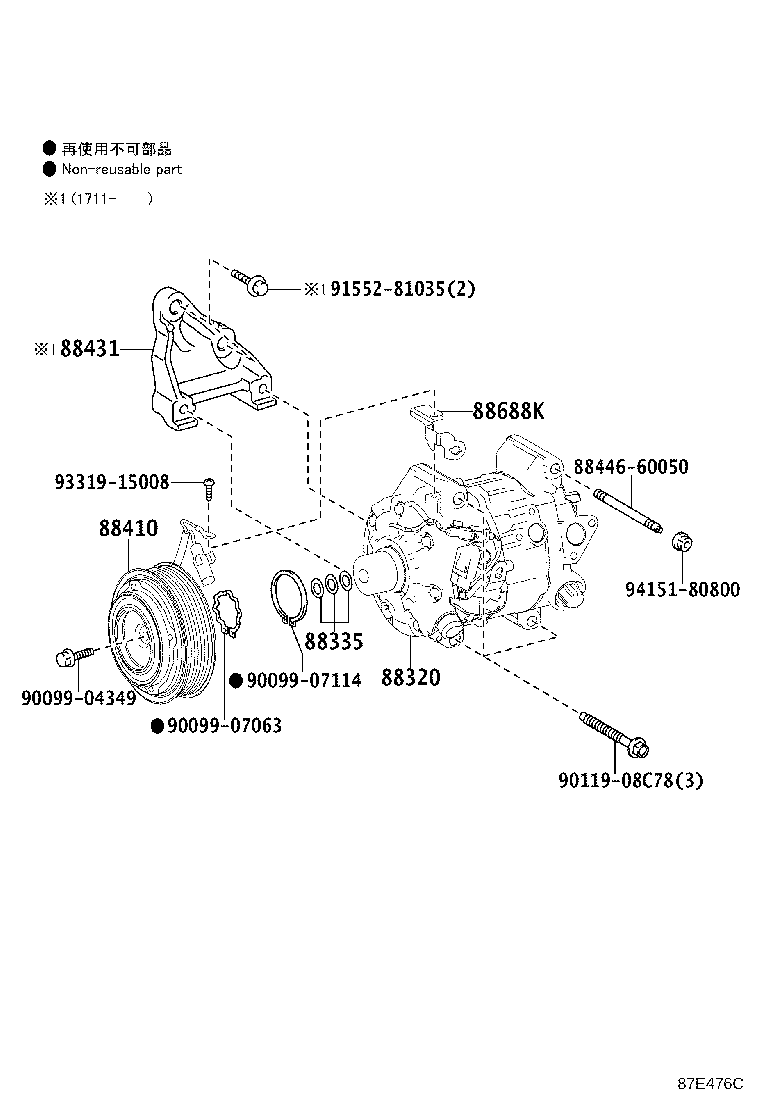

Click highlighted areas on diagram

diagram 88320 88335 88410 88431 8844660050 88688K 9009904349 9009907063 9009907114 9011908C78 9155281035 9331915008 9415180800
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-48320

ASC10,GSC10

 1
88320-48330

ASC10,GSC10

 1
88335 - GASKET KIT, OVERHAUL
88335-14020

ASC10,GSC1#

 1
88410 - CLUTCH ASSY, MAGNET
88410-0N010

ASC10,GSC1#

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-48050

GSC10

 1
88688K - BRACKET, COOLER COMPRESSOR
88688-33570

ASC10,GSC1#

 1
Common parts
88446-60050
90099-04349
90099-07063
90099-07114
90119-08C78
91552-81035
93319-15008
94151-80800
