GSC10L-RCZLHA (2018)
Toyota Lexus Rc350/300/200t
Production
Oct 2018
-
Sep 9999
Engine
2GRF
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1409- )

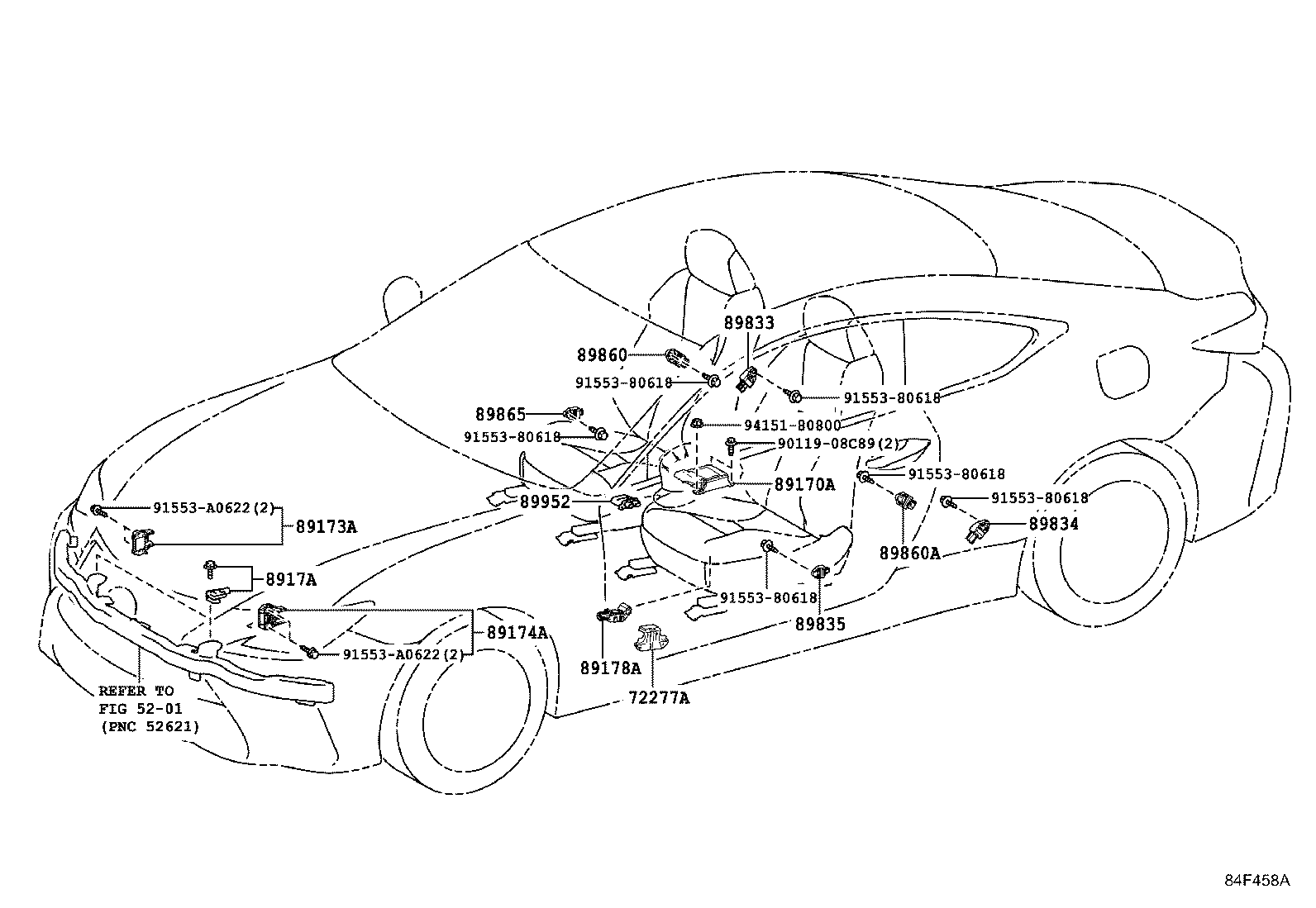

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72277A - PROTECTOR, SEAT SLIDE POSITION SENSOR | ||||
| 72277-33021 |
ASC10,GSC1# |
1 | ||
| 89170A - COMPUTER ASSY, AIR BAG | ||||
| 89170-24440 |
ASC10,GSC10 KOREA SPEC&"VERSION L" |
1 | ||
| 89170-24320 |
ASC10,GSC1# |
1 | ||
| 89170-24440 |
ASC10,GSC10 KOREA SPEC&"F SPORT" |
1 | ||
| 89173A - SENSOR, AIR BAG, FRONT RH | ||||
| 89173-39495 |
ASC10,GSC1# |
1 | ||
| 89174A - SENSOR, AIR BAG, FRONT LH | ||||
| 89173-39495 |
ASC10,GSC1# |
1 | ||
| 89178A - SENSOR, SEAT POSITION AIR BAG | ||||
| 89178-33050 |
ASC10,GSC1# |
1 | ||
| 8917A - SENSOR, PEDESTRIAN PROTECTION | ||||
| 8917A-30060 |
ASC10,GSC10 KOREA SPEC |
2 | ||
| 89833 - SENSOR, AIR BAG, REAR RH | ||||
| 89831-53050 |
ASC10,GSC1# |
1 | ||
| 89834 - SENSOR, AIR BAG, REAR LH | ||||
| 89831-53050 |
ASC10,GSC1# |
1 | ||
| 89835 - SENSOR, DOOR SIDE AIR BAG, LH | ||||
| 89831-33050 |
ASC10,GSC1# |
1 | ||
| 89860 - SENSOR ASSY, SIDE AIR BAG, RH | ||||
| 89831-12040 |
ASC10,GSC1# |
1 | ||
| 89860A - SENSOR ASSY, SIDE AIR BAG, LH | ||||
| 89831-12040 |
ASC10,GSC1# |
1 | ||
| 89865 - SENSOR, DOOR SIDE AIR BAG, RH | ||||
| 89831-33050 |
ASC10,GSC1# |
1 | ||
| 89952 - COMPUTER, OCCUPANT DETECTION | ||||
| 89952-24011 |
ASC10,GSC1# |
1 | ||
| 89952-24011 |
ASC10,GSC10 KOREA SPEC |
1 | ||
| Common parts | ||||
| 90119-08C89 | ||||
| 91553-80618 | ||||
| 91553-A0622 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 5201 | ||||
