Toyota Lexus rc350/300/200t GSC10 WIRING & CLAMP

GSC10L-RCZLHA (2018)

Toyota Lexus Rc350/300/200t

Production Oct 2018 - Sep 9999

Engine 2GRF

Transmission 8FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

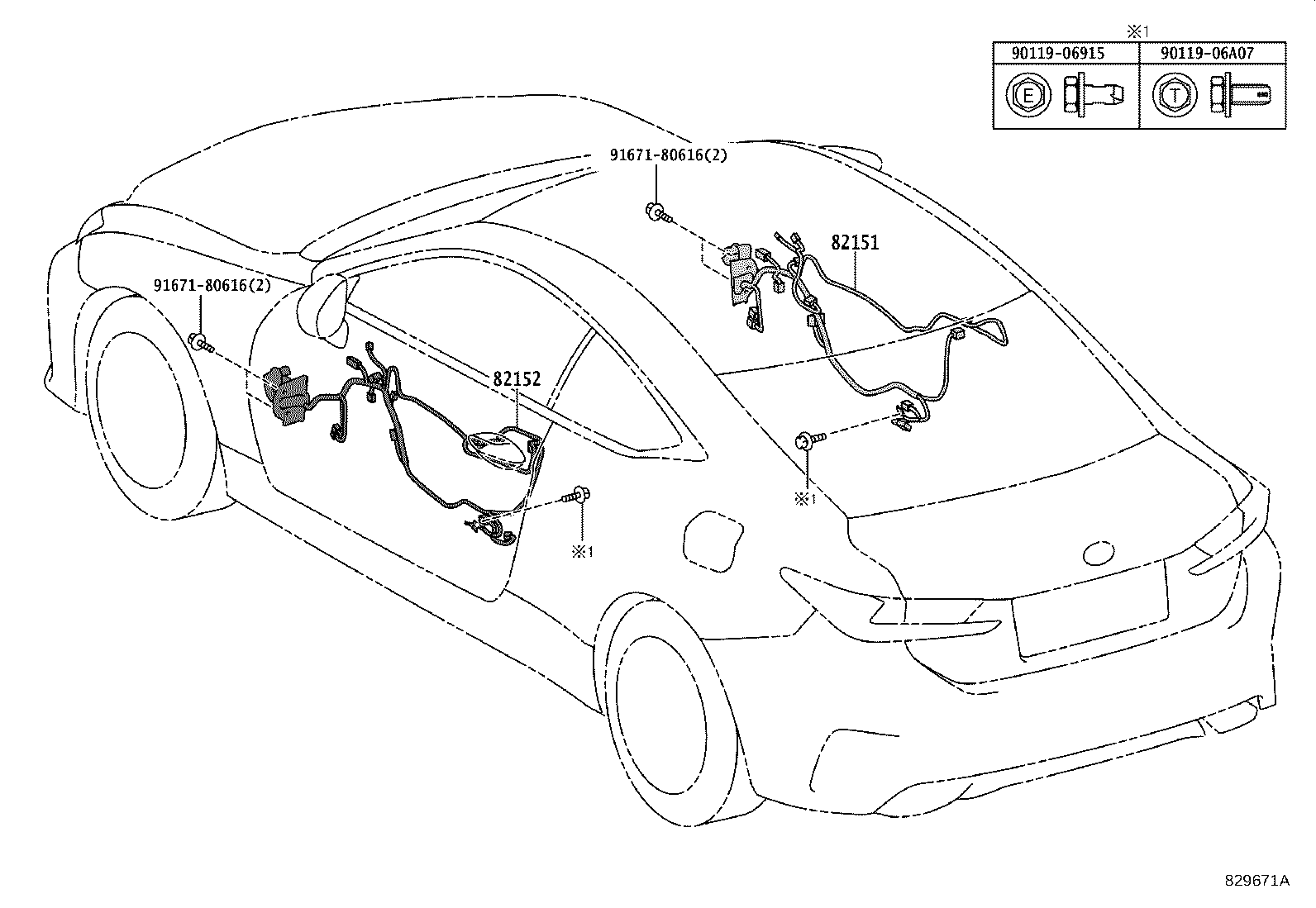

ILLUST NO. 4 OF10(1409- )

Click highlighted areas on diagram

DOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-24520	ASC10,GSC10 KOREA SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&BLIND SPOT MONITOR-WITH	10/2018 - 09/2020	1
82151-24520	ASC10,GSC10 KOREA SPEC&"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&BLIND SPOT MONITOR-WITH	10/2018 - 09/2020	1
82151-24500	GSC1# "F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&BLIND SPOT MONITOR-WITH	10/2018 - 09/2021	1
82151-24500	GSC1# PREMIUM&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&BLIND SPOT MONITOR-WITH	10/2018 - 09/2021	1
82151-24490	ASC10,GSC1#	10/2018 - 12/2999	1
82152 - WIRE, FRONT DOOR, LH
82152-24390	ASC10,GSC1#	10/2018 - 12/2999	1
82152-24400	GSC1# "F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&BLIND SPOT MONITOR-WITH	10/2018 - 09/2021	1
82152-24420	ASC10,GSC10 KOREA SPEC&"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&BLIND SPOT MONITOR-WITH	10/2018 - 09/2020	1
82152-24420	ASC10,GSC10 KOREA SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&BLIND SPOT MONITOR-WITH	10/2018 - 09/2020	1
82152-24400	GSC1# PREMIUM&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&BLIND SPOT MONITOR-WITH	10/2018 - 09/2021	1
Common parts
90119-06915
90119-06A07
91671-80616

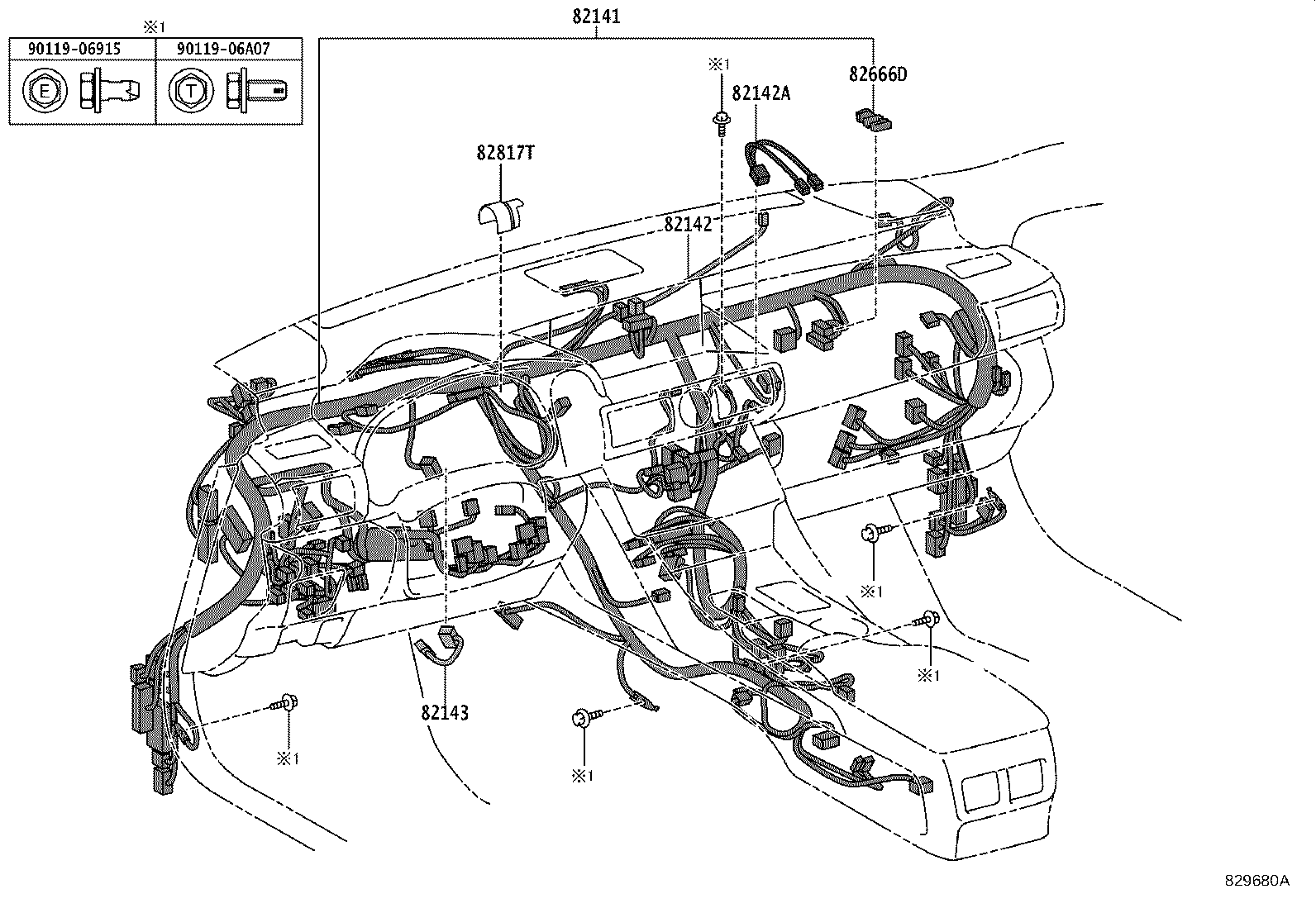

ILLUST NO. 3 OF10(1409- )

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-24R50	ASC10,GSC1#	10/2018 - 11/2019	1
82141-24R30	ASC10,GSC1# GUAM SPEC&DATA COMMUNICATION MODULE-WITHOUT	10/2018 - 11/2019	1
82141-24R80	ASC10,GSC1# PREMIUM&STEERING COLUMN-POWER	10/2018 - 11/2019	1
82141-24R70	ASC10,GSC1# AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)	10/2018 - 11/2019	1
82141-24R90	ASC10,GSC1# GUAM SPEC&PREMIUM&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTIVISION-WITH(MEMORY CARD NAVIGATION)&DATA COMMUNICATION MODULE-WITHOUT	10/2018 - 11/2019	1
82141-24R90	ASC10,GSC1# GUAM SPEC&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)&DATA COMMUNICATION MODULE-WITHOUT	10/2018 - 11/2019	1
82141-24R90	ASC10,GSC1# GUAM SPEC&PREMIUM&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTIVISION-WITH(MEMORY CARD NAVIGATION)&DATA COMMUNICATION MODULE-WITHOUT	10/2018 - 11/2019	1
82141-24R70	ASC10,GSC1# PREMIUM&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)	10/2018 - 11/2019	1
82141-24R70	ASC10,GSC1# "F SPORT"&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)	10/2018 - 11/2019	1
82141-24R90	ASC10,GSC1# GUAM SPEC&"F SPORT"&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)&DATA COMMUNICATION MODULE-WITHOUT	10/2018 - 11/2019	1
82141-24R90	ASC10,GSC10 KOREA SPEC&"F SPORT"&STEERING COLUMN-POWER(AVS)&AUDIO-EMV(KOREA SPEC) & 17SPEAKER&ELECTRO MULTI VISION-WITH(KOREA SPEC)&DATA COMMUNICATION MODULE-WITHOUT	10/2018 - 11/2019	1
82141-24S10	ASC10,GSC1# PREMIUM&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)	10/2018 - 11/2019	1
82141-24S40	GSC10 KOREA SPEC&"F SPORT"&STEERING COLUMN-POWER(AVS)&STEERING-ELECTRIC POWER STEERING(VGRS)&AUDIO-EMV(KOREA SPEC) & 17SPEAKER&ELECTRO MULTI VISION-WITH(KOREA SPEC)&DATACOMMUNICATION MODULE-WITHOUT	10/2018 - 11/2019	1
82141-24R90	ASC10,GSC10 KOREA SPEC&"F SPORT"&STEERING COLUMN-POWER(AVS)&AUDIO-EMV(KOREA SPEC) & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(KOREA SPEC)&DATA COMMUNICATION MODULE-WITHOUT	10/2018 - 11/2019	1
82141-24R90	ASC10,GSC1# GUAM SPEC&"F SPORT"&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)&DATA COMMUNICATION MODULE-WITHOUT	10/2018 - 11/2019	1
82141-24S10	ASC10,GSC1# "F SPORT"&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)	10/2018 - 11/2019	1
82141-24S10	ASC10,GSC1# PREMIUM&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)	10/2018 - 11/2019	1
82141-24S50	GSC10 "F SPORT"&STEERING COLUMN-POWER&STEERING-ELECTRIC POWER STEERING(VGRS)&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)	10/2018 - 11/2019	1
82141-24R71	ASC10,GSC1# PREMIUM&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)	11/2019 - 09/2020	1
82141-24S40	GSC10 KOREA SPEC&"F SPORT"&STEERING COLUMN-POWER(AVS)&STEERING-ELECTRIC POWER STEERING(VGRS)&AUDIO-EMV(KOREA SPEC) & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(KOREA SPEC)&DATA COMMUNICATION MODULE-WITHOUT	10/2018 - 11/2019	1
82141-24R90	ASC10,GSC10 KOREA SPEC&"VERSION L"&STEERING COLUMN-POWER(AVS)&AUDIO-EMV(KOREA SPEC) & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(KOREA SPEC)&DATA COMMUNICATION MODULE-WITHOUT	10/2018 - 11/2019	1
82141-24S10	ASC10,GSC1# "F SPORT"&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)	10/2018 - 11/2019	1
82141-24R91	ASC10,GSC10 KOREA SPEC&"F SPORT"&STEERING COLUMN-POWER(AVS)&AUDIO-EMV(KOREA SPEC) & 17SPEAKER&ELECTRO MULTI VISION-WITH(KOREA SPEC)&DATA COMMUNICATION MODULE-WITHOUT	11/2019 - 09/2020	1
82141-24R51	ASC10,GSC1#	11/2019 - 09/2020	1
82141-24R81	ASC10,GSC1# PREMIUM&STEERING COLUMN-POWER	11/2019 - 09/2020	1
82141-24R81	ASC10,GSC1# "F SPORT"&STEERING COLUMN-POWER	11/2019 - 09/2020	1
82141-24R31	ASC10,GSC1# GUAM SPEC&DATA COMMUNICATION MODULE-WITHOUT	11/2019 - 09/2020	1
82141-24R91	ASC10,GSC10 KOREA SPEC&"F SPORT"&STEERING COLUMN-POWER(AVS)&AUDIO-EMV(KOREA SPEC) & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(KOREA SPEC)&DATA COMMUNICATION MODULE-WITHOUT	11/2019 - 09/2020	1
82141-24S50	GSC10 "F SPORT"&STEERING COLUMN-POWER&STEERING-ELECTRIC POWER STEERING(VGRS)&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)	10/2018 - 11/2019	1
82141-24R91	ASC10,GSC10 KOREA SPEC&"VERSION L"&STEERING COLUMN-POWER(AVS)&AUDIO-EMV(KOREA SPEC) & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(KOREA SPEC)&DATA COMMUNICATION MODULE-WITHOUT	11/2019 - 09/2020	1
82141-24R71	ASC10,GSC1# "F SPORT"&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)	11/2019 - 09/2020	1
82141-24R90	ASC10,GSC10 KOREA SPEC&"VERSION L"&STEERING COLUMN-POWER(AVS)&AUDIO-EMV(KOREA SPEC) & 17SPEAKER&ELECTRO MULTI VISION-WITH(KOREA SPEC)&DATA COMMUNICATION MODULE-WITHOUT	10/2018 - 11/2019	1
82141-24R91	ASC10,GSC1# GUAM SPEC&"F SPORT"&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)&DATA COMMUNICATION MODULE-WITHOUT	11/2019 - 09/2020	1
82141-24S40	GSC10 GUAM SPEC&"F SPORT"&STEERING COLUMN-POWER&STEERING-ELECTRIC POWER STEERING(VGRS)&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)&DATACOMMUNICATION MODULE-WITHOUT	10/2018 - 11/2019	1
82141-24R91	ASC10,GSC10 KOREA SPEC&"VERSION L"&STEERING COLUMN-POWER(AVS)&AUDIO-EMV(KOREA SPEC) & 17SPEAKER&ELECTRO MULTI VISION-WITH(KOREA SPEC)&DATA COMMUNICATION MODULE-WITHOUT	11/2019 - 09/2020	1
82141-24S40	GSC10 GUAM SPEC&"F SPORT"&STEERING COLUMN-POWER&STEERING-ELECTRIC POWER STEERING(VGRS)&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)&DATACOMMUNICATION MODULE-WITHOUT	10/2018 - 11/2019	1
82141-24S11	ASC10,GSC1# PREMIUM&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)	11/2019 - 09/2020	1
82141-24R91	ASC10,GSC1# GUAM SPEC&PREMIUM&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTIVISION-WITH(MEMORY CARD NAVIGATION)&DATA COMMUNICATION MODULE-WITHOUT	11/2019 - 09/2020	1
82141-24R91	ASC10,GSC1# GUAM SPEC&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)&DATA COMMUNICATION MODULE-WITHOUT	11/2019 - 09/2020	1
82141-24R32	ASC10,GSC1# GUAM SPEC&DATA COMMUNICATION MODULE-WITHOUT	09/2020 - 09/2021	1
82141-24S11	ASC10,GSC1# "F SPORT"&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)	11/2019 - 09/2020	1
82141-24S11	ASC10,GSC1# PREMIUM&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)	11/2019 - 09/2020	1
82141-24S41	GSC10 KOREA SPEC&"F SPORT"&STEERING COLUMN-POWER(AVS)&STEERING-ELECTRIC POWER STEERING(VGRS)&AUDIO-EMV(KOREA SPEC) & 17SPEAKER&ELECTRO MULTI VISION-WITH(KOREA SPEC)&DATACOMMUNICATION MODULE-WITHOUT	11/2019 - 09/2020	1
82141-24R91	ASC10,GSC1# GUAM SPEC&"F SPORT"&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)&DATA COMMUNICATION MODULE-WITHOUT	11/2019 - 09/2020	1
82141-24S11	ASC10,GSC1# "F SPORT"&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)	11/2019 - 09/2020	1
82141-24S41	GSC10 KOREA SPEC&"F SPORT"&STEERING COLUMN-POWER(AVS)&STEERING-ELECTRIC POWER STEERING(VGRS)&AUDIO-EMV(KOREA SPEC) & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(KOREA SPEC)&DATA COMMUNICATION MODULE-WITHOUT	11/2019 - 09/2020	1
82141-24V20	GSC10 "F SPORT"&STEERING COLUMN-POWER&STEERING-ELECTRIC POWER STEERING(VGRS)	11/2019 - 09/2020	1
82141-24R71	ASC10,GSC1# AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)	11/2019 - 09/2020	1
82141-24R91	ASC10,GSC1# GUAM SPEC&PREMIUM&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTIVISION-WITH(MEMORY CARD NAVIGATION)&DATA COMMUNICATION MODULE-WITHOUT	11/2019 - 09/2020	1
82141-24S51	GSC10 "F SPORT"&STEERING COLUMN-POWER&STEERING-ELECTRIC POWER STEERING(VGRS)&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)	11/2019 - 09/2020	1
82141-24S51	GSC10 "F SPORT"&STEERING COLUMN-POWER&STEERING-ELECTRIC POWER STEERING(VGRS)&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)	11/2019 - 09/2020	1
82141-24R72	ASC10,GSC1# "F SPORT"&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)	09/2020 - 09/2021	1
82141-24S41	GSC10 GUAM SPEC&"F SPORT"&STEERING COLUMN-POWER&STEERING-ELECTRIC POWER STEERING(VGRS)&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)&DATACOMMUNICATION MODULE-WITHOUT	11/2019 - 09/2020	1
82141-24R52	ASC10,GSC1#	09/2020 - 09/2021	1
82141-24R72	ASC10,GSC1# PREMIUM&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)	09/2020 - 09/2021	1
82141-24R92	ASC10,GSC1# GUAM SPEC&"F SPORT"&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)&DATA COMMUNICATION MODULE-WITHOUT	09/2020 - 12/2999	1
82141-24S41	GSC10 GUAM SPEC&"F SPORT"&STEERING COLUMN-POWER&STEERING-ELECTRIC POWER STEERING(VGRS)&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)&DATACOMMUNICATION MODULE-WITHOUT	11/2019 - 09/2020	1
82141-24R92	ASC10,GSC1# GUAM SPEC&PREMIUM&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTIVISION-WITH(MEMORY CARD NAVIGATION)&DATA COMMUNICATION MODULE-WITHOUT	09/2020 - 12/2999	1
82141-24V21	GSC10 "F SPORT"&STEERING COLUMN-POWER&STEERING-ELECTRIC POWER STEERING(VGRS)	09/2020 - 09/2021	1
82141-24R92	ASC10,GSC1# GUAM SPEC&"F SPORT"&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)&DATA COMMUNICATION MODULE-WITHOUT	09/2020 - 12/2999	1
82141-24S12	ASC10,GSC1# PREMIUM&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)	09/2020 - 12/2999	1
82141-24S12	ASC10,GSC1# "F SPORT"&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)	09/2020 - 12/2999	1
82141-24R82	ASC10,GSC1# PREMIUM&STEERING COLUMN-POWER	09/2020 - 12/2999	1
82141-24R92	ASC10,GSC1# GUAM SPEC&PREMIUM&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTIVISION-WITH(MEMORY CARD NAVIGATION)&DATA COMMUNICATION MODULE-WITHOUT	09/2020 - 12/2999	1
82141-24S12	ASC10,GSC1# PREMIUM&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)	09/2020 - 12/2999	1
82141-24R72	ASC10,GSC1# AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)	09/2020 - 09/2021	1
82141-24S52	GSC10 "F SPORT"&STEERING COLUMN-POWER&STEERING-ELECTRIC POWER STEERING(VGRS)&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)	09/2020 - 12/2999	1
82141-24S12	ASC10,GSC1# "F SPORT"&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)	09/2020 - 12/2999	1
82141-24R82	ASC10,GSC1# "F SPORT"&STEERING COLUMN-POWER	09/2020 - 12/2999	1
82141-24R92	ASC10,GSC1# GUAM SPEC&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)&DATA COMMUNICATION MODULE-WITHOUT	09/2020 - 12/2999	1
82141-24S52	GSC10 "F SPORT"&STEERING COLUMN-POWER&STEERING-ELECTRIC POWER STEERING(VGRS)&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)	09/2020 - 12/2999	1
82141-24S42	GSC10 GUAM SPEC&"F SPORT"&STEERING COLUMN-POWER&STEERING-ELECTRIC POWER STEERING(VGRS)&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)&DATACOMMUNICATION MODULE-WITHOUT	09/2020 - 12/2999	1
82141-24S42	GSC10 GUAM SPEC&"F SPORT"&STEERING COLUMN-POWER&STEERING-ELECTRIC POWER STEERING(VGRS)&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)&DATACOMMUNICATION MODULE-WITHOUT	09/2020 - 12/2999	1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-53111	ASC10,GSC1#	10/2018 - 12/2999	1
82142A - WIRE, INSTRUMENT PANEL, NO.2
82140-30020	ASC10,GSC1#	10/2018 - 12/2999	1
82143 - WIRE, INSTRUMENT PANEL, NO.3
82143-24030	ASC10,GSC1#	10/2018 - 09/2020	1
82143-24031	ASC10,GSC1#	09/2020 - 12/2999	1
82143-24030	ASC10,GSC10 PRE-COLLISION SYSTEM-WITHOUT	10/2018 - 05/2020	1
82666D - HOLDER, CONNECTOR NO.5
82666-53240	ASC10,GSC1#	10/2018 - 12/2999	1
82817T - PROTECTOR, WIRING HARNESS, NO.15
82817-33820	ASC10,GSC1#	10/2018 - 12/2999	1
Common parts
90119-06915
90119-06A07

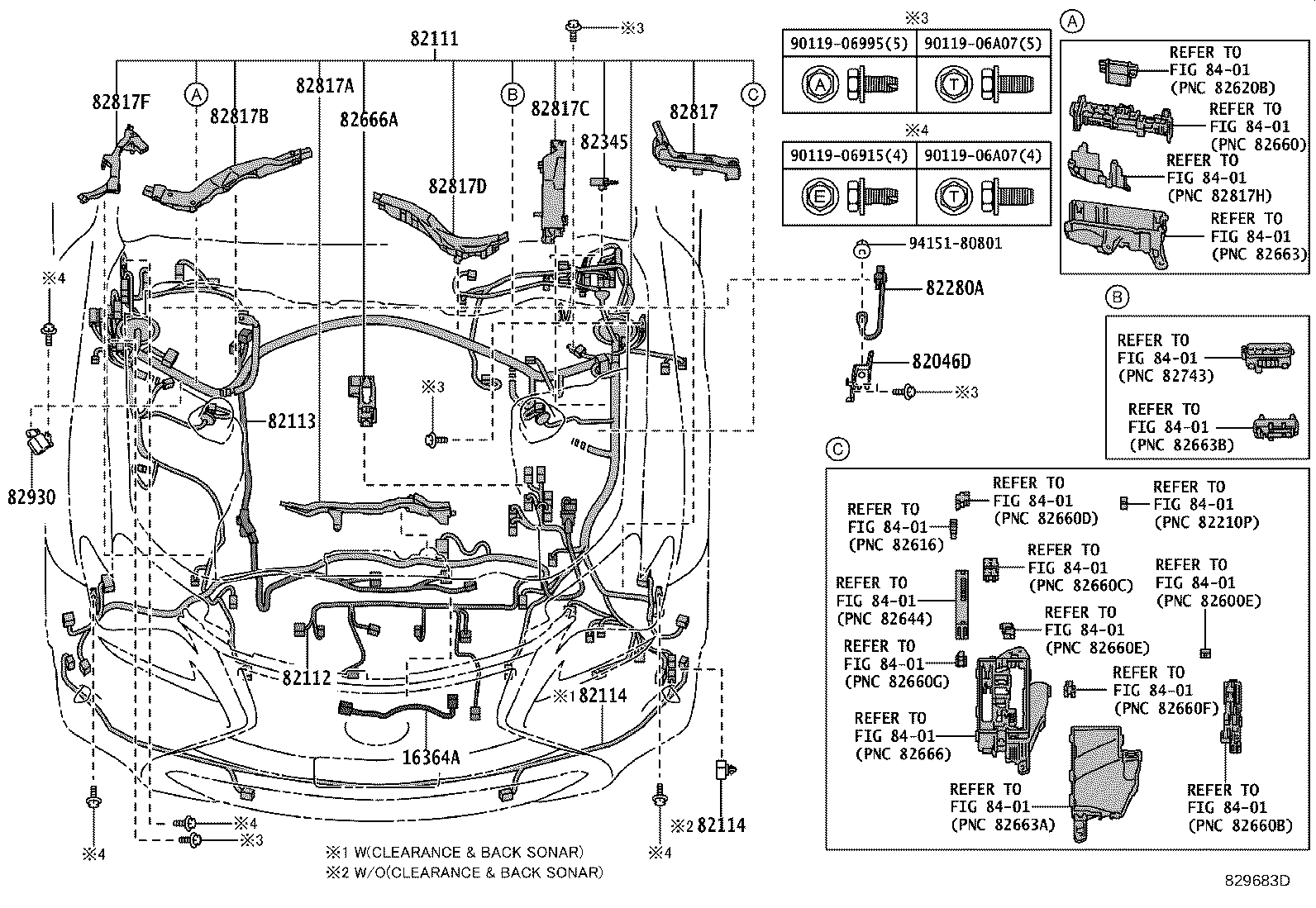

ILLUST NO. 1 OF10(1409- )

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
82046D - WIRE, BODY GROUND
82046-53100	ASC10,GSC1#	09/2020 - 12/2999	1
82111 - WIRE, ENGINE ROOM MAIN
82111-24S30	GSC10 GUAM SPEC&"F SPORT"	10/2018 - 10/2019	1
82111-24S30	GSC10 GUAM SPEC&"F SPORT"&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)	10/2018 - 10/2019	1
82111-24S30	GSC10 GUAM SPEC&"F SPORT"&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)	10/2018 - 10/2019	1
82111-24S10	GSC10	10/2018 - 10/2019	1
82111-24S30	GSC10 "F SPORT"&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)	10/2018 - 10/2019	1
82111-24S50	GSC10 GUAM SPEC&"F SPORT"&STEERING-ELECTRIC POWER STEERING(VGRS)&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)	10/2018 - 10/2019	1
82111-24S50	GSC10 "F SPORT"&STEERING-ELECTRIC POWER STEERING(VGRS)&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)	10/2018 - 10/2019	1
82111-24S50	GSC10 "F SPORT"&STEERING-ELECTRIC POWER STEERING(VGRS)&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)	10/2018 - 10/2019	1
82111-24S50	GSC10 GUAM SPEC&"F SPORT"&STEERING-ELECTRIC POWER STEERING(VGRS)&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)	10/2018 - 10/2019	1
82111-24S30	GSC10 "F SPORT"&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)	10/2018 - 10/2019	1
82111-24S20	GSC10 KOREA SPEC&"VERSION L"&AUDIO-EMV(KOREA SPEC) & 17SPEAKER&ELECTRO MULTI VISION-WITH(KOREA SPEC)	10/2018 - 11/2019	1
82111-24S40	GSC10 KOREA SPEC&"F SPORT"&AUDIO-EMV(KOREA SPEC) & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(KOREA SPEC)	10/2018 - 11/2019	1
82111-24S60	GSC10 KOREA SPEC&"F SPORT"&STEERING-ELECTRIC POWER STEERING(VGRS)&AUDIO-EMV(KOREA SPEC)& 17SPEAKER&ELECTRO MULTI VISION-WITH(KOREA SPEC)	10/2018 - 11/2019	1
82111-24S40	GSC10 KOREA SPEC&"F SPORT"&AUDIO-EMV(KOREA SPEC) & 17SPEAKER&ELECTRO MULTI VISION-WITH(KOREA SPEC)	10/2018 - 11/2019	1
82111-24S41	GSC10 KOREA SPEC&"F SPORT"&AUDIO-EMV(KOREA SPEC) & 17SPEAKER&ELECTRO MULTI VISION-WITH(KOREA SPEC)	11/2019 - 09/2020	1
82111-24S20	GSC10 KOREA SPEC&"VERSION L"&AUDIO-EMV(KOREA SPEC) & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(KOREA SPEC)	10/2018 - 11/2019	1
82111-24S31	GSC10 "F SPORT"	11/2019 - 09/2020	1
82111-24S21	GSC10 KOREA SPEC&"VERSION L"&AUDIO-EMV(KOREA SPEC) & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(KOREA SPEC)	11/2019 - 09/2020	1
82111-24S41	GSC10 KOREA SPEC&"F SPORT"&AUDIO-EMV(KOREA SPEC) & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(KOREA SPEC)	11/2019 - 09/2020	1
82111-24S11	GSC10	11/2019 - 09/2020	1
82111-24S60	GSC10 KOREA SPEC&"F SPORT"&STEERING-ELECTRIC POWER STEERING(VGRS)&AUDIO-EMV(KOREA SPEC)& DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(KOREA SPEC)	10/2018 - 11/2019	1
82111-24S61	GSC10 KOREA SPEC&"F SPORT"&STEERING-ELECTRIC POWER STEERING(VGRS)&AUDIO-EMV(KOREA SPEC)& DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(KOREA SPEC)	11/2019 - 09/2020	1
82111-24S21	GSC10 KOREA SPEC&"VERSION L"&AUDIO-EMV(KOREA SPEC) & 17SPEAKER&ELECTRO MULTI VISION-WITH(KOREA SPEC)	11/2019 - 09/2020	1
82111-24S51	GSC10 "F SPORT"&STEERING-ELECTRIC POWER STEERING(VGRS)	11/2019 - 09/2020	1
82111-24S32	GSC10 "F SPORT"	09/2020 - 09/2021	1
82111-24S12	GSC10	09/2020 - 09/2021	1
82111-24S61	GSC10 KOREA SPEC&"F SPORT"&STEERING-ELECTRIC POWER STEERING(VGRS)&AUDIO-EMV(KOREA SPEC)& 17SPEAKER&ELECTRO MULTI VISION-WITH(KOREA SPEC)	11/2019 - 09/2020	1
82111-24S52	GSC10 "F SPORT"&STEERING-ELECTRIC POWER STEERING(VGRS)	09/2020 - 09/2021	1
82112 - WIRE, ENGINE ROOM, NO.2
82112-24211	GSC10 PRE-COLLISION SYSTEM-WITHOUT	10/2018 - 09/2020	1
82112-24312	GSC1#	09/2020 - 12/2999	1
82112-24311	GSC1#	10/2018 - 09/2020	1
82113 - WIRE, ENGINE ROOM, NO.3
82113-24080	ASC10,GSC10	10/2018 - 12/2999	1
82114 - WIRE, ENGINE ROOM, NO.4
82114-24050	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH	10/2018 - 12/2999	2
82114-53100	ASC10,GSC1#	10/2018 - 12/2999	2
82114 - WIRE, ENGINE ROOM, NO.4
82114-24050	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH	10/2018 - 12/2999	2
82114-53100	ASC10,GSC1#	10/2018 - 12/2999	2
82280A - WIRE ASSY, BATTERY TO COWL TOP SIDE
82280-24020	ASC10,GSC1#	10/2018 - 09/2020	1
82284-53140	ASC10,GSC1#	09/2020 - 12/2999	1
82345 - DIODE
82345-32020	ASC10,GSC1#	10/2018 - 12/2999	1
82666A - HOLDER, CONNECTOR NO.2
82666-30A70	ASC10,GSC1#	10/2018 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-24A20	ASC10,GSC1#	10/2018 - 12/2999	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-24B10	ASC10,GSC1#	10/2018 - 12/2999	1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-30M00	ASC10,GSC1#	10/2018 - 12/2999	1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-30M70	ASC10,GSC1#	10/2018 - 10/2019	1
82817-3AK40	ASC10,GSC1#	11/2019 - 12/2999	1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-30Y40	ASC10,GSC1#	10/2018 - 12/2999	1
82930 - CONDENSER ASSY, WIRING HARNESS, NO.1
82930-30030	ASC10,GSC1#	10/2018 - 12/2999	1
Common parts
90119-06915
90119-06995
90119-06A07
94151-80801
Linked diagrams
8401

ILLUST NO. 6 OF10(1409- )

Click highlighted areas on diagram

SEAT

Part #	Description	Period	Qty
82191 - WIRE, FRONT SEAT, RH
82191-24211	ASC10,GSC10 PREMIUM&SEAT HEATER(FRONT SEAT)-WITH & WITH(SEAT VENTILATION SYSTEM)	10/2018 - 12/2999	1
82191-24221	ASC10,GSC10 KOREA SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER(FRONTSEAT)-WITH & WITH(SEAT VENTILATION SYSTEM)	10/2018 - 09/2020	1
82191-24211	ASC10,GSC10 "F SPORT"&SEAT HEATER(FRONT SEAT)-WITH & WITH(SEAT VENTILATION SYSTEM)	10/2018 - 12/2999	1
82191-24221	ASC10,GSC10 KOREA SPEC&"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER(FRONT SEAT)-WITH & WITH(SEAT VENTILATION SYSTEM)	10/2018 - 09/2020	1
82191-24241	ASC10,GSC10 SEAT HEATER(FRONT SEAT)-WITH & WITHOUT(SEAT VENTILATION SYSTEM)	10/2018 - 12/2999	1
82191-24261	ASC10,GSC10	10/2018 - 12/2999	1
82191A - WIRE, FRONT SEAT, RH
82191-53580	ASC10,GSC1#	10/2018 - 12/2999	1
82192 - WIRE, FRONT SEAT, LH
82192-24191	ASC10,GSC10 KOREA SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER(FRONTSEAT)-WITH & WITH(SEAT VENTILATION SYSTEM)	10/2018 - 09/2020	1
82192-24231	ASC10,GSC10	10/2018 - 12/2999	1
82192-24191	ASC10,GSC10 "F SPORT"&SEAT HEATER(FRONT SEAT)-WITH & WITH(SEAT VENTILATION SYSTEM)	10/2018 - 12/2999	1
82192-24191	ASC10,GSC10 PREMIUM&SEAT HEATER(FRONT SEAT)-WITH & WITH(SEAT VENTILATION SYSTEM)	10/2018 - 12/2999	1
82192-24221	ASC10,GSC10 SEAT HEATER(FRONT SEAT)-WITH & WITHOUT(SEAT VENTILATION SYSTEM)	10/2018 - 12/2999	1
82192-24191	ASC10,GSC10 KOREA SPEC&"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER(FRONT SEAT)-WITH & WITH(SEAT VENTILATION SYSTEM)	10/2018 - 09/2020	1
8219A - WIRE, FRONT SEAT, RH NO.2
8219A-24030	ASC10,GSC10 PREMIUM&SEAT HEATER(FRONT SEAT)-WITH & WITH(SEAT VENTILATION SYSTEM)	10/2018 - 12/2999	1
8219A-24030	ASC10,GSC10 KOREA SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER(FRONTSEAT)-WITH & WITH(SEAT VENTILATION SYSTEM)	10/2018 - 09/2020	1
8219A-24030	ASC10,GSC10 KOREA SPEC&"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER(FRONT SEAT)-WITH & WITH(SEAT VENTILATION SYSTEM)	10/2018 - 09/2020	1
8219A-24030	ASC10,GSC10 "F SPORT"&SEAT HEATER(FRONT SEAT)-WITH & WITH(SEAT VENTILATION SYSTEM)	10/2018 - 12/2999	1
8219A-24040	ASC10,GSC1#	10/2018 - 12/2999	1
8219B - WIRE, FRONT SEAT, LH NO.2
8219B-24030	ASC10,GSC10 "F SPORT"&SEAT HEATER(FRONT SEAT)-WITH & WITH(SEAT VENTILATION SYSTEM)	10/2018 - 12/2999	1
8219B-24030	ASC10,GSC10 PREMIUM&SEAT HEATER(FRONT SEAT)-WITH & WITH(SEAT VENTILATION SYSTEM)	10/2018 - 12/2999	1
8219B-24030	ASC10,GSC10 KOREA SPEC&"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER(FRONT SEAT)-WITH & WITH(SEAT VENTILATION SYSTEM)	10/2018 - 09/2020	1
8219B-24050	ASC10,GSC1#	10/2018 - 12/2999	1
8219B-24030	ASC10,GSC10 KOREA SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&SEAT HEATER(FRONTSEAT)-WITH & WITH(SEAT VENTILATION SYSTEM)	10/2018 - 09/2020	1

ILLUST NO. 7 OF10(1409- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-3A460
82715-24390
82715-30B00
82715-30D80
82715-30Q00
82715-30V40
82715-30V90
82715-30W10
82715-30W70
82715-30X00
82715-30Y00
82715-78110
82729-30040
89348-50050
90119-06915
90126-06028
91553-80614
91671-80612
91671-80614
91673-80816
94151-80600
Linked diagrams
5804
8201

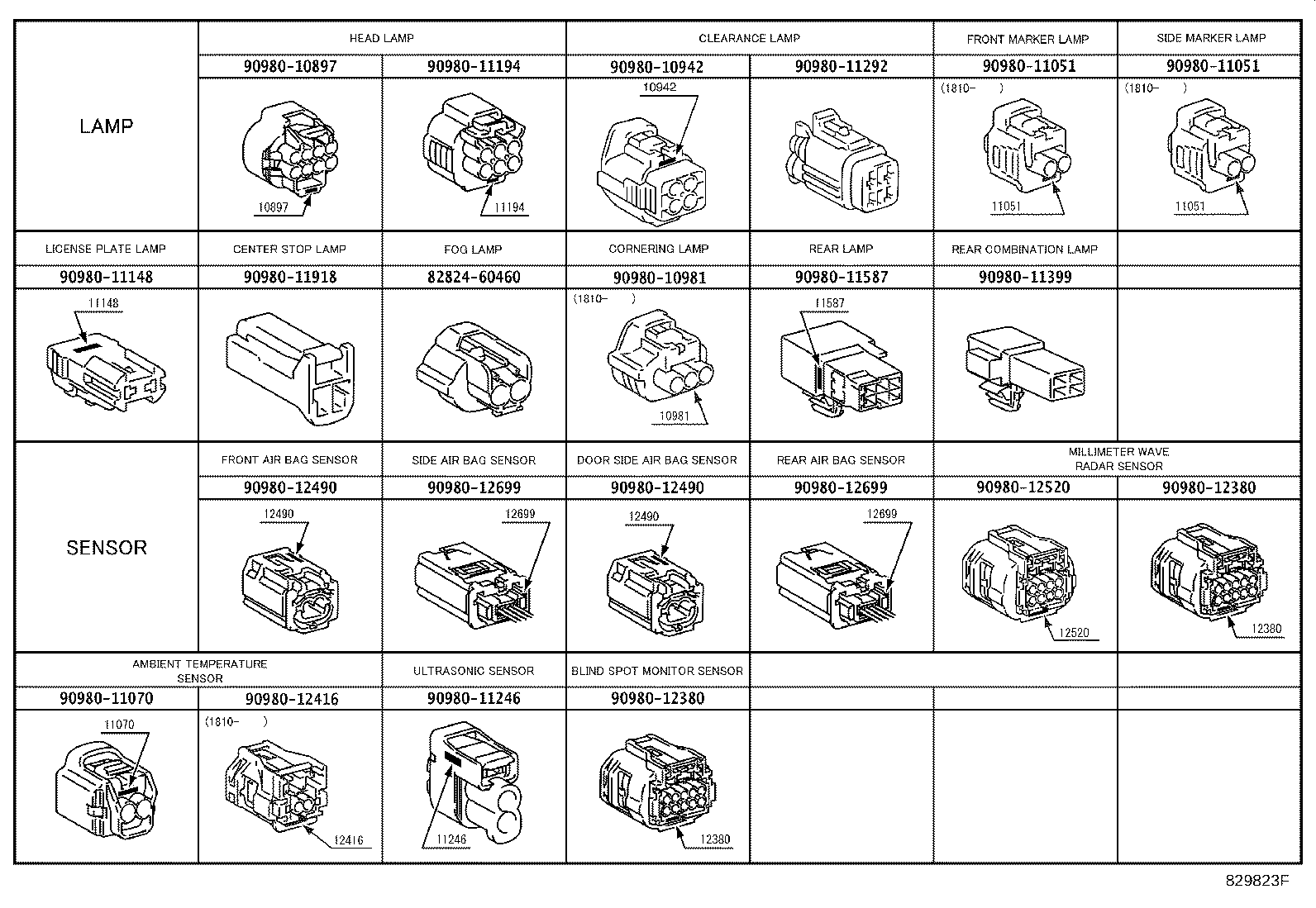

ILLUST NO. 9 OF10(1409- )

Click highlighted areas on diagram

CONNECTOR 1/2

Part #	Description	Period	Qty	Price
Common parts
82824-60460
90980-10897
90980-10942
90980-10981
90980-11051
90980-11070
90980-11148
90980-11194
90980-11246
90980-11292
90980-11399
90980-11587
90980-11918
90980-12380
90980-12416
90980-12490
90980-12520
90980-12699

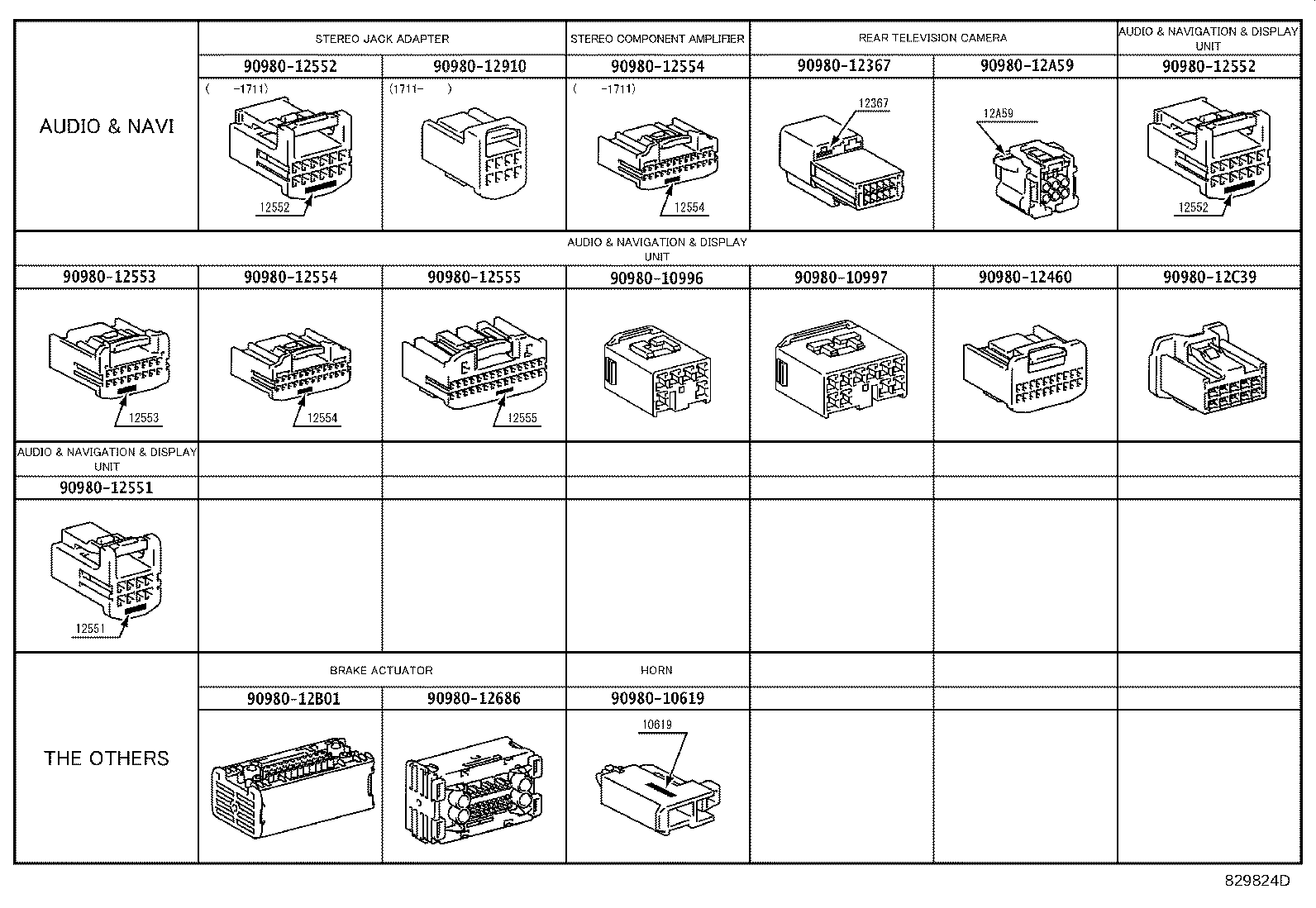

ILLUST NO.10 OF10(1409- )

Click highlighted areas on diagram

CONNECTOR 2/2

Part #	Description	Period	Qty	Price
Common parts
90980-10619
90980-10996
90980-10997
90980-12367
90980-12460
90980-12551
90980-12552
90980-12553
90980-12554
90980-12555
90980-12686
90980-12910
90980-12A59
90980-12B01
90980-12C39

ILLUST NO. 5 OF10(1409- )

Click highlighted areas on diagram

FLOOR & ROOF

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-24D80	ASC10,GSC10 KOREA SPEC&AUDIO-EMV(KOREA SPEC) & DVD & 10SPEAKER	10/2018 - 09/2020	1
82161-24E01	ASC10,GSC1#	11/2019 - 09/2020	1
82161-24E10	ASC10,GSC1# AUDIO-EMV & DVD & 10SPEAKER	10/2018 - 09/2020	1
82161-24E02	ASC10,GSC1#	09/2020 - 09/2021	1
82161-24E00	ASC10,GSC1#	10/2018 - 11/2019	1
82161-24D80	ASC10,GSC10 KOREA SPEC&AUDIO-EMV(KOREA SPEC) & 17SPEAKER	10/2018 - 09/2020	1
82161-24E10	ASC10,GSC1# AUDIO-EMV & DVD & 17SPEAKER	10/2018 - 09/2020	1
82161-24E11	ASC10,GSC1# AUDIO-EMV & DVD & 17SPEAKER	09/2020 - 09/2021	1
82161-24E11	ASC10,GSC1# AUDIO-EMV & DVD & 10SPEAKER	09/2020 - 09/2021	1
82162 - WIRE, FLOOR, NO.2
82162-24D60	GSC10 STEERING-ELECTRIC POWER STEERING(VGRS)&AUDIO-EMV & DVD & 10SPEAKER	10/2018 - 11/2019	1
82162-24D60	GSC10 STEERING-ELECTRIC POWER STEERING(VGRS)&AUDIO-EMV & DVD & 17SPEAKER	10/2018 - 11/2019	1
82162-24D40	GSC10 KOREA SPEC&STEERING-ELECTRIC POWER STEERING(VGRS)&AUDIO-EMV(KOREA SPEC) & 17SPEAKER	10/2018 - 09/2020	1
82162-24D40	GSC10 KOREA SPEC&STEERING-ELECTRIC POWER STEERING(VGRS)&AUDIO-EMV(KOREA SPEC) & DVD & 10SPEAKER	10/2018 - 09/2020	1
82162-24D30	ASC10,GSC10 KOREA SPEC&AUDIO-EMV(KOREA SPEC) & 17SPEAKER	10/2018 - 09/2020	1
82162-24D61	GSC10 STEERING-ELECTRIC POWER STEERING(VGRS)	09/2020 - 09/2021	1
82162-24D60	GSC10 STEERING-ELECTRIC POWER STEERING(VGRS)	11/2019 - 09/2020	1
82162-24D51	ASC10,GSC1#	09/2020 - 09/2021	1
82162-24D30	ASC10,GSC10 KOREA SPEC&AUDIO-EMV(KOREA SPEC) & DVD & 10SPEAKER	10/2018 - 09/2020	1
82162-24D50	ASC10,GSC1#	10/2018 - 09/2020	1
82171 - WIRE, ROOF, NO.1
82171-24490	ASC10,GSC10 KOREA SPEC&"VERSION L"&PRE-COLLISION SYSTEM-WITHOUT	10/2018 - 09/2020	1
82171-24500	ASC10,GSC1# "F SPORT"&PREMIUM PACKAGE	10/2018 - 09/2020	1
82171-24500	ASC10,GSC10 KOREA SPEC&"F SPORT"	10/2018 - 09/2020	1
82171-24480	ASC10,GSC1#	10/2018 - 09/2020	1
82171-24500	ASC10,GSC10 KOREA SPEC&"VERSION L"	10/2018 - 09/2020	1
82171-24490	ASC10,GSC10 KOREA SPEC&"F SPORT"&PRE-COLLISION SYSTEM-WITHOUT	10/2018 - 09/2020	1
82171-24520	ASC10,GSC1# MOON ROOF-WITH	10/2018 - 09/2020	1
82171-24540	ASC10,GSC1# "F SPORT"&PREMIUM PACKAGE&MOON ROOF-WITH	10/2018 - 09/2020	1
82171-24530	ASC10,GSC10 KOREA SPEC&"F SPORT"&PRE-COLLISION SYSTEM-WITHOUT&MOON ROOF-WITH	10/2018 - 09/2020	1
82171-24500	ASC10,GSC1# PREMIUM&PREMIUM PACKAGE	10/2018 - 09/2020	1
82171-24660	ASC10,GSC1# "F SPORT"& BLACK EDITION 2 PACKAGE&MOON ROOF-WITH	09/2020 - 12/2999	1
82171-24600	ASC10,GSC1#	09/2020 - 12/2999	1
82171-24620	ASC10,GSC1# "F SPORT"&PREMIUM PACKAGE	09/2020 - 12/2999	1
82171-24620	ASC10,GSC1# "F SPORT"& BLACK EDITION 2 PACKAGE	09/2020 - 12/2999	1
82171-24640	ASC10,GSC1# MOON ROOF-WITH	09/2020 - 12/2999	1
82171-24620	ASC10,GSC1# PREMIUM&PREMIUM PACKAGE	09/2020 - 12/2999	1
82171-24660	ASC10,GSC1# "F SPORT"&PREMIUM PACKAGE&MOON ROOF-WITH	09/2020 - 12/2999	1
82171-24530	ASC10,GSC10 KOREA SPEC&"VERSION L"&PRE-COLLISION SYSTEM-WITHOUT&MOON ROOF-WITH	10/2018 - 09/2020	1
82171-24540	ASC10,GSC1# PREMIUM&PREMIUM PACKAGE&MOON ROOF-WITH	10/2018 - 09/2020	1
82171-24540	ASC10,GSC10 KOREA SPEC&"F SPORT"&MOON ROOF-WITH	10/2018 - 09/2020	1
82171-24540	ASC10,GSC10 KOREA SPEC&"VERSION L"&MOON ROOF-WITH	10/2018 - 09/2020	1
82171-24660	ASC10,GSC1# PREMIUM&PREMIUM PACKAGE&MOON ROOF-WITH	09/2020 - 12/2999	1
82183 - WIRE, LUGGAGE ROOM, NO.3
82183-24050	ASC10,GSC1# CLEARANCE & BACK SONAR-WITH	10/2018 - 12/2999	1
82345C - DIODE
82345-12030	ASC10,GSC1#	09/2020 - 12/2999	1
82666E - HOLDER, CONNECTOR NO.6
82666-24080	ASC10,GSC1#	10/2018 - 12/2999	1
82666F - HOLDER, CONNECTOR NO.7
82666-24090	ASC10,GSC1#	10/2018 - 12/2999	1
82666G - HOLDER, CONNECTOR NO.8
82666-16030	ASC10,GSC1#	10/2018 - 12/2999	1
82666L - HOLDER, CONNECTOR NO.9
82666-24130	ASC10,GSC1#	09/2020 - 12/2999	1
82666N - HOLDER, CONNECTOR NO.10
82666-24120	ASC10,GSC1#	09/2020 - 12/2999	1
82811 - PLATE, WIRING HARNESS THROUGH HOLE, NO.1
82811-53040	ASC10,GSC1#	10/2018 - 12/2999	1
82817U - PROTECTOR, WIRING HARNESS, NO.16
82817-30N30	ASC10,GSC1#	10/2018 - 12/2999	1
82817X - PROTECTOR, WIRING HARNESS, NO.17
82817-30N40	ASC10,GSC1#	10/2018 - 12/2999	1
82824 - CONNECTOR, WIRING HARNESS
82824-60730	ASC10,GSC1#	10/2018 - 12/2999	1
82824A - CONNECTOR, WIRING HARNESS
82824-52300	ASC10,GSC1# AUDIO-EMV & DVD & 17SPEAKER	10/2018 - 12/2999	2
82824-52300	ASC10,GSC1# AUDIO-DISPLAY AUDIO & CD & 17SPEAKER	10/2018 - 12/2999	2
82824-52300	ASC10,GSC1#	10/2018 - 12/2999	2
82824-52300	ASC10,GSC10 AUDIO-EMV(KOREA SPEC) & 17SPEAKER	10/2018 - 05/2020	2
82824A - CONNECTOR, WIRING HARNESS
82824-52300	ASC10,GSC1# AUDIO-EMV & DVD & 17SPEAKER	10/2018 - 12/2999	2
82824-52300	ASC10,GSC1# AUDIO-DISPLAY AUDIO & CD & 17SPEAKER	10/2018 - 12/2999	2
82824-52300	ASC10,GSC1#	10/2018 - 12/2999	2
82824-52300	ASC10,GSC10 AUDIO-EMV(KOREA SPEC) & 17SPEAKER	10/2018 - 05/2020	2
890C0 - WIRE ASSY, PARKING BRAKE, NO.1
890C0-24030	ASC10,GSC1#	09/2020 - 12/2999	1
890C0A - WIRE ASSY, PARKING BRAKE, NO.2
890C0-24040	ASC10,GSC1#	09/2020 - 12/2999	1
Common parts
90119-06915
90119-06A07
90179-06274
91671-A0616
91673-80616
Linked diagrams
8121
8417
8601

ILLUST NO. 8 OF10(1409- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82715-30720
82715-30740
82715-30A40
82715-30A50
82715-30A60
82715-30A70
82715-30A80
82715-30A90
82715-30C10
82715-30E60
82715-30G30
82715-30M90
82715-30T10
82715-30U40
82715-30U50
82715-30U60
82715-30U70
82715-30U80
82715-30U90
82715-30W20
82715-30W40
82715-30W50
82715-30W60
82715-30X20
82715-30X30
82715-30Y10
82715-50440
82715-50540
82715-50A00
82715-53700
82715-53710
82715-53720
82715-53790
82729-30020
90119-06375
90126-06028
91551-A0612
91671-80610
91671-80612
91671-80614
91671-80616
91671-80820
91673-80612
94151-80600
Linked diagrams
8201

GSC10L-RCZLHA (2018)

ILLUST NO. 4 OF10(1409- )

ILLUST NO. 3 OF10(1409- )

ILLUST NO. 1 OF10(1409- )

ILLUST NO. 6 OF10(1409- )

ILLUST NO. 7 OF10(1409- )

ILLUST NO. 9 OF10(1409- )

ILLUST NO.10 OF10(1409- )

ILLUST NO. 5 OF10(1409- )

ILLUST NO. 8 OF10(1409- )

Part Price Details
