GSC10L-RCZLHA (2018)

Toyota Lexus Rc350/300/200t

Production Oct 2018 - Sep 9999
Engine 2GRF
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1409- )

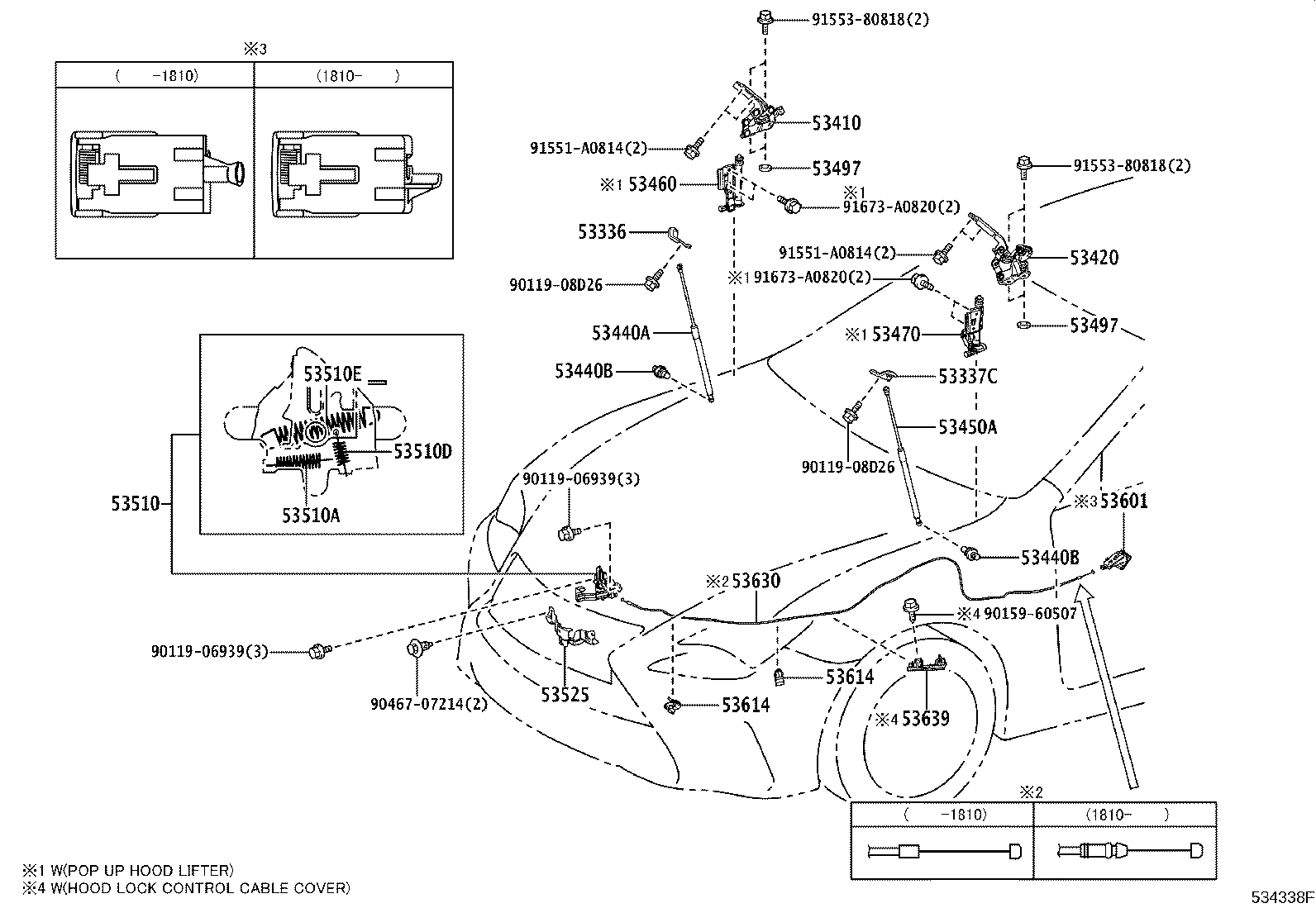

Click highlighted areas on diagram

diagram 53336 53337C 53410 53420 53440A 53440B 53440B 53450A 53460 53470 53497 53497 53510 53510A 53510D 53510E 53525 53601 53614 53614 53630 53639 9011906939 9011906939 9011908D26 9011908D26 9015960507 9046707214 91551A0814 91551A0814 9155380818 9155380818 91673A0820 91673A0820
Part # Description Qty Price
53336 - BRACKET, HOOD STAY, RH
53336-24021

ASC10,GSC1#

 1
53337C - BRACKET, HOOD STAY, LH
53337-24021

ASC10,GSC1#

 1
53410 - HINGE ASSY, HOOD, RH
53410-24080

ASC10,GSC1#

 1
53420 - HINGE ASSY, HOOD, LH
53420-24080

ASC10,GSC1#

 1
53440A - SUPPORT ASSY, HOOD, RH
53440-0W291

ASC10,GSC1#

 1
53440B - BOLT, HOOD SUPPORT, NO.1
68961-20051

ASC10,GSC1#

 2
53440B - BOLT, HOOD SUPPORT, NO.1
68961-20051

ASC10,GSC1#

 2
53450A - SUPPORT ASSY, HOOD, LH
53450-0W251

ASC10,GSC1#

 1
53460 - LIFTER ASSY, POP UP HOOD, RH
53460-24041

ASC10,GSC10

KOREA SPEC

 1
53470 - LIFTER ASSY, POP UP HOOD, LH
53470-24041

ASC10,GSC10

KOREA SPEC

 1
53497 - PAD, HOOD HINGE, NO.1
53497-50020

ASC10,GSC1#

T=1.0

 2
53497 - PAD, HOOD HINGE, NO.1
53497-50020

ASC10,GSC1#

T=1.0

 2
53510 - LOCK ASSY, HOOD
53510-24101

ASC10,GSC1#

 1
53510-24100

ASC10,GSC1#

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09055

ASC10,GSC1#

WD=0.9,CW=21

 1
53510D - SPRING, TENSION(FOR HOOD LOCK)
90506-12063

ASC10,GSC1#

WD=1.2,CW=8.5

 1
53510E - SPRING, TENSION(FOR HOOD LOCK)
90506-16077

ASC10,GSC1#

WD=1.6,CW=12

 1
53525 - PROTECTOR, HOOD LOCK RELEASE LEVER
53525-30130

ASC10,GSC1#

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-30110C0

ASC10,GSC1#

BLACK,TRIM0#,2#,3#,4#,5#

 1
53614 - CLAMP, HOOD LOCK CONTROL CABLE
90959-01369

ASC10,GSC1#

 2
53614 - CLAMP, HOOD LOCK CONTROL CABLE
90959-01369

ASC10,GSC1#

 2
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-24141

ASC10,GSC1#

 1
53639 - COVER, HOOD LOCK CONTROL CABLE, NO.2
53639-24040

ASC10,GSC10

KOREA SPEC

 1
Common parts
90119-06939
90119-08D26
90159-60507
90467-07214
91551-A0814
91553-80818
91673-A0820
