GSC10L-RCZLHA (2018)
Toyota Lexus Rc350/300/200t
Production
Oct 2018
-
Sep 9999
Engine
2GRF
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

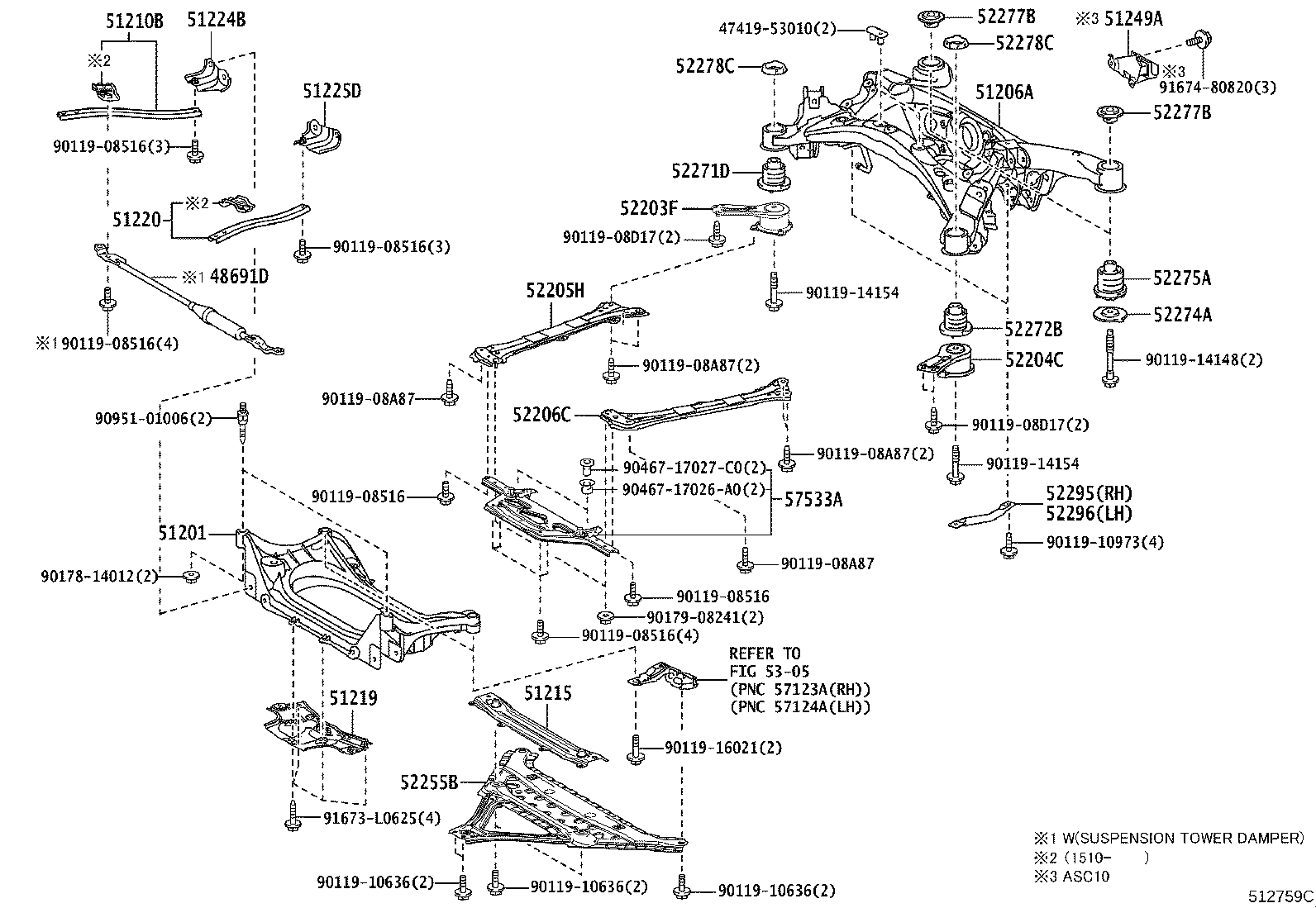

ILLUST NO. 1 OF 2(1409- )ASC10,GSC10
Click highlighted areas on diagram
SUSPENSION CROSSMEMBER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48691D - DAMPER, SUSPENSION TOWER | ||||
| 48691-53011 |
ASC10,GSC10 |
1 | ||
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-30140 |
ASC10,GSC10 |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-30142 |
ASC10,GSC1# |
1 | ||
| 51206-30152 |
GSC10 STEERING-ELECTRIC POWER STEERING(VGRS) |
1 | ||
| 51210B - CROSSMEMBER ASSY, FRAME, NO.1 | ||||
| 51210-30020 |
ASC10,GSC10 |
1 | ||
| 51215 - REINFORCEMENT, FRONT SUSPENSION CROSSMEMBER | ||||
| 51216-24030 |
ASC10,GSC10 |
1 | ||
| 51219 - PROTECTOR, FRONT SUSPENSION MEMBER, LWR | ||||
| 51219-30050 |
ASC10,GSC10 |
1 | ||
| 51219-30051 |
ASC10,GSC10 |
1 | ||
| 51220 - CROSSMEMBER ASSY, FRAME, NO.2 | ||||
| 51210-30020 |
ASC10,GSC10 |
1 | ||
| 51224B - PLATE, FRONT SUSPENSION MENBER BRACE, RH | ||||
| 51224-30040 |
ASC10,GSC10 |
1 | ||
| 51225D - PLATE, FRONT SUSPENSION MENBER BRACE, LH | ||||
| 51225-30030 |
ASC10,GSC10 |
1 | ||
| 52203F - STOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER RH | ||||
| 52203-30080 |
ASC10,GSC1# |
1 | ||
| 52204C - STOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER LH | ||||
| 52204-30060 |
ASC10,GSC1# |
1 | ||
| 52205H - CUSHION SUB-ASSY, BODY MOUNTING, REAR RH | ||||
| 52205-30250 |
ASC10,GSC1# |
1 | ||
| 52206C - CUSHION SUB-ASSY, BODY MOUNTING, REAR LH | ||||
| 52206-30070 |
ASC10,GSC1# |
1 | ||
| 52255B - BRACE, FRONT SUSPENSION MEMBER | ||||
| 52255-24010 |
ASC10,GSC10 |
1 | ||
| 52255-30050 |
ASC10,GSC10 KOREA SPEC |
1 | ||
| 52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52271-30151 |
ASC10,GSC1# |
1 | ||
| 52272B - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LO | ||||
| 52272-30011 |
ASC10,GSC1# |
1 | ||
| 52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH | ||||
| 52274-30010 |
ASC10,GSC1# |
2 | ||
| 52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52275-30161 |
ASC10,GSC1# |
2 | ||
| 52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER | ||||
| 52277-30090 |
ASC10,GSC1# |
2 | ||
| 52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER | ||||
| 52277-30090 |
ASC10,GSC1# |
2 | ||
| 52278C - STOPPER, REAR SUSPENSION MEMBER, REAR LOWER | ||||
| 52278-30091 |
ASC10,GSC1# |
2 | ||
| 52278C - STOPPER, REAR SUSPENSION MEMBER, REAR LOWER | ||||
| 52278-30091 |
ASC10,GSC1# |
2 | ||
| 52295 - BRACE, REAR SUSPENSION MEMBER, RH | ||||
| 52295-30041 |
ASC10,GSC1# |
1 | ||
| 52296 - BRACE, REAR SUSPENSION MEMBER, LH | ||||
| 52295-30041 |
ASC10,GSC1# |
1 | ||
| 57533A - BRACE, FRONT FLOOR, CENTER | ||||
| 51708-24020 |
ASC10,GSC1# |
1 | ||
| Common parts | ||||
| 47419-53010 | ||||
| 90119-08516 | ||||
| 90119-08A87 | ||||
| 90119-08D17 | ||||
| 90119-10636 | ||||
| 90119-10973 | ||||
| 90119-14148 | ||||
| 90119-14154 | ||||
| 90119-16021 | ||||
| 90178-14012 | ||||
| 90179-08241 | ||||
| 90467-17026A0 | ||||
| 90467-17027C0 | ||||
| 90951-01006 | ||||
| 91673-L0625 | ||||
| 91674-80820 | ||||
| Linked diagrams | ||||
| 5305 | ||||

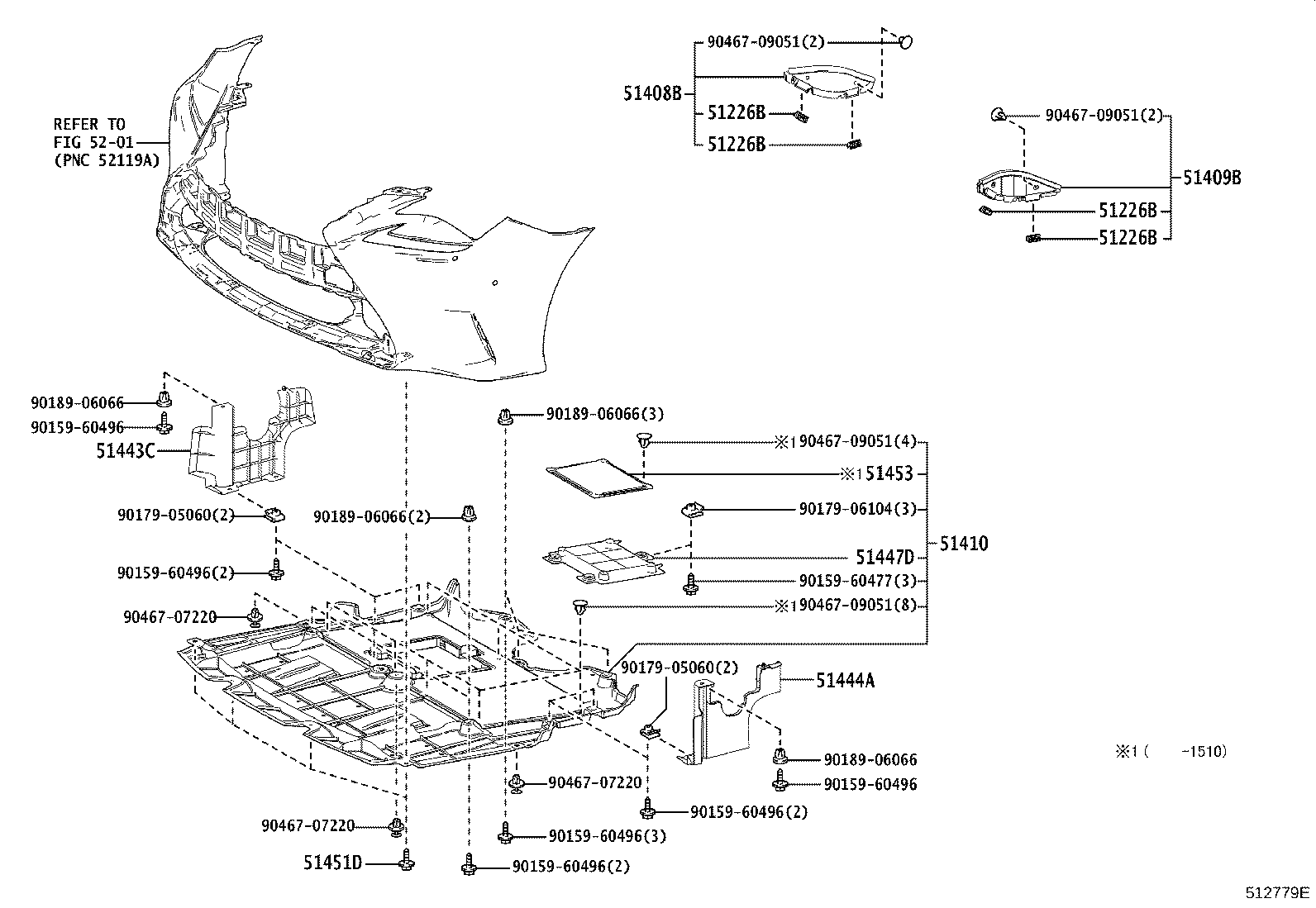

ILLUST NO. 2 OF 2(1409- )ASC10,GSC10
Click highlighted areas on diagram
UNDER COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51226B - PLATE, FRONT SUSPENSION MEMBER, NO.2 | ||||
| 51226-30020 |
ASC10,GSC10 |
4 | ||
| 51226B - PLATE, FRONT SUSPENSION MEMBER, NO.2 | ||||
| 51226-30020 |
ASC10,GSC10 |
4 | ||
| 51226B - PLATE, FRONT SUSPENSION MEMBER, NO.2 | ||||
| 51226-30020 |
ASC10,GSC10 |
4 | ||
| 51226B - PLATE, FRONT SUSPENSION MEMBER, NO.2 | ||||
| 51226-30020 |
ASC10,GSC10 |
4 | ||
| 51408B - COVER SUB-ASSY, ENGINE UNDER, RH | ||||
| 51408-30060 |
ASC10,GSC10 |
1 | ||
| 51409B - COVER SUB-ASSY, ENGINE UNDER, LH | ||||
| 51409-30060 |
ASC10,GSC10 |
1 | ||
| 51410 - COVER ASSY, ENGINE UNDER, NO.1 | ||||
| 51410-24070 |
ASC10,GSC10 |
1 | ||
| 51443C - COVER, ENGINE UNDER, REAR RH | ||||
| 51443-30141 |
ASC10,GSC10 |
1 | ||
| 51444A - COVER, ENGINE UNDER, REAR LH | ||||
| 51444-30171 |
ASC10,GSC10 |
1 | ||
| 51447D - COVER, ENGINE UNDER, NO.4 CENTER | ||||
| 51447-30161 |
ASC10,GSC10 |
1 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60477 |
ASC10,GSC1# |
4 | ||
| Common parts | ||||
| 90159-60477 | ||||
| 90159-60496 | ||||
| 90179-05060 | ||||
| 90179-06104 | ||||
| 90189-06066 | ||||
| 90467-07220 | ||||
| 90467-09051 | ||||
| Linked diagrams | ||||
| 5201 | ||||

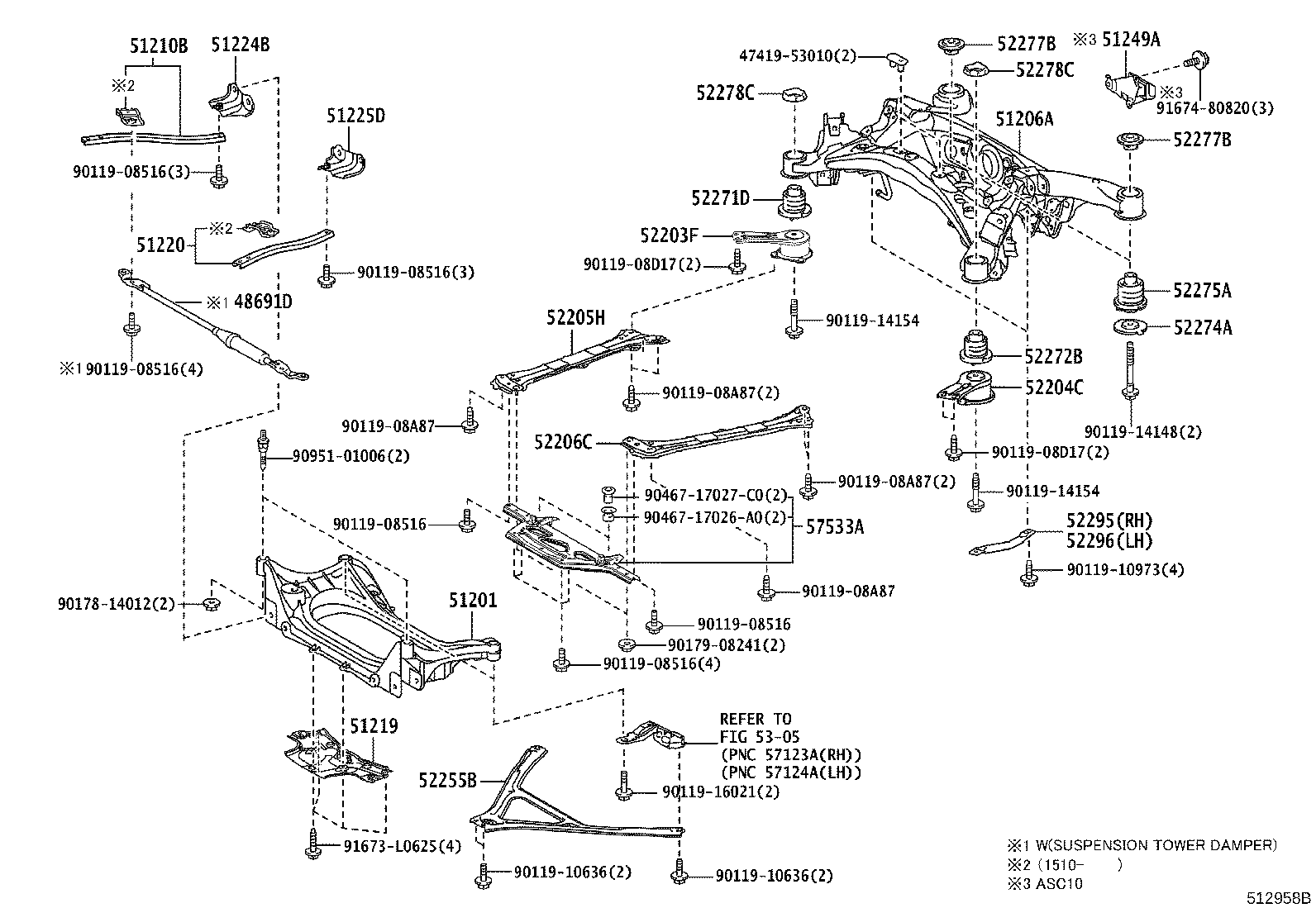

ILLUST NO. 1 OF 2(1409- )ASC10,GSC10
Click highlighted areas on diagram
KOREA SPEC, SUSPENSION CROSSMEMBER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48691D - DAMPER, SUSPENSION TOWER | ||||
| 48691-53011 |
ASC10,GSC10 |
1 | ||
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-30140 |
ASC10,GSC10 |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-30142 |
ASC10,GSC1# |
1 | ||
| 51206-30152 |
GSC10 STEERING-ELECTRIC POWER STEERING(VGRS) |
1 | ||
| 51210B - CROSSMEMBER ASSY, FRAME, NO.1 | ||||
| 51210-30020 |
ASC10,GSC10 |
1 | ||
| 51219 - PROTECTOR, FRONT SUSPENSION MEMBER, LWR | ||||
| 51219-30050 |
ASC10,GSC10 |
1 | ||
| 51219-30051 |
ASC10,GSC10 |
1 | ||
| 51220 - CROSSMEMBER ASSY, FRAME, NO.2 | ||||
| 51210-30020 |
ASC10,GSC10 |
1 | ||
| 51224B - PLATE, FRONT SUSPENSION MENBER BRACE, RH | ||||
| 51224-30040 |
ASC10,GSC10 |
1 | ||
| 51225D - PLATE, FRONT SUSPENSION MENBER BRACE, LH | ||||
| 51225-30030 |
ASC10,GSC10 |
1 | ||
| 52203F - STOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER RH | ||||
| 52203-30080 |
ASC10,GSC1# |
1 | ||
| 52204C - STOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER LH | ||||
| 52204-30060 |
ASC10,GSC1# |
1 | ||
| 52205H - CUSHION SUB-ASSY, BODY MOUNTING, REAR RH | ||||
| 52205-30250 |
ASC10,GSC1# |
1 | ||
| 52206C - CUSHION SUB-ASSY, BODY MOUNTING, REAR LH | ||||
| 52206-30070 |
ASC10,GSC1# |
1 | ||
| 52255B - BRACE, FRONT SUSPENSION MEMBER | ||||
| 52255-24010 |
ASC10,GSC10 |
1 | ||
| 52255-30050 |
ASC10,GSC10 KOREA SPEC |
1 | ||
| 52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52271-30151 |
ASC10,GSC1# |
1 | ||
| 52272B - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LO | ||||
| 52272-30011 |
ASC10,GSC1# |
1 | ||
| 52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH | ||||
| 52274-30010 |
ASC10,GSC1# |
2 | ||
| 52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52275-30161 |
ASC10,GSC1# |
2 | ||
| 52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER | ||||
| 52277-30090 |
ASC10,GSC1# |
2 | ||
| 52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER | ||||
| 52277-30090 |
ASC10,GSC1# |
2 | ||
| 52278C - STOPPER, REAR SUSPENSION MEMBER, REAR LOWER | ||||
| 52278-30091 |
ASC10,GSC1# |
2 | ||
| 52278C - STOPPER, REAR SUSPENSION MEMBER, REAR LOWER | ||||
| 52278-30091 |
ASC10,GSC1# |
2 | ||
| 52295 - BRACE, REAR SUSPENSION MEMBER, RH | ||||
| 52295-30041 |
ASC10,GSC1# |
1 | ||
| 52296 - BRACE, REAR SUSPENSION MEMBER, LH | ||||
| 52295-30041 |
ASC10,GSC1# |
1 | ||
| 57533A - BRACE, FRONT FLOOR, CENTER | ||||
| 51708-24020 |
ASC10,GSC1# |
1 | ||
| Common parts | ||||
| 47419-53010 | ||||
| 90119-08516 | ||||
| 90119-08A87 | ||||
| 90119-08D17 | ||||
| 90119-10636 | ||||
| 90119-10973 | ||||
| 90119-14148 | ||||
| 90119-14154 | ||||
| 90119-16021 | ||||
| 90178-14012 | ||||
| 90179-08241 | ||||
| 90467-17026A0 | ||||
| 90467-17027C0 | ||||
| 90951-01006 | ||||
| 91673-L0625 | ||||
| 91674-80820 | ||||
| Linked diagrams | ||||
| 5305 | ||||
