GSC10L-RCZLHA (2018)

Toyota Lexus Rc350/300/200t

Production Oct 2018 - Sep 9999
Engine 2GRF
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1409- )ASC10,GSC10

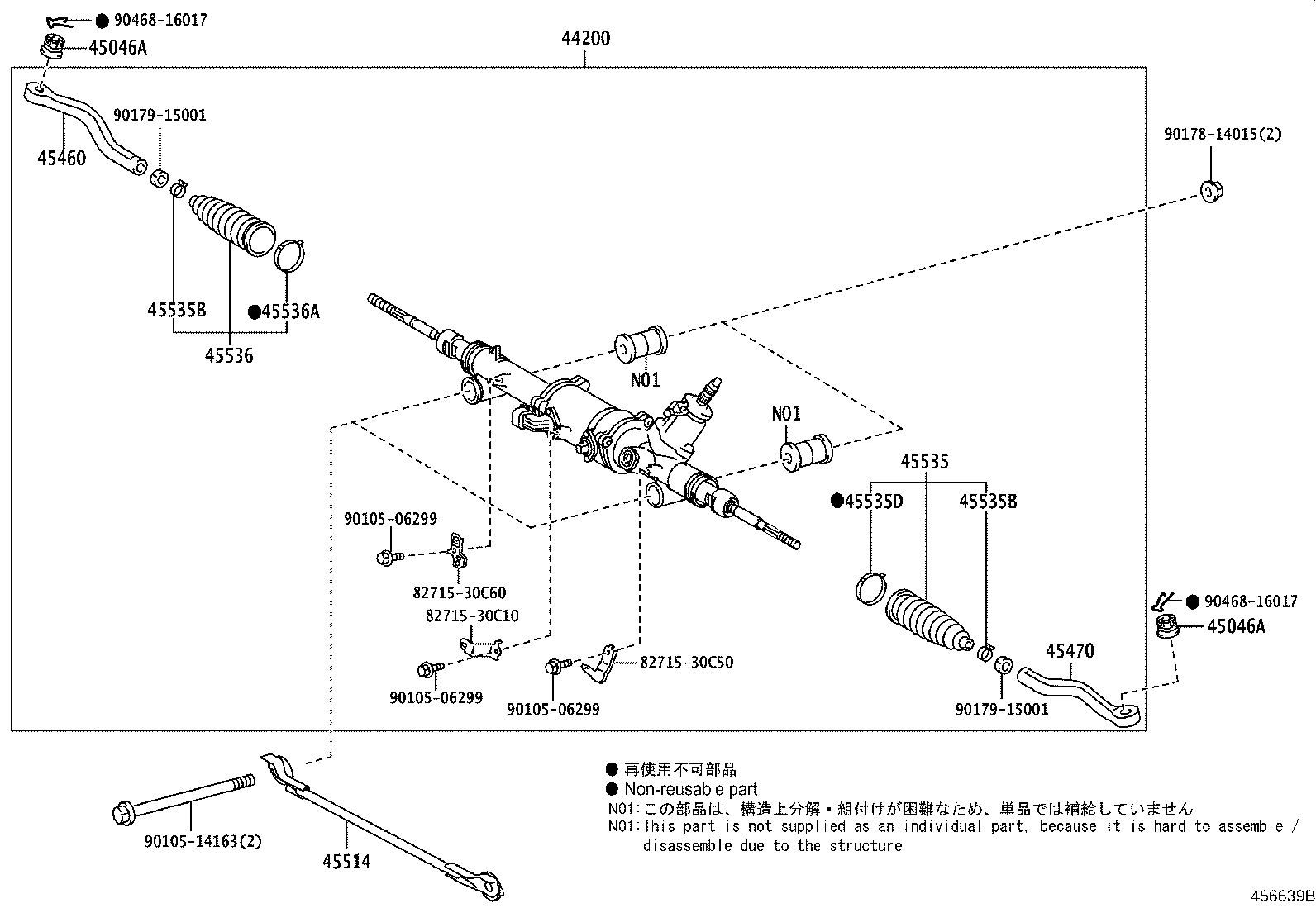

Click highlighted areas on diagram

diagram 44200 45046A 45046A 45460 45470 45514 45535 45535B 45535B 45535D 45536 45536A 8271530C10 8271530C50 8271530C60 9010506299 9010506299 9010506299 9010514163 9017814015 9017915001 9017915001 9046816017 9046816017
Part # Description Qty Price
44200 - LINK ASSY, POWER STEERING
44200-30740

ASC10,GSC10

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12002

ASC10,GSC10

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12002

ASC10,GSC10

 2
45460 - ROD ASSY, TIE, RH
45463-30190

ASC10,GSC10

 1
45470 - ROD ASSY, TIE, LH
45464-30090

ASC10,GSC10

 1
45514 - BRACKET, STEERING RACK HOUSING, NO.1
45514-30020

ASC10,GSC10

 1
45535 - BOOT, STEERING RACK, NO.1
45535-59065

ASC10,GSC10

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019

ASC10,GSC1#

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019

ASC10,GSC1#

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
45538-50010

ASC10,GSC1#

 1
45536 - BOOT, STEERING RACK, NO.2
45535-59065

ASC10,GSC10

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
45538-50010

ASC10,GSC1#

 1
Common parts
82715-30C10
82715-30C50
82715-30C60
90105-06299
90105-14163
90178-14015
90179-15001
90468-16017
