ASC10L-RCZLZA (2015)

Toyota Lexus Rc350/300/200t

Production Oct 2015 - Oct 2018
Engine 8ARFTS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1409-1711)

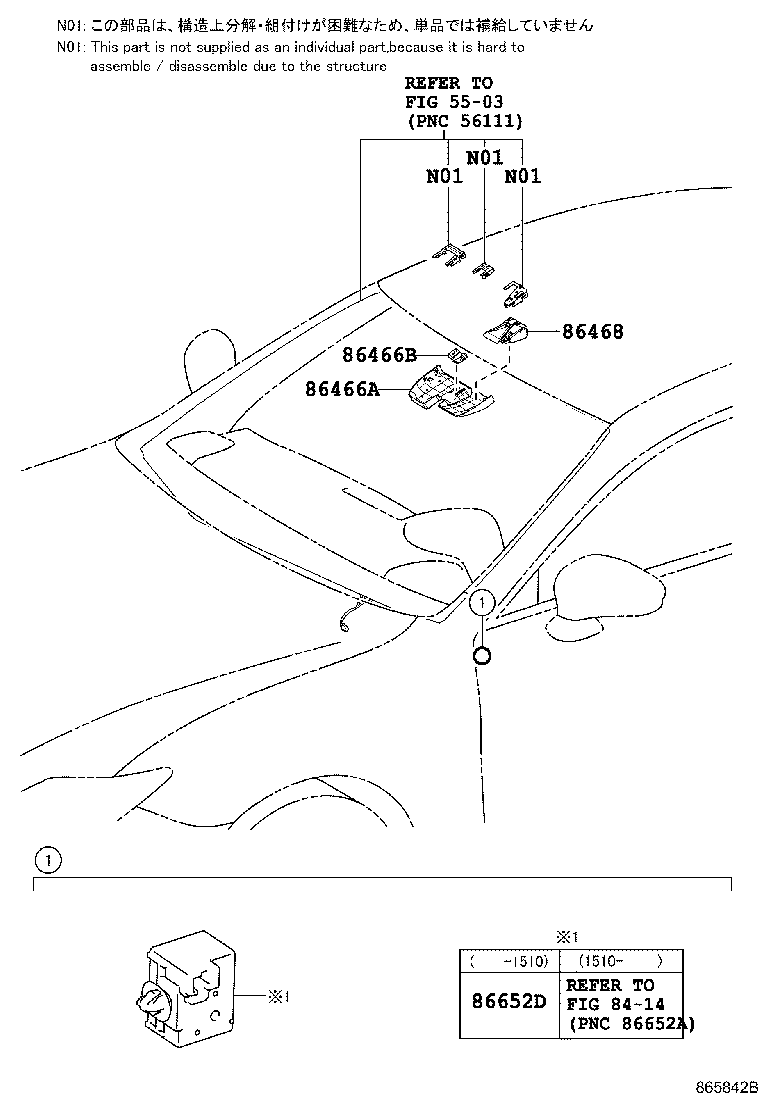

Click highlighted areas on diagram

diagram 5503 8414 86466A 86466B 86468 86652D
Part # Description Qty Price
86466A - COVER, LANE RECOGNITION, NO.1
86466-24020

ASC10,GSC1#

LANE KEEPING SYSTEM-WITH

 1
86466B - COVER, LANE RECOGNITION, NO.2
86466-24040

ASC10,GSC1#

LANE KEEPING SYSTEM-WITH

 1
86468 - CAMERA, LANE DEPARTURE WARNING
86468-24010

ASC10,GSC1#

LANE KEEPING SYSTEM-WITH

 1
Linked diagrams
5503
8414
