ASC10L-RCZLZA (2015)

Toyota Lexus Rc350/300/200t

Production Oct 2015 - Oct 2018
Engine 8ARFTS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1510- )ASC10

Click highlighted areas on diagram

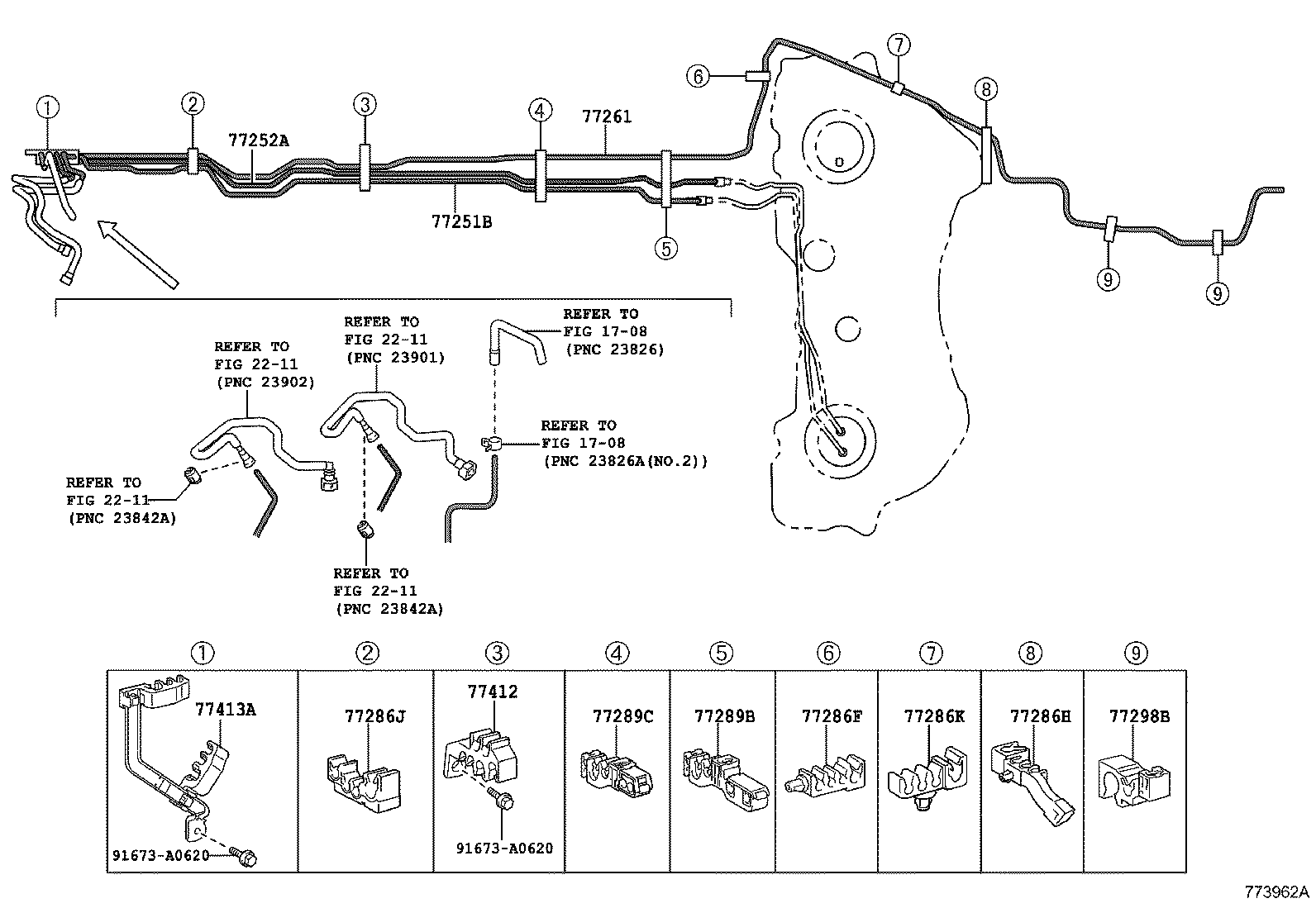

FUEL TUBE

diagram 1708 1708 2211 2211 2211 2211 77251B 77252A 77261 77286F 77286H 77286J 77286K 77289B 77289C 77298B 77412 77413A 91673A0620 91673A0620
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-24110

ASC10

 1
77252A - TUBE, FUEL MAIN, NO.2
77252-24070

ASC10

 1
77261 - TUBE SUB-ASSY, FUEL EMISSION
77261-24170

ASC10

 1
77286F - CLAMP, FUEL TUBE, NO.2
77286-30210

ASC10

 1
77286H - CLAMP, FUEL TUBE, NO.3
77286-30240

ASC10,GSC1#

 1
77286J - CLAMP, FUEL TUBE, NO.4
77286-30220

ASC10

 1
77286K - CLAMP, FUEL TUBE, NO.2
77286-30190

ASC10

 1
77289B - CLAMP, FUEL TUBE, NO.3
77289-24040

ASC10

 1
77289C - CLAMP, FUEL TUBE, NO.4
77289-53060

ASC10

 1
77298B - CLAMP, FUEL TUBE, NO.4
77299-30070

ASC10,GSC1#

 2
77412 - SUPPORT, FUEL TUBE GROMMET, NO.2
77412-30110

ASC10

 1
77413A - SUPPORT, FUEL TUBE GROMMET, NO.3
77413-53070

ASC10

 1
Common parts
91673-A0620
Linked diagrams
1708
2211
