AYZ15L-AWXLBA (2014)

Toyota Lexus Nx Series

Production Jul 2014 - Sep 2017
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1407- )

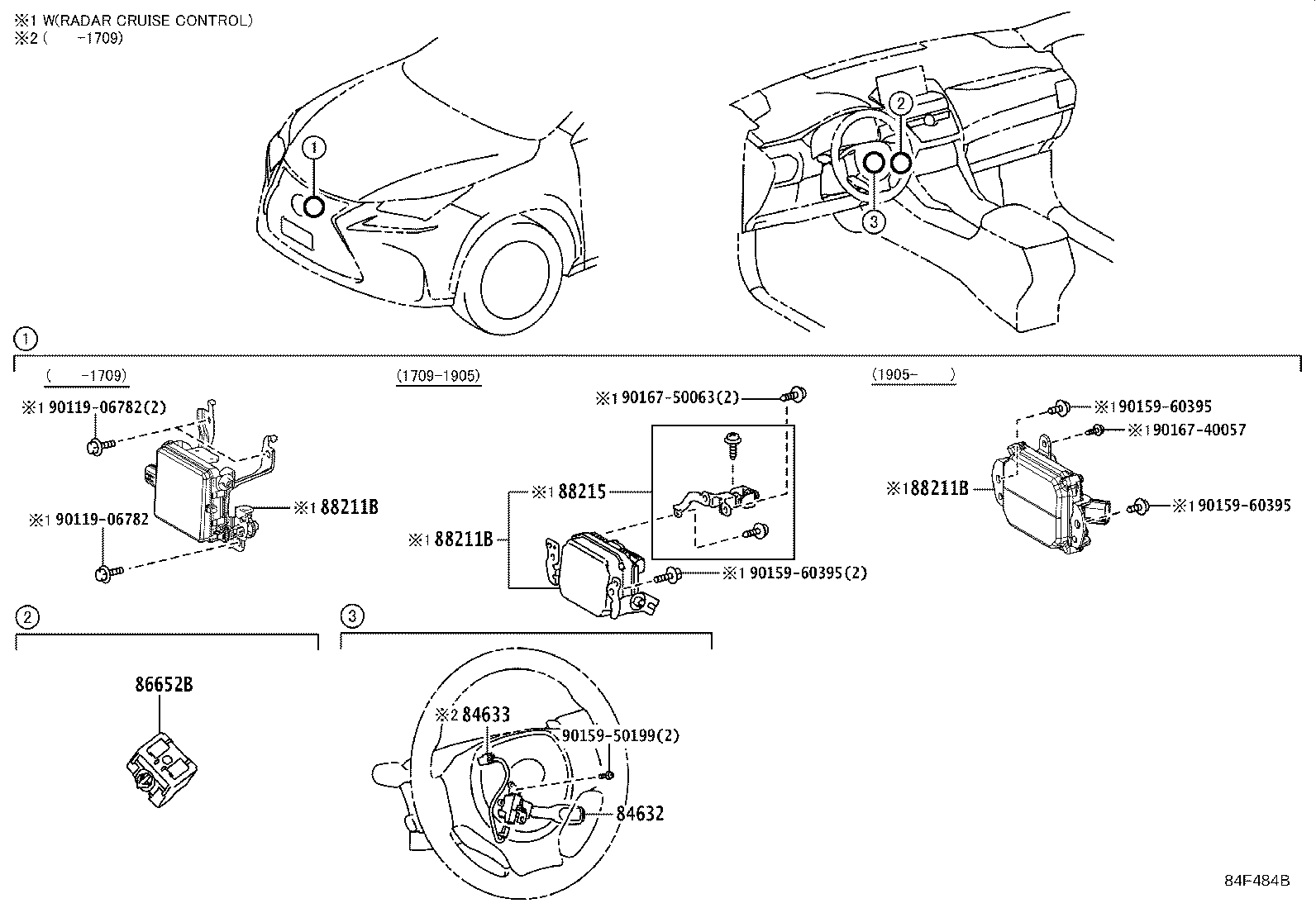

Click highlighted areas on diagram

diagram 84632 84633 86652B 88211B 88211B 88211B 88215 9011906782 9011906782 9015950199 9015960395 9015960395 9015960395 9016740057 9016750063
Part # Description Qty Price
84632 - SWITCH, CRUISE CONTROL MAIN
84632-30010

AGZ1#,AYZ15

 1
84632-30020

AGZ15,AYZ15

USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&CRUISE CONTROL-*MRT(WITH LOW SPEED LIMIT CONTROL)

 1
84632-30020

AGZ1#,AYZ15

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&CRUISE CONTROL-*MRT(WITHOUT LOW SPEED LIMITCONTROL)

 1
84632-30020

AGZ15,AYZ15

CANADA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&CRUISE CONTROL-*MRT(WITH LOW SPEED LIMIT CONTROL)

 1
84633 - WIRE, CRUISE CONTROL SWITCH
84633-76020

AGZ15,AYZ15

CANADA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&CRUISE CONTROL-*MRT(WITH LOW SPEED LIMIT CONTROL)

 1
84633-76010

AGZ1#,AYZ15

 1
84633-76020

AGZ1#,AYZ15

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&CRUISE CONTROL-*MRT(WITHOUT LOW SPEED LIMITCONTROL)

 1
84633-76020

AGZ15,AYZ15

USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&CRUISE CONTROL-*MRT(WITH LOW SPEED LIMIT CONTROL)

 1
86652B - BUZZER, SKID CONTROL
86652-50010

AGZ1#,AYZ15

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

 1
88211B - SENSOR ASSY, MILLIMETER WAVE RADAR
88210-78010

AGZ1#,AYZ1#

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

 1
88210-78011

AGZ1#,AYZ15

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

 1
88211B - SENSOR ASSY, MILLIMETER WAVE RADAR
88210-78010

AGZ1#,AYZ1#

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

 1
88210-78011

AGZ1#,AYZ15

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

 1
88211B - SENSOR ASSY, MILLIMETER WAVE RADAR
88210-78010

AGZ1#,AYZ1#

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

 1
88210-78011

AGZ1#,AYZ15

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

 1
Common parts
90119-06782
90159-50199
90159-60395
90167-40057
90167-50063
