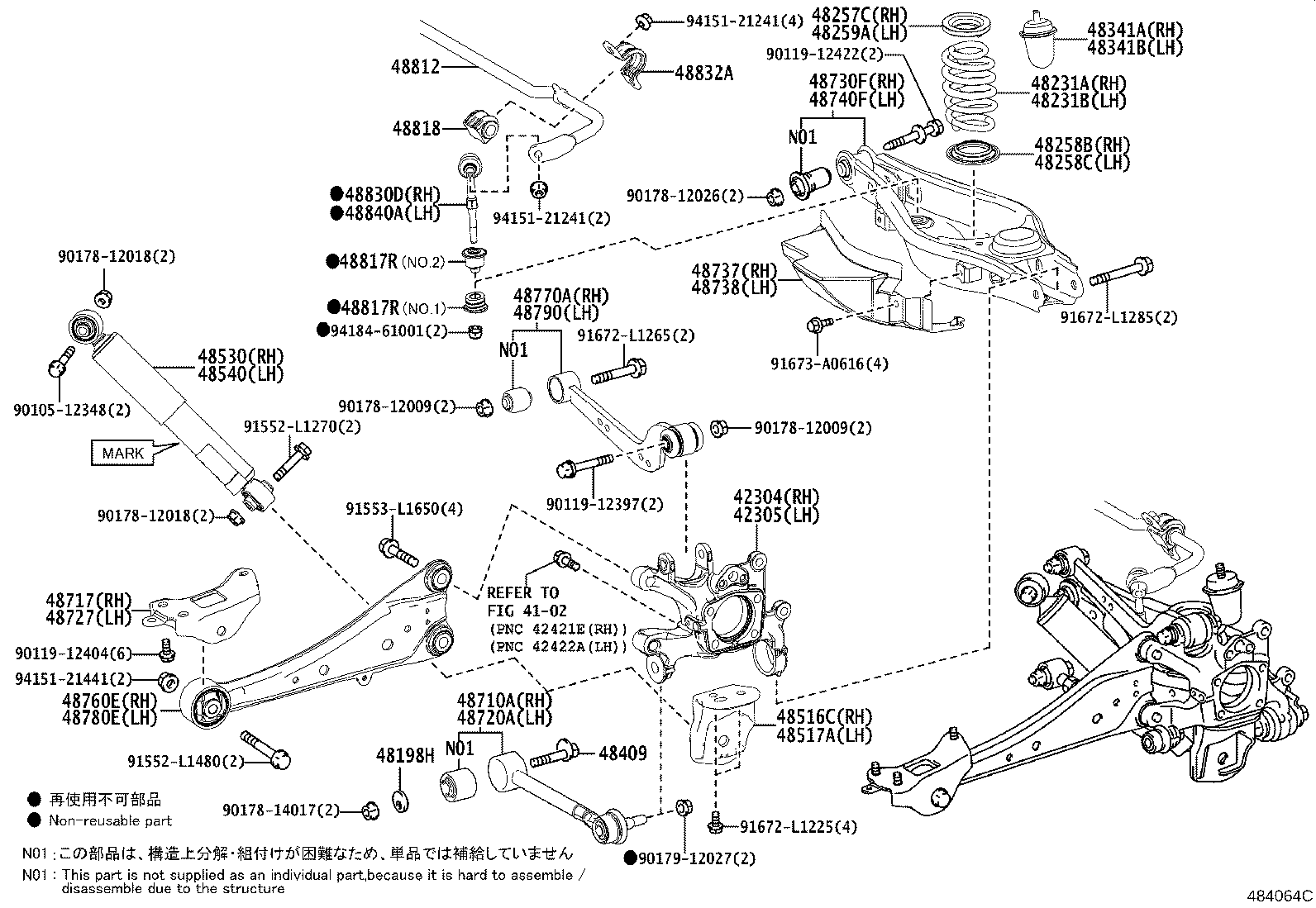

Toyota Lexus nx series AYZ15 REAR SPRING & SHOCK ABSORBER

Part #	Description	Period	Qty
42304 - CARRIER SUB-ASSY, REAR AXLE, RH
42304-42020	AGZ1#,AYZ1#	07/2014 - 09/2017	1
42305 - CARRIER SUB-ASSY, REAR AXLE, LH
42305-42020	AGZ1#,AYZ15	07/2014 - 09/2017	1
48198H - CAM, CAMBER ADJUST, NO.2
48198-42010	AGZ1#,AYZ15	07/2014 - 09/2017	2
48231A - SPRING, COIL, REAR RH
48231-78030	AYZ15	07/2014 - 09/2017	1
48231B - SPRING, COIL, REAR LH
48231-78030	AYZ15	07/2014 - 09/2017	1
48257C - INSULATOR, REAR COIL SPRING, UPPER RH
48257-42030	AGZ1#,AYZ15	07/2014 - 09/2017	1
48258B - INSULATOR, REAR COIL SPRING, LOWER RH
48258-42020	AGZ1#,AYZ15	07/2014 - 09/2017	1
48258C - INSULATOR, REAR COIL SPRING, LOWER LH
48258-42020	AGZ1#,AYZ15	07/2014 - 09/2017	1
48259A - INSULATOR, REAR COIL SPRING, UPPER LH
48257-42030	AGZ1#,AYZ15	07/2014 - 09/2017	1
48341A - BUMPER, REAR SPRING, NO.1 RH
48341-42010	AGZ1#,AYZ15	07/2014 - 09/2017	1
48341B - BUMPER, REAR SPRING, NO.1 LH
48341-42010	AGZ1#,AYZ15	07/2014 - 09/2017	1
48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48409-42030	AGZ1#,AYZ15	07/2014 - 09/2017	2
48516C - BRACKET, REAR SHOCK ABSORBER, NO.1 RH
48505-42010	AGZ1#,AYZ15	07/2014 - 09/2017	1
48517A - BRACKET, REAR SHOCK ABSORBER, NO.1 LH
48506-42010	AGZ1#,AYZ15	07/2014 - 09/2017	1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-78020	AYZ15 MARK 48530-78020	07/2014 - 09/2017	1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48530-78020	AYZ15 MARK 48530-78020	07/2014 - 09/2017	1
48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH
48710-42030	AGZ1#,AYZ15	07/2014 - 09/2017	1
48717 - BRACKET, REAR SUSPENSION ARM, RH
48717-42010	AGZ1#,AYZ15	07/2014 - 09/2017	1
48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH
48710-42030	AGZ1#,AYZ15	07/2014 - 09/2017	1
48727 - BRACKET, REAR SUSPENSION ARM, LH
48727-42010	AGZ1#,AYZ15	07/2014 - 09/2017	1
48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH
48730-42040	AGZ1#,AYZ15	07/2014 - 09/2017	1
48737 - COVER, REAR SUSPENSION ARM, RH
48737-78010	AGZ1#,AYZ15	07/2014 - 09/2017	1
48738 - COVER, REAR SUSPENSION ARM, LH
48738-78010	AGZ1#,AYZ15	07/2014 - 09/2017	1
48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH
48740-42010	AGZ1#,AYZ15	07/2014 - 09/2017	1
48760E - ARM ASSY, TRAILING, REAR RH
48760-78010	AGZ1#,AYZ15	07/2014 - 09/2017	1
48770A - ARM ASSY, UPPER CONTROL, REAR RH
48770-42040	AGZ1#,AYZ15	07/2014 - 09/2017	1
48780E - ARM ASSY, TRAILING, REAR LH
48780-78010	AGZ1#,AYZ15	07/2014 - 09/2017	1
48790 - ARM ASSY, UPPER CONTROL, REAR LH
48790-42020	AGZ1#,AYZ15	07/2014 - 09/2017	1
48812 - BAR, STABILIZER, REAR
48812-78010	AYZ15	07/2014 - 09/2017	1
48817R - CUSHION, STABILIZER(FOR REAR)
48817-78010	AGZ1#,AYZ15 NO.2:REFER ILLUST.	07/2014 - 09/2017	2
48817-42050	AGZ1#,AYZ15 NO.1:REFER ILLUST.	07/2014 - 09/2017	2
48817R - CUSHION, STABILIZER(FOR REAR)
48817-78010	AGZ1#,AYZ15 NO.2:REFER ILLUST.	07/2014 - 09/2017	2
48817-42050	AGZ1#,AYZ15 NO.1:REFER ILLUST.	07/2014 - 09/2017	2
48818 - BUSH, STABILIZER, REAR
48818-78010	AYZ15	07/2014 - 09/2017	2
48830D - LINK ASSY, REAR STABILIZER, RH
48830-42022	AGZ1#,AYZ15	07/2014 - 09/2017	1
48832A - BRACKET, REAR STABILIZER BAR, NO.1
48832-42010	AGZ1#,AYZ15	07/2014 - 09/2017	2
48840A - LINK ASSY, REAR STABILIZER, LH
48830-42022	AGZ1#,AYZ15	07/2014 - 09/2017	1
Common parts
90105-12348
90119-12397
90119-12404
90119-12422
90178-12009
90178-12018
90178-12026
90178-14017
90179-12027
91552-L1270
91552-L1480
91553-L1650
91672-L1225
91672-L1265
91672-L1285
91673-A0616
94151-21241
94151-21441
94184-61001
Linked diagrams
4102

AYZ15L-AWXLBA (2014)

(1407- )AYZ1#
