AYZ15L-AWXLBA (2014)
Toyota Lexus Nx Series
Production
Jul 2014
-
Sep 2017
Engine
2ARFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1407- )

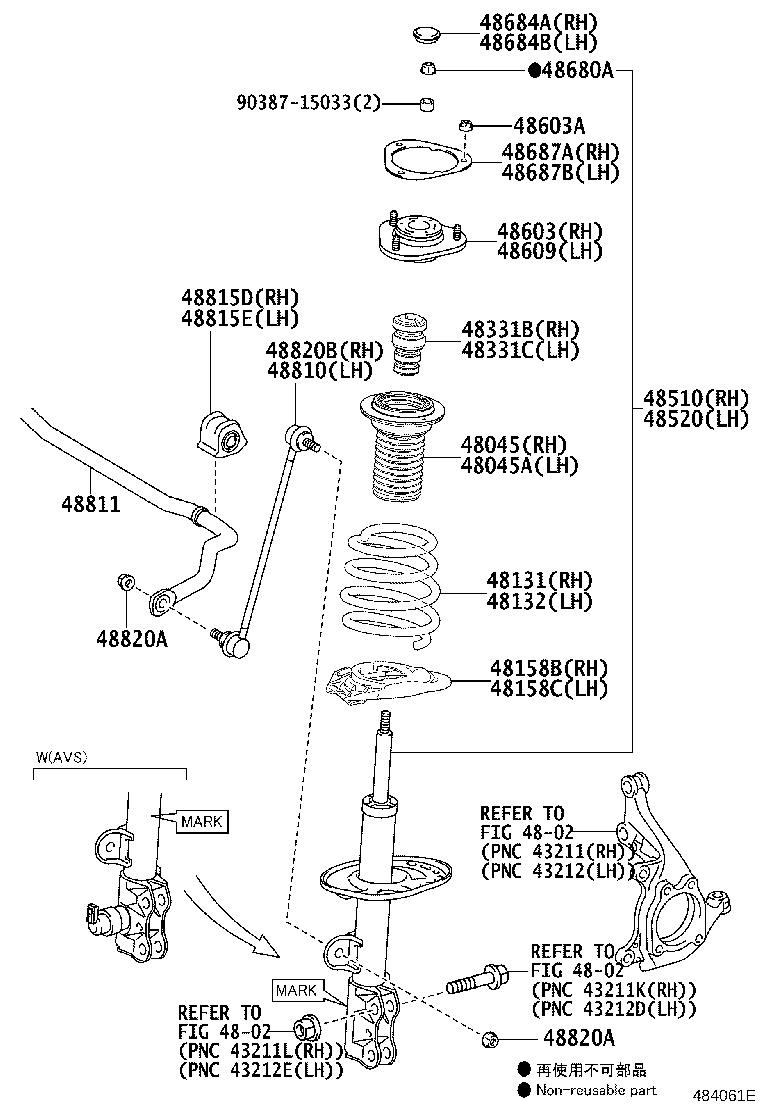

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48045 - SEAT SUB-ASSY, FRONT SPRING RH, W/INSULATOR | ||||
| 48045-78010 |
AGZ1#,AYZ15 |
1 | ||
| 48045A - SEAT SUB-ASSY, FRONT SPRING LH, W/INSULATOR | ||||
| 48045-78010 |
AGZ1#,AYZ15 |
1 | ||
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-78050 |
AGZ10,AYZ15 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-78050 |
AGZ10,AYZ15 |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-78010 |
AGZ1#,AYZ15 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-78010 |
AGZ1#,AYZ15 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-42080 |
AGZ1#,AYZ15 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-42080 |
AGZ1#,AYZ15 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-79335 |
AYZ15 MARK 48510-78050 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-79335 |
AYZ15 MARK 48520-78050 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-78010 |
AGZ1#,AYZ15 |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-10030 |
AGZ1#,AYZ15 |
6 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-78010 |
AGZ1#,AYZ15 |
1 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 90177-14007 |
AGZ1#,AYZ15 |
2 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-42020 |
AGZ1#,AYZ15 |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-42020 |
AGZ1#,AYZ15 |
1 | ||
| 48687A - PLATE, FRONT SUSPENSION SUPPORT, RH | ||||
| 48687-28010 |
AGZ1#,AYZ15 |
1 | ||
| 48687B - PLATE, FRONT SUSPENSION SUPPORT, LH | ||||
| 48687-28010 |
AGZ1#,AYZ15 |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-42030 |
AGZ1#,AYZ15 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-78020 |
AYZ15 |
1 | ||
| 48815D - BUSH, FRONT STABILIZER BAR, RH | ||||
| 48815-78030 |
AYZ1# |
1 | ||
| 48815-78031 |
AYZ15 |
1 | ||
| 48815E - BUSH, FRONT STABILIZER BAR, LH | ||||
| 48815-78040 |
AYZ1# |
1 | ||
| 48815-78041 |
AYZ15 |
1 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 94151-21241 |
AGZ1#,AYZ15 |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 94151-21241 |
AGZ1#,AYZ15 |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-42030 |
AGZ1#,AYZ15 |
1 | ||
| Common parts | ||||
| 90387-15033 | ||||
| Linked diagrams | ||||
| 4802 | ||||
