AYZ15L-AWXLBA (2014)

Toyota Lexus Nx Series

Production Jul 2014 - Sep 2017
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1407-1709)

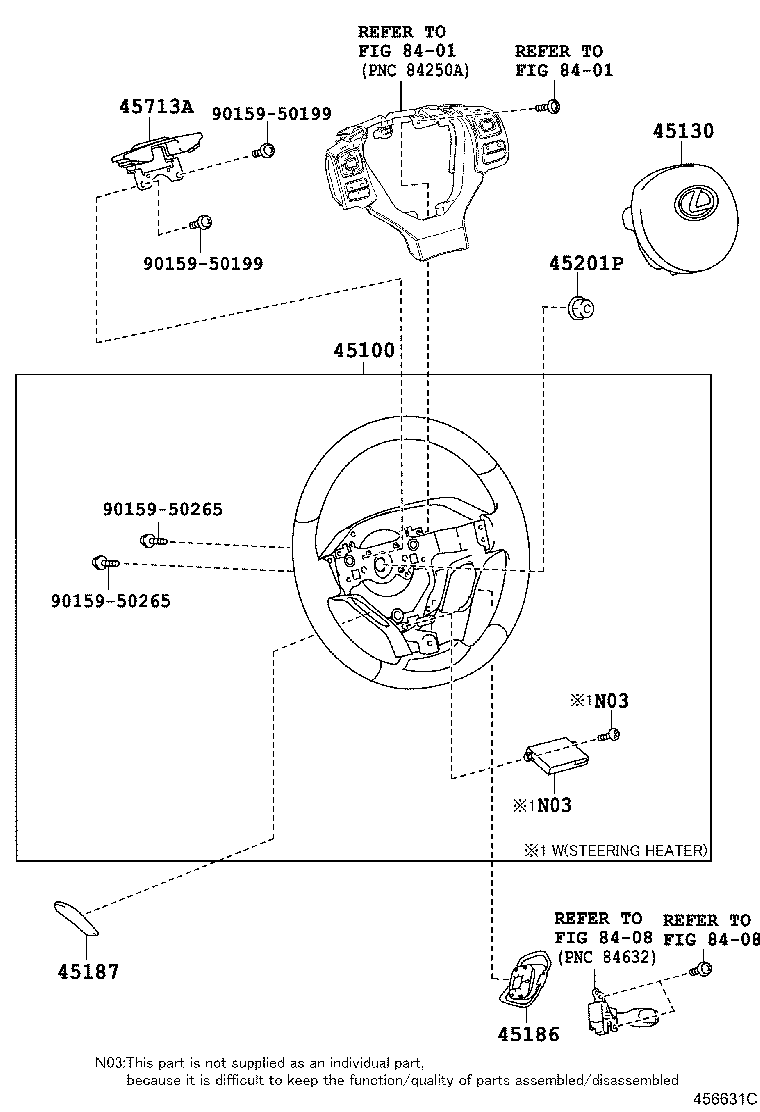

Click highlighted areas on diagram

3-SPOKE W/O(PADDLE SHIFT)

diagram 45100 45130 45186 45187 45201P 45713A 8401 8401 8408 8408 9015950199 9015950199 9015950265 9015950265
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-78010C0

AGZ1#,AYZ1#

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER,W(HEATER),BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#

 1
45100-76100C4

AGZ1#,AYZ1#

3-SPOKE,LEATHER,BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#

 1
45100-78011C0

AGZ1#,AYZ1#

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER,W(HEATER),BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#

 1
45130 - BUTTON ASSY, HORN
45130-78010C0

AYZ1#

BLACK,TRIM0#,2#,3#,4#,5#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-53030C0

AYZ1#

BLACK,TRIM0#,2#,3#,4#,5#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-53020C0

AYZ1#

BLACK,TRIM0#,2#,3#,4#,5#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

AGZ1#,AYZ15

 1
45713A - DAMPER, STEERING SHAKE
45713-78010

AGZ1#,AYZ15

 1
Common parts
90159-50199
90159-50265
Linked diagrams
8401
8408
