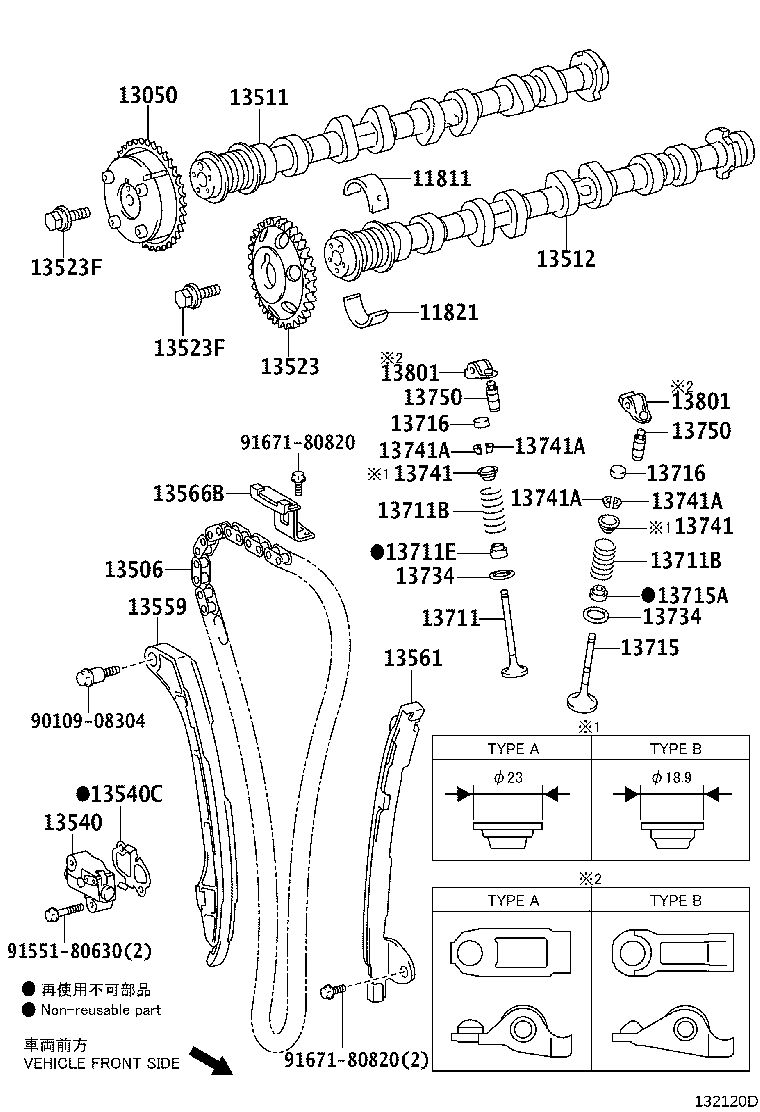

Toyota Lexus nx series AYZ15 CAMSHAFT & VALVE

Part #	Description	Period	Qty
11811 - BEARING, CAMSHAFT, NO.1
11811-36010	2ARFXE,8ARFTS..AGZ1#,AYZ15	07/2014 - 09/2017	1
11821 - BEARING, CAMSHAFT, NO.2
11821-36010	2ARFXE,8ARFTS..AGZ1#,AYZ15	07/2014 - 09/2017	1
13050 - GEAR ASSY, CAMSHAFT TIMING
13050-36020	2ARFXE..AYZ15	07/2014 - 09/2017	1
13506 - CHAIN SUB-ASSY
13506-36010	2ARFXE..AYZ15	07/2014 - 08/2014	1
13506-36030	2ARFXE,8ARFTS..AGZ1#,AYZ15	08/2014 - 09/2017	1
13511 - CAMSHAFT
13501-36030	2ARFXE..AYZ15	07/2014 - 09/2017	1
13512 - CAMSHAFT, NO.2
13502-36020	2ARFXE..AYZ15	07/2014 - 09/2017	1
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13523-36020	2ARFXE..AYZ15	07/2014 - 09/2017	1
13523F - BOLT(FOR CAMSHAFT TIMING GEAR)
90119-12370	2ARFXE..AYZ15	07/2014 - 09/2017	2
13523F - BOLT(FOR CAMSHAFT TIMING GEAR)
90119-12370	2ARFXE..AYZ15	07/2014 - 09/2017	2
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-36040	2ARFXE..AYZ15	07/2014 - 09/2017	1
13540C - GASKET(FOR CHAIN TENSIONER)
13552-36010	2ARFXE..AYZ15	07/2014 - 09/2017	1
13559 - SLIPPER, CHAIN TENSIONER
13559-36010	2ARFXE..AYZ15	07/2014 - 09/2014	1
13559-36040	2ARFXE..AYZ15	09/2014 - 09/2017	1
13561 - DAMPER, CHAIN VIBRATION, NO.1
13561-36030	2ARFXE..AYZ15	09/2014 - 09/2017	1
13561-36010	2ARFXE..AYZ15	07/2014 - 09/2014	1
13566B - GUIDE, TIMING CHAIN
13566-36011	2ARFXE,8ARFTS..AGZ1#,AYZ15	07/2014 - 09/2017	1
13711 - VALVE, INTAKE
13711-36060	2ARFXE..AYZ15	07/2014 - 09/2017	8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-34016	2ARFXE..AYZ1# PNC 13741=TYPE A	07/2014 - 05/2015	16
90501-34022	2ARFXE..AYZ15 PNC 13741=TYPE B	05/2015 - 09/2017	16
13711B - SPRING, COMPRESSION(FOR INNER)
90501-34016	2ARFXE..AYZ1# PNC 13741=TYPE A	07/2014 - 05/2015	16
90501-34022	2ARFXE..AYZ15 PNC 13741=TYPE B	05/2015 - 09/2017	16
13711E - SEAL, INTAKE VALVE STEM OIL
90913-02101	2ARFXE..AYZ15	07/2014 - 09/2017	8
13715 - VALVE, EXHAUST
13715-36020	2ARFXE..AYZ1#	07/2014 - 09/2017	8
13715A - SEAL, EXHAUST VALVE STEM OIL
90913-02112	2ARFXE..AYZ1#	07/2014 - 09/2017	8
13716 - CAP, VALVE STEM
13716-75020	2ARFXE,8ARFTS..AGZ1#,AYZ15	07/2014 - 09/2017	16
13716 - CAP, VALVE STEM
13716-75020	2ARFXE,8ARFTS..AGZ1#,AYZ15	07/2014 - 09/2017	16
13734 - SEAT, VALVE SPRING
13734-62020	2ARFXE,8ARFTS..AGZ1#,AYZ15	07/2014 - 09/2017	16
13734 - SEAT, VALVE SPRING
13734-62020	2ARFXE,8ARFTS..AGZ1#,AYZ15	07/2014 - 09/2017	16
13741 - RETAINER, VALVE SPRING
13741-20021	2ARFXE..AYZ1# TYPE A:REFER ILLUST.	07/2014 - 05/2015	16
13741-36010	2ARFXE..AYZ15 TYPE B:REFER ILLUST.	05/2015 - 09/2017	16
13741 - RETAINER, VALVE SPRING
13741-20021	2ARFXE..AYZ1# TYPE A:REFER ILLUST.	07/2014 - 05/2015	16
13741-36010	2ARFXE..AYZ15 TYPE B:REFER ILLUST.	05/2015 - 09/2017	16
13741A - LOCK, VALVE SPRING RETAINER
90913-03028	2ARFXE,8ARFTS..AGZ1#,AYZ15	07/2014 - 09/2017	32
13741A - LOCK, VALVE SPRING RETAINER
90913-03028	2ARFXE,8ARFTS..AGZ1#,AYZ15	07/2014 - 09/2017	32
13741A - LOCK, VALVE SPRING RETAINER
90913-03028	2ARFXE,8ARFTS..AGZ1#,AYZ15	07/2014 - 09/2017	32
13741A - LOCK, VALVE SPRING RETAINER
90913-03028	2ARFXE,8ARFTS..AGZ1#,AYZ15	07/2014 - 09/2017	32
13750 - ADJUSTER ASSY, VALVE LASH
13750-31030	2ARFXE..AYZ1# PNC 13801=TYPE A	07/2014 - 05/2015	16
13750-36020	2ARFXE..AYZ15 PNC 13801=TYPE B	05/2015 - 09/2017	16
13750 - ADJUSTER ASSY, VALVE LASH
13750-31030	2ARFXE..AYZ1# PNC 13801=TYPE A	07/2014 - 05/2015	16
13750-36020	2ARFXE..AYZ15 PNC 13801=TYPE B	05/2015 - 09/2017	16
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13801-36020	2ARFXE..AYZ15 TYPE B:REFER ILLUST.	05/2015 - 09/2017	16
13801-23011	2ARFXE..AYZ1# TYPE A:REFER ILLUST.	07/2014 - 05/2015	16
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13801-36020	2ARFXE..AYZ15 TYPE B:REFER ILLUST.	05/2015 - 09/2017	16
13801-23011	2ARFXE..AYZ1# TYPE A:REFER ILLUST.	07/2014 - 05/2015	16
Common parts
90109-08304
91551-80630
91671-80820

AYZ15L-AWXLBA (2014)

(1407- )2ARFXE
