AGZ15L-AWTLTA (2014)

Toyota Lexus Nx Series

Production Oct 2014 - Sep 2017
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1410- )AGZ1#

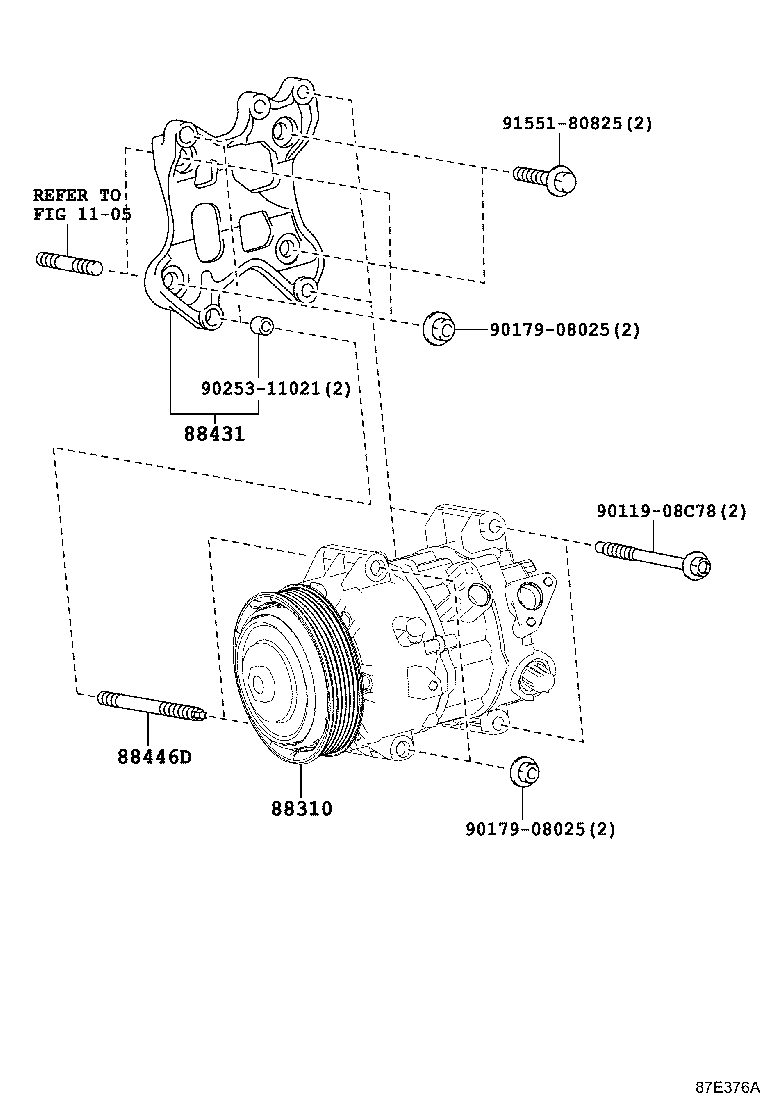

Click highlighted areas on diagram

diagram 1105 88310 88431 88446D 9011908C78 9017908025 9017908025 9025311021 9155180825
Part # Description Qty Price
88310 - COMPRESSOR ASSY, W/PULLEY
88310-78011

AGZ1#

 1
88310-78010

AGZ1#

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
12502-36031

AGZ1#

 1
88446D - BOLT, COOLER
88446-42030

AGZ1#

 2
Common parts
90119-08C78
90179-08025
90253-11021
91551-80825
Linked diagrams
1105
