AGZ15L-AWTLTA (2014)
Toyota Lexus Nx Series
Production
Oct 2014
-
Sep 2017
Engine
8ARFTS
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

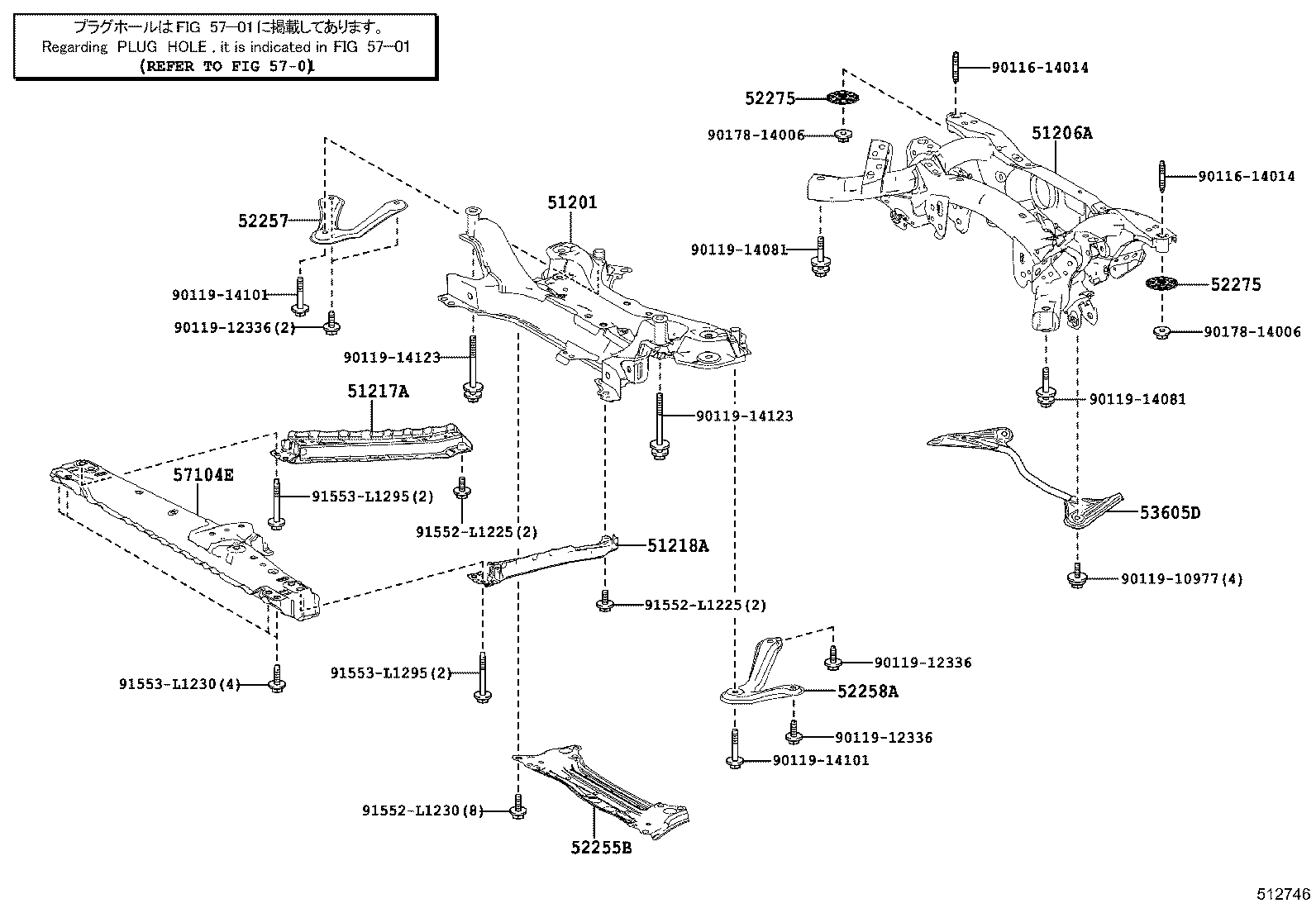

ILLUST NO. 1 OF 2(1410- )AGZ1#
Click highlighted areas on diagram
SUSPENSION CROSSMEMBER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-78010 |
AGZ1# |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-78010 |
AGZ1# |
1 | ||
| 51217A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH | ||||
| 51107-42020 |
AGZ1# |
1 | ||
| 51218A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH | ||||
| 51108-42020 |
AGZ1# |
1 | ||
| 52255B - BRACE, FRONT SUSPENSION MEMBER | ||||
| 52255-76010 |
AGZ1#,AYZ15 |
1 | ||
| 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 52257-42010 |
AGZ1# |
1 | ||
| 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 52258-42010 |
AGZ1# |
1 | ||
| 52275 - CUSHION,REAR SUSPENSION MEMBER, REAR UPPER | ||||
| 52203-42020 |
AGZ1#,AYZ15 |
2 | ||
| 52275 - CUSHION,REAR SUSPENSION MEMBER, REAR UPPER | ||||
| 52203-42020 |
AGZ1#,AYZ15 |
2 | ||
| 53605D - BRACE SUB-ASSY, REAR SUSPENSION | ||||
| 53650-78010 |
AGZ1# |
1 | ||
| 57104E - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-78010 |
AGZ1#,AYZ15 |
1 | ||
| Common parts | ||||
| 90116-14014 | ||||
| 90119-10977 | ||||
| 90119-12336 | ||||
| 90119-14081 | ||||
| 90119-14101 | ||||
| 90119-14123 | ||||
| 90178-14006 | ||||
| 91552-L1225 | ||||
| 91552-L1230 | ||||
| 91553-L1230 | ||||
| 91553-L1295 | ||||
| Linked diagrams | ||||
| 5701 | ||||

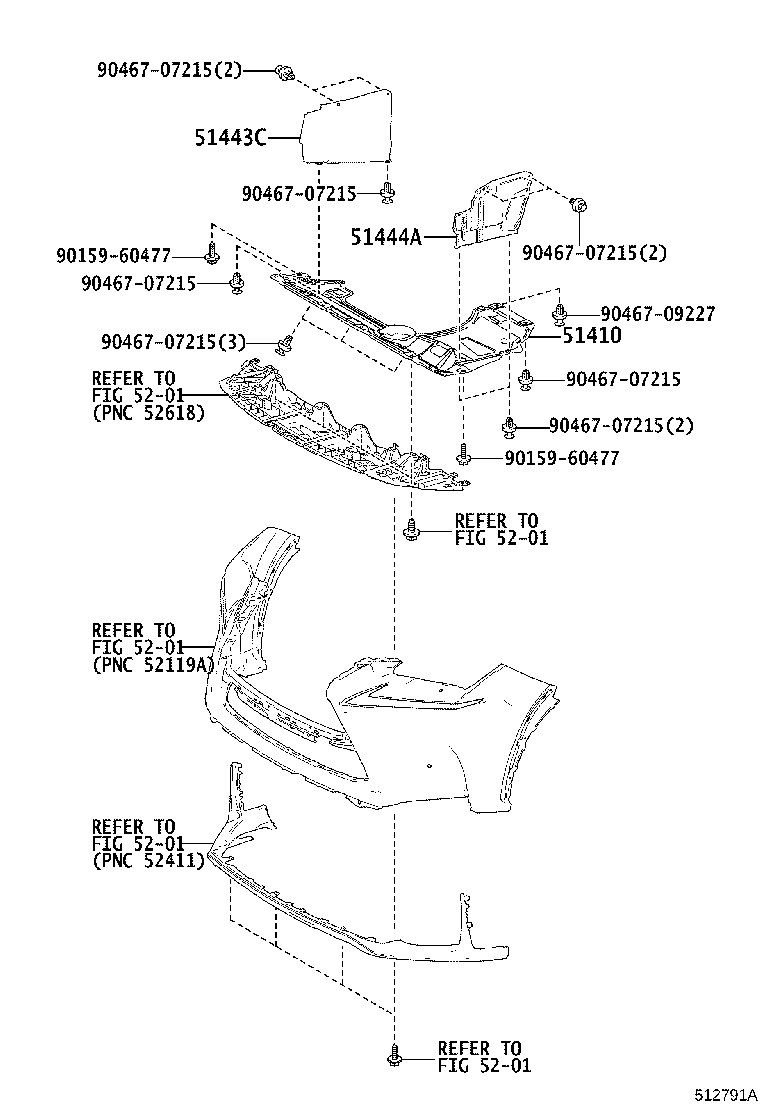

ILLUST NO. 2 OF 2(1410- )AGZ1#
Click highlighted areas on diagram
UNDER COVER,W(FOG & CORNERING LAMP)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51410 - COVER ASSY, ENGINE UNDER, NO.1 | ||||
| 51410-78010 |
AGZ1# F SPORT*(F) |
1 | ||
| 51441-78030 |
AGZ1#,AYZ15 |
1 | ||
| 51410-78010 |
AGZ15 KOREA SPEC |
1 | ||
| 51410-78010 |
AGZ15 KOREA SPEC&F SPORT*(F) |
1 | ||
| 51443C - COVER, ENGINE UNDER, REAR RH | ||||
| 51443-42010 |
AGZ1# |
1 | ||
| 51444A - COVER, ENGINE UNDER, REAR LH | ||||
| 51444-42040 |
AGZ1# |
1 | ||
| Common parts | ||||
| 90159-60477 | ||||
| 90467-07215 | ||||
| 90467-09227 | ||||
| Linked diagrams | ||||
| 5201 | ||||
