AGZ10L-AWTLTA (2017)

Toyota Lexus Nx Series

Production Sep 2017 - Sep 9999
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1709- )

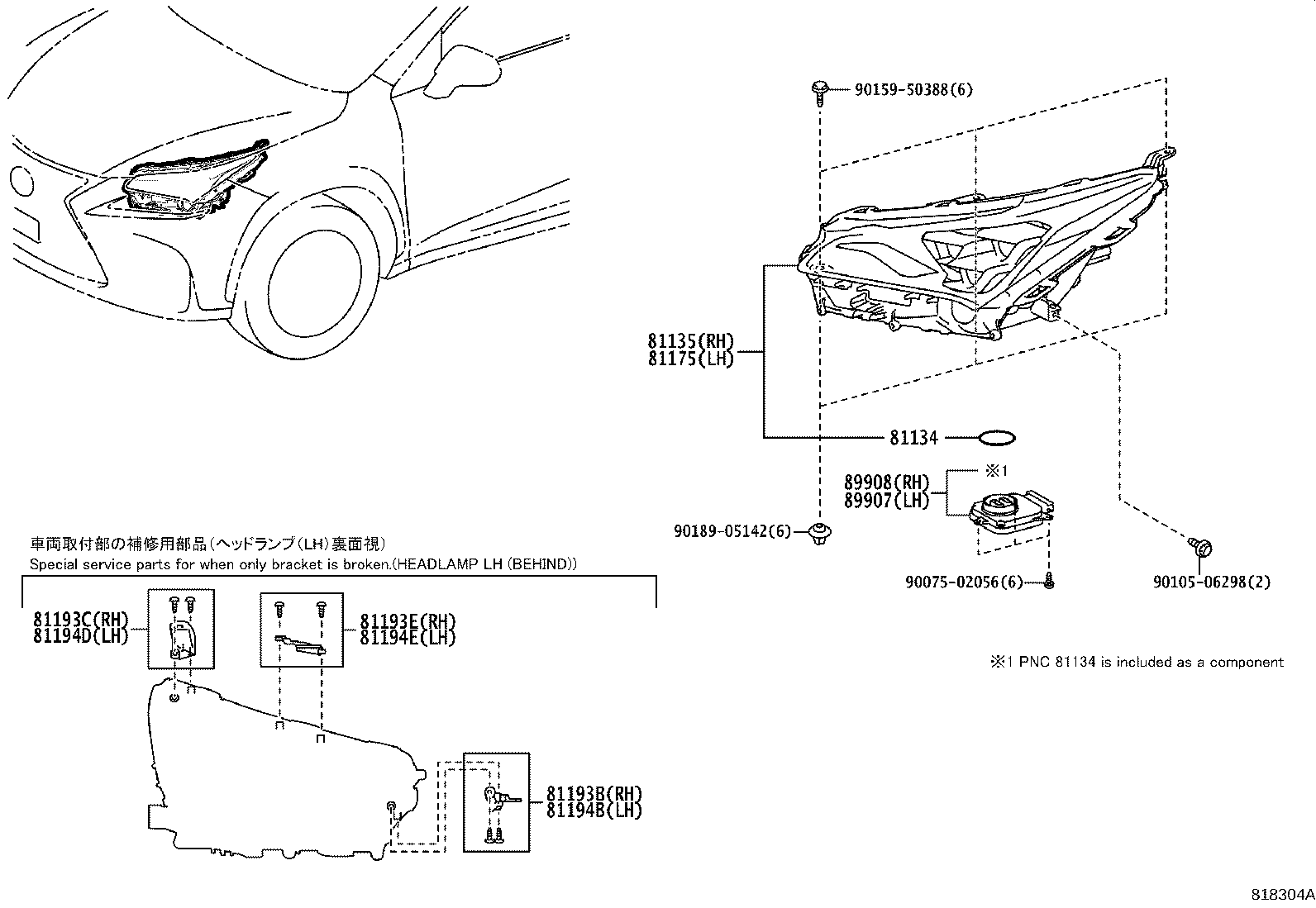

Click highlighted areas on diagram

LED(PROJECTOR)

diagram 81134 81135 81135 81175 81175 81193B 81193C 81193E 81194B 81194D 81194E 81710F 81710F 81715B 81715B 89907 89908 9007502056 9010506298 9010506298 9015950388 9015950388 9018905142 9018905142
Part # Description Qty Price
81134 - GASKET, HEADLAMP
90075-23003

AGZ1#

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
90075-23003

AGZ1#,AYZ15

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)

 1
90075-23003

AGZ1#

FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81135 - UNIT ASSY, HEADLAMP, RH
81140-78190

AGZ1#,AYZ15

 1
81145-78250

AGZ1#,AYZ15

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)

 1
81145-78200

AGZ1#

FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81145-78250

AGZ1#

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81135 - UNIT ASSY, HEADLAMP, RH
81140-78190

AGZ1#,AYZ15

 1
81145-78250

AGZ1#,AYZ15

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)

 1
81145-78200

AGZ1#

FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81145-78250

AGZ1#

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81175 - UNIT ASSY, HEADLAMP, LH
81185-78250

AGZ1#,AYZ15

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)

 1
81185-78200

AGZ1#

FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81185-78250

AGZ1#

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81070-78190

AGZ1#,AYZ15

 1
81175 - UNIT ASSY, HEADLAMP, LH
81185-78250

AGZ1#,AYZ15

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)

 1
81185-78200

AGZ1#

FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81185-78250

AGZ1#

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81070-78190

AGZ1#,AYZ15

 1
81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81193-78050

AGZ1#,AYZ15

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)

 1
81193-78040

AGZ1#,AYZ15

 1
81193C - RETAINER, RH HEADLAMP PROTECTOR, UPPER RH
81193-78010

AGZ1#,AYZ15

 1
81193E - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.3
81193-78060

AGZ1#,AYZ15

 1
81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81194-78050

AGZ1#,AYZ15

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)

 1
81194-78040

AGZ1#,AYZ15

 1
81194D - RETAINER, LH HEADLAMP PROTECTOR, UPPER LH
81194-78010

AGZ1#,AYZ15

 1
81194E - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.3
81194-78060

AGZ1#,AYZ15

 1
81710F - BULB, FRONT SIDE MAKER LAMP
90981-11069

AGZ1#,AYZ15

 2
81710F - BULB, FRONT SIDE MAKER LAMP
90981-11069

AGZ1#,AYZ15

 2
81715B - SOCKET & WIRE, FRONT SIDE MARKER LAMP
90075-60089

AGZ1#,AYZ15

 2
81715B - SOCKET & WIRE, FRONT SIDE MARKER LAMP
90075-60089

AGZ1#,AYZ15

 2
89907 - COMPUTER SUB-ASSY, HEADLAMP, LH
81056-78250

AGZ1#

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81056-78200

AGZ1#

FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81056-78250

AGZ1#,AYZ15

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)

 1
89908 - COMPUTER SUB-ASSY, HEADLAMP, RH
81016-78200

AGZ1#

FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81016-78250

AGZ1#,AYZ15

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)

 1
81016-78250

AGZ1#

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
Common parts
90075-02056
90105-06298
90159-50388
90189-05142

(1709- )

Click highlighted areas on diagram

LED(TRINOCULAR FULL LED)

diagram 81134 81135 81175 81193B 81193C 81193E 81194B 81194D 81194E 89907 89908 9007502056 9010506298 9015950388 9018905142
Part # Description Qty Price
81134 - GASKET, HEADLAMP
90075-23003

AGZ1#

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
90075-23003

AGZ1#,AYZ15

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)

 1
90075-23003

AGZ1#

FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81135 - UNIT ASSY, HEADLAMP, RH
81140-78190

AGZ1#,AYZ15

 1
81145-78250

AGZ1#,AYZ15

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)

 1
81145-78200

AGZ1#

FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81145-78250

AGZ1#

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81175 - UNIT ASSY, HEADLAMP, LH
81185-78250

AGZ1#,AYZ15

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)

 1
81185-78200

AGZ1#

FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81185-78250

AGZ1#

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81070-78190

AGZ1#,AYZ15

 1
81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81193-78050

AGZ1#,AYZ15

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)

 1
81193-78040

AGZ1#,AYZ15

 1
81193C - RETAINER, RH HEADLAMP PROTECTOR, UPPER RH
81193-78010

AGZ1#,AYZ15

 1
81193E - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.3
81193-78060

AGZ1#,AYZ15

 1
81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81194-78050

AGZ1#,AYZ15

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)

 1
81194-78040

AGZ1#,AYZ15

 1
81194D - RETAINER, LH HEADLAMP PROTECTOR, UPPER LH
81194-78010

AGZ1#,AYZ15

 1
81194E - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.3
81194-78060

AGZ1#,AYZ15

 1
89907 - COMPUTER SUB-ASSY, HEADLAMP, LH
81056-78250

AGZ1#

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81056-78200

AGZ1#

FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81056-78250

AGZ1#,AYZ15

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)

 1
89908 - COMPUTER SUB-ASSY, HEADLAMP, RH
81016-78200

AGZ1#

FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81016-78250

AGZ1#,AYZ15

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)

 1
81016-78250

AGZ1#

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
Common parts
90075-02056
90105-06298
90159-50388
90189-05142

(1709- )

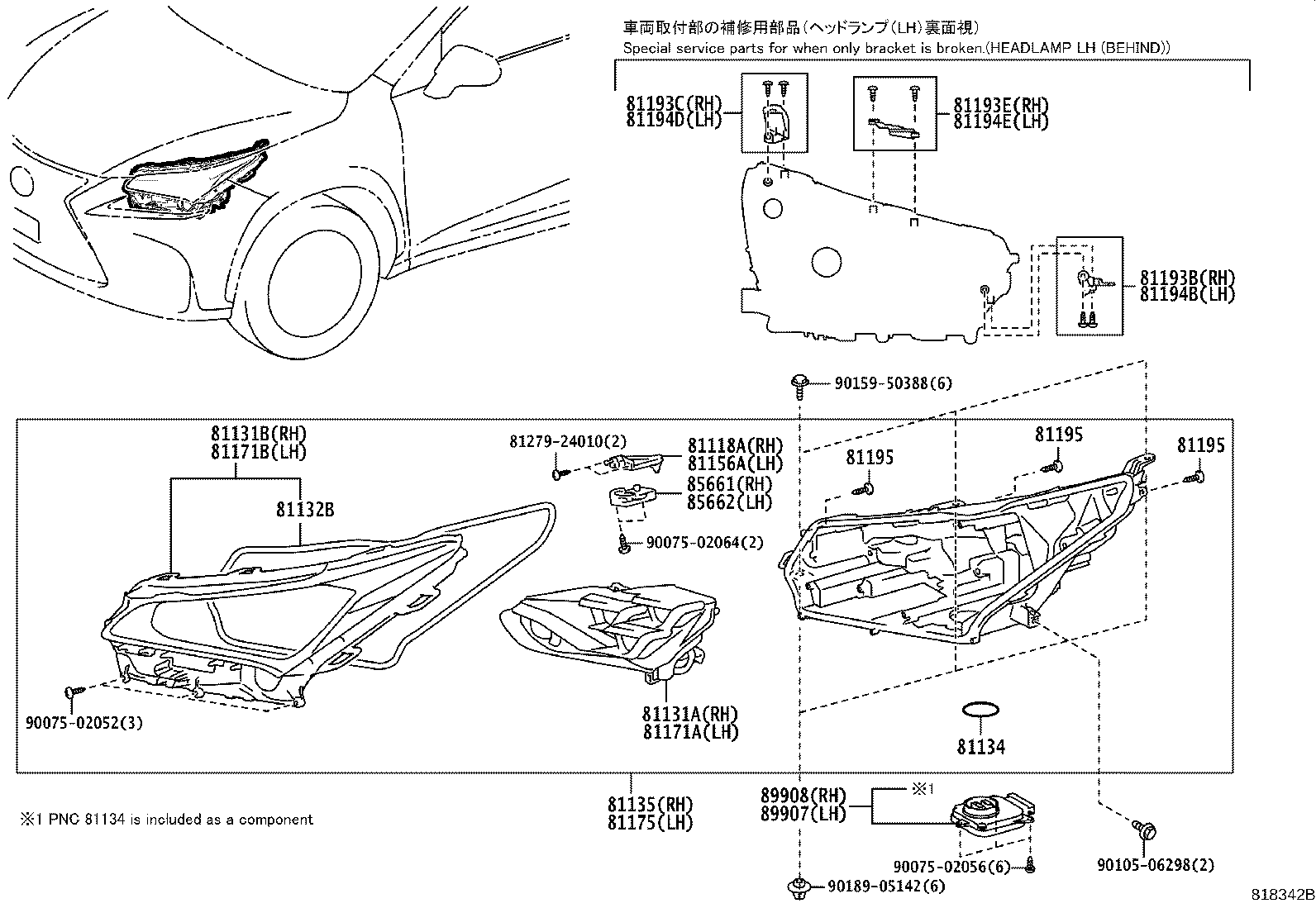

Click highlighted areas on diagram

KOREA SPEC & LED(PROJECTOR)

diagram 81131A 81131B 81132B 81134 81135 81171A 81171B 81175 81193B 81193C 81193E 81194B 81194D 81194E 81195 81195 81195 8127924010 85661 85662 89907 89908 9007502052 9007502056 9010506298 9015950388 9018905142
Part # Description Qty Price
81134 - GASKET, HEADLAMP
90075-23003

AGZ1#

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
90075-23003

AGZ1#,AYZ15

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)

 1
90075-23003

AGZ1#

FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81135 - UNIT ASSY, HEADLAMP, RH
81140-78190

AGZ1#,AYZ15

 1
81145-78250

AGZ1#,AYZ15

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)

 1
81145-78200

AGZ1#

FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81145-78250

AGZ1#

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81175 - UNIT ASSY, HEADLAMP, LH
81185-78250

AGZ1#,AYZ15

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)

 1
81185-78200

AGZ1#

FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81185-78250

AGZ1#

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81070-78190

AGZ1#,AYZ15

 1
81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81193-78050

AGZ1#,AYZ15

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)

 1
81193-78040

AGZ1#,AYZ15

 1
81193C - RETAINER, RH HEADLAMP PROTECTOR, UPPER RH
81193-78010

AGZ1#,AYZ15

 1
81193E - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.3
81193-78060

AGZ1#,AYZ15

 1
81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81194-78050

AGZ1#,AYZ15

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)

 1
81194-78040

AGZ1#,AYZ15

 1
81194D - RETAINER, LH HEADLAMP PROTECTOR, UPPER LH
81194-78010

AGZ1#,AYZ15

 1
81194E - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.3
81194-78060

AGZ1#,AYZ15

 1
89907 - COMPUTER SUB-ASSY, HEADLAMP, LH
81056-78250

AGZ1#

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81056-78200

AGZ1#

FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81056-78250

AGZ1#,AYZ15

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)

 1
89908 - COMPUTER SUB-ASSY, HEADLAMP, RH
81016-78200

AGZ1#

FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81016-78250

AGZ1#,AYZ15

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)

 1
81016-78250

AGZ1#

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
Common parts
81279-24010
90075-02052
90075-02056
90105-06298
90159-50388
90189-05142

(1709- )

Click highlighted areas on diagram

KOREA SPEC,LED(TRINOCULAR FULL LED)

diagram 81118A 81131A 81131B 81132B 81134 81135 81156A 81171A 81171B 81175 81193B 81193C 81193E 81194B 81194D 81194E 81195 81195 81195 8127924010 85661 85662 89907 89908 9007502052 9007502056 9007502064 9010506298 9015950388 9018905142
Part # Description Qty Price
81134 - GASKET, HEADLAMP
90075-23003

AGZ1#

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
90075-23003

AGZ1#,AYZ15

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)

 1
90075-23003

AGZ1#

FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81135 - UNIT ASSY, HEADLAMP, RH
81140-78190

AGZ1#,AYZ15

 1
81145-78250

AGZ1#,AYZ15

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)

 1
81145-78200

AGZ1#

FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81145-78250

AGZ1#

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81175 - UNIT ASSY, HEADLAMP, LH
81185-78250

AGZ1#,AYZ15

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)

 1
81185-78200

AGZ1#

FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81185-78250

AGZ1#

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81070-78190

AGZ1#,AYZ15

 1
81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81193-78050

AGZ1#,AYZ15

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)

 1
81193-78040

AGZ1#,AYZ15

 1
81193C - RETAINER, RH HEADLAMP PROTECTOR, UPPER RH
81193-78010

AGZ1#,AYZ15

 1
81193E - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.3
81193-78060

AGZ1#,AYZ15

 1
81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81194-78050

AGZ1#,AYZ15

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)

 1
81194-78040

AGZ1#,AYZ15

 1
81194D - RETAINER, LH HEADLAMP PROTECTOR, UPPER LH
81194-78010

AGZ1#,AYZ15

 1
81194E - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.3
81194-78060

AGZ1#,AYZ15

 1
89907 - COMPUTER SUB-ASSY, HEADLAMP, LH
81056-78250

AGZ1#

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81056-78200

AGZ1#

FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81056-78250

AGZ1#,AYZ15

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)

 1
89908 - COMPUTER SUB-ASSY, HEADLAMP, RH
81016-78200

AGZ1#

FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81016-78250

AGZ1#,AYZ15

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)

 1
81016-78250

AGZ1#

HEADLAMP-LED(TRINOCULAR FULL LED)&WITH(AFS&*AHB)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
Common parts
81279-24010
90075-02052
90075-02056
90075-02064
90105-06298
90159-50388
90189-05142
