URJ201L-GNZGKA (2015)

Toyota Lexus Lx570

Production Sep 2015 - Sep 9999
Engine 3URFE
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1509- )

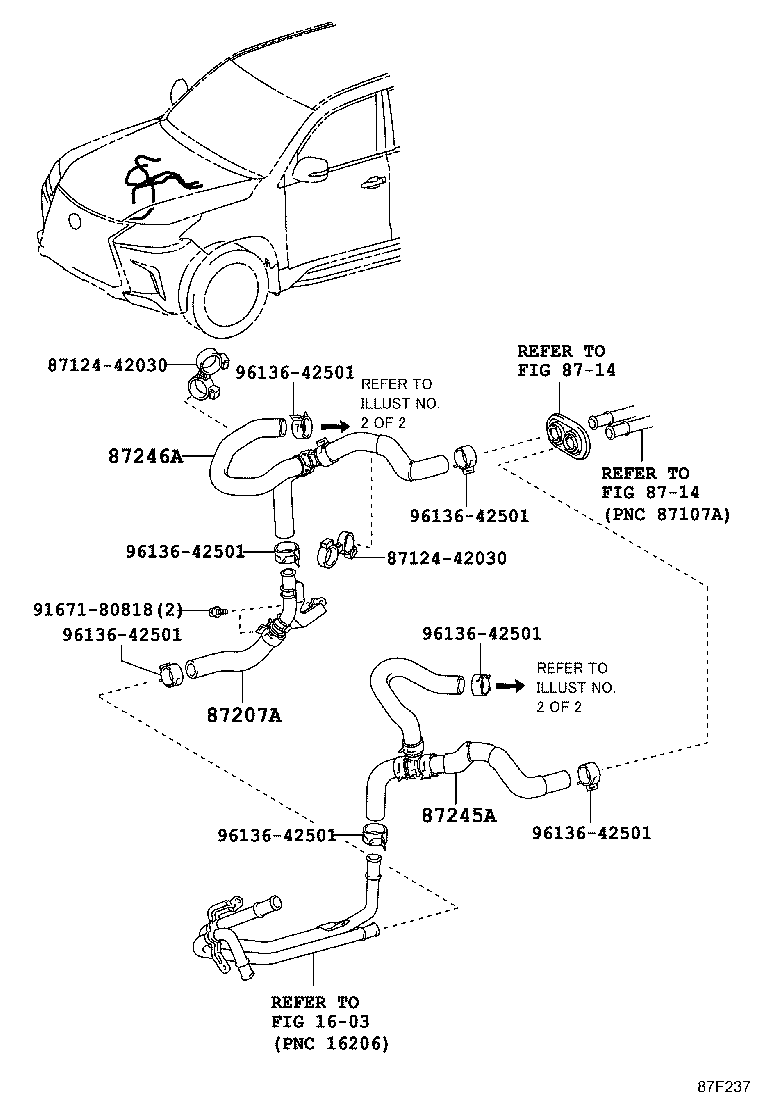

Click highlighted areas on diagram

FRONT

diagram 1603 8712442030 8712442030 8714 8714 87207A 87245A 87246A 9167180818 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87207A - PIPE & HOSE SUB-ASSY, WATER A
87207-60090

URJ201

 1
87245A - HOSE, HEATER WATER, INLET A
87209-60C01

URJ201

 1
87246A - HOSE, HEATER WATER, OUTLET A
87209-60C12

URJ201

 1
Common parts
87124-42030
91671-80818
96136-42501
Linked diagrams
1603
8714
