URJ201L-GNZGKA (2015)

Toyota Lexus Lx570

Production Sep 2015 - Sep 9999
Engine 3URFE
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(1509- )

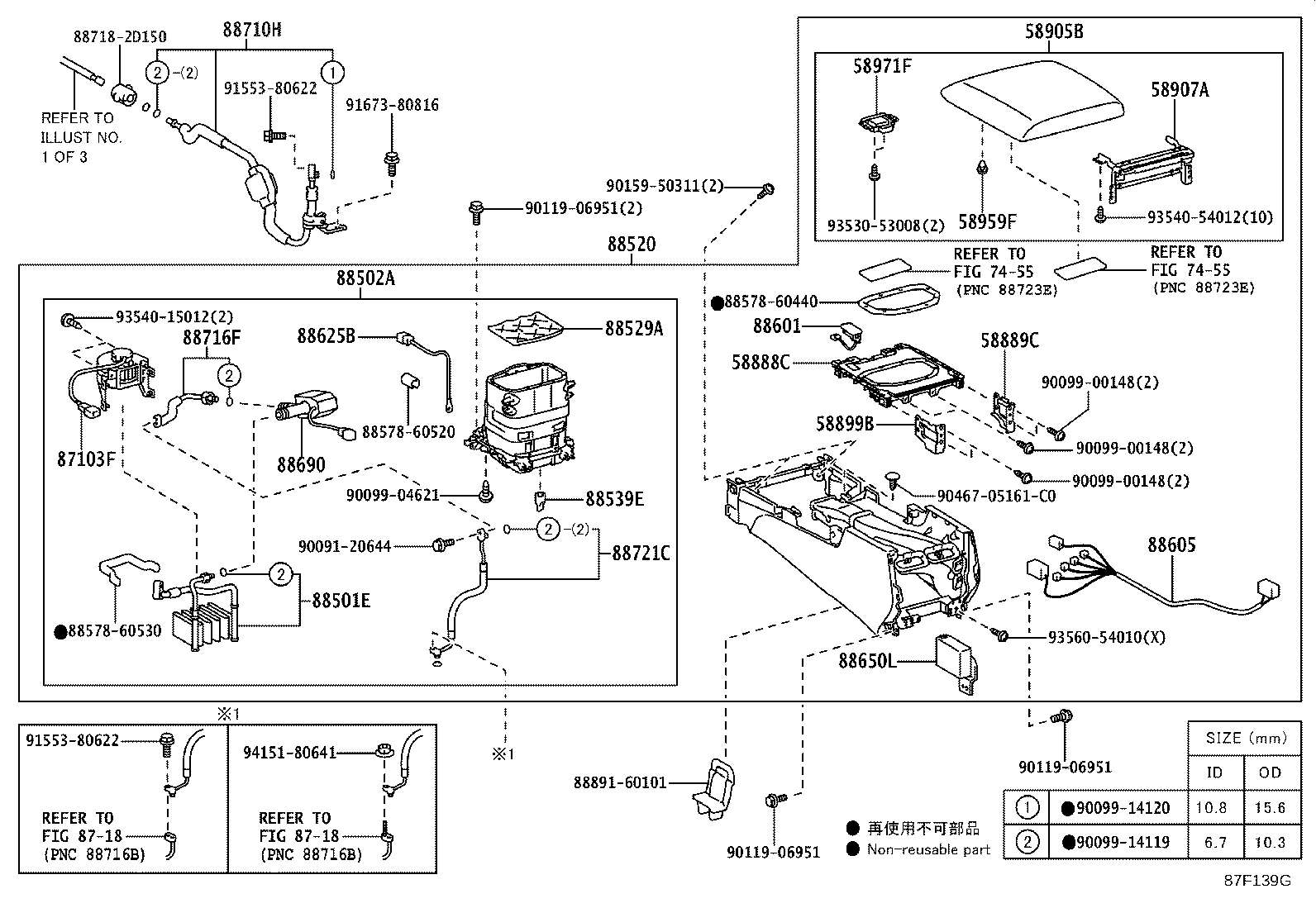

Click highlighted areas on diagram

COOL BOX

diagram 58888C 58889C 58899B 58905B 58907A 58959F 58971F 7455 7455 87103F 8718 8718 88501E 88502A 88520 88529A 88539E 8857860440 8857860520 8857860530 88601 88605 88625B 88650L 88690 88710H 88716F 887182D150 88721C 8889160101 9009120644 9009900148 9009900148 9009900148 9009904621 9009914119 9009914120 9011906951 9011906951 9011906951 9015950311 9046705161C0 9155380622 9155380622 9167380816 9353053008 9354015012 9354054012 9356054010 9415180641
Part # Description Qty Price
58888C - BASE, COOLING BOX
58888-60020

URJ201

WITH(COOL BOX)

 1
58888-60020

URJ201

WITH(COOL BOX)

 1
58889C - BRACKET, COOLING BOX
58889-60010

URJ201

WITH(COOL BOX)

 1
58889-60010

URJ201

WITH(COOL BOX)

 1
58899B - BRACKET, COOLING BOX, NO.2
58899-60010

URJ201

WITH(COOL BOX)

 1
58899-60010

URJ201

WITH(COOL BOX)

 1
58905B - DOOR SUB-ASSY, CONSOLE COMPARTMENT(FOR COOL BOX)
58905-60540C4

URJ201

WITH(COOL BOX),BLACK(MAJESTY/SMOOTH),TRIM2#,3#,4#,5#

 1
58905-60540A5

URJ201

WITH(COOL BOX),IVORY(SMOOTH LEATHER),TRIM02

 1
58905-60540C4

URJ201

WITH(COOL BOX),BLACK(MAJESTY/SMOOTH),TRIM06,2#,3#,4#,5#

 1
58905-60540A5

URJ201

WITH(COOL BOX),IVORY(SMOOTH LEATHER),TRIM0#

 1
58907A - HINGE SUB-ASSY, COOLING BOX DOOR
58907-60150

URJ201

WITH(COOL BOX)

 1
58907-60150

URJ201

WITH(COOL BOX)

 1
58959F - CUSHION, COOLING BOX DOOR
58959-35010

URJ201

WITH(COOL BOX)

 2
58971F - LOCK, COOLING BOX DOOR
58971-60070

URJ201

WITH(COOL BOX)

 1
87103F - MOTOR SUB-ASSY, BLOWER W/FAN(FOR COOL BOX)
87103-60451

URJ201

WITH(COOL BOX)

 1
87103-60451

URJ201

WITH(COOL BOX)

 1
88501E - EVAPOLATOR SUB-ASSY, COOLER (COOL BOX)
88501-60350

URJ201

WITH(COOL BOX)

 1
88501-60590

URJ201

WITH(COOL BOX)

 1
88502A - CASE SUB-ASSY, COOLING UNIT
88502-60271

URJ201

WITH(COOL BOX)

 1
88530-60170

URJ201

WITH(COOL BOX)

 1
88502-60350

URJ201

WITH(COOL BOX)

 1
88520 - BOX ASSY, COOLING
88520-60821A4

URJ201

WITH(COOL BOX),IVORY(SMOOTH LEATHER),TRIM02

 1
88520-60821C3

URJ201

WITH(COOL BOX),BLACK(MAJESTY/SMOOTH),TRIM06,2#,3#,4#

 1
88520-60820A4

URJ201

WITH(COOL BOX),IVORY(SMOOTH LEATHER),TRIM0#

 1
88520-60820C3

URJ201

WITH(COOL BOX),BLACK(MAJESTY/SMOOTH),TRIM2#,3#,4#

 1
88520-60822C3

URJ201

WITH(COOL BOX),BLACK(MAJESTY/SMOOTH),TRIM06,2#,3#,4#,5#

 1
88520-60D00A0

URJ201

WITH(COOL BOX),IVORY,TRIM0#

 1
88520-60D00C0

URJ201

WITH(COOL BOX),BLACK,TRIM2#,3#,4#,5#

 1
88520-60822A4

URJ201

WITH(COOL BOX),IVORY(SMOOTH LEATHER),TRIM02

 1
88529A - TRAY, COOLING BOX
88529-60050

URJ201

WITH(COOL BOX)

 2
88529-60050

URJ201

WITH(COOL BOX)

 1
88539E - HOSE, COOLER UNIT DRAIN, NO.3
88539-60270

URJ201

WITH(COOL BOX)

 1
88539-60270

URJ201

WITH(COOL BOX)

 1
88601 - SWITCH SUB-ASSY, COOLER CONTROL
88601-60060

URJ201

WITH(COOL BOX)

 1
88470-60060

URJ201

WITH(COOL BOX)

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-6A182

URJ201

WITH(COOL BOX)

 1
88605-6A182

URJ201

WITH(COOL BOX)

 1
88625B - THERMISTOR, COOLER NO.3
88625-60070

URJ201

WITH(COOL BOX)

 1
88625-60070

URJ201

WITH(COOL BOX)

 1
88650L - AMPLIFIER ASSY, AIR CONDITIONER (FOR COOL BOX)
88950-60010

URJ201

WITH(COOL BOX)

 1
88950-60010

URJ201

WITH(COOL BOX)

 1
88690 - VALVE ASSY, COOLER MAGNET
88690-60280

URJ201

WITH(COOL BOX)

 1
88690-60280

URJ201

WITH(COOL BOX)

 1
88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88720-60250

URJ201

WITH(COOL BOX)

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-6C280

URJ201

WITH(COOL BOX)

 1
88716-6C280

URJ201

WITH(COOL BOX)

 1
88721C - HOSE, LIQUID
88721-60170

URJ201

WITH(COOL BOX)

 1
88721-60170

URJ201

WITH(COOL BOX)

 1
Common parts
88578-60440
88578-60520
88578-60530
88718-2D150
88891-60101
90091-20644
90099-00148
90099-04621
90099-14119
90099-14120
90119-06951
90159-50311
90467-05161C0
91553-80622
91673-80816
93530-53008
93540-15012
93540-54012
93560-54010
94151-80641
Linked diagrams
7455
8718
