URJ201L-GNZGKA (2015)
Toyota Lexus Lx570
Production
Sep 2015
-
Sep 9999
Engine
3URFE
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(1509- )
Click highlighted areas on diagram
AE80F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35210A - VALVE, SOLENOID(SL1) | ||||
| 35270-60010 |
URJ201 |
1 | ||
| 35270-60030 |
URJ201 |
1 | ||
| 35210B - VALVE, SOLENOID(SL3) | ||||
| 35270-60060 |
URJ201 |
1 | ||
| 35270-60020 |
URJ201 |
1 | ||
| 35210C - VALVE, SOLENOID(SL2) | ||||
| 35270-60020 |
URJ201 |
1 | ||
| 35270-60060 |
URJ201 |
1 | ||
| 35210D - VALVE, SOLENOID(SL4) | ||||
| 35270-60010 |
URJ201 |
1 | ||
| 35270-60030 |
URJ201 |
1 | ||
| 35210E - VALVE, SOLENOID(SL5) | ||||
| 35270-60010 |
URJ201 |
1 | ||
| 35270-60030 |
URJ201 |
1 | ||
| 35240K - SOLENOID ASSY, TRANSMISSION 3WAY(SC1) | ||||
| 35240-60040 |
URJ201 |
1 | ||
| 35240L - SOLENOID ASSY, TRANSMISSION 3WAY(SC2) | ||||
| 35240-60030 |
URJ201 |
1 | ||
| 35280A - VALVE, SOLENOID(SLU) | ||||
| 35280-60020 |
URJ201 |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-60040 |
URJ201 NO.2:REFER ILLUST. |
1 | ||
| 35285-60030 |
URJ201 NO.1:REFER ILLUST. |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-60040 |
URJ201 NO.2:REFER ILLUST. |
1 | ||
| 35285-60030 |
URJ201 NO.1:REFER ILLUST. |
1 | ||
| 35290C - VALVE, SOLENOID(SLT) | ||||
| 35290-60050 |
URJ201 |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-60080 |
URJ201 |
1 | ||
| 35330A - RING, O (FOR OIL STRAINER) | ||||
| 90301-31014 |
URJ201 |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-60650 |
URJ201 |
1 | ||
| 35412A - BODY, MANUAL VALVE | ||||
| 35412-60040 |
URJ201 |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-60030 |
URJ201 |
1 | ||
| 35481B - CLAMP, VALVE BODY WIRE HARNESS | ||||
| 35481-50050 |
URJ201 |
1 | ||
| 35482B - CLAMP, TEMPERATURE SENSOR | ||||
| 35482-73010 |
URJ201 |
1 | ||
| Common parts | ||||
| 90105-05031 | ||||
| 90105-06018 | ||||
| 90105-06042 | ||||
| 90105-06049 | ||||
| 90105-06053 | ||||
| 90250-03112 | ||||

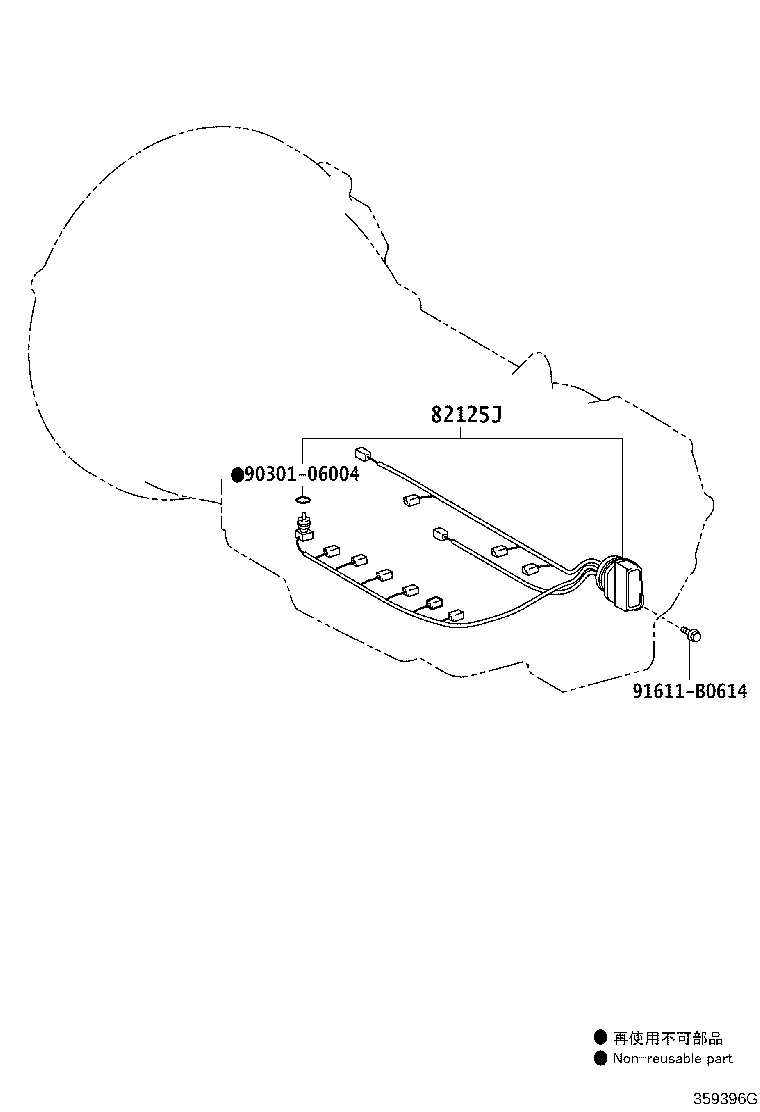

ILLUST NO. 2 OF 2(1509- )
Click highlighted areas on diagram
AE80F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125J - WIRE, TRANSMISSION | ||||
| 82125-60671 |
URJ201 |
1 | ||
| 82125-60670 |
URJ201 |
1 | ||
| Common parts | ||||
| 90301-06004 | ||||
| 91611-B0614 | ||||
