URJ201L-GNTGKA (2012)

Toyota Lexus Lx570

Production Jan 2012 - Sep 2015
Engine 3URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0711-1509)

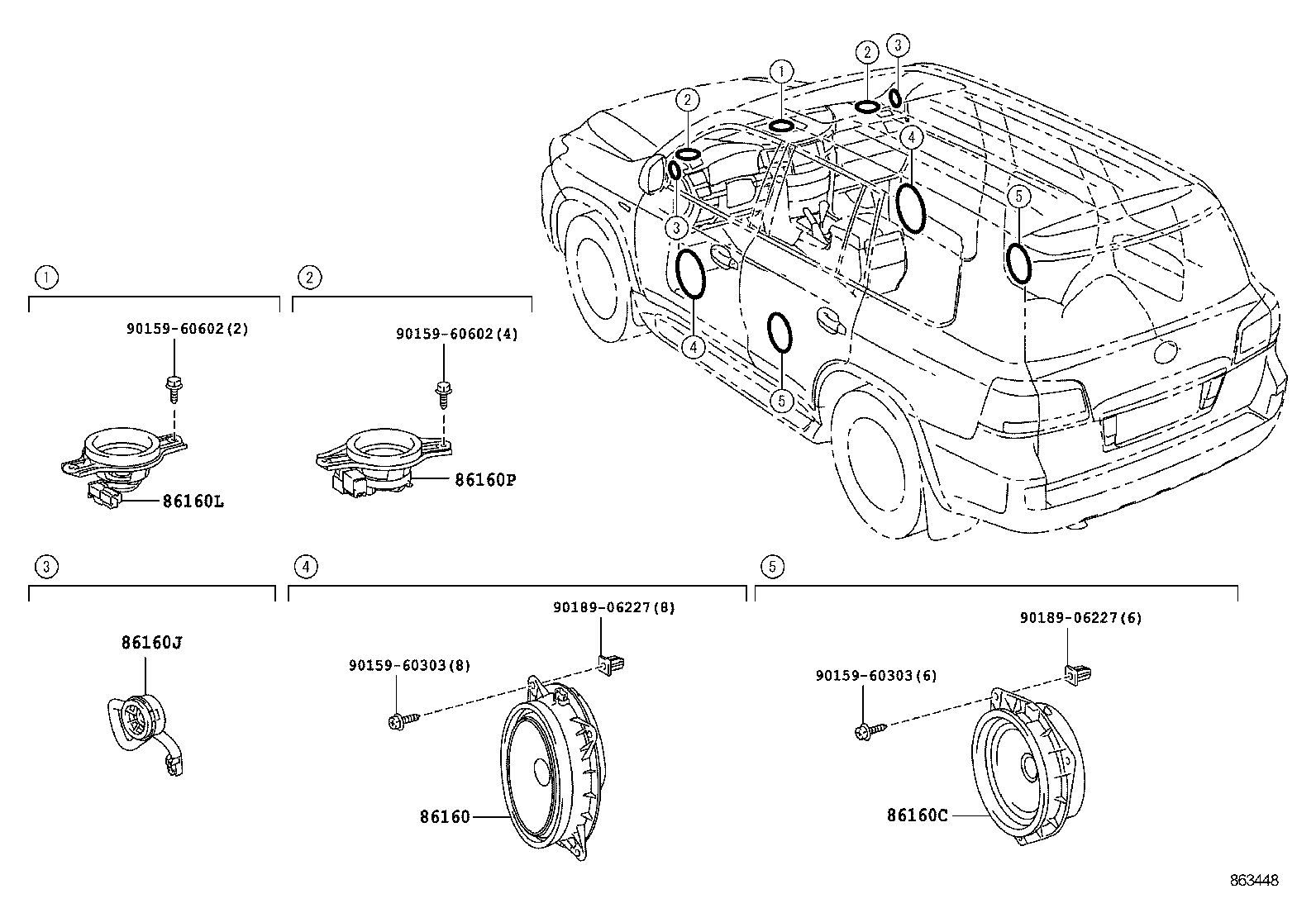

Click highlighted areas on diagram

diagram 86160 86160C 86160J 86160L 86160P 9015960303 9015960303 9015960602 9015960602 9018906227 9018906227
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-60410

URJ201

 2
86160-0WJ90

URJ201

AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM + *MAR 19SPEAKER

 2
86160C - SPEAKER SET, REAR
86160-0WG20

URJ201

AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM + *MAR 19SPEAKER

 2
86160-75220

URJ201

 2
86160J - SPEAKER ASSY, FRONT NO.3
86160-0WJ80

URJ201

AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM + *MAR 19SPEAKER

 2
86160-60310

URJ201

 2
86160L - SPEAKER ASSY, FRONT NO.4
86160-0WK60

URJ201

AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM + *MAR 19SPEAKER

 1
86160-60540

URJ201

 1
86160P - SPEAKER ASSY, FRONT NO.2
86160-60420

URJ201

 2
86160-0WK00

URJ201

AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM + *MAR 19SPEAKER

 2
Common parts
90159-60303
90159-60602
90189-06227

(0711-1509)

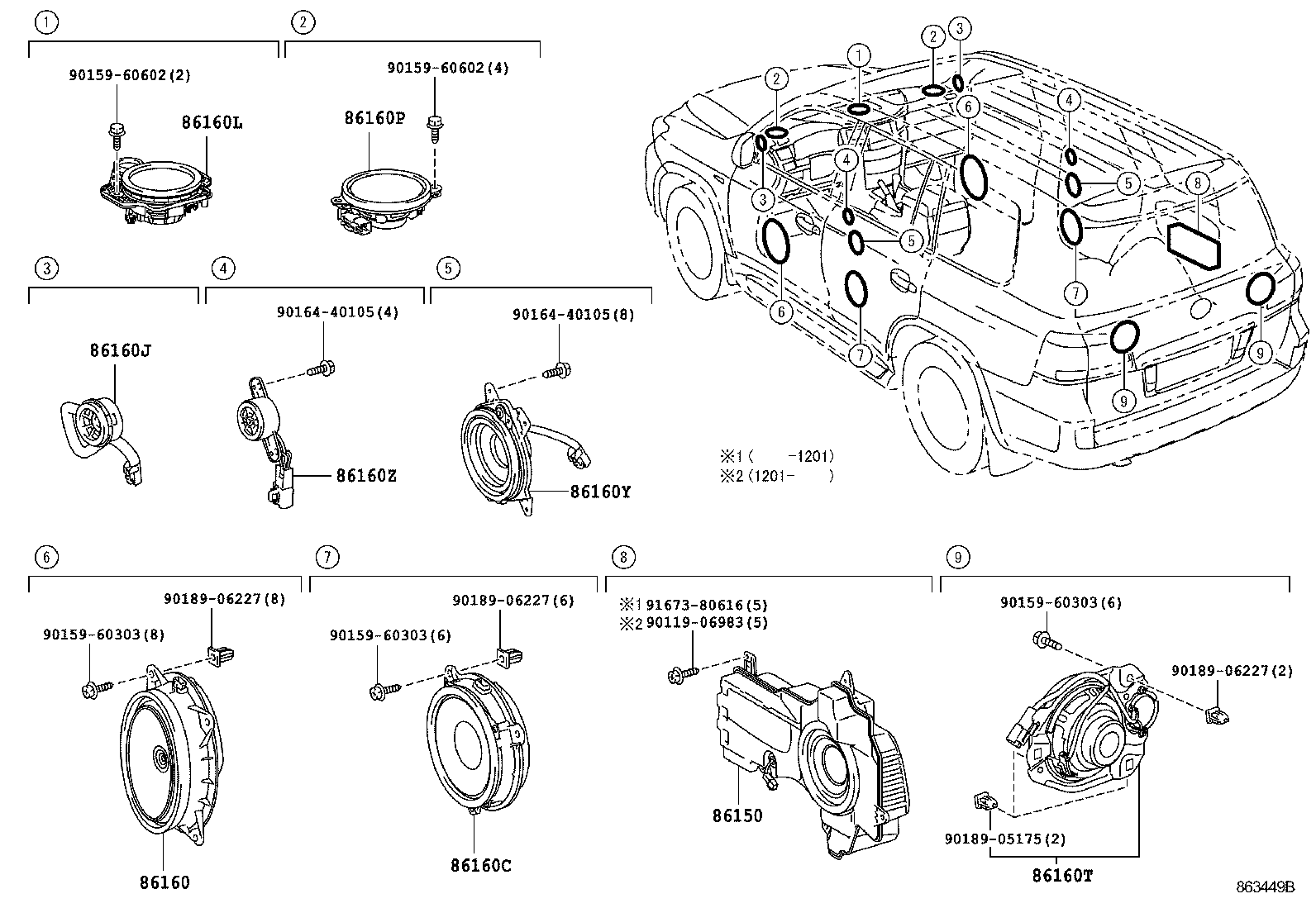

Click highlighted areas on diagram

W(19SPEAKER)

diagram 86150 86160 86160C 86160J 86160L 86160P 86160T 86160Y 86160Z 9011906983 9015960303 9015960303 9015960303 9015960602 9015960602 9016440105 9016440105 9018905175 9018906227 9018906227 9018906227 9167380616
Part # Description Qty Price
86150 - SPEAKER ASSY, W/BOX, NO.1
86150-0W101

URJ201

AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM + *MAR 19SPEAKER

 1
86150-0W100

URJ201

AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM + *MAR 19SPEAKER

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-60410

URJ201

 2
86160-0WJ90

URJ201

AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM + *MAR 19SPEAKER

 2
86160C - SPEAKER SET, REAR
86160-0WG20

URJ201

AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM + *MAR 19SPEAKER

 2
86160-75220

URJ201

 2
86160J - SPEAKER ASSY, FRONT NO.3
86160-0WJ80

URJ201

AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM + *MAR 19SPEAKER

 2
86160-60310

URJ201

 2
86160L - SPEAKER ASSY, FRONT NO.4
86160-0WK60

URJ201

AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM + *MAR 19SPEAKER

 1
86160-60540

URJ201

 1
86160P - SPEAKER ASSY, FRONT NO.2
86160-60420

URJ201

 2
86160-0WK00

URJ201

AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM + *MAR 19SPEAKER

 2
86160T - SPEAKER ASSY, REAR HEADER
86160-0WK80

URJ201

AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM + *MAR 19SPEAKER

 2
86160Y - SPEAKER ASSY, REAR NO.2
86160-0WK20

URJ201

AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM + *MAR 19SPEAKER

 2
86160Z - SPEAKER ASSY, REAR NO.3
86160-0WK40

URJ201

AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM + *MAR 19SPEAKER

 2
Common parts
90119-06983
90159-60303
90159-60602
90164-40105
90189-05175
90189-06227
91673-80616
