URJ201L-GNTGKA (2007)

Toyota Lexus Lx570

Production Nov 2007 - Jan 2012
Engine 3URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

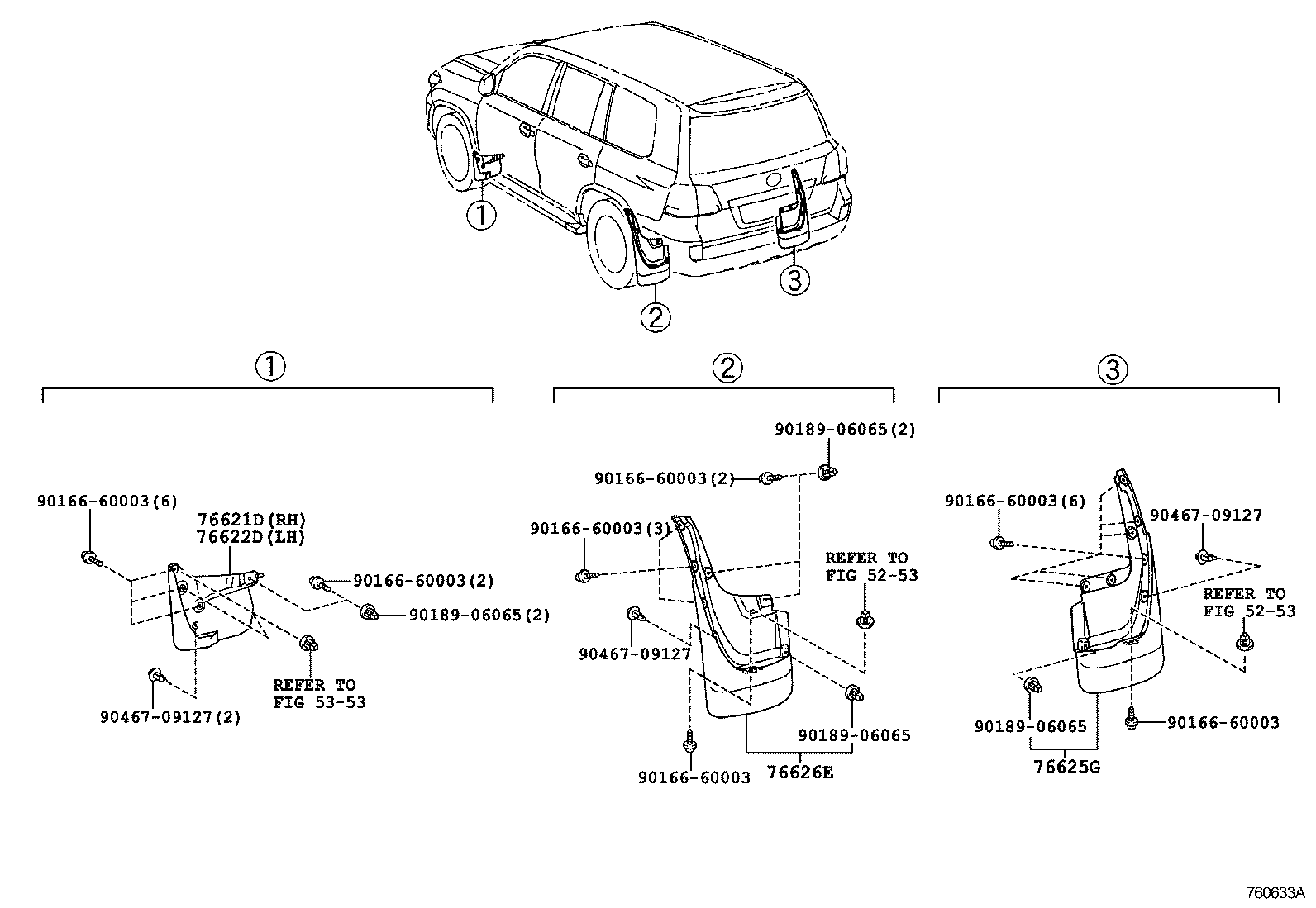

ILLUST NO. 1 OF 2(0711-1509)

Click highlighted areas on diagram

MUD GUARD

diagram 5253 5253 5353 76621D 76622D 76625G 76626E 9016660003 9016660003 9016660003 9016660003 9016660003 9016660003 9016660003 9018906065 9018906065 9018906065 9018906065 9046709127 9046709127 9046709127
Part # Description Qty Price
76621D - MUDGUARD, FRONT FENDER, RH
76621-60160

URJ201

 1
76622D - MUDGUARD, FRONT FENDER, LH
76622-60130

URJ201

 1
76625G - MUDGUARD, QUARTER PANEL, REAR RH
76625-60240

URJ201

 1
76626E - MUDGUARD, QUARTER PANEL, REAR LH
76626-60240

URJ201

 1
Common parts
90166-60003
90189-06065
90467-09127
Linked diagrams
5253
5353

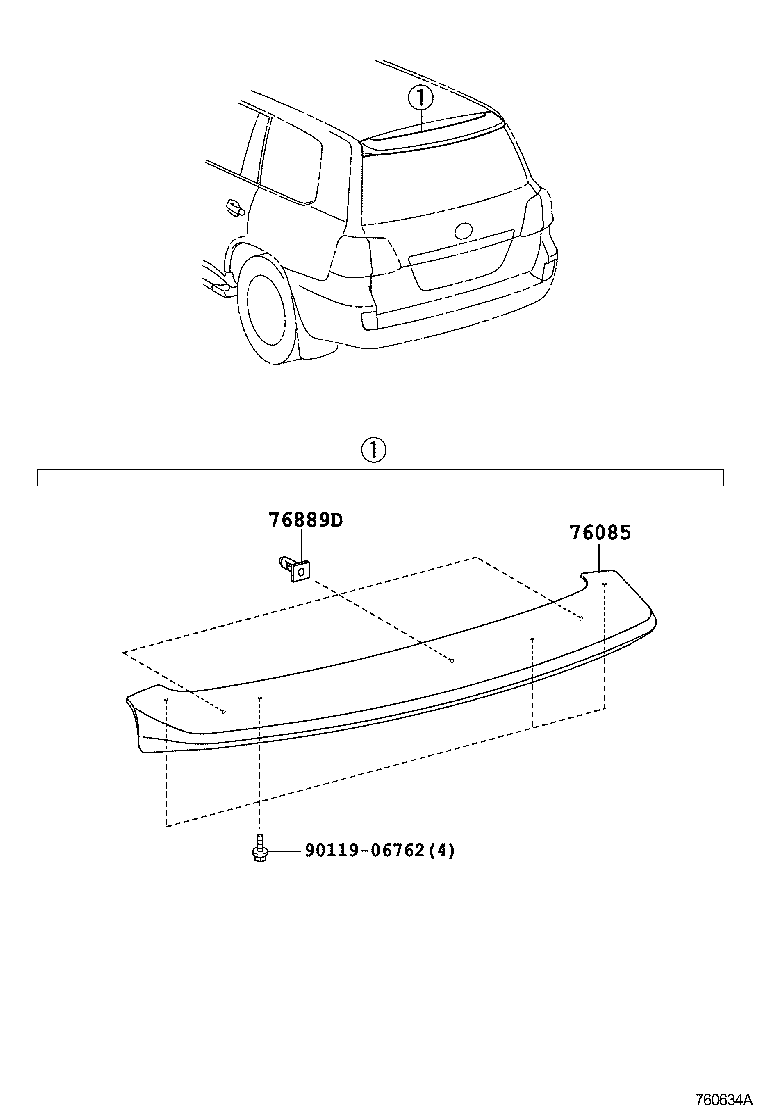

ILLUST NO. 2 OF 2(0711-1509)

Click highlighted areas on diagram

REAR SPOILER

diagram 76085 76889D 9011906762
Part # Description Qty Price
76085 - SPOILER SUB-ASSY, REAR
76085-60030C0

URJ201

BLACK,202

 1
76085-60030J0

URJ201

BLUE M.M.,8U4

 1
76085-60030A0

URJ201

WHITE PEARL CS.,077

 1
76085-60030B1

URJ201

GRAY M.M.,1G8

 1
76085-60030C1

URJ201

STARLIGHT BLACK GF.,217

 1
76085-60030E0

URJ201

BEIGE ME.,4T1

 1
76085-60030B0

URJ201

PREMIUM SILVER,1F2

 1
76085-60030D0

URJ201

DK.RED MC.CS.,3R7

 1
76889D - CLIP, REAR SPOILER, NO.2
76889-44020

URJ201

 3
Common parts
90119-06762
