URJ201L-GNTGKA (2007)
Toyota Lexus Lx570
Production
Nov 2007
-
Jan 2012
Engine
3URFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0711- )

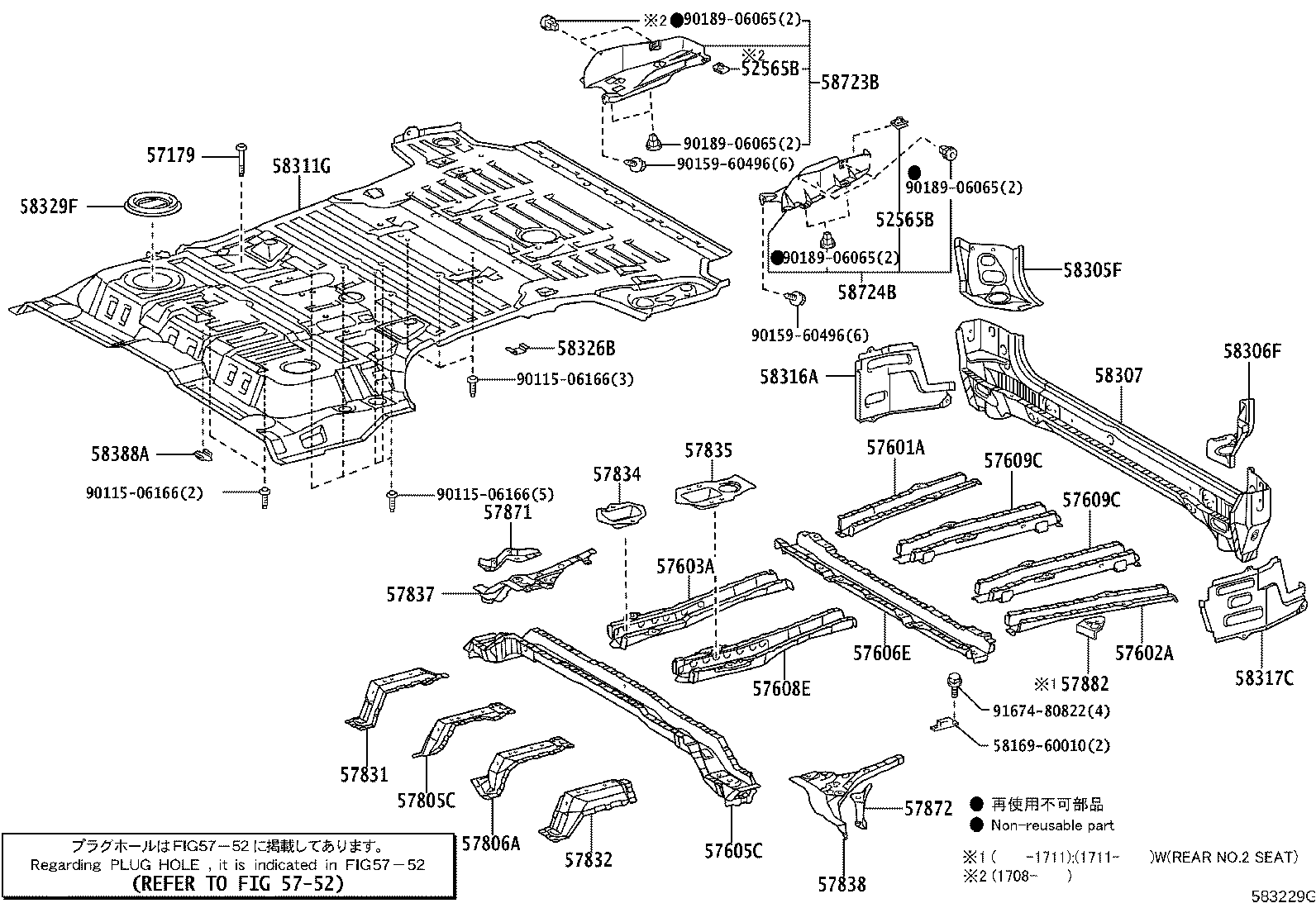

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57179 - BOLT, FLOOR CROSSMEMBER | ||||
| 57179-60030 |
URJ201 |
1 | ||
| 57601A - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-60180 |
URJ201 |
1 | ||
| 57602A - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-60140 |
URJ201 |
1 | ||
| 57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH | ||||
| 57603-60230 |
URJ201 |
1 | ||
| 57605C - MEMBER SUB-ASSY, REAR FLOOR CROSS | ||||
| 57605-60180 |
URJ201 |
1 | ||
| 57606E - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-60230 |
URJ201 |
1 | ||
| 57608E - REINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, RH | ||||
| 57608-60080 |
URJ201 |
1 | ||
| 57609C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5 | ||||
| 57609-60020 |
URJ201 |
2 | ||
| 57609C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5 | ||||
| 57609-60020 |
URJ201 |
2 | ||
| 57805C - REINFORCEMENT SUB-ASSY, NO.1 SEAT LEG, REAR NO.1 | ||||
| 57803-60020 |
URJ201 |
1 | ||
| 57806A - REINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.2 | ||||
| 57804-60020 |
URJ201 |
1 | ||
| 57831 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1 | ||||
| 57801-60020 |
URJ201 |
1 | ||
| 57832 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2 | ||||
| 57802-60010 |
URJ201 |
1 | ||
| 57834 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.4 | ||||
| 57834-60010 |
URJ201 |
1 | ||
| 57835 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1 | ||||
| 57835-60030 |
URJ201 |
1 | ||
| 57837 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3 | ||||
| 57837-60020 |
URJ201 |
1 | ||
| 57838 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.4 | ||||
| 57838-60030 |
URJ201 |
1 | ||
| 57871 - PATCH, REAR NO.1 SEAT LEG, REAR NO.1 | ||||
| 57871-60020 |
URJ201 |
1 | ||
| 57872 - PATCH, REAR NO.1 SEAT LEG, REAR NO.2 | ||||
| 57872-60010 |
URJ201 |
1 | ||
| 57882 - REINFORCEMENT, BELT ANCHOR, NO.4 | ||||
| 57882-60030 |
URJ201 |
1 | ||
| 58305F - PANEL SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 58305-60020 |
URJ201 |
1 | ||
| 58306F - PANEL SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 58306-60080 |
URJ201 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58302-60530 |
URJ201 |
1 | ||
| 58311G - PAN,REAR FLOOR | ||||
| 58311-60830 |
URJ201 |
1 | ||
| 58316A - EXTENSION, REAR FLOOR SIDE PANEL, REAR RH | ||||
| 58316-60070 |
URJ201 |
1 | ||
| 58317C - EXTENSION, REAR FLOOR SIDE PANEL, REAR LH | ||||
| 58317-60060 |
URJ201 |
1 | ||
| 58326B - BRACKET, FLEXIBLE HOSE MOUNTING | ||||
| 58326-60020 |
URJ201 |
1 | ||
| 58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2 | ||||
| 58329-60050 |
URJ201 |
1 | ||
| 58388A - BRACKET,REAR FLOOR PLATE | ||||
| 89966-60010 |
URJ201 |
1 | ||
| 58723B - PROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.1 | ||||
| 58723-60010 |
URJ201 |
1 | ||
| 58724B - PROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.2 | ||||
| 58724-60010 |
URJ201 |
1 | ||
| Common parts | ||||
| 58169-60010 | ||||
| 90115-06166 | ||||
| 90159-60496 | ||||
| 90189-06065 | ||||
| 91674-80822 | ||||
