UZJ100L-GNPGKA (1998)
Toyota Lexus Lx470
Production
Jan 1998
-
Aug 2002
Engine
2UZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(9801- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57179 - BOLT, FLOOR CROSSMEMBER | ||||
| 57179-60020 |
UZJ100 |
2 | ||
| 57601A - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-60080 |
UZJ100 |
1 | ||
| 57602A - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-60080 |
UZJ100 |
1 | ||
| 57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH | ||||
| 57603-60071 |
UZJ100 |
1 | ||
| 57603-60070 |
UZJ100 |
1 | ||
| 57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH | ||||
| 57603-60071 |
UZJ100 |
1 | ||
| 57603-60070 |
UZJ100 |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57068-60060 |
UZJ100 |
1 | ||
| 57625 - REINFORCEMENT, REAR FLOOR SIDE MEMBER, RH | ||||
| 57625-60020 |
UZJ100 |
1 | ||
| 57626 - REINFORCEMENT, REAR FLOOR SIDE MEMBER, LH | ||||
| 57626-60020 |
UZJ100 |
1 | ||
| 57626-60021 |
UZJ100 |
1 | ||
| 57632 - MEMBER, REAR FLOOR, CENTER NO.1 | ||||
| 57632-60040 |
UZJ100 |
1 | ||
| 57637A - REINFORCEMENT, REAR FLOOR SIDE, RH | ||||
| 57637-60020 |
UZJ100 |
1 | ||
| 57638A - REINFORCEMENT, REAR FLOOR SIDE, LH | ||||
| 57638-60020 |
UZJ100 |
1 | ||
| 57653D - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57607-60020 |
UZJ100 |
1 | ||
| 58027B - REINFORCE SUB-ASSY, SEAT BELT ANCHOR | ||||
| 58027-60050 |
UZJ100 |
1 | ||
| 58239E - PLATE, BELT ANCHOR NUT | ||||
| 58239-60020 |
UZJ100 |
2 | ||
| 58247C - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH | ||||
| 58247-60040 |
UZJ100 |
1 | ||
| 58248C - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH | ||||
| 58248-60050 |
UZJ100 |
1 | ||
| 58249A - REINFORCEMENT, REAR SEAT MOUNTING | ||||
| 58249-60010 |
UZJ100 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58302-60330 |
UZJ100 |
1 | ||
| 58302-60450 |
UZJ100 |
1 | ||
| 58302-60451 |
UZJ100 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-60460 |
UZJ100 |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-60100 |
UZJ100 |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-60100 |
UZJ100 |
1 | ||
| 58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2 | ||||
| 58329-60030 |
UZJ100 |
1 | ||
| 58339B - PACKING, REAR FLOOR SERVICE HOLE | ||||
| 58339-60050 |
UZJ100 |
1 | ||
| 58348A - COVER, REAR BODY MOUNTING SERVICE HOLE | ||||
| 58348-60020 |
UZJ100 |
2 | ||
| 58361D - REINFORCEMENT, REAR FLOOR PANEL, NO.1 RH | ||||
| 58361-60061 |
UZJ100 |
1 | ||
| 58384G - GUSSET, LOWER BACK, UPPER RH | ||||
| 58384-60030 |
UZJ100 |
1 | ||
| 58385G - GUSSET, LOWER BACK, UPPER LH | ||||
| 58385-60031 |
UZJ100 |
1 | ||
| 58385-60030 |
UZJ100 |
1 | ||
| 58385-60032 |
UZJ100 |
1 | ||
| 58399A - RETAINER, NO.3 SEAT BELT ANCHOR TO FLOOR | ||||
| 58399-60010 |
UZJ100 |
1 | ||
| 58460C - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-35011 |
UZJ100 |
4 | ||
| 58460-35012 |
UZJ100 |
4 | ||
| 64181 - REINFORCEMENT SUB-ASSY, REAR SEAT BELT ANCHOR | ||||
| 58316-60050 |
UZJ100 |
3 | ||
| Common parts | ||||
| 90115-06166 | ||||
| 90119-06428 | ||||
| 90189-05016 | ||||
| 93530-15014 | ||||

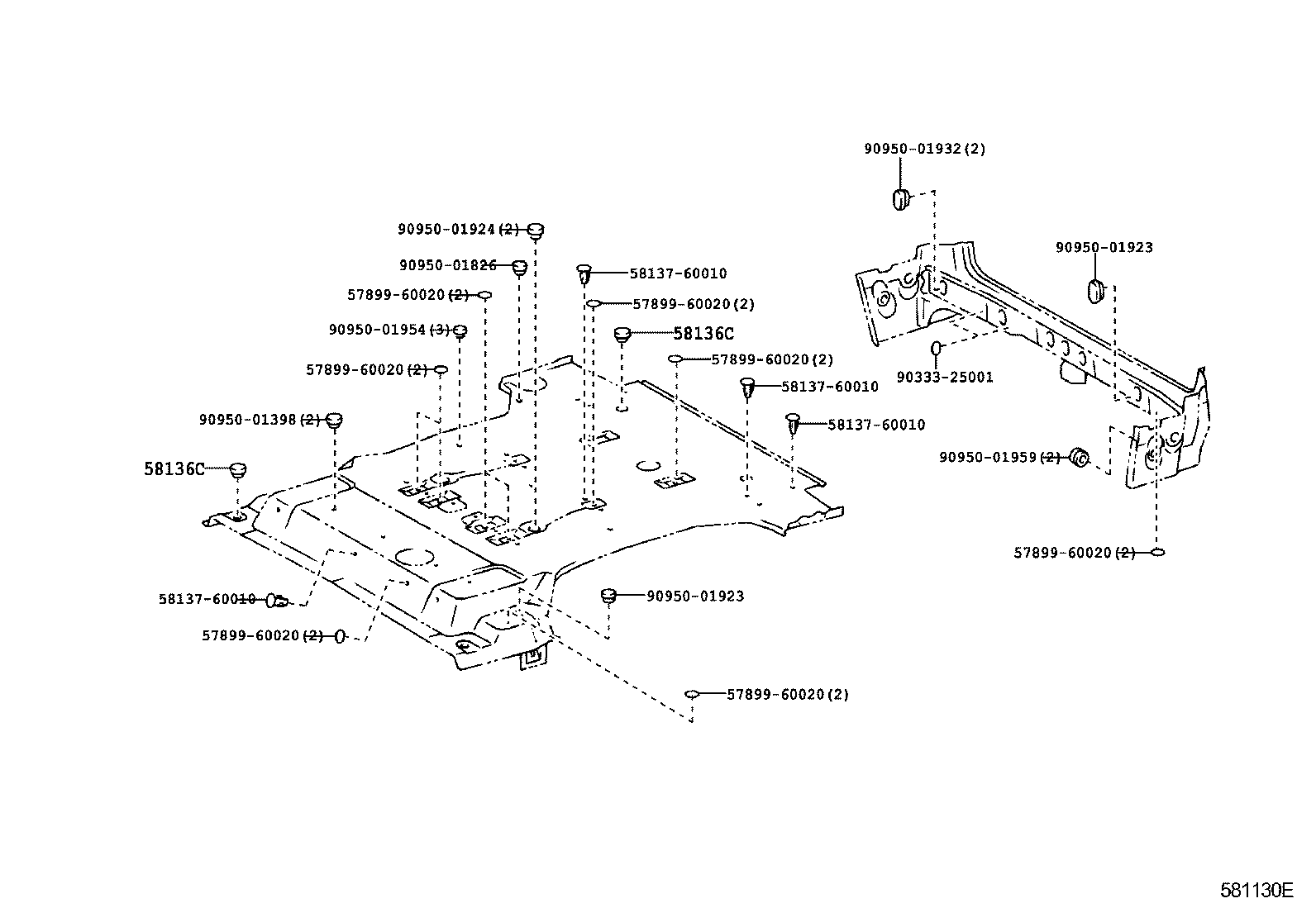

ILLUST NO. 2 OF 2(9801- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58136C - COVER, REAR FLOOR HOLE | ||||
| 58136-60020 |
UZJ100 W(SIDE STEP) |
3 | ||
| 58136-60020 |
UZJ100 |
1 | ||
| 58136C - COVER, REAR FLOOR HOLE | ||||
| 58136-60020 |
UZJ100 W(SIDE STEP) |
3 | ||
| 58136-60020 |
UZJ100 |
1 | ||
| Common parts | ||||
| 57899-60020 | ||||
| 58137-60010 | ||||
| 90333-25001 | ||||
| 90950-01398 | ||||
| 90950-01826 | ||||
| 90950-01923 | ||||
| 90950-01924 | ||||
| 90950-01932 | ||||
| 90950-01954 | ||||
| 90950-01959 | ||||
