UZJ100L-GNPGKA (1998)
Toyota Lexus Lx470
Production
Jan 1998
-
Aug 2002
Engine
2UZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9801-0208)

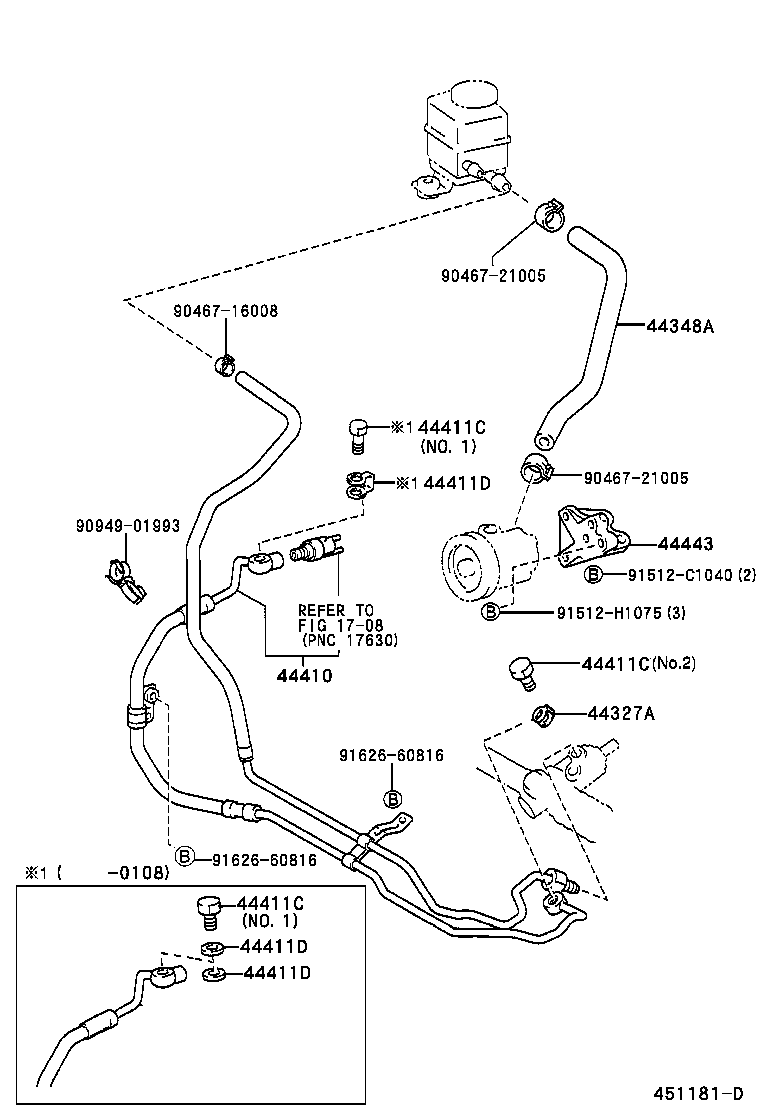

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-30030 |
UZJ100 |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-60240 |
UZJ100 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-60510 |
UZJ100 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16040 |
UZJ100 NO.2 |
1 | ||
| 90401-16020 |
UZJ100 NO.1 |
1 | ||
| 90401-16034 |
UZJ100 NO.1 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16040 |
UZJ100 NO.2 |
1 | ||
| 90401-16020 |
UZJ100 NO.1 |
1 | ||
| 90401-16034 |
UZJ100 NO.1 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16040 |
UZJ100 NO.2 |
1 | ||
| 90401-16020 |
UZJ100 NO.1 |
1 | ||
| 90401-16034 |
UZJ100 NO.1 |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
UZJ100 |
2 | ||
| 44327-30040 |
UZJ100 |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
UZJ100 |
2 | ||
| 44327-30040 |
UZJ100 |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
UZJ100 |
2 | ||
| 44327-30040 |
UZJ100 |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-60100 |
UZJ100 |
1 | ||
| Common parts | ||||
| 90467-16008 | ||||
| 90467-21005 | ||||
| 90949-01993 | ||||
| 91512-C1040 | ||||
| 91512-H1075 | ||||
| 91626-60816 | ||||
| Linked diagrams | ||||
| 1708 | ||||
