UZJ100L-GNAGKA (2002)

Toyota Lexus Lx470

Production Aug 2002 - Aug 2007
Engine 2UZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0208- )

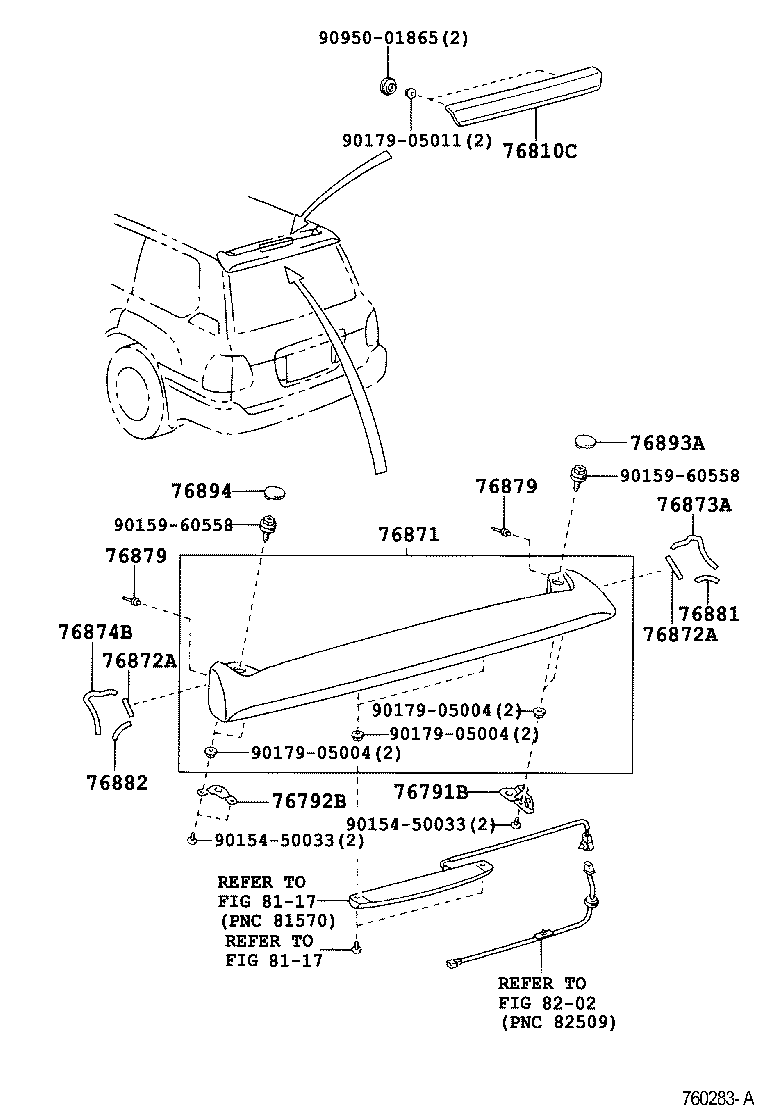

Click highlighted areas on diagram

diagram 76791B 76792B 76810C 76871 76872A 76872A 76873A 76874B 76879 76879 76881 76882 76893A 76894 8117 8117 8202 9015450033 9015450033 9015960558 9015960558 9017905004 9017905004 9017905004 9017905011 9095001865
Part # Description Qty Price
76791B - BRACKET, REAR SPOILER
76791-60010

UZJ100

 1
76791-60010

UZJ100

 1
76792B - BRACKET, REAR SPOILER, NO.1 LH
76792-60010

UZJ100

 1
76792-60010

UZJ100

 1
76810C - GARNISH ASSY, BACK DOOR, OUTSIDE
76810-60010C0

UZJ100

BLACK,202

 1
76810-60010E0

UZJ100

BEIGE PEARL CS.,4R2

 1
76810-60010C0

UZJ100

BLACK,202

 1
76810-60010G0

UZJ100

LT. GREEN M.M.,6T2

 1
76810-60010B0

UZJ100

DK.GRAY M.M.,1E9

 1
76810-60010A0

UZJ100

WHITE PEARL CS.,070

 1
76810-60010B0

UZJ100

DK.GRAY M.M.,1E9

 1
76810-60010A2

UZJ100

WHITE PEARL CS.,062

 1
76810-60010J0

UZJ100

GRAYISH BLUE ME.,8P6

 1
76810-60010E0

UZJ100

BEIGE PEARL CS.,4R2

 1
76810-60010G2

UZJ100

OLIVE M.M.,6T7

 1
76810-60010B2

UZJ100

SILVER ME.,1F7

 1
76871 - SPOILER, REAR
76871-60010B0

UZJ100

DK.GRAY M.M.,1E9

 1
76871-60010B0

UZJ100

DK.GRAY M.M.,1E9

 1
76871-60010A0

UZJ100

WHITE PEARL CS.,070

 1
76871-60010G0

UZJ100

LT. GREEN M.M.,6T2

 1
76871-60010C0

UZJ100

BLACK,202

 1
76871-60010G2

UZJ100

OLIVE M.M.,6T7

 1
76871-60010E0

UZJ100

BEIGE PEARL CS.,4R2

 1
76871-60010C0

UZJ100

BLACK,202

 1
76871-60010J0

UZJ100

GRAYISH BLUE ME.,8P6

 1
76871-60010A2

UZJ100

WHITE PEARL CS.,062

 1
76871-60010E0

UZJ100

BEIGE PEARL CS.,4R2

 1
76871-60010B2

UZJ100

SILVER ME.,1F7

 1
76872A - PROTECTOR, REAR SPOILER, NO.1
76872-60010

UZJ100

 2
76872-60010

UZJ100

 2
76872A - PROTECTOR, REAR SPOILER, NO.1
76872-60010

UZJ100

 2
76872-60010

UZJ100

 2
76873A - PROTECTOR, REAR SPOILER, RH
76873-60010

UZJ100

 1
76873-60010

UZJ100

 1
76874B - PROTECTOR, REAR SPOILER, LH
76874-60010

UZJ100

 1
76874-60010

UZJ100

 1
76879 - CLIP, REAR SPOILER, NO.1
76879-10030

UZJ100

 2
76879-10030

UZJ100

 2
76879 - CLIP, REAR SPOILER, NO.1
76879-10030

UZJ100

 2
76879-10030

UZJ100

 2
76881 - PROTECTOR, REAR SPOILER SIDE, NO.1 RH
76881-60010

UZJ100

 1
76881-60010

UZJ100

 1
76882 - PROTECTOR, REAR SPOILER SIDE, NO.1 LH
76882-60010

UZJ100

 1
76881-60010

UZJ100

 1
76881-60010

UZJ100

 1
76893A - COVER, REAR SPOILER, RH
76893-60010E0

UZJ100

BEIGE PEARL CS.,4R2

 1
76893-60010A0

UZJ100

WHITE PEARL CS.,070

 1
76893-60010J0

UZJ100

GRAYISH BLUE ME.,8P6

 1
76893-60010G0

UZJ100

LT. GREEN M.M.,6T2

 1
76893-60010C0

UZJ100

BLACK,202

 1
76893-60010C0

UZJ100

BLACK,202

 1
76893-60010G2

UZJ100

OLIVE M.M.,6T7

 1
76893-60010B2

UZJ100

SILVER ME.,1F7

 1
76893-60010A2

UZJ100

WHITE PEARL CS.,062

 1
76893-60010B0

UZJ100

DK.GRAY M.M.,1E9

 1
76893-60010E0

UZJ100

BEIGE PEARL CS.,4R2

 1
76893-60010B0

UZJ100

DK.GRAY M.M.,1E9

 1
76894 - COVER, REAR SPOILER, LH
76894-60010A0

UZJ100

WHITE PEARL CS.,070

 1
76894-60010E0

UZJ100

BEIGE PEARL CS.,4R2

 1
76894-60010E0

UZJ100

BEIGE PEARL CS.,4R2

 1
76894-60010G0

UZJ100

LT. GREEN M.M.,6T2

 1
76894-60010J0

UZJ100

GRAYISH BLUE ME.,8P6

 1
76894-60010B0

UZJ100

DK.GRAY M.M.,1E9

 1
76894-60010C0

UZJ100

BLACK,202

 1
76894-60010A2

UZJ100

WHITE PEARL CS.,062

 1
76894-60010C0

UZJ100

BLACK,202

 1
76894-60010B2

UZJ100

SILVER ME.,1F7

 1
76894-60010G2

UZJ100

OLIVE M.M.,6T7

 1
76894-60010B0

UZJ100

DK.GRAY M.M.,1E9

 1
Common parts
90154-50033
90159-60558
90179-05004
90179-05011
90950-01865
Linked diagrams
8117
8202
