FZJ80L-GNPGKA (1995)
Toyota Lexus Lx450
Production
Nov 1995
-
Jan 1998
Engine
1FZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9511- )

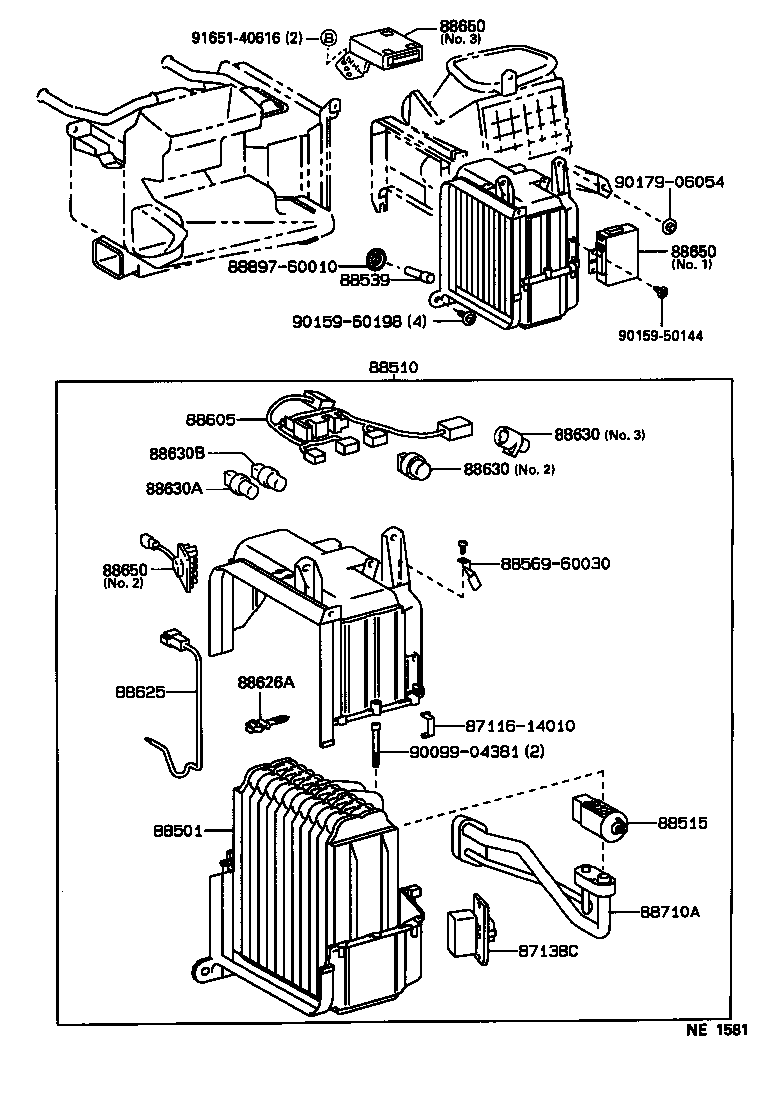

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138C - RESISTOR, BLOWER | ||||
| 87138-60230 |
FZJ80 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-60101 |
FZJ80 |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-60810 |
FZJ80 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-20100 |
FZJ80 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-60080 |
FZJ80 |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-60730 |
FZJ80 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-60060 |
FZJ80 |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-28010 |
FZJ80 |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-60060 |
FZJ80 NO.2 |
1 | ||
| 88630-14030 |
FZJ80 NO.3 |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-60060 |
FZJ80 NO.2 |
1 | ||
| 88630-14030 |
FZJ80 NO.3 |
1 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 90987-02004 |
FZJ80 |
1 | ||
| 88630B - RELAY ASSY, COOLER | ||||
| 90987-03001 |
FZJ80 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-60081 |
FZJ80 NO.1 |
1 | ||
| 88650-60212 |
FZJ80 NO.3 |
1 | ||
| 88650-60211 |
FZJ80 NO.3 |
1 | ||
| 88650-60130 |
FZJ80 NO.2 |
1 | ||
| 88650-60210 |
FZJ80 NO.3 |
1 | ||
| 88650-60130 |
FZJ80 NO.2 |
1 | ||
| 88650-60081 |
FZJ80 DUAL AIR CONDITIONER |
1 | ||
| 88650-60210 |
FZJ80 |
1 | ||
| 88650-60211 |
FZJ80 |
1 | ||
| 88650-60212 |
FZJ80 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-60081 |
FZJ80 NO.1 |
1 | ||
| 88650-60212 |
FZJ80 NO.3 |
1 | ||
| 88650-60211 |
FZJ80 NO.3 |
1 | ||
| 88650-60130 |
FZJ80 NO.2 |
1 | ||
| 88650-60210 |
FZJ80 NO.3 |
1 | ||
| 88650-60130 |
FZJ80 NO.2 |
1 | ||
| 88650-60081 |
FZJ80 DUAL AIR CONDITIONER |
1 | ||
| 88650-60210 |
FZJ80 |
1 | ||
| 88650-60211 |
FZJ80 |
1 | ||
| 88650-60212 |
FZJ80 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-60081 |
FZJ80 NO.1 |
1 | ||
| 88650-60212 |
FZJ80 NO.3 |
1 | ||
| 88650-60211 |
FZJ80 NO.3 |
1 | ||
| 88650-60130 |
FZJ80 NO.2 |
1 | ||
| 88650-60210 |
FZJ80 NO.3 |
1 | ||
| 88650-60130 |
FZJ80 NO.2 |
1 | ||
| 88650-60081 |
FZJ80 DUAL AIR CONDITIONER |
1 | ||
| 88650-60210 |
FZJ80 |
1 | ||
| 88650-60211 |
FZJ80 |
1 | ||
| 88650-60212 |
FZJ80 |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-60480 |
FZJ80 |
1 | ||
| Common parts | ||||
| 87116-14010 | ||||
| 88569-60030 | ||||
| 88897-60010 | ||||
| 90099-04381 | ||||
| 90159-50144 | ||||
| 90159-60198 | ||||
| 90179-06054 | ||||
| 91651-40616 | ||||
