FZJ80L-GNPGKA (1995)

Toyota Lexus Lx450

Production Nov 1995 - Jan 1998
Engine 1FZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )

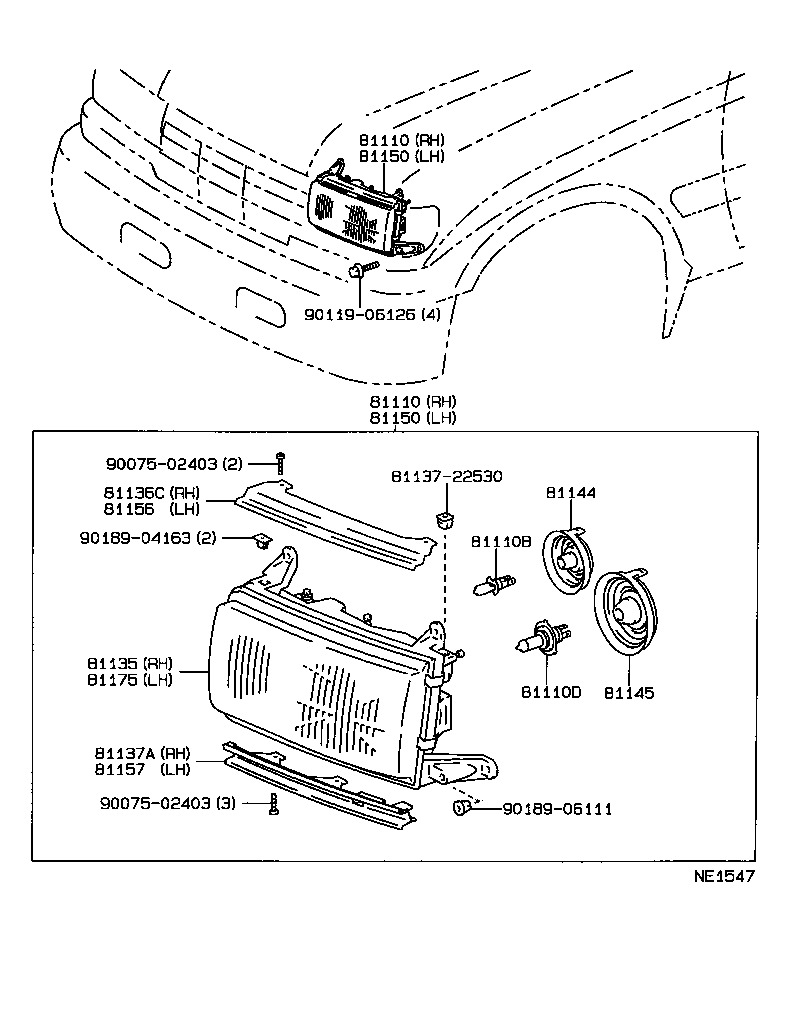

Click highlighted areas on diagram

diagram 81110 81110 81110B 81110D 81135 81136C 8113722530 81137A 81144 81145 81150 81150 81156 81157 81175 9007502403 9007502403 9011906126 9018904163 9018906111
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-60830

FZJ80

 1
81110 - HEADLAMP ASSY, RH
81110-60830

FZJ80

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90080-81040

FZJ80

12V 51W

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90080-81041

FZJ80

12V 65W

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-60830

FZJ80

 1
81136C - RIM, HEADLAMP, RH
81116-60830

FZJ80

 1
81137A - RIM, HEADLAMP, RH
81117-60395

FZJ80

 1
81144 - COVER, HEADLAMP, NO.1
90075-99028

FZJ80

 2
81145 - COVER, HEADLAMP, NO.2
90075-99027

FZJ80

 2
81150 - HEADLAMP ASSY, LH
81150-60650

FZJ80

 1
81150 - HEADLAMP ASSY, LH
81150-60650

FZJ80

 1
81156 - RIM, HEADLAMP, LH
81156-60650

FZJ80

 1
81157 - RIM, HEADLAMP, LH
81157-60215

FZJ80

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-60650

FZJ80

 1
Common parts
81137-22530
90075-02403
90119-06126
90189-04163
90189-06111
