FZJ80L-GNPGKA (1995)
Toyota Lexus Lx450
Production
Nov 1995
-
Jan 1998
Engine
1FZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9511- )

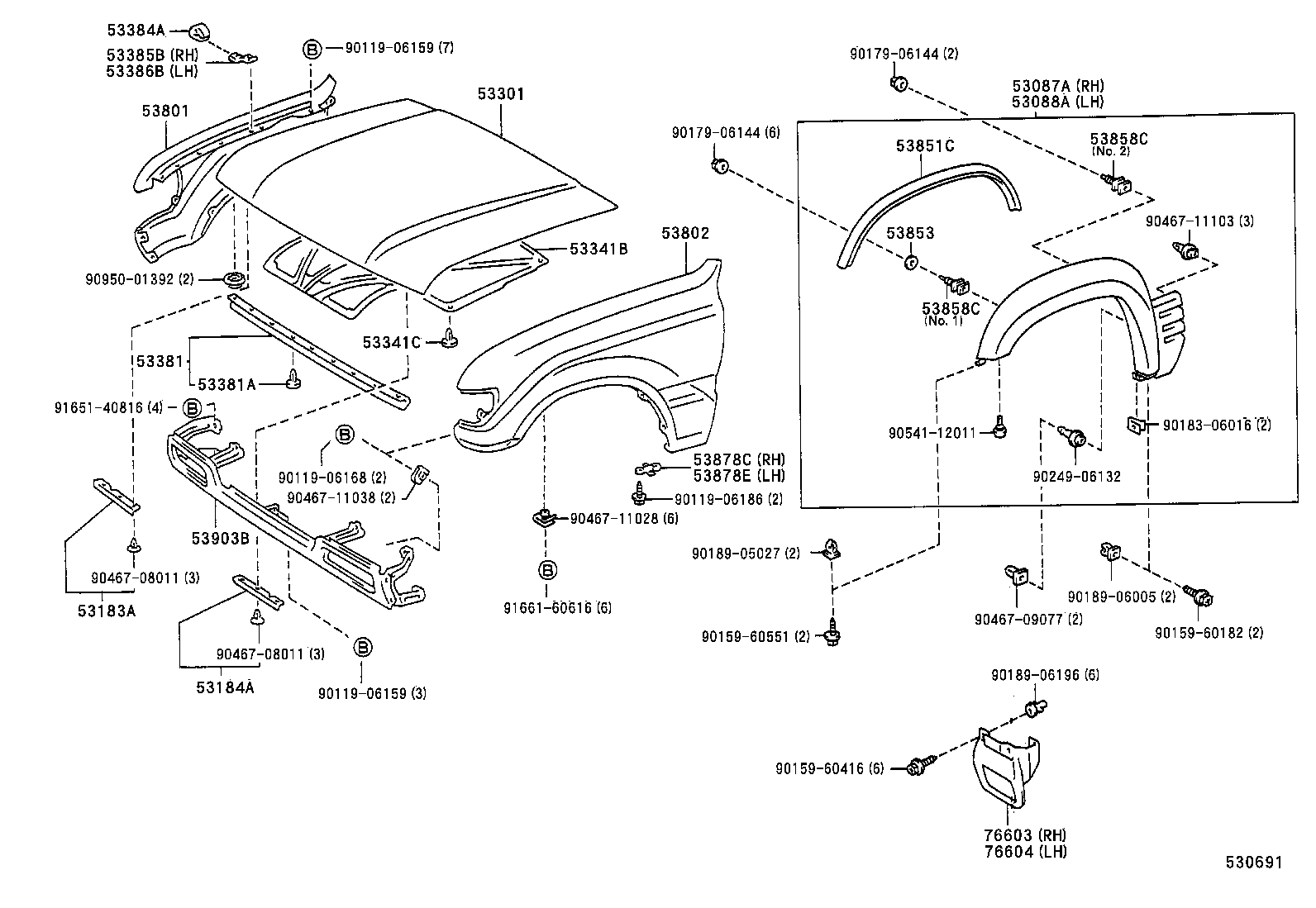

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53087A - EXTENSION SUB-ASSY, FRONT WHEEL OPENING, RH | ||||
| 75085-60020D0 |
FZJ80 BLACK,202 ,6M1 |
1 | ||
| 75085-60020E0 |
FZJ80 BEIGE,045 ,1B1 ,4M9 |
1 | ||
| 53088A - EXTENSION SUB-ASSY, FRONT WHEEL OPENING, LH | ||||
| 75086-60020E0 |
FZJ80 BEIGE,045 ,1B1 ,4M9 |
1 | ||
| 75086-60020D0 |
FZJ80 BLACK,202 ,6M1 |
1 | ||
| 53183A - SEAL, HEADLAMP COVER, RH | ||||
| 53183-60050 |
FZJ80 |
1 | ||
| 53184A - SEAL, HEADLAMP COVER, LH | ||||
| 53184-60050 |
FZJ80 |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-60250 |
FZJ80 |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-60100 |
FZJ80 |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09014 |
FZJ80 |
12 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-60010 |
FZJ80 |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
FZJ80 |
9 | ||
| 53384A - BUMPER, FENDER TO HOOD | ||||
| 53384-60010 |
FZJ80 |
2 | ||
| 53385B - BRACKET, FENDER TO HOOD BUMPER, RH | ||||
| 53385-20020 |
FZJ80 |
1 | ||
| 53386B - BRACKET, FENDER TO HOOD BUMPER, LH | ||||
| 53386-20020 |
FZJ80 |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-60560 |
FZJ80 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-60880 |
FZJ80 |
1 | ||
| 53851C - PAD, FRONT WHEEL OPENING EXTENSION, NO.1 | ||||
| 53851-60121E1 |
FZJ80 BEIGE M.,045 ,1B1 ,4M9,RH |
1 | ||
| 53852-60051B0 |
FZJ80 DARK GRAY M.,202 ,6M1,LH |
1 | ||
| 53852-60051E1 |
FZJ80 BEIGE M.,045 ,1B1 ,4M9,LH |
1 | ||
| 53851-60121B0 |
FZJ80 DARK GRAY M.,202 ,6M1,RH |
1 | ||
| 53853 - PAD, FRONT WHEEL OPENING EXTENSION, NO.3 | ||||
| 53853-60020 |
FZJ80 |
8 | ||
| 53858C - BOLT, WHEEL OPENING | ||||
| 53858-60040 |
FZJ80 NO.1 |
6 | ||
| 53858-60030 |
FZJ80 NO.2 |
2 | ||
| 53858C - BOLT, WHEEL OPENING | ||||
| 53858-60040 |
FZJ80 NO.1 |
6 | ||
| 53858-60030 |
FZJ80 NO.2 |
2 | ||
| 53878C - SPACER, FRONT FENDER | ||||
| 53878-60010 |
FZJ80 |
1 | ||
| 53878E - SPACER, FRONT FENDER | ||||
| 53878-60010 |
FZJ80 |
1 | ||
| 53903B - PANEL SUB-ASSY, FRONT END | ||||
| 53903-60030 |
FZJ80 |
1 | ||
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76603-60060E0 |
FZJ80 BEIGE,045 ,1B1 ,4M9 |
1 | ||
| 76603-60060D0 |
FZJ80 BLACK,202 ,6M1 |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76604-60060E0 |
FZJ80 BEIGE,045 ,1B1 ,4M9 |
1 | ||
| 76604-60060D0 |
FZJ80 BLACK,202 ,6M1 |
1 | ||
| Common parts | ||||
| 90119-06159 | ||||
| 90119-06168 | ||||
| 90119-06186 | ||||
| 90159-60182 | ||||
| 90159-60416 | ||||
| 90159-60551 | ||||
| 90179-06144 | ||||
| 90183-06016 | ||||
| 90189-05027 | ||||
| 90189-06005 | ||||
| 90189-06196 | ||||
| 90249-06132 | ||||
| 90467-08011 | ||||
| 90467-09077 | ||||
| 90467-11028 | ||||
| 90467-11038 | ||||
| 90467-11103 | ||||
| 90541-12011 | ||||
| 90950-01392 | ||||
| 91651-40816 | ||||
| 91661-60616 | ||||
