FZJ80L-GNPGKA (1995)
Toyota Lexus Lx450
Production
Nov 1995
-
Jan 1998
Engine
1FZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9511- )

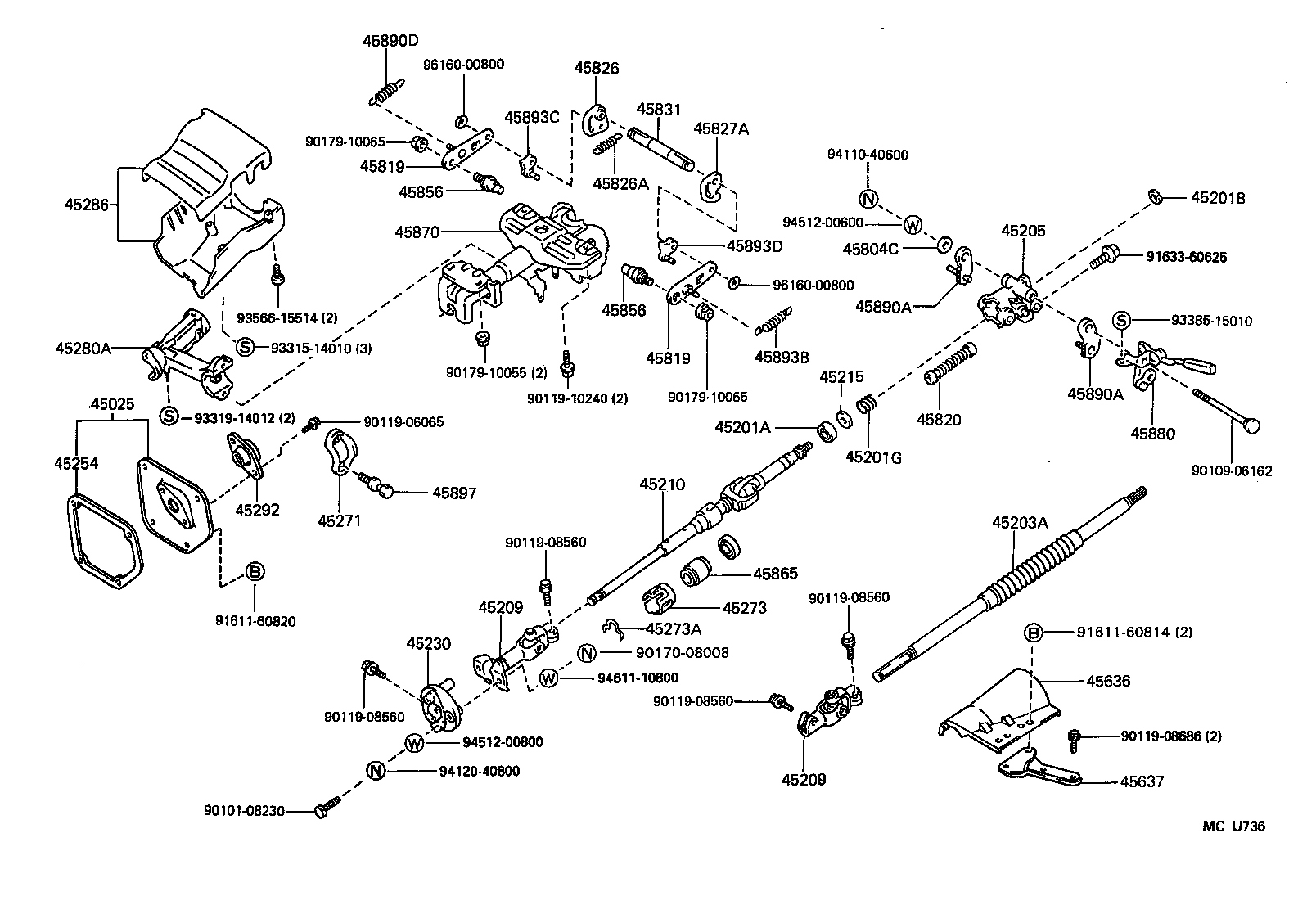

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025 - COVER, STEERING INTERMEDIATE SHAFT | ||||
| 45025-60080 |
FZJ80 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18010 |
FZJ80 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
FZJ80 T=1.20 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-40017 |
FZJ80 |
1 | ||
| 45203A - SHAFT, STEERING INTERMEDIATE, NO.2 | ||||
| 45203-60050 |
FZJ80 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-60140 |
FZJ80 |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-60060 |
FZJ80 UPR |
1 | ||
| 45209-60070 |
FZJ80 LWR |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-60060 |
FZJ80 UPR |
1 | ||
| 45209-60070 |
FZJ80 LWR |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-35170 |
FZJ80 |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-12010 |
FZJ80 |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-60010 |
FZJ80 |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-60060 |
FZJ80 |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12060 |
FZJ80 |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-16010 |
FZJ80 |
1 | ||
| 45273A - RING, HOLE SNAP(FOR STEERING MAIN SHAFT BUSH) | ||||
| 90521-01005 |
FZJ80 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-60290 |
FZJ80 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-60947E0 |
FZJ80 OAK,TRIM4# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-35050 |
FZJ80 |
1 | ||
| 45636 - PROTECTOR, INTERMEDIATE LINK JOINT, UPPER | ||||
| 45636-60101 |
FZJ80 |
1 | ||
| 45637 - PROTECTOR, INTER LINK JOINT, LWR NO.1 | ||||
| 45637-60071 |
FZJ80 |
1 | ||
| 45804C - WASHER, PLATE(FOR STEERING TILT LEVER) | ||||
| 94614-10600 |
FZJ80 |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22060 |
FZJ80 |
2 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22060 |
FZJ80 |
2 | ||
| 45820 - SPRING ASSY, TILT STEERING SUPPORT | ||||
| 45820-35010 |
FZJ80 |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-22050 |
FZJ80 |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-08010 |
FZJ80 |
1 | ||
| 45827A - LEVER, STEERING TILT SUB | ||||
| 45827-22030 |
FZJ80 |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-22020 |
FZJ80 |
1 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-22010 |
FZJ80 OD=9.989-9.998 |
2 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-22010 |
FZJ80 OD=9.989-9.998 |
2 | ||
| 45865 - COLLAR, STEERING MAIN SHAFT | ||||
| 45865-12060 |
FZJ80 |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-60120 |
FZJ80 |
1 | ||
| 45880 - LEVER ASSY, STEERING TILT | ||||
| 45880-60011 |
FZJ80 |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-22090 |
FZJ80 LH |
1 | ||
| 45890-20110 |
FZJ80 RH |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-22090 |
FZJ80 LH |
1 | ||
| 45890-20110 |
FZJ80 RH |
1 | ||
| 45890D - SPRING, TENSION(FOR TILT STEERING PAWL ASSY) | ||||
| 90507-07003 |
FZJ80 |
1 | ||
| 45893B - SPRING, TENSION(FOR TILT STEERING PAWL STOPPER) | ||||
| 90507-12035 |
FZJ80 |
1 | ||
| 45893C - STOPPER, STEERING PAWL, RH | ||||
| 45893-22050 |
FZJ80 MARK 3 |
1 | ||
| 45893-22060 |
FZJ80 MARK 4 |
1 | ||
| 45893-22070 |
FZJ80 MARK 5 |
1 | ||
| 45893-22040 |
FZJ80 MARK 2 |
1 | ||
| 45893-22030 |
FZJ80 MARK 1 |
1 | ||
| 45893D - STOPPER, STEERING PAWL, LH | ||||
| 45893-22120 |
FZJ80 MARK E |
1 | ||
| 45893-22100 |
FZJ80 MARK C |
1 | ||
| 45893-22090 |
FZJ80 MARK B |
1 | ||
| 45893-22110 |
FZJ80 MARK D |
1 | ||
| 45893-22080 |
FZJ80 MARK A |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-60010 |
FZJ80 |
2 | ||
| Common parts | ||||
| 90101-08230 | ||||
| 90109-06162 | ||||
| 90119-06065 | ||||
| 90119-08560 | ||||
| 90119-08686 | ||||
| 90119-10240 | ||||
| 90170-08008 | ||||
| 90179-10055 | ||||
| 90179-10065 | ||||
| 91611-60814 | ||||
| 91611-60820 | ||||
| 91633-60625 | ||||
| 93315-14010 | ||||
| 93319-14012 | ||||
| 93385-15010 | ||||
| 93566-15514 | ||||
| 94110-40600 | ||||
| 94120-40800 | ||||
| 94512-00600 | ||||
| 94512-00800 | ||||
| 94611-10800 | ||||
| 96160-00800 | ||||
