FZJ80L-GNPGKA (1995)

Toyota Lexus Lx450

Production Nov 1995 - Jan 1998
Engine 1FZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )

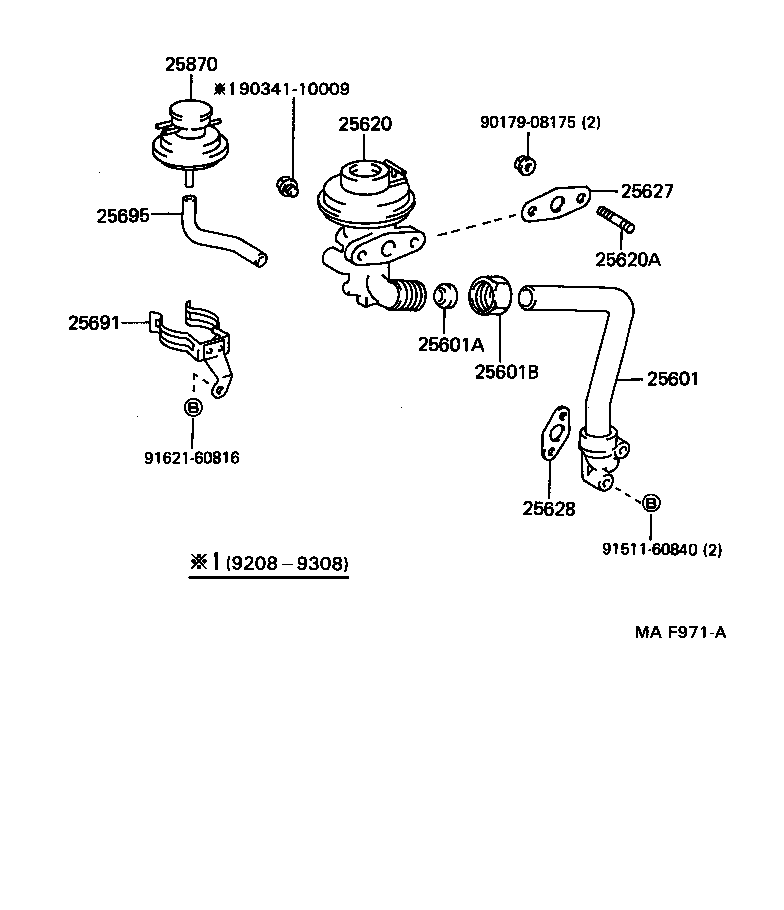

Click highlighted areas on diagram

diagram 25601 25601A 25601B 25620 25620A 25627 25628 25691 25695 25870 9017908175 9034110009 9151160840 9162160816
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-66010

1FZFE..FZJ80

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-18002

1FZFE..FZJ80

 1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-26003

1FZFE..FZJ80

 1
25620 - VALVE ASSY, EGR
25620-66011

1FZFE..FZJ80

 1
25620A - BOLT, STUD(FOR EGR VALVE)
90116-08348

1FZFE..FZJ80

 2
25627 - GASKET, EGR VALVE
25627-66010

1FZFE..FZJ80

 1
25628 - GASKET, EGR INLET
25628-66010

1FZFE..FZJ80

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-66010

1FZFE..FZJ80

 1
25695 - HOSE, EGR VACUUM MODULATOR
25695-66010

1FZFE..FZJ80

 1
25870 - VALVE ASSY, EGR VACUUM MODULATOR
25870-66010

1FZFE..FZJ80

 1
Common parts
90179-08175
90341-10009
91511-60840
91621-60816
