FZJ80L-GNPGKA (1995)
Toyota Lexus Lx450

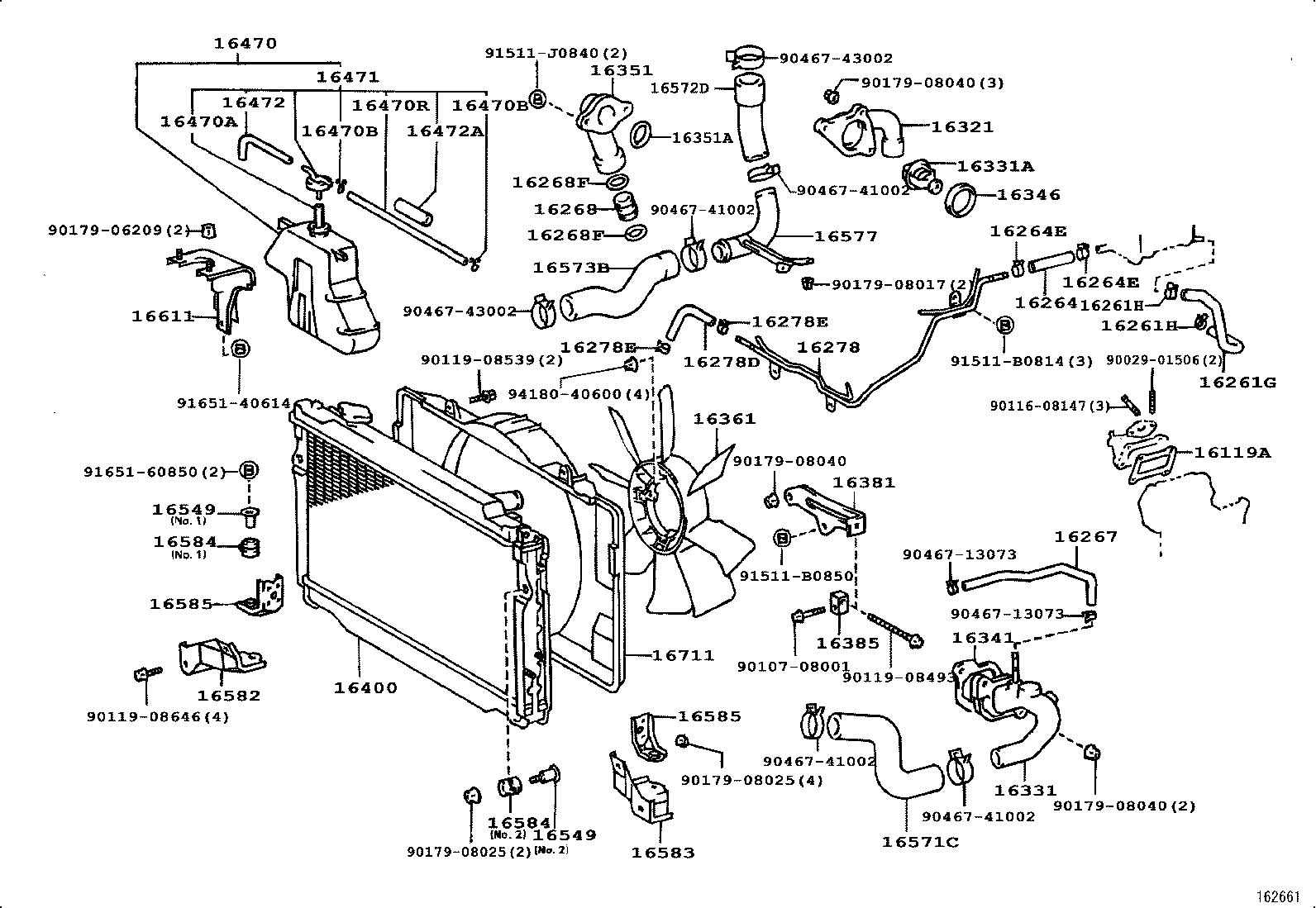

ILLUST NO. 1 OF 2(9511- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16119A - GASKET, THERMOSTAT GUIDE | ||||
| 16119-66020 |
1FZFE..FZJ80 |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-66040 |
1FZFE..FZJ80 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-13001 |
1FZFE..FZJ80 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-13001 |
1FZFE..FZJ80 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-66021 |
1FZFE..FZJ80 |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
1FZFE..FZJ80 |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
1FZFE..FZJ80 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-66020 |
1FZFE..FZJ80 |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-66010 |
1FZFE..FZJ80 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 90301-29006 |
1FZFE..FZJ80 |
2 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 90301-29006 |
1FZFE..FZJ80 |
2 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-66011 |
1FZFE..FZJ80 |
1 | ||
| 16278D - HOSE, WATER BY-PASS | ||||
| 99555-10200 |
1FZFE..FZJ80 *H,L=200 |
1 | ||
| 16278E - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90467-13001 |
1FZFE..FZJ80 |
2 | ||
| 16278E - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90467-13001 |
1FZFE..FZJ80 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-66010 |
1FZFE..FZJ80 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16304-66020 |
1FZFE..FZJ80 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03117 |
1FZFE..FZJ80 *WAX 82-95 |
1 | ||
| 90916-03094 |
1FZFE..FZJ80 *WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-66020 |
1FZFE..FZJ80 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-66020 |
1FZFE..FZJ80 |
1 | ||
| 16351 - OUTLET, WATER BY-PASS | ||||
| 16351-66010 |
1FZFE..FZJ80 |
1 | ||
| 16351A - RING, O(FOR WATER BY-PASS OUTLET) | ||||
| 90301-29006 |
1FZFE..FZJ80 |
1 | ||
| 16361 - FAN | ||||
| 16361-66020 |
1FZFE..FZJ80 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-66030 |
1FZFE..FZJ80 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-17010 |
1FZFE..FZJ80 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-66081 |
1FZFE..FZJ80 |
1 | ||
| 16400-66080 |
1FZFE..FZJ80 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-66020 |
1FZFE..FZJ80 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1FZFE..FZJ80 L=600 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1FZFE..FZJ80 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1FZFE..FZJ80 |
2 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1FZFE..FZJ80 L=600 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-66020 |
1FZFE..FZJ80 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-70100 |
1FZFE..FZJ80 |
1 | ||
| 16472A - PROTECTOR, HOSE | ||||
| 16477-61060 |
1FZFE..FZJ80 |
1 | ||
| 16549 - COLLAR, RADIATOR SUPPORT, NO.2 | ||||
| 16549-61010 |
1FZFE..FZJ80 NO.1 |
2 | ||
| 16549-61020 |
1FZFE..FZJ80 NO.2 |
2 | ||
| 16549-61020 |
1FZFE..FZJ80 NO.2 |
2 | ||
| 16549 - COLLAR, RADIATOR SUPPORT, NO.2 | ||||
| 16549-61010 |
1FZFE..FZJ80 NO.1 |
2 | ||
| 16549-61020 |
1FZFE..FZJ80 NO.2 |
2 | ||
| 16549-61020 |
1FZFE..FZJ80 NO.2 |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-66030 |
1FZFE..FZJ80 |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-66021 |
1FZFE..FZJ80 |
1 | ||
| 16572-66020 |
1FZFE..FZJ80 |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-66010 |
1FZFE..FZJ80 |
1 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-66011 |
1FZFE..FZJ80 |
1 | ||
| 16577-66010 |
1FZFE..FZJ80 |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-61030 |
1FZFE..FZJ80 |
1 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-61030 |
1FZFE..FZJ80 |
1 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-61030 |
1FZFE..FZJ80 NO.2 |
2 | ||
| 16584-61020 |
1FZFE..FZJ80 NO.1 |
2 | ||
| 16584-61030 |
1FZFE..FZJ80 NO.2 |
2 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-61030 |
1FZFE..FZJ80 NO.2 |
2 | ||
| 16584-61020 |
1FZFE..FZJ80 NO.1 |
2 | ||
| 16584-61030 |
1FZFE..FZJ80 NO.2 |
2 | ||
| 16585 - BRACKET, RADIATOR, NO.3 | ||||
| 16585-61020 |
1FZFE..FZJ80 |
2 | ||
| 16585 - BRACKET, RADIATOR, NO.3 | ||||
| 16585-61020 |
1FZFE..FZJ80 |
2 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-61040 |
1FZFE..FZJ80 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-66030 |
1FZFE..FZJ80 |
1 | ||
| Common parts | ||||
| 90029-01506 | ||||
| 90107-08001 | ||||
| 90116-08147 | ||||
| 90119-08493 | ||||
| 90119-08539 | ||||
| 90119-08646 | ||||
| 90179-06209 | ||||
| 90179-08017 | ||||
| 90179-08025 | ||||
| 90179-08040 | ||||
| 90467-13073 | ||||
| 90467-41002 | ||||
| 90467-43002 | ||||
| 91511-B0814 | ||||
| 91511-B0850 | ||||
| 91511-J0840 | ||||
| 91651-40614 | ||||
| 91651-60850 | ||||
| 94180-40600 | ||||

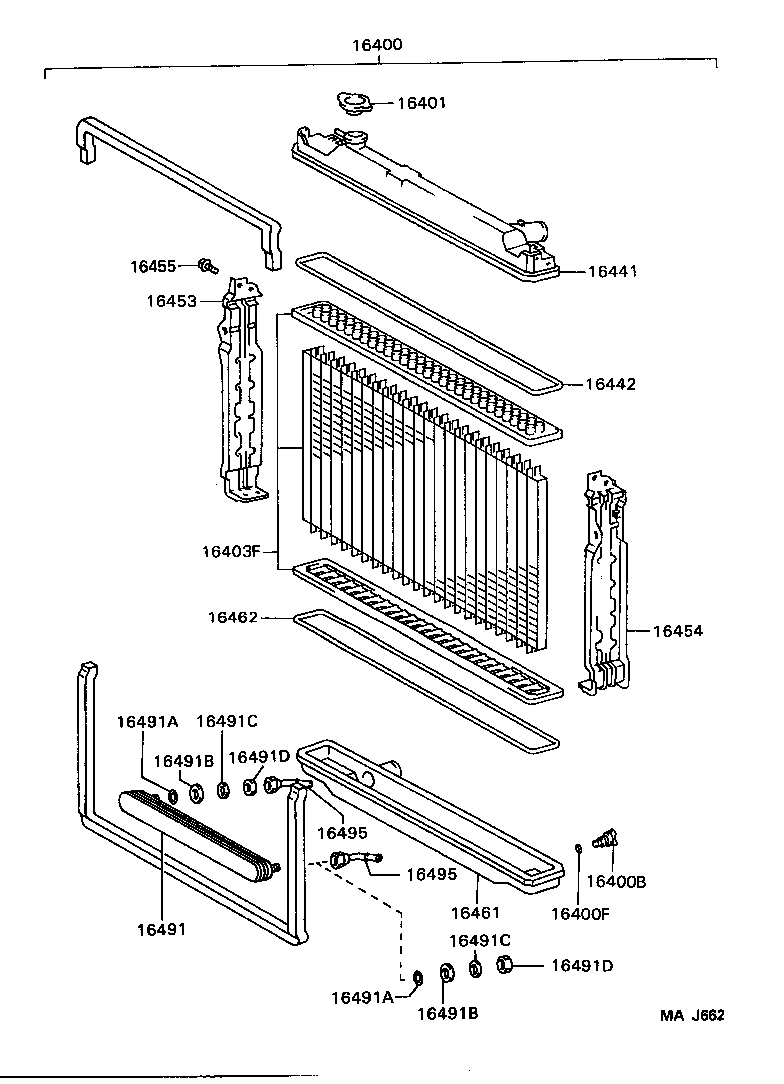

ILLUST NO. 2 OF 2(9511- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-66081 |
1FZFE..FZJ80 |
1 | ||
| 16400-66080 |
1FZFE..FZJ80 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
1FZFE..FZJ80 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
1FZFE..FZJ80 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
1FZFE..FZJ80 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-66071 |
1FZFE..FZJ80 |
1 | ||
| 16403-66070 |
1FZFE..FZJ80 |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-66070 |
1FZFE..FZJ80 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-66070 |
1FZFE..FZJ80 |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-66070 |
1FZFE..FZJ80 |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-66070 |
1FZFE..FZJ80 |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
1FZFE..FZJ80 |
8 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-66080 |
1FZFE..FZJ80 |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-66070 |
1FZFE..FZJ80 |
1 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-61170 |
1FZFE..FZJ80 |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-61170 |
1FZFE..FZJ80 |
2 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-61170 |
1FZFE..FZJ80 |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-61170 |
1FZFE..FZJ80 |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-61170 |
1FZFE..FZJ80 |
2 | ||
| 16491C - WASHER, SPRING(FOR ATM OIL COOLER) | ||||
| 16494-61170 |
1FZFE..FZJ80 |
2 | ||
| 16491C - WASHER, SPRING(FOR ATM OIL COOLER) | ||||
| 16494-61170 |
1FZFE..FZJ80 |
2 | ||
| 16491D - NUT(FOR ATM OIL COOLER) | ||||
| 16496-15580 |
1FZFE..FZJ80 |
2 | ||
| 16491D - NUT(FOR ATM OIL COOLER) | ||||
| 16496-15580 |
1FZFE..FZJ80 |
2 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16497-17030 |
1FZFE..FZJ80 LH |
1 | ||
| 16497-66040 |
1FZFE..FZJ80 RH |
1 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16497-17030 |
1FZFE..FZJ80 LH |
1 | ||
| 16497-66040 |
1FZFE..FZJ80 RH |
1 | ||
