FZJ80L-GNPGKA (1995)

Toyota Lexus Lx450

Production Nov 1995 - Jan 1998
Engine 1FZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )

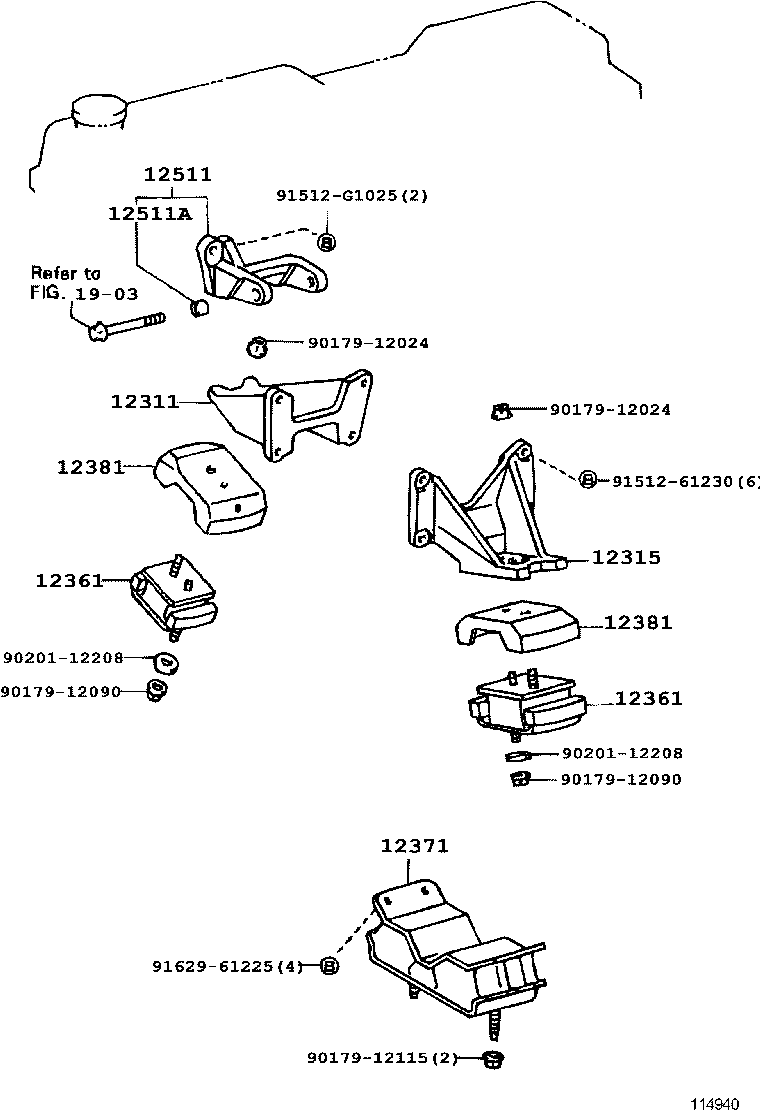

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12381 12381 12511 12511A 1903 9017912024 9017912024 9017912090 9017912090 9017912115 9020112208 9020112208 9151261230 91512G1025 9162961225
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-66030

1FZFE..FZJ80

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-66031

1FZFE..FZJ80

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-17011

1FZFE..FZJ80

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-17011

1FZFE..FZJ80

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-66030

1FZFE..FZJ80

 1
12371-66030

1FZFE..FZJ80

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-66010

1FZFE..FZJ80

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-66010

1FZFE..FZJ80

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-66010

1FZFE..FZJ80

 1
12511A - BUSH, ALTERNATOR BRACKET
90387-10101

1FZFE..FZJ80

 1
Common parts
90179-12024
90179-12090
90179-12115
90201-12208
91512-61230
91512-G1025
91629-61225
Linked diagrams
1903
