UVF46L-AEXGHA (2012)
Toyota Lexus Ls600hl
ILLUST NO. 2 OF 2(1209- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62310C - WEATHERSTRIP ASSY, FRONT DOOR OPENING TRIM, RH | ||||
| 62310-50040 |
UVF46 |
1 | ||
| 62320B - WEATHERSTRIP ASSY, FRONT DOOR OPENING TRIM, LH | ||||
| 62320-50040 |
UVF46 |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-50N10B8 |
UVF46 LT.GRAY/BLACK/BAMBOO,TRIM10 |
1 | ||
| 67610-50P60B5 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C),LT.GRAY/BLACK/BAMBOO,TRIM10 |
1 | ||
| 67610-50N10E4 |
UVF46 BLA&SAD(IVORY)/BLA/SIMA.,TRIM40 |
1 | ||
| 67610-50P60C4 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C)&INSTRUMENT PANEL-WALNUT(X4A6),BLA./BLA./WOL.(DK.BROWN),TRIM20 |
1 | ||
| 67610-50N1051 |
UVF46 TOPAZ/BLACK/BAMBOO,TRIM50 |
1 | ||
| 67610-50N10C8 |
UVF46 BLA/BLA/WOL.(DK.BRO)/BAM.,TRIM20 |
1 | ||
| 67610-50N10E5 |
UVF46 BLA&SAD(IVORY)/BLA/ASH(B),TRIM40,41 |
1 | ||
| 67610-50P60B6 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C),LT.GRAY/BLACK/SIMA.,TRIM10 |
1 | ||
| 67610-50P60E4 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C)&INSTRUMENT PANEL-EBONY(A2C6),BLA.& SAD.TAN/BLA./SIMA.,TRIM40 |
1 | ||
| 67610-50N1004 |
UVF46 IVORY/ORCHID BROWN/ASH(B),TRIM01 |
1 | ||
| 67610-50N10B6 |
UVF46 LT.GRAY/BLACK/SIMA.,TRIM10 |
1 | ||
| 67610-50P60C8 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C)&INSTRUMENT PANEL-EBONY(A2C6),BLACK/BLACK/SIMA.,TRIM20 |
1 | ||
| 67610-50P60F7 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C),TOPAZ BROWN/BLACK/BAMBOO,TRIM50 |
1 | ||
| 67610-50P60E3 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C)&INSTRUMENT PANEL-MATFINISH ASHBURL(X423),BLACK&S TAN/BLACK/ASH.(B),TRIM40 |
1 | ||
| 67610-50P60A7 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C),IVORY/O BROWN/WOL(DK.BRO),TRIM01 |
1 | ||
| 67610-50N1003 |
UVF46 IVO/O BRO/WOL(DK.BRO)/BAM,TRIM01 |
1 | ||
| 67610-50N1005 |
UVF46 IVORY/O BROWN/BAMBOO,TRIM01,04 |
1 | ||
| 67610-50P60A8 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C),IVORY/O BROWN/ASH.(B),TRIM01 |
1 | ||
| 67610-50N10F9 |
UVF46 TOPAZ/BLACK/SIMA.,TRIM50,51 |
1 | ||
| 67610-50P60F8 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C),TOPAZ/BLACK/SIMA.,TRIM50,51 |
1 | ||
| 67610-50N10B6 |
UVF46 LT.GRAY/BLACK/SIMA.,TRIM1# |
1 | ||
| 67610-50P60C7 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C)&INSTRUMENT PANEL-BANBOO(A514),BLACK/BLACK/BAMBOO,TRIM20 |
1 | ||
| 67610-50N10F8 |
UVF46 TOP/BLA/WOL.(DK.BRO)/BAM,TRIM50 |
1 | ||
| 67610-50P60A7 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C),IVORY/O BROWN/WOL(DK.BRO),TRIM0# |
1 | ||
| 67610-50N1021 |
UVF46 BLACK/BLACK/BAMBOO,TRIM20,24 |
1 | ||
| 67610-50P60B6 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C),LT.GRAY/BLACK/SIMA.,TRIM1# |
1 | ||
| 67610-50P60F8 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C),TOPAZ/BLACK/SIMA.,TRIM5# |
1 | ||
| 67610-50N10E5 |
UVF46 BLA&SAD(IVORY)/BLA/ASH(B),TRIM4# |
1 | ||
| 67610-50N10C9 |
UVF46 BLACK/BLACK/SIMA.,TRIM20,23 |
1 | ||
| 67610-50P60A9 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C),IVORY/ORCHID BROWN/BAMBOO,TRIM01,04 |
1 | ||
| 67610-50P60E3 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C),BLACK&S TAN/BLACK/ASH.(B),TRIM41 |
1 | ||
| 67610-50P60C8 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C),BLACK/BLACK/SIMA.,TRIM23 |
1 | ||
| 67610-50N1003 |
UVF46 IVO/O BRO/WOL(DK.BRO)/BAM,TRIM0# |
1 | ||
| 67610-50P60F4 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C),TOPAZ/BLACK/WOL(DK.BRO),TRIM50 |
1 | ||
| 67610-50P60C7 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C),BLACK/BLACK/BAMBOO,TRIM24 |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-32120 |
UVF46 |
4 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
UVF46 |
14 | ||
| 67601P - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09203 |
UVF46 |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-50N10E7 |
UVF46 BLA&SAD(IVORY)/BLA/ASH(B),TRIM40,41 |
1 | ||
| 67620-50N10B8 |
UVF46 LT.GRAY/BLACK/SIMA.,TRIM10 |
1 | ||
| 67620-50N10E6 |
UVF46 BLA&SAD(IVORY)/BLA/SIMA.,TRIM40 |
1 | ||
| 67620-50P6051 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C),TOPAZ/BLACK/SIMA.,TRIM50,51 |
1 | ||
| 67620-50N1008 |
UVF46 IVORY/ORC.BROWN/ASH.(B),TRIM01 |
1 | ||
| 67620-50N1054 |
UVF46 TOPAZ/BLACK/BAMBOO,TRIM50 |
1 | ||
| 67620-50P60E6 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C)&INSTRUMENT PANEL-EBONY(A2C6),BLA&SAD/BLACK/SIMA.,TRIM40 |
1 | ||
| 67620-50P60B8 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C),LT.GRAY/BLACK/SIMA.,TRIM10 |
1 | ||
| 67620-50N10P0 |
UVF46 LT.GRAY/BLACK/BAMBOO,TRIM10 |
1 | ||
| 67620-50P60F4 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C),TOP./TOP./WOL.(DK.BROWN),TRIM50 |
1 | ||
| 67620-50P60A8 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C),IVO./IVO./ASH.(B),TRIM01 |
1 | ||
| 67620-50P6021 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C)&INSTRUMENT PANEL-EBONY(A2C6),BLACK/BLACK/SIMA.,TRIM20 |
1 | ||
| 67620-50P60B5 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C),LT.GRAY/LT.GRAY/NL.BROWN,TRIM10 |
1 | ||
| 67620-50N1021 |
UVF46 BLA/BLA/WOL.(DK.BRO)/BAM,TRIM20 |
1 | ||
| 67620-50P60A9 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C),IVORY/IVORY/NL.BROWN,TRIM01,04 |
1 | ||
| 67620-50N1022 |
UVF46 BLACK/BLACK/SIMA.,TRIM20,23 |
1 | ||
| 67620-50P60E3 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C)&INSTRUMENT PANEL-MATFINISH ASHBURL(X423),BLA./SAD./BLA./ASH.(B),TRIM40 |
1 | ||
| 67620-50N1007 |
UVF46 IVO/O BRO/WOL(DK.BRO)/BAM,TRIM01 |
1 | ||
| 67620-50N1007 |
UVF46 IVO/O BRO/WOL(DK.BRO)/BAM,TRIM0# |
1 | ||
| 67620-50P60C7 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C)&INSTRUMENT PANEL-BANBOO(A514),BLA./BLA./NL.BROWN,TRIM20 |
1 | ||
| 67620-50N1052 |
UVF46 TOPAZ/BLACK/SIMA.,TRIM50,51 |
1 | ||
| 67620-50N1009 |
UVF46 IVORY/O BROWN/BAMBOO,TRIM01,04 |
1 | ||
| 67620-50N1051 |
UVF46 TOP/BLA/WOL.(DK.BRO)/BAM,TRIM50 |
1 | ||
| 67620-50N10E7 |
UVF46 BLA&SAD(IVORY)/BLA/ASH(B),TRIM4# |
1 | ||
| 67620-50P60A7 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C),IVO./IVO./WOL.(DK.BROWN),TRIM01 |
1 | ||
| 67620-50P60F7 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C),TOPAZ/TOP.BROWN/NL.BROWN,TRIM50 |
1 | ||
| 67620-50N10B8 |
UVF46 LT.GRAY/BLACK/SIMA.,TRIM1# |
1 | ||
| 67620-50N1024 |
UVF46 BLACK/BLACK/BAMBOO,TRIM20,24 |
1 | ||
| 67620-50P60B8 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C),LT.GRAY/BLACK/SIMA.,TRIM1# |
1 | ||
| 67620-50P60C7 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C),BLA./BLA./NL.BROWN,TRIM24 |
1 | ||
| 67620-50P60A7 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C),IVO./IVO./WOL.(DK.BROWN),TRIM0# |
1 | ||
| 67620-50P60E3 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C),BLA./SAD./BLA./ASH.(B),TRIM41 |
1 | ||
| 67620-50P60C4 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C)&INSTRUMENT PANEL-WALNUT(X4A6),BLA./BLA./WOL.(DK.BROWN),TRIM20 |
1 | ||
| 67620-50P6021 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C),BLACK/BLACK/SIMA.,TRIM23 |
1 | ||
| 67620-50P6051 |
UVF46 SEMI-ANILINE *LES(EXCEPT VERSION C),TOPAZ/BLACK/SIMA.,TRIM5# |
1 | ||
| 67711 - COVER, FRONT DOOR TRIM, RH | ||||
| 67711-50010C0 |
UVF46 BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 67711-50010A2 |
UVF46 IVORY,TRIM0# |
1 | ||
| 67712 - COVER, FRONT DOOR TRIM, LH | ||||
| 67712-50010A2 |
UVF46 IVORY,TRIM0# |
1 | ||
| 67712-50010C0 |
UVF46 BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-50030 |
UVF46 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-50030 |
UVF46 |
1 | ||
| Common parts | ||||
| 67771-30110 | ||||
| 90164-50031 | ||||
| 90164-60014 | ||||
| 90189-05003 | ||||
| 90901-89021 | ||||
| Linked diagrams | ||||
| 6703 | ||||
| 8121 | ||||
| 8202 | ||||
| 8302 | ||||
| 8401 | ||||

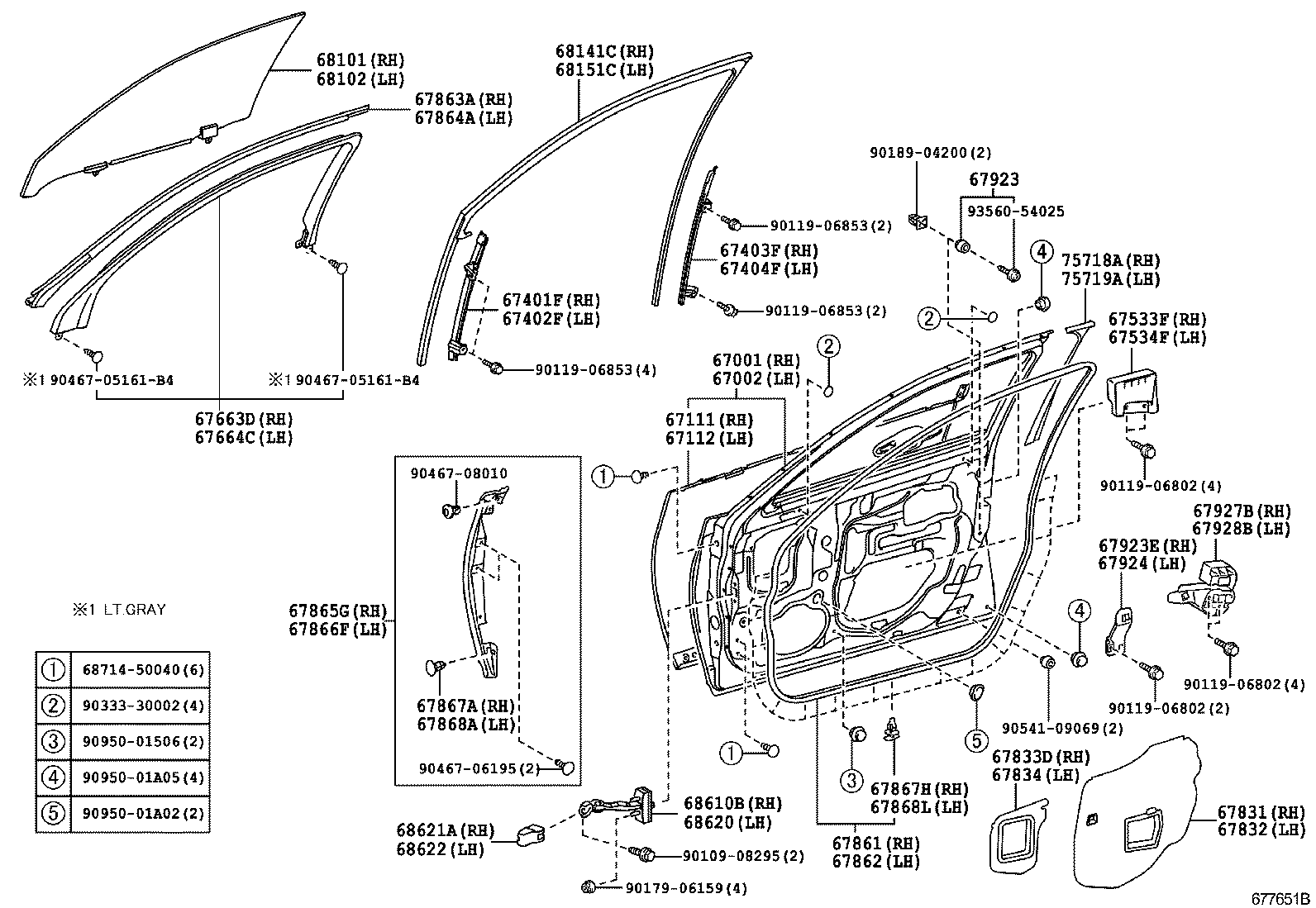

ILLUST NO. 1 OF 2(1209- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-50121 |
UVF46 |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-50111 |
UVF46 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-50040 |
UVF46 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-50040 |
UVF46 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-50020 |
UVF46 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-50020 |
UVF46 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-50020 |
UVF46 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-50020 |
UVF46 |
1 | ||
| 67533F - PAD, FRONT DOOR LOWER FRAME GARNISH, RH | ||||
| 67533-50020 |
UVF46 |
1 | ||
| 67534F - PAD, FRONT DOOR LOWER FRAME GARNISH, LH | ||||
| 67534-50020 |
UVF46 |
1 | ||
| 67663D - GARNISH, DOOR FRAME, RH | ||||
| 67663-50040C0 |
UVF46 BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 67663-50040E0 |
UVF46 ORCHID BROWN,TRIM0# |
1 | ||
| 67664C - GARNISH, DOOR FRAME, LH | ||||
| 67664-50040E0 |
UVF46 ORCHID BROWN,TRIM0# |
1 | ||
| 67664-50040C0 |
UVF46 BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-50070 |
UVF46 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-50050 |
UVF46 |
1 | ||
| 67833D - COVER, FRONT DOOR SERVICE HOLE, NO.2 RH | ||||
| 67833-50030 |
UVF46 |
1 | ||
| 67834 - COVER, FRONT DOOR SERVICE HOLE, NO.2 LH | ||||
| 67834-50030 |
UVF46 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-50040 |
UVF46 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-50040 |
UVF46 |
1 | ||
| 67863A - WEATHERSTRIP, FRONT DOOR, UPPER RH | ||||
| 67863-50040 |
UVF46 |
1 | ||
| 67864A - WEATHERSTRIP, FRONT DOOR, UPPER, LH | ||||
| 67864-50040 |
UVF46 |
1 | ||
| 67865G - WEATHERSTRIP, FRONT DOOR, NO.3 RH | ||||
| 67865-50020 |
UVF46 |
1 | ||
| 67866F - WEATHERSTRIP, FRONT DOOR, NO.3 LH | ||||
| 67866-50020 |
UVF46 |
1 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 90467-10215 |
UVF46 |
1 | ||
| 67867H - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-50050 |
UVF46 |
18 | ||
| 67868A - CLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 90467-10215 |
UVF46 |
1 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-50050 |
UVF46 |
18 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-48060 |
UVF46 |
2 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-48060 |
UVF46 |
2 | ||
| 67923E - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-50090 |
UVF46 |
1 | ||
| 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 | ||||
| 67924-50020 |
UVF46 |
1 | ||
| 67927B - CUSHION, SEPARATION DOOR STIFFENER, NO.1 | ||||
| 67927-50080 |
UVF46 |
1 | ||
| 67928B - CUSHION, SEPARATION DOOR STIFFENER, NO.2 | ||||
| 67928-50070 |
UVF46 |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-50202 |
UVF46 *IRCL,T=5.1,GREEN |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-50202 |
UVF46 *IRCL,T=5.1,GREEN |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-50022 |
UVF46 |
1 | ||
| 68141-50021 |
UVF46 |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-50021 |
UVF46 |
1 | ||
| 68151-50022 |
UVF46 |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-50042 |
UVF46 |
1 | ||
| 68610-50041 |
UVF46 |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-50041 |
UVF46 |
1 | ||
| 68620-50042 |
UVF46 |
1 | ||
| 68621A - COVER, FRONT DOOR CHECK, RH | ||||
| 68621-33010 |
UVF46 |
1 | ||
| 68622 - COVER, FRONT DOOR CHECK, LH | ||||
| 68622-33010 |
UVF46 |
1 | ||
| 75718A - COVER, FRONT DOOR BELT MOULDING END, REAR RH | ||||
| 75718-50010 |
UVF46 |
1 | ||
| 75719A - COVER, FRONT DOOR BELT MOULDING END, REAR LH | ||||
| 75719-50010 |
UVF46 |
1 | ||
| Common parts | ||||
| 68714-50040 | ||||
| 90109-08295 | ||||
| 90119-06802 | ||||
| 90119-06853 | ||||
| 90179-06159 | ||||
| 90189-04200 | ||||
| 90333-30002 | ||||
| 90467-05161B4 | ||||
| 90467-06195 | ||||
| 90467-08010 | ||||
| 90541-09069 | ||||
| 90950-01506 | ||||
| 90950-01A02 | ||||
| 90950-01A05 | ||||
| 93560-54025 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
