Toyota Lexus ls600hl UVF46 FRONT DRIVE SHAFT

UVF46L-AEXGHA (2012)

Toyota Lexus Ls600hl

Production Sep 2012 - Aug 2017

Engine 2URFSE

Transmission CVFC ATM

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

Part #	Description	Period	Qty
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04427-50040	UVF46	09/2012 - 10/2012	1
04427-50041	UVF46	10/2012 - 12/2999	1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04437-50030	UVF46	09/2012 - 10/2012	1
04437-50040	UVF46	10/2012 - 12/2999	1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43030-50010	UVF46	11/2013 - 02/2014	1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-50013	UVF46	09/2012 - 02/2014	1
43410-50014	UVF46	03/2014 - 12/2999	1
43410C - BEARING (FOR FRONT DRIVE SHAFT)
90363-36010	UVF46	09/2012 - 12/2999	1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90311-35060	UVF46	09/2012 - 07/2017	1
90311-35070	UVF46	07/2017 - 08/2017	1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90520-33008	UVF46	09/2012 - 12/2999	1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-07020	UVF46	09/2012 - 12/2999	1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-07080	UVF46	09/2012 - 12/2999	1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-05270	UVF46	09/2012 - 12/2999	1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-22020	UVF46	09/2012 - 10/2012	1
42345-50070	UVF46	10/2012 - 12/2999	1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42346-50010	UVF46	10/2012 - 12/2999	1
42346-22010	UVF46	09/2012 - 10/2012	1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90901-19060	UVF46 *10-1.25PX28.5-14.8	09/2012 - 12/2999	1
43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
90520-65002	UVF46	09/2012 - 12/2999	1

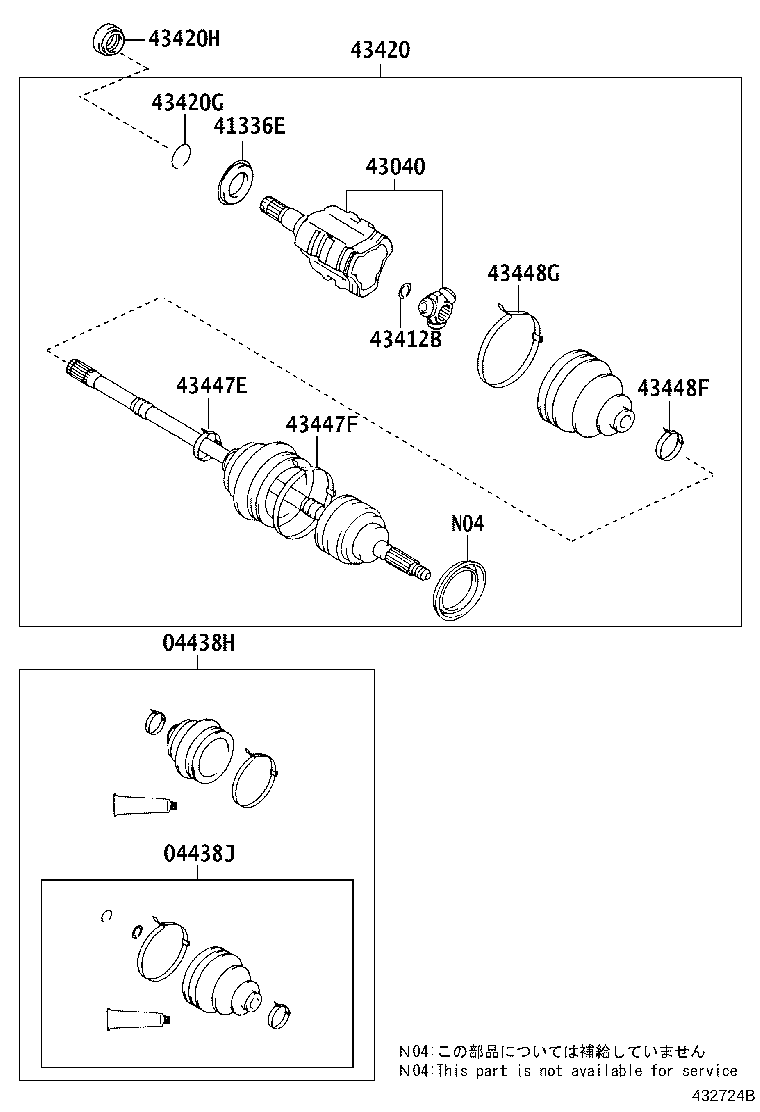

Click highlighted areas on diagram

Part #	Description	Period	Qty
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04428-50020	UVF46	09/2012 - 10/2012	1
04428-50021	UVF46	10/2012 - 12/2999	1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-50010	UVF46	09/2012 - 10/2012	1
04438-50020	UVF46	10/2012 - 12/2999	1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-35020	UVF46	09/2012 - 12/2999	1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-50010	UVF46	09/2012 - 02/2014	1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-07020	UVF46	09/2012 - 12/2999	1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-50011	UVF46	09/2012 - 02/2014	1
43420-50012	UVF46	03/2014 - 12/2999	1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90521-29002	UVF46	09/2012 - 12/2999	1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-47017	UVF46	09/2012 - 07/2017	1
90311-47033	UVF46	07/2017 - 08/2017	1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-07080	UVF46	09/2012 - 08/2017	1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-05270	UVF46	09/2012 - 08/2017	1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-22020	UVF46	09/2012 - 10/2012	1
42345-50070	UVF46	10/2012 - 12/2999	1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42346-50010	UVF46	10/2012 - 12/2999	1
42346-22010	UVF46	09/2012 - 10/2012	1
