UVF46L-AEXGHA (2009)
Toyota Lexus Ls600hl

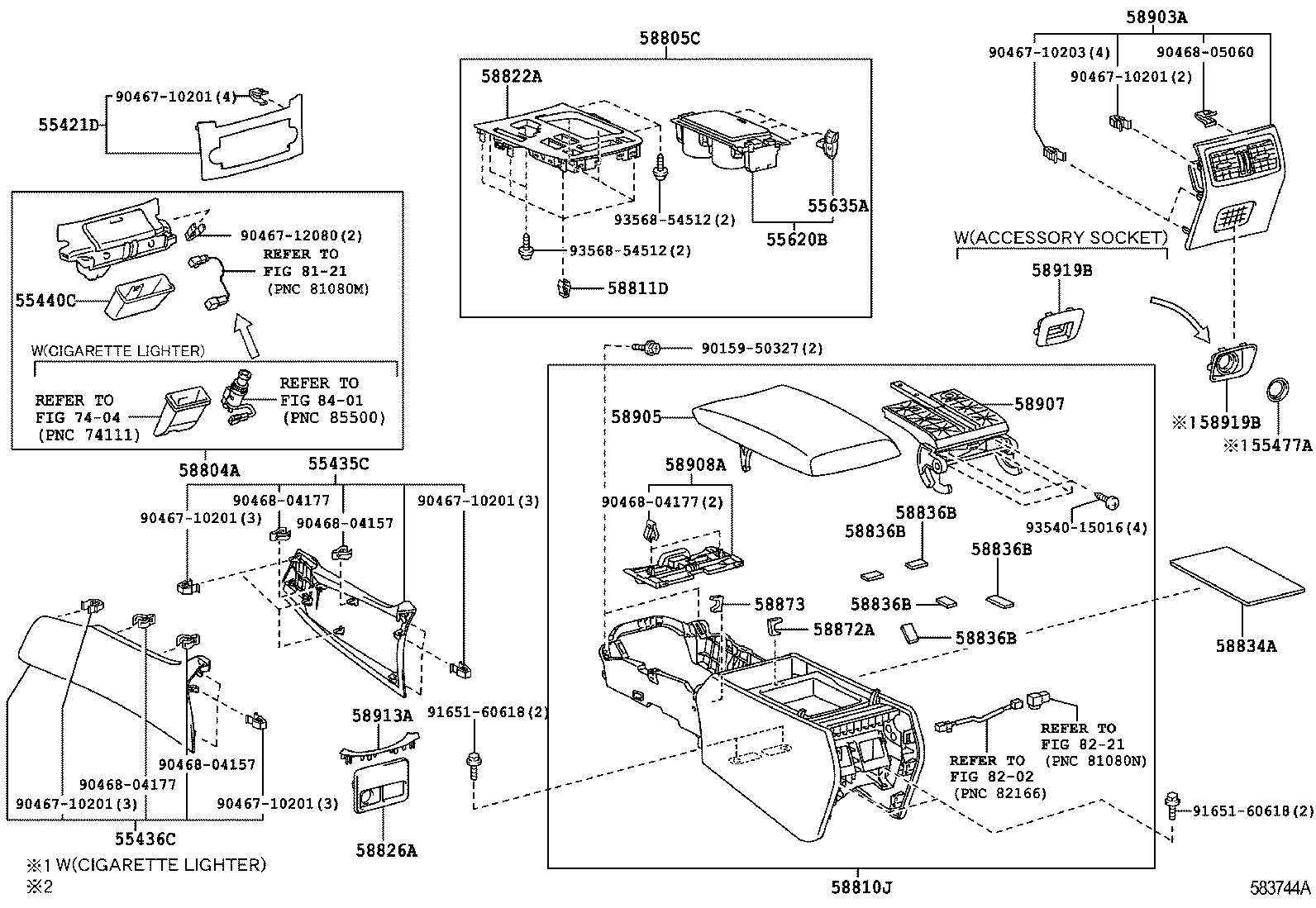

ILLUST NO. 1 OF 3(0704-0911)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55421D - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55422-50120B1 |
UVF46 SILVER,TRIM05 |
1 | ||
| 55422-50120E0 |
UVF46 BROWN,TRIM02,2# |
1 | ||
| 55422-50120B0 |
UVF46 GRAY,TRIM1# |
1 | ||
| 55422-50120E1 |
UVF46 DK.BROWN,TRIM07 |
1 | ||
| 55435C - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-50090A1 |
UVF46 MELLOW WHITE,TRIM05,07 |
1 | ||
| 55435-50090A3 |
UVF46 IVORY,TRIM02 |
1 | ||
| 55435-50090B1 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 55435-50090C2 |
UVF46 BLACK,TRIM2# |
1 | ||
| 55435-50100A3 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(LOWER),IVORY,TRIM02 |
1 | ||
| 55435-50100B1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(LOWER),LT.GRAY,TRIM1# |
1 | ||
| 55435-50100A3 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),IVORY,TRIM02 |
1 | ||
| 55435-50100A1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),MELLOWWHITE,TRIM05,07 |
1 | ||
| 55435-50100C1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),BLACK,TRIM2# |
1 | ||
| 55435-50100A1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(LOWER),MELLOW WHITE,TRIM05,07 |
1 | ||
| 55435-50100B1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),LT.GRAY,TRIM1# |
1 | ||
| 55435-50100C1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(LOWER),BLACK,TRIM2# |
1 | ||
| 55436C - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-50050A1 |
UVF46 MELLOW WHITE,TRIM05,07 |
1 | ||
| 55436-50060A1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),MELLOWWHITE,TRIM05,07 |
1 | ||
| 55436-50050C2 |
UVF46 BLACK,TRIM2# |
1 | ||
| 55436-50050B1 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 55436-50060C1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(LOWER),BLACK,TRIM2# |
1 | ||
| 55436-50060C1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),BLACK,TRIM2# |
1 | ||
| 55436-50060B1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),LT.GRAY,TRIM1# |
1 | ||
| 55436-50060A1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(LOWER),MELLOW WHITE,TRIM05,07 |
1 | ||
| 55436-50050A3 |
UVF46 IVORY,TRIM02 |
1 | ||
| 55436-50060A3 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(LOWER),IVORY,TRIM02 |
1 | ||
| 55436-50060A3 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),IVORY,TRIM02 |
1 | ||
| 55436-50060B1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(LOWER),LT.GRAY,TRIM1# |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-26030 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER) |
1 | ||
| 55477-26030 |
UVF46 ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER) |
1 | ||
| 55620B - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-50040B2 |
UVF46 SILVER,TRIM05,06,14 |
1 | ||
| 55620-50040B0 |
UVF46 GRAY,TRIM08,10,15,21 |
1 | ||
| 55620-50040E2 |
UVF46 DK.BROWN,TRIM07 |
1 | ||
| 55620-50041E1 |
UVF46 BROWN,TRIM02,2# |
1 | ||
| 55620-50041B2 |
UVF46 SILVER,TRIM05 |
1 | ||
| 55620-50040E1 |
UVF46 BROWN,TRIM00,01,02,11,20 |
1 | ||
| 55620-50041E2 |
UVF46 BROWN,TRIM07 |
1 | ||
| 55620-50041B0 |
UVF46 GRAY,TRIM1# |
1 | ||
| 55635A - SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.2 | ||||
| 55635-50020 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
4 | ||
| 55635-50020 |
UVF46 |
4 | ||
| 55635-50020 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V) |
4 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-50330E1 |
UVF46 DK.BROWN,TRIM07 |
1 | ||
| 58804-50320E0 |
UVF46 ASH TRAY-FRONT 1,REAR 2,BROWN,TRIM02,20 |
1 | ||
| 58804-50320B0 |
UVF46 ASH TRAY-FRONT 1,REAR 2,GRAY,TRIM08,1#,21 |
1 | ||
| 58804-50330B0 |
UVF46 GRAY,TRIM08,1#,21 |
1 | ||
| 58804-50330E0 |
UVF46 BROWN,TRIM02,20 |
1 | ||
| 58804-50330B1 |
UVF46 SILVER,TRIM05 |
1 | ||
| 58804-50320E1 |
UVF46 ASH TRAY-FRONT 1,REAR 2,DK.BROWN,TRIM07 |
1 | ||
| 58804-50320B1 |
UVF46 ASH TRAY-FRONT 1,REAR 2,SILVER,TRIM05 |
1 | ||
| 58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR | ||||
| 58805-50070B0 |
UVF46 GRAY,TRIM08,10,15,21 |
1 | ||
| 58805-50080B2 |
UVF46 INTERIOR UPGRADE PACKAGE,SILVER,TRIM05,06,14 |
1 | ||
| 58805-50071B0 |
UVF46 GRAY,TRIM1# |
1 | ||
| 58805-50080E1 |
UVF46 INTERIOR UPGRADE PACKAGE,BROWN,TRIM00,01,02,11,20 |
1 | ||
| 58805-50070E1 |
UVF46 BROWN,TRIM00,01,02,11,20 |
1 | ||
| 58805-50071E1 |
UVF46 BROWN,TRIM02,2# |
1 | ||
| 58805-50070E2 |
UVF46 DK.BROWN,TRIM07 |
1 | ||
| 58805-50080E2 |
UVF46 INTERIOR UPGRADE PACKAGE,DK.BROWN,TRIM07 |
1 | ||
| 58805-50080B0 |
UVF46 INTERIOR UPGRADE PACKAGE,GRAY,TRIM08,10,15,21 |
1 | ||
| 58805-50071E2 |
UVF46 BROWN,TRIM07 |
1 | ||
| 58805-50081E2 |
UVF46 INTERIOR UPGRADE PACKAGE,BROWN,TRIM07 |
1 | ||
| 58805-50070B1 |
UVF46 SILVER,TRIM05,06,14 |
1 | ||
| 58805-50081E1 |
UVF46 INTERIOR UPGRADE PACKAGE,BROWN,TRIM02,2# |
1 | ||
| 58805-50081B2 |
UVF46 INTERIOR UPGRADE PACKAGE,SILVER,TRIM05 |
1 | ||
| 58805-50071B1 |
UVF46 SILVER,TRIM05 |
1 | ||
| 58805-50081B0 |
UVF46 INTERIOR UPGRADE PACKAGE,GRAY,TRIM1# |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-5021010 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY,TRIM02 |
1 | ||
| 58810-50280A3 |
UVF46 MELLOW WHITE,TRIM05,07 |
1 | ||
| 58810-50280B1 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 58810-50300A3 |
UVF46 INTERIOR UPGRADE PACKAGE,MELLOW WHITE,TRIM05,07 |
1 | ||
| 58810-50280A4 |
UVF46 IVORY,TRIM02 |
1 | ||
| 58810-5021009 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE,TRIM05,07 |
1 | ||
| 58810-50300C1 |
UVF46 INTERIOR UPGRADE PACKAGE,BLACK,TRIM2# |
1 | ||
| 58810-50210B6 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),LT.GRAY,TRIM1# |
1 | ||
| 58810-50300B1 |
UVF46 INTERIOR UPGRADE PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 58810-50280C1 |
UVF46 BLACK,TRIM2# |
1 | ||
| 58810-5021110 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY,TRIM02 |
1 | ||
| 58810-5021109 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE,TRIM05,07 |
1 | ||
| 58810-50301A3 |
UVF46 INTERIOR UPGRADE PACKAGE,MELLOW WHITE,TRIM05,07 |
1 | ||
| 58810-50281B1 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 58810-50301B1 |
UVF46 INTERIOR UPGRADE PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 58810-50300A4 |
UVF46 INTERIOR UPGRADE PACKAGE,IVORY,TRIM02 |
1 | ||
| 58810-5021120 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK,TRIM2# |
1 | ||
| 58810-50211B6 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),LT.GRAY,TRIM1# |
1 | ||
| 58810-50281C1 |
UVF46 BLACK,TRIM2# |
1 | ||
| 58810-50301A4 |
UVF46 INTERIOR UPGRADE PACKAGE,IVORY,TRIM02 |
1 | ||
| 58810-50301C1 |
UVF46 INTERIOR UPGRADE PACKAGE,BLACK,TRIM2# |
1 | ||
| 58810-5021020 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK,TRIM2# |
1 | ||
| 58810-50281A4 |
UVF46 IVORY,TRIM02 |
1 | ||
| 58810-50281A3 |
UVF46 MELLOW WHITE,TRIM05,07 |
1 | ||
| 58822A - PANEL, CONSOLE, UPPER REAR | ||||
| 58822-50100E2 |
UVF46 INTERIOR UPGRADE PACKAGE,DK.BROWN,TRIM07 |
1 | ||
| 58822-50100B0 |
UVF46 INTERIOR UPGRADE PACKAGE,GRAY,TRIM1# |
1 | ||
| 58822-50090B0 |
UVF46 GRAY,TRIM1# |
1 | ||
| 58822-50090B1 |
UVF46 SILVER,TRIM05 |
1 | ||
| 58822-50100E1 |
UVF46 INTERIOR UPGRADE PACKAGE,BROWN,TRIM02,2# |
1 | ||
| 58822-50090E1 |
UVF46 BROWN,TRIM02,2# |
1 | ||
| 58822-50101E2 |
UVF46 INTERIOR UPGRADE PACKAGE,BROWN,TRIM07 |
1 | ||
| 58822-50091B0 |
UVF46 GRAY,TRIM1# |
1 | ||
| 58822-50101B2 |
UVF46 INTERIOR UPGRADE PACKAGE,SILVER,TRIM05 |
1 | ||
| 58822-50091E2 |
UVF46 BROWN,TRIM07 |
1 | ||
| 58822-50091B1 |
UVF46 SILVER,TRIM05 |
1 | ||
| 58822-50090E2 |
UVF46 DK.BROWN,TRIM07 |
1 | ||
| 58822-50100B2 |
UVF46 INTERIOR UPGRADE PACKAGE,SILVER,TRIM05 |
1 | ||
| 58822-50101E1 |
UVF46 INTERIOR UPGRADE PACKAGE,BROWN,TRIM02,2# |
1 | ||
| 58822-50101B0 |
UVF46 INTERIOR UPGRADE PACKAGE,GRAY,TRIM1# |
1 | ||
| 58822-50091E1 |
UVF46 BROWN,TRIM02,2# |
1 | ||
| 58826A - POCKET, CONSOLE BOX, LOWER | ||||
| 58826-50020 |
UVF46 |
1 | ||
| 58826-50010 |
UVF46 WITH(REAR POWER SEAT)&WITH(REAR DISPLAY:ROOF) |
1 | ||
| 58834A - COVER, CONSOLE, LOWER | ||||
| 58834-50040 |
UVF46 |
1 | ||
| 58834-50050 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE) |
1 | ||
| 58836B - PAD, CONSOLE BOX SILENCER, NO.1 | ||||
| 58836-50010 |
UVF46 |
5 | ||
| 58836B - PAD, CONSOLE BOX SILENCER, NO.1 | ||||
| 58836-50010 |
UVF46 |
5 | ||
| 58836B - PAD, CONSOLE BOX SILENCER, NO.1 | ||||
| 58836-50010 |
UVF46 |
5 | ||
| 58836B - PAD, CONSOLE BOX SILENCER, NO.1 | ||||
| 58836-50010 |
UVF46 |
5 | ||
| 58836B - PAD, CONSOLE BOX SILENCER, NO.1 | ||||
| 58836-50010 |
UVF46 |
5 | ||
| 58872A - CUSHION, CONSOLE BOX, NO.2 | ||||
| 58872-50020 |
UVF46 |
1 | ||
| 58873 - CUSHION, CONSOLE BOX, NO.3 | ||||
| 58873-50010 |
UVF46 |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-50050B4 |
UVF46 MELLOW WHITE,TRIM08 |
1 | ||
| 58903-50050L2 |
UVF46 IVORY(BROWN),TRIM02 |
1 | ||
| 58903-50050P2 |
UVF46 WATER WHITE(SILVER),TRIM14 |
1 | ||
| 58903-50060B7 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V)&ACCESSORY CONNECTOR-WITHOUT,MELLOW WHITE(SILVER),TRIM05 |
1 | ||
| 58903-50050L3 |
UVF46 MELLOW WHITE(DK.BROWN),TRIM07 |
1 | ||
| 58903-50050B1 |
UVF46 LT.GRAY,TRIM10 |
1 | ||
| 58903-50050B5 |
UVF46 BLACK,TRIM21 |
1 | ||
| 58903-50060L0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER)&ACCESSORY CONNECTOR-WITHOUT,MELLOW WHITE(DK.BROWN),TRIM07 |
1 | ||
| 58903-50060B0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V)&ACCESSORY CONNECTOR-WITHOUT,LT.GRAY,TRIM10 |
1 | ||
| 58903-50060E3 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V)&ACCESSORY CONNECTOR-WITHOUT,BLACK,TRIM2# |
1 | ||
| 58903-50050B9 |
UVF46 MELLOW WHITE(GRAY),TRIM15 |
1 | ||
| 58903-50060E9 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V)&ACCESSORY CONNECTOR-WITHOUT,IVORY(BROWN),TRIM02 |
1 | ||
| 58903-50070B0 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),GRAY,TRIM10 |
1 | ||
| 58903-50060B7 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER)&ACCESSORY CONNECTOR-WITHOUT,MELLOW WHITE(SILVER),TRIM05 |
1 | ||
| 58903-50050P0 |
UVF46 MELLOW WHITE(SILVER),TRIM05 |
1 | ||
| 58903-50070B0 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),GRAY,TRIM10 |
1 | ||
| 58903-50060L0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V)&ACCESSORY CONNECTOR-WITHOUT,MELLOW WHITE(DK.BROWN),TRIM07 |
1 | ||
| 58903-50050E5 |
UVF46 BLACK,TRIM20 |
1 | ||
| 58903-50060E3 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER)&ACCESSORY CONNECTOR-WITHOUT,BLACK,TRIM2# |
1 | ||
| 58903-50060E9 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER)&ACCESSORY CONNECTOR-WITHOUT,IVORY(BROWN),TRIM02 |
1 | ||
| 58903-50060B0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER)&ACCESSORY CONNECTOR-WITHOUT,LT.GRAY,TRIM10 |
1 | ||
| 58903-50070B6 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),BLACK,TRIM21 |
1 | ||
| 58903-50070B8 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),WATER WHITE(GRAY),TRIM15 |
1 | ||
| 58903-50060B9 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER)&ACCESSORY CONNECTOR-WITHOUT,WATER WHITE(SILVER),TRIM14 |
1 | ||
| 58903-50070B0 |
UVF46 INTERIOR UPGRADE PACKAGE,GRAY,TRIM10 |
1 | ||
| 58903-50060B9 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V)&ACCESSORY CONNECTOR-WITHOUT,WATER WHITE(SILVER),TRIM14 |
1 | ||
| 58903-50070E9 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),IVORY(BROWN),TRIM02 |
1 | ||
| 58903-50070E2 |
UVF46 INTERIOR UPGRADE PACKAGE,BLACK,TRIM20 |
1 | ||
| 58903-50070B6 |
UVF46 INTERIOR UPGRADE PACKAGE,BLACK,TRIM21 |
1 | ||
| 58903-50070B9 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),MELLOW WHITE(SILVER),TRIM05 |
1 | ||
| 58903-50070B5 |
UVF46 INTERIOR UPGRADE PACKAGE,GRAY,TRIM08 |
1 | ||
| 58903-50070B6 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),BLACK,TRIM21 |
1 | ||
| 58903-50070E2 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),BLACK,TRIM20 |
1 | ||
| 58903-50070L3 |
UVF46 INTERIOR UPGRADE PACKAGE,MELLOW WHITE(DK.BROWN),TRIM07 |
1 | ||
| 58903-50070B9 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),MELLOW WHITE(SILVER),TRIM05 |
1 | ||
| 58903-50070E9 |
UVF46 INTERIOR UPGRADE PACKAGE,IVORY(BROWN),TRIM02 |
1 | ||
| 58903-50070B5 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),GRAY,TRIM08 |
1 | ||
| 58903-50070E2 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),BLACK,TRIM20 |
1 | ||
| 58903-50070B8 |
UVF46 INTERIOR UPGRADE PACKAGE,WATER WHITE(GRAY),TRIM15 |
1 | ||
| 58903-50070P1 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),MELLOW WHITE(SILVER),TRIM14 |
1 | ||
| 58903-50060B4 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V)&ACCESSORY CONNECTOR-WITHOUT,BLACK/MELLOW WHITE,TRIM08 |
1 | ||
| 58903-50070E9 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),IVORY(BROWN),TRIM02 |
1 | ||
| 58903-50070B9 |
UVF46 INTERIOR UPGRADE PACKAGE,MELLOW WHITE(SILVER),TRIM05 |
1 | ||
| 58903-50070L3 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),MELLOW WHITE(DK.BROWN),TRIM07 |
1 | ||
| 58903-50070L3 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),MELLOW WHITE(DK.BROWN),TRIM07 |
1 | ||
| 58903-50070P1 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),MELLOW WHITE(SILVER),TRIM14 |
1 | ||
| 58903-50060B6 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER)&ACCESSORY CONNECTOR-WITHOUT,WATER WHITE(GRAY),TRIM15 |
1 | ||
| 58903-50060B4 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER)&ACCESSORY CONNECTOR-WITHOUT,BLACK/MELLOWWHITE,TRIM08 |
1 | ||
| 58903-50070P1 |
UVF46 INTERIOR UPGRADE PACKAGE,MELLOW WHITE(SILVER),TRIM14 |
1 | ||
| 58903-50060B6 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V)&ACCESSORY CONNECTOR-WITHOUT,WATER WHITE(GRAY),TRIM15 |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-50330A3 |
UVF46 IVORY,TRIM02 |
1 | ||
| 58905-50330A1 |
UVF46 MELLOW WHITE,TRIM05,07 |
1 | ||
| 58905-50330B1 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 58905-50330C1 |
UVF46 BLACK,TRIM2# |
1 | ||
| 58905-50340A1 |
UVF46 INTERIOR UPGRADE PACKAGE,MELLOW WHITE,TRIM05,07 |
1 | ||
| 58905-50340C1 |
UVF46 INTERIOR UPGRADE PACKAGE,BLACK,TRIM2# |
1 | ||
| 58905-50340A3 |
UVF46 INTERIOR UPGRADE PACKAGE,IVORY,TRIM02 |
1 | ||
| 58905-50340B1 |
UVF46 INTERIOR UPGRADE PACKAGE,LIGHT GRAY,TRIM1# |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-50060 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE) |
1 | ||
| 58907-50050 |
UVF46 |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-50050A3 |
UVF46 WATER WHITE,TRIM14,15 |
1 | ||
| 58908-50051B0 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 58908-50050A2 |
UVF46 IVORY,TRIM00,02,06 |
1 | ||
| 58908-50051A2 |
UVF46 IVORY,TRIM02 |
1 | ||
| 58908-50050A1 |
UVF46 MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 58908-50050B0 |
UVF46 LT.GRAY,TRIM10,11 |
1 | ||
| 58908-50050C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 58908-50051A1 |
UVF46 MELLOW WHITE,TRIM05,07 |
1 | ||
| 58908-50051C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 58913A - PANEL, BOX, NO.3 | ||||
| 58913-50030A3 |
UVF46 WATER WHITE,TRIM14,15 |
1 | ||
| 58913-50030A2 |
UVF46 IVORY,TRIM02 |
1 | ||
| 58913-50030A1 |
UVF46 MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 58913-50030C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 58913-50030B0 |
UVF46 LT.GRAY,TRIM10 |
1 | ||
| 58919B - PLATE, CONSOLE BOX | ||||
| 58919-50020A1 |
UVF46 ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 58919-50020A3 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),WATER WHITE,TRIM14,15 |
1 | ||
| 58919-50020B0 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),LT.GRAY,TRIM10 |
1 | ||
| 58919-50020C0 |
UVF46 ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),BLACK,TRIM2# |
1 | ||
| 58919-50020A1 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 58919-50020A2 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),IVORY,TRIM02 |
1 | ||
| 58919-50020C0 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),BLACK,TRIM2# |
1 | ||
| 58919-50020B0 |
UVF46 ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),LT.GRAY,TRIM10 |
1 | ||
| 58919-50030A1 |
UVF46 ACCESSORY CONNECTOR-WITH(AC100V/115V),MELLOW WHITE,TRIM05,07 |
1 | ||
| 58919-50030A1 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),MELLOW WHITE,TRIM05,07 |
1 | ||
| 58919-50050 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR) |
1 | ||
| 58919-50030C0 |
UVF46 ACCESSORY CONNECTOR-WITH(AC100V/115V),BLACK,TRIM2# |
1 | ||
| 58919-50030A2 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),IVORY,TRIM02 |
1 | ||
| 58919-50030B0 |
UVF46 ACCESSORY CONNECTOR-WITH(AC100V/115V),LT.GRAY,TRIM1# |
1 | ||
| 58919-50030A2 |
UVF46 ACCESSORY CONNECTOR-WITH(AC100V/115V),IVORY,TRIM02 |
1 | ||
| 58919-50020A3 |
UVF46 ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),WATER WHITE,TRIM14,15 |
1 | ||
| 58919-50040 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR) |
1 | ||
| 58919-50030C0 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),BLACK,TRIM2# |
1 | ||
| 58919-50020A2 |
UVF46 ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),IVORY,TRIM02 |
1 | ||
| 58919-50030B0 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),LT.GRAY,TRIM1# |
1 | ||
| 58919B - PLATE, CONSOLE BOX | ||||
| 58919-50020A1 |
UVF46 ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 58919-50020A3 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),WATER WHITE,TRIM14,15 |
1 | ||
| 58919-50020B0 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),LT.GRAY,TRIM10 |
1 | ||
| 58919-50020C0 |
UVF46 ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),BLACK,TRIM2# |
1 | ||
| 58919-50020A1 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 58919-50020A2 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),IVORY,TRIM02 |
1 | ||
| 58919-50020C0 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),BLACK,TRIM2# |
1 | ||
| 58919-50020B0 |
UVF46 ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),LT.GRAY,TRIM10 |
1 | ||
| 58919-50030A1 |
UVF46 ACCESSORY CONNECTOR-WITH(AC100V/115V),MELLOW WHITE,TRIM05,07 |
1 | ||
| 58919-50030A1 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),MELLOW WHITE,TRIM05,07 |
1 | ||
| 58919-50050 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR) |
1 | ||
| 58919-50030C0 |
UVF46 ACCESSORY CONNECTOR-WITH(AC100V/115V),BLACK,TRIM2# |
1 | ||
| 58919-50030A2 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),IVORY,TRIM02 |
1 | ||
| 58919-50030B0 |
UVF46 ACCESSORY CONNECTOR-WITH(AC100V/115V),LT.GRAY,TRIM1# |
1 | ||
| 58919-50030A2 |
UVF46 ACCESSORY CONNECTOR-WITH(AC100V/115V),IVORY,TRIM02 |
1 | ||
| 58919-50020A3 |
UVF46 ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),WATER WHITE,TRIM14,15 |
1 | ||
| 58919-50040 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR) |
1 | ||
| 58919-50030C0 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),BLACK,TRIM2# |
1 | ||
| 58919-50020A2 |
UVF46 ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),IVORY,TRIM02 |
1 | ||
| 58919-50030B0 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),LT.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90159-50327 | None epc.PartDetail.None | |||
| 90467-10201 | None epc.PartDetail.None | |||
| 90467-10203 | None epc.PartDetail.None | |||
| 90467-12080 | None epc.PartDetail.None | |||
| 90467-13082A0 | None epc.PartDetail.None | |||
| 90468-04157 | None epc.PartDetail.None | |||
| 90468-04177 | None epc.PartDetail.None | |||
| 90468-05060 | None epc.PartDetail.None | |||
| 90468-05135 | None epc.PartDetail.None | |||
| 91651-60618 | None epc.PartDetail.None | |||
| 93540-15016 | None epc.PartDetail.None | |||
| 93568-54512 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 7404 | ||||
| 8401 | ||||

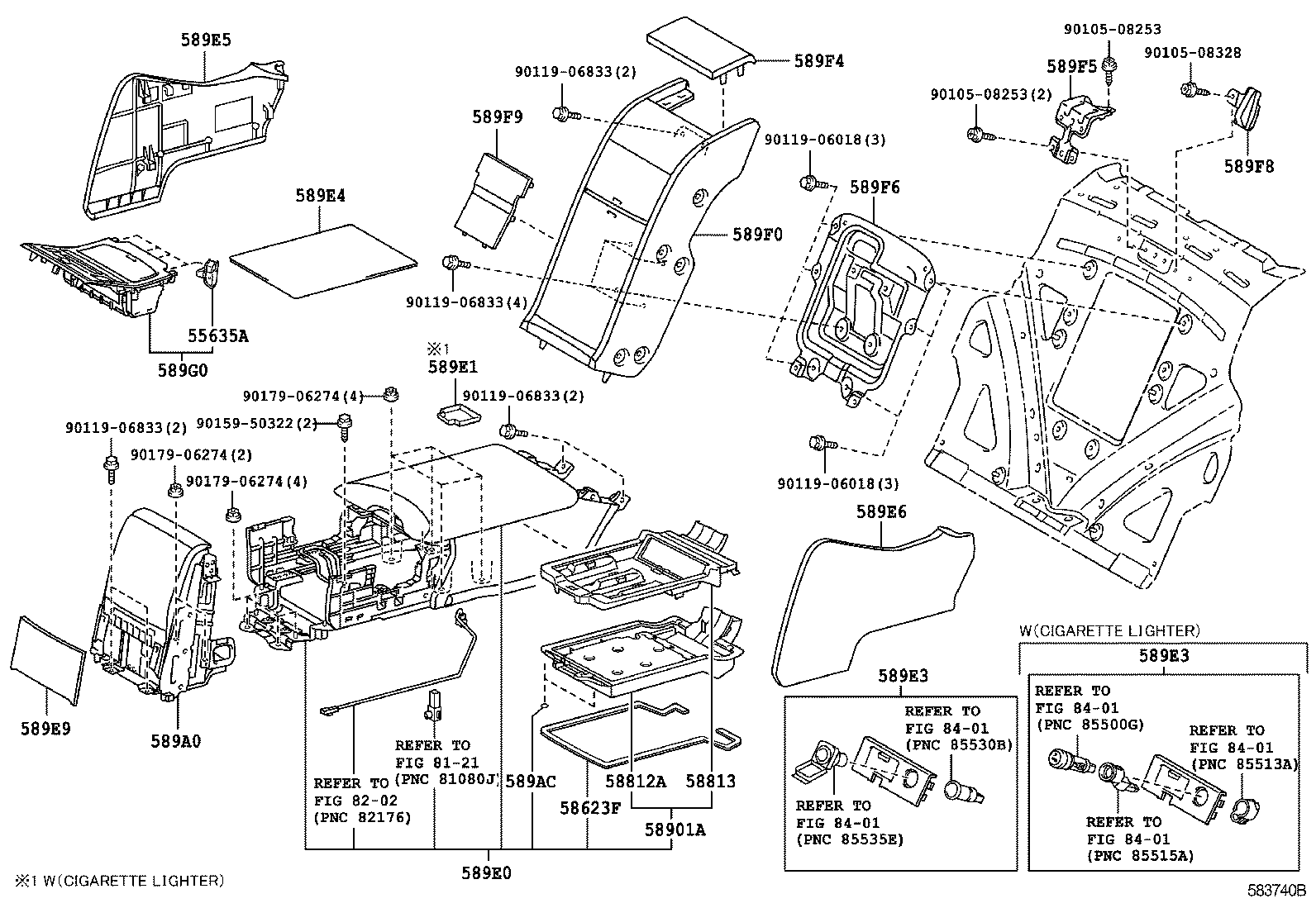

ILLUST NO. 3 OF 3(0911- )
REAR SEAT CONSOLE BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55635A - SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.2 | ||||
| 55635-50020 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
4 | ||
| 55635-50020 |
UVF46 |
4 | ||
| 55635-50020 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V) |
4 | ||
| 58623F - SILENCER, CENTER CONSOLE | ||||
| 58623-50010 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V) |
1 | ||
| 58623-50010 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
1 | ||
| 58812A - BOX, CONSOLE, LOWER | ||||
| 58812-50050 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V) |
1 | ||
| 58812-50050 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
1 | ||
| 58813 - BOX, CONSOLE, UPPER | ||||
| 58813-50030 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V) |
1 | ||
| 58813-50030 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-50060 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V) |
1 | ||
| 58901-50060 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
1 | ||
| 589A0 - TABLE ASSY, REAR SEAT CONSOLE | ||||
| 589A0-50030A4 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY/BROWN,TRIM02 |
1 | ||
| 589A0-50030A2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE/SILVER,TRIM05 |
1 | ||
| 589A0-50030A3 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE/BROWN,TRIM07 |
1 | ||
| 589A0-50030A3 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE/BROWN,TRIM07 |
1 | ||
| 589A0-50030A8 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE/SILVER,TRIM14 |
1 | ||
| 589A0-50030A8 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE/SILVER,TRIM14 |
1 | ||
| 589A0-50030A2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE/SILVER,TRIM05 |
1 | ||
| 589A0-50030B1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),LT.GRAY/GRAY,TRIM10 |
1 | ||
| 589A0-50030A4 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY/BROWN,TRIM02 |
1 | ||
| 589A0-50030A1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE/GRAY,TRIM08 |
1 | ||
| 589A0-50030B1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),LT.GRAY/GRAY,TRIM10 |
1 | ||
| 589A0-50030C0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK/BROWN,TRIM2# |
1 | ||
| 589A0-50030C0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK/BROWN,TRIM2# |
1 | ||
| 589A0-50030A1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE/GRAY,TRIM08 |
1 | ||
| 589A0-50030A7 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE/GRAY,TRIM15 |
1 | ||
| 589A0-50030A7 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE/GRAY,TRIM15 |
1 | ||
| 589AC - PLUG, REAR SEAT CONSOLE TABLE, NO.3 | ||||
| 589AC-50010 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
2 | ||
| 589AC-50010 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V) |
2 | ||
| 589E0 - ARMREST ASSY, REAR SEAT CONSOLE | ||||
| 589E0-50040A0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 589E0-50040A1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY,TRIM00,02,06 |
1 | ||
| 589E0-50040A2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE,TRIM14,15 |
1 | ||
| 589E0-50040A0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 589E0-50040C0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK,TRIM2# |
1 | ||
| 589E0-50040C0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK,TRIM2# |
1 | ||
| 589E0-50041A0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE,TRIM05,07 |
1 | ||
| 589E0-50040A1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY,TRIM00,02,06 |
1 | ||
| 589E0-50040A2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE,TRIM14,15 |
1 | ||
| 589E0-50040B0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),LIGHT GRAY,TRIM10,11 |
1 | ||
| 589E0-50041C0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK,TRIM2# |
1 | ||
| 589E0-50041A1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY,TRIM02 |
1 | ||
| 589E0-50041A0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE,TRIM05,07 |
1 | ||
| 589E0-50041A1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY,TRIM02 |
1 | ||
| 589E0-50041B0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),LIGHT GRAY,TRIM1# |
1 | ||
| 589E0-50041C0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK,TRIM2# |
1 | ||
| 589E0-50040B0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),LIGHT GRAY,TRIM10,11 |
1 | ||
| 589E0-50041B0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),LIGHT GRAY,TRIM1# |
1 | ||
| 589E1 - COVER, REAR SEAT CONSOLE ARMREST TRAY | ||||
| 589E1-50010 |
UVF46 REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
1 | ||
| 589E3 - BASE, REAR SEAT CONSOLE ARMREST | ||||
| 589E3-50050 |
UVF46 REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V) |
1 | ||
| 589E3-50060 |
UVF46 REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
1 | ||
| 589E3 - BASE, REAR SEAT CONSOLE ARMREST | ||||
| 589E3-50050 |
UVF46 REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V) |
1 | ||
| 589E3-50060 |
UVF46 REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
1 | ||
| 589E4 - COVER, REAR SEAT CONSOLE ARMREST | ||||
| 589E4-50020 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V) |
1 | ||
| 589E4-50020 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
1 | ||
| 589E5 - GARNISH, REAR SEAT CONSOLE ARMREST, RH | ||||
| 589E5-50030A3 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE,TRIM05,07 |
1 | ||
| 589E5-50030B1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),LT.GRAY,TRIM1# |
1 | ||
| 589E5-50030C1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK,TRIM2# |
1 | ||
| 589E5-50030A4 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY,TRIM02 |
1 | ||
| 589E5-50030B1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),LT.GRAY,TRIM1# |
1 | ||
| 589E5-50030A3 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE,TRIM05,07 |
1 | ||
| 589E5-50030A4 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY,TRIM02 |
1 | ||
| 589E5-50030C1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK,TRIM2# |
1 | ||
| 589E6 - GARNISH, REAR SEAT CONSOLE ARMREST, LH | ||||
| 589E6-50030A3 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE,TRIM05,07 |
1 | ||
| 589E6-50030A3 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE,TRIM05,07 |
1 | ||
| 589E6-50030B1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),LT.GRAY,TRIM1# |
1 | ||
| 589E6-50030A4 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY,TRIM02 |
1 | ||
| 589E6-50030C1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK,TRIM2# |
1 | ||
| 589E6-50030A4 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY,TRIM02 |
1 | ||
| 589E6-50030B1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),LT.GRAY,TRIM1# |
1 | ||
| 589E6-50030C1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK,TRIM2# |
1 | ||
| 589E9 - COVER, REAR SEAT CONSOLE TABLE, FR | ||||
| 589E9-50010A1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 589E9-50010A1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 589E9-50010A2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY,TRIM02 |
1 | ||
| 589E9-50010C0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK,TRIM2# |
1 | ||
| 589E9-50010A3 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE,TRIM14,15 |
1 | ||
| 589E9-50010A2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY,TRIM02 |
1 | ||
| 589E9-50010A3 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE,TRIM14,15 |
1 | ||
| 589E9-50010B0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),LT.GRAY,TRIM10 |
1 | ||
| 589E9-50010B0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),LT.GRAY,TRIM10 |
1 | ||
| 589E9-50010C0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK,TRIM2# |
1 | ||
| 589F0 - BOX ASSY, REAR SEAT CONSOLE | ||||
| 589F0-50020B2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),LT.GRAY/GRAY,TRIM1# |
1 | ||
| 589F0-5002007 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),B/MELLOW WHITE(SILVER),TRIM05 |
1 | ||
| 589F0-5002002 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE/BROWN,TRIM07 |
1 | ||
| 589F0-5002003 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY/BROWN,TRIM02 |
1 | ||
| 589F0-50020C2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK/BROWN,TRIM2# |
1 | ||
| 589F0-50020B2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),LT.GRAY/GRAY,TRIM1# |
1 | ||
| 589F0-5002007 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),B/MELLOW WHITE(SILVER),TRIM05 |
1 | ||
| 589F0-5002002 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE/BROWN,TRIM07 |
1 | ||
| 589F0-5002003 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY/BROWN,TRIM02 |
1 | ||
| 589F0-50020C2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK/BROWN,TRIM2# |
1 | ||
| 589F4 - PANEL, REAR SEAT CONSOLE BOX, RR | ||||
| 589F4-50010A2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY,TRIM02 |
1 | ||
| 589F4-50010A3 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE,TRIM14,15 |
1 | ||
| 589F4-50010A1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 589F4-50010B0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),LT.GRAY,TRIM10 |
1 | ||
| 589F4-50010C0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK,TRIM2# |
1 | ||
| 589F4-50010C0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK,TRIM2# |
1 | ||
| 589F4-50010B0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),LT.GRAY,TRIM10 |
1 | ||
| 589F4-50010A2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY,TRIM02 |
1 | ||
| 589F4-50010A1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 589F4-50010A3 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE,TRIM14,15 |
1 | ||
| 589F5 - BRACKET, REAR SEAT CONSOLE BOX, UPR | ||||
| 589F5-50010 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
1 | ||
| 589F5-50010 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V) |
1 | ||
| 589F6 - BRACKET, REAR SEAT CONSOLE BOX, LWR | ||||
| 589F6-50030 |
UVF46 |
1 | ||
| 589F8 - COVER, REAR SEAT CONSOLE BOX, LH | ||||
| 589F8-50010A2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY,TRIM02 |
1 | ||
| 589F8-50010A3 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE,TRIM14,15 |
1 | ||
| 589F8-50010A1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 589F8-50010A2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY,TRIM02 |
1 | ||
| 589F8-50010B0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),LT.GRAY,TRIM10 |
1 | ||
| 589F8-50010C0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK,TRIM2# |
1 | ||
| 589F8-50010A3 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE,TRIM14,15 |
1 | ||
| 589F8-50010B0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),LT.GRAY,TRIM10 |
1 | ||
| 589F8-50010C0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK,TRIM2# |
1 | ||
| 589F8-50010A1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 589F9 - COVER, REAR SEAT CONSOLE BOX, LWR | ||||
| 589F9-50020 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V) |
1 | ||
| 589F9-50020 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
1 | ||
| 589G0 - PANEL ASSY, REAR SEAT CONSOLE | ||||
| 589G0-50010B0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),GRAY,TRIM08,1#,21 |
1 | ||
| 589G0-50010B2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),SILVER,TRIM05 |
1 | ||
| 589G0-50010E1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BROWN,TRIM02,20 |
1 | ||
| 589G0-50010E1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BROWN,TRIM02,20 |
1 | ||
| 589G0-50010E2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),DK.BROWN,TRIM07 |
1 | ||
| 589G0-50010B0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),GRAY,TRIM08,1#,21 |
1 | ||
| 589G0-50010B2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),SILVER,TRIM05 |
1 | ||
| 589G0-50010E2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),DK.BROWN,TRIM07 |
1 | ||
| Common parts | ||||
| 90105-08253 | None epc.PartDetail.None | |||
| 90105-08328 | None epc.PartDetail.None | |||
| 90119-06018 | None epc.PartDetail.None | |||
| 90119-06833 | None epc.PartDetail.None | |||
| 90159-50322 | None epc.PartDetail.None | |||
| 90179-06274 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 8121 | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(0911- )
W(REAR DISPLAY:CONSOLE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58801E - BOX SUB-ASSY, CONSOLE, UPPER | ||||
| 58801-50080A0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR),MELLOW WHITE,TRIM05,07 |
1 | ||
| 58801-50080C0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),BLACK,TRIM2# |
1 | ||
| 58801-50080A4 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),WATER WHITE,TRIM14,15 |
1 | ||
| 58801-50080A0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 58801-50080B0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR),LT.GRAY,TRIM1# |
1 | ||
| 58801-50080B0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),LT.GRAY,TRIM10 |
1 | ||
| 58801-50080A1 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR),IVORY,TRIM02 |
1 | ||
| 58801-50080A1 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),IVORY,TRIM02 |
1 | ||
| 58801-50080C0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR),BLACK,TRIM2# |
1 | ||
| 58811B - BOX, CONSOLE | ||||
| 58812-50040A0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR),MELLOW WHITE,TRIM05,07 |
1 | ||
| 58812-50040A4 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),WATER WHITE,TRIM14,15 |
1 | ||
| 58812-50040C0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR),BLACK,TRIM2# |
1 | ||
| 58812-50040B0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),LT.GRAY,TRIM10 |
1 | ||
| 58812-50040A1 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR),IVORY,TRIM02 |
1 | ||
| 58812-50040A0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 58812-50040B0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR),LT.GRAY,TRIM1# |
1 | ||
| 58812-50040C0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),BLACK,TRIM2# |
1 | ||
| 58812-50040A1 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),IVORY,TRIM02 |
1 | ||
| 58823B - BOX, CONSOLE COMPARTMENT | ||||
| 58823-50010 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR) |
1 | ||
| 58823-50010 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR) |
1 | ||
| 58832A - GARNISH, CONSOLE UPPER PANEL, REAR | ||||
| 58831-50020B0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),LT.GRAY,TRIM10 |
1 | ||
| 58831-50020A0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR),MELLOW WHITE,TRIM05,07 |
1 | ||
| 58831-50020A4 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),WATER WHITE,TRIM14,15 |
1 | ||
| 58831-50020A1 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),IVORY,TRIM02 |
1 | ||
| 58831-50020A0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 58831-50020C0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),BLACK,TRIM2# |
1 | ||
| 58831-50020B0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR),LT.GRAY,TRIM1# |
1 | ||
| 58831-50020A1 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR),IVORY,TRIM02 |
1 | ||
| 58831-50020C0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR),BLACK,TRIM2# |
1 | ||
| 58833B - GARNISH, CONSOLE UPPER PANEL, NO.1 | ||||
| 58832-50020A1 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),IVORY,TRIM02 |
1 | ||
| 58832-50020A0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR),MELLOW WHITE,TRIM05,07 |
1 | ||
| 58832-50020C0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),BLACK,TRIM2# |
1 | ||
| 58832-50020B0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR),LT.GRAY,TRIM1# |
1 | ||
| 58832-50020A4 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),WATER WHITE,TRIM14,15 |
1 | ||
| 58832-50020A1 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR),IVORY,TRIM02 |
1 | ||
| 58832-50020A0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 58832-50020C0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR),BLACK,TRIM2# |
1 | ||
| 58832-50020B0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),LT.GRAY,TRIM10 |
1 | ||
| 58833D - CLIP(FOR CONSOLE COVER) | ||||
| 90467-06165C0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR),BLACK |
2 | ||
| 90467-06165C0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),BLACK |
2 | ||
| 58835C - ORNAMENT, CONSOLE BOX | ||||
| 58835-50010B0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),GRAY,TRIM08,1#,21 |
1 | ||
| 58835-50010B1 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),SILVER,TRIM05 |
1 | ||
| 58835-50010B0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR),GRAY,TRIM08,1#,21 |
1 | ||
| 58835-50010E1 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),DK.BROWN,TRIM07 |
1 | ||
| 58835-50010B1 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR),SILVER,TRIM05 |
1 | ||
| 58835-50010E1 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR),DK.BROWN,TRIM07 |
1 | ||
| 58835-50010E0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR),BROWN,TRIM02,20 |
1 | ||
| 58835-50010E0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),BROWN,TRIM02,20 |
1 | ||
| 58860A - REGISTER ASSY, CONSOLE BOX | ||||
| 58860-50060 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR) |
1 | ||
| 58860-50060 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR) |
1 | ||
| 58862F - DUCT, CONSOLE BOX, NO.2 | ||||
| 58862-50040 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR) |
1 | ||
| 58862-50040 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR) |
1 | ||
| 58915A - DAMPER, CONSOLE BOX, REAR | ||||
| 58915-50040 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR) |
1 | ||
| 58915-50040 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR) |
1 | ||
| 58919B - PLATE, CONSOLE BOX | ||||
| 58919-50020A1 |
UVF46 ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 58919-50020A3 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),WATER WHITE,TRIM14,15 |
1 | ||
| 58919-50020B0 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),LT.GRAY,TRIM10 |
1 | ||
| 58919-50020C0 |
UVF46 ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),BLACK,TRIM2# |
1 | ||
| 58919-50020A1 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 58919-50020A2 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),IVORY,TRIM02 |
1 | ||
| 58919-50020C0 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),BLACK,TRIM2# |
1 | ||
| 58919-50020B0 |
UVF46 ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),LT.GRAY,TRIM10 |
1 | ||
| 58919-50030A1 |
UVF46 ACCESSORY CONNECTOR-WITH(AC100V/115V),MELLOW WHITE,TRIM05,07 |
1 | ||
| 58919-50030A1 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),MELLOW WHITE,TRIM05,07 |
1 | ||
| 58919-50050 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR) |
1 | ||
| 58919-50030C0 |
UVF46 ACCESSORY CONNECTOR-WITH(AC100V/115V),BLACK,TRIM2# |
1 | ||
| 58919-50030A2 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),IVORY,TRIM02 |
1 | ||
| 58919-50030B0 |
UVF46 ACCESSORY CONNECTOR-WITH(AC100V/115V),LT.GRAY,TRIM1# |
1 | ||
| 58919-50030A2 |
UVF46 ACCESSORY CONNECTOR-WITH(AC100V/115V),IVORY,TRIM02 |
1 | ||
| 58919-50020A3 |
UVF46 ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),WATER WHITE,TRIM14,15 |
1 | ||
| 58919-50040 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR) |
1 | ||
| 58919-50030C0 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),BLACK,TRIM2# |
1 | ||
| 58919-50020A2 |
UVF46 ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),IVORY,TRIM02 |
1 | ||
| 58919-50030B0 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),LT.GRAY,TRIM1# |
1 | ||
| 58919B - PLATE, CONSOLE BOX | ||||
| 58919-50020A1 |
UVF46 ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 58919-50020A3 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),WATER WHITE,TRIM14,15 |
1 | ||
| 58919-50020B0 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),LT.GRAY,TRIM10 |
1 | ||
| 58919-50020C0 |
UVF46 ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),BLACK,TRIM2# |
1 | ||
| 58919-50020A1 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 58919-50020A2 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),IVORY,TRIM02 |
1 | ||
| 58919-50020C0 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),BLACK,TRIM2# |
1 | ||
| 58919-50020B0 |
UVF46 ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),LT.GRAY,TRIM10 |
1 | ||
| 58919-50030A1 |
UVF46 ACCESSORY CONNECTOR-WITH(AC100V/115V),MELLOW WHITE,TRIM05,07 |
1 | ||
| 58919-50030A1 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),MELLOW WHITE,TRIM05,07 |
1 | ||
| 58919-50050 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR) |
1 | ||
| 58919-50030C0 |
UVF46 ACCESSORY CONNECTOR-WITH(AC100V/115V),BLACK,TRIM2# |
1 | ||
| 58919-50030A2 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),IVORY,TRIM02 |
1 | ||
| 58919-50030B0 |
UVF46 ACCESSORY CONNECTOR-WITH(AC100V/115V),LT.GRAY,TRIM1# |
1 | ||
| 58919-50030A2 |
UVF46 ACCESSORY CONNECTOR-WITH(AC100V/115V),IVORY,TRIM02 |
1 | ||
| 58919-50020A3 |
UVF46 ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),WATER WHITE,TRIM14,15 |
1 | ||
| 58919-50040 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR) |
1 | ||
| 58919-50030C0 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),BLACK,TRIM2# |
1 | ||
| 58919-50020A2 |
UVF46 ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),IVORY,TRIM02 |
1 | ||
| 58919-50030B0 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),LT.GRAY,TRIM1# |
1 | ||
| 58932A - GARNISH, REAR CONSOLE BOX | ||||
| 58932-50040B1 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR),LT.GRAY,TRIM1# |
1 | ||
| 58932-50040A3 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR),IVORY,TRIM02 |
1 | ||
| 58932-50040A2 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR),MELLOW WHITE,TRIM05,07 |
1 | ||
| 58932-50040A2 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 58932-50040C1 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR),BLACK,TRIM2# |
1 | ||
| 58932-50040A3 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),IVORY,TRIM02 |
1 | ||
| 58932-50040C1 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),BLACK,TRIM2# |
1 | ||
| 58932-50040B1 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),LT.GRAY,TRIM10 |
1 | ||
| 58932-50040A5 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),WATER WHITE,TRIM14,15 |
1 | ||
| 58933 - GARNISH, CONSOLE REAR END PANEL | ||||
| 58933-50020A1 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),IVORY,TRIM02 |
1 | ||
| 58933-50020A0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR),MELLOW WHITE,TRIM05,07 |
1 | ||
| 58933-50020C0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR),BLACK,TRIM2# |
1 | ||
| 58933-50020B0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),LT.GRAY,TRIM10 |
1 | ||
| 58933-50020C0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),BLACK,TRIM2# |
1 | ||
| 58933-50020A1 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR),IVORY,TRIM02 |
1 | ||
| 58933-50020A0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 58933-50020B0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR),LT.GRAY,TRIM1# |
1 | ||
| 58933-50020A4 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),WATER WHITE,TRIM14,15 |
1 | ||
| 58934 - ORNAMENT, OVER HEAD CONSOLE | ||||
| 58934-50020C0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),BLACK,TRIM2# |
1 | ||
| 58934-50020A0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR),MELLOW WHITE,TRIM05,07 |
1 | ||
| 58934-50020B0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR),LT.GRAY,TRIM1# |
1 | ||
| 58934-50020A0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 58934-50020C0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR),BLACK,TRIM2# |
1 | ||
| 58934-50020A1 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR),IVORY,TRIM02 |
1 | ||
| 58934-50020A1 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),IVORY,TRIM02 |
1 | ||
| 58934-50020B0 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),LT.GRAY,TRIM10 |
1 | ||
| 58934-50020A4 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR),WATER WHITE,TRIM14,15 |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR) |
2 | ||
| 58959-60060 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR) |
2 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-50050 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR) |
1 | ||
| 58996-50050 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR) |
1 | ||
| Common parts | ||||
| 90159-50327 | None epc.PartDetail.None | |||
| 91553-80612 | None epc.PartDetail.None | |||
| 91631-60816 | None epc.PartDetail.None | |||
| 93568-55012 | None epc.PartDetail.None | |||
| 93568-55014 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 8121 | ||||
| 8202 | ||||
| 8606 | ||||
ILLUST NO. 1 OF 3(0911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55421D - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55422-50120B1 |
UVF46 SILVER,TRIM05 |
1 | ||
| 55422-50120E0 |
UVF46 BROWN,TRIM02,2# |
1 | ||
| 55422-50120B0 |
UVF46 GRAY,TRIM1# |
1 | ||
| 55422-50120E1 |
UVF46 DK.BROWN,TRIM07 |
1 | ||
| 55435C - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-50090A1 |
UVF46 MELLOW WHITE,TRIM05,07 |
1 | ||
| 55435-50090A3 |
UVF46 IVORY,TRIM02 |
1 | ||
| 55435-50090B1 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 55435-50090C2 |
UVF46 BLACK,TRIM2# |
1 | ||
| 55435-50100A3 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(LOWER),IVORY,TRIM02 |
1 | ||
| 55435-50100B1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(LOWER),LT.GRAY,TRIM1# |
1 | ||
| 55435-50100A3 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),IVORY,TRIM02 |
1 | ||
| 55435-50100A1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),MELLOWWHITE,TRIM05,07 |
1 | ||
| 55435-50100C1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),BLACK,TRIM2# |
1 | ||
| 55435-50100A1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(LOWER),MELLOW WHITE,TRIM05,07 |
1 | ||
| 55435-50100B1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),LT.GRAY,TRIM1# |
1 | ||
| 55435-50100C1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(LOWER),BLACK,TRIM2# |
1 | ||
| 55436C - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-50050A1 |
UVF46 MELLOW WHITE,TRIM05,07 |
1 | ||
| 55436-50060A1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),MELLOWWHITE,TRIM05,07 |
1 | ||
| 55436-50050C2 |
UVF46 BLACK,TRIM2# |
1 | ||
| 55436-50050B1 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 55436-50060C1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(LOWER),BLACK,TRIM2# |
1 | ||
| 55436-50060C1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),BLACK,TRIM2# |
1 | ||
| 55436-50060B1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),LT.GRAY,TRIM1# |
1 | ||
| 55436-50060A1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(LOWER),MELLOW WHITE,TRIM05,07 |
1 | ||
| 55436-50050A3 |
UVF46 IVORY,TRIM02 |
1 | ||
| 55436-50060A3 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(LOWER),IVORY,TRIM02 |
1 | ||
| 55436-50060A3 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),IVORY,TRIM02 |
1 | ||
| 55436-50060B1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(LOWER),LT.GRAY,TRIM1# |
1 | ||
| 55440C - BOX ASSY, INSTRUMENT PANEL | ||||
| 55441-50090 |
UVF46 |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-26030 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER) |
1 | ||
| 55477-26030 |
UVF46 ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER) |
1 | ||
| 55620B - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-50040B2 |
UVF46 SILVER,TRIM05,06,14 |
1 | ||
| 55620-50040B0 |
UVF46 GRAY,TRIM08,10,15,21 |
1 | ||
| 55620-50040E2 |
UVF46 DK.BROWN,TRIM07 |
1 | ||
| 55620-50041E1 |
UVF46 BROWN,TRIM02,2# |
1 | ||
| 55620-50041B2 |
UVF46 SILVER,TRIM05 |
1 | ||
| 55620-50040E1 |
UVF46 BROWN,TRIM00,01,02,11,20 |
1 | ||
| 55620-50041E2 |
UVF46 BROWN,TRIM07 |
1 | ||
| 55620-50041B0 |
UVF46 GRAY,TRIM1# |
1 | ||
| 55635A - SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.2 | ||||
| 55635-50020 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
4 | ||
| 55635-50020 |
UVF46 |
4 | ||
| 55635-50020 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V) |
4 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-50330E1 |
UVF46 DK.BROWN,TRIM07 |
1 | ||
| 58804-50320E0 |
UVF46 ASH TRAY-FRONT 1,REAR 2,BROWN,TRIM02,20 |
1 | ||
| 58804-50320B0 |
UVF46 ASH TRAY-FRONT 1,REAR 2,GRAY,TRIM08,1#,21 |
1 | ||
| 58804-50330B0 |
UVF46 GRAY,TRIM08,1#,21 |
1 | ||
| 58804-50330E0 |
UVF46 BROWN,TRIM02,20 |
1 | ||
| 58804-50330B1 |
UVF46 SILVER,TRIM05 |
1 | ||
| 58804-50320E1 |
UVF46 ASH TRAY-FRONT 1,REAR 2,DK.BROWN,TRIM07 |
1 | ||
| 58804-50320B1 |
UVF46 ASH TRAY-FRONT 1,REAR 2,SILVER,TRIM05 |
1 | ||
| 58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR | ||||
| 58805-50070B0 |
UVF46 GRAY,TRIM08,10,15,21 |
1 | ||
| 58805-50080B2 |
UVF46 INTERIOR UPGRADE PACKAGE,SILVER,TRIM05,06,14 |
1 | ||
| 58805-50071B0 |
UVF46 GRAY,TRIM1# |
1 | ||
| 58805-50080E1 |
UVF46 INTERIOR UPGRADE PACKAGE,BROWN,TRIM00,01,02,11,20 |
1 | ||
| 58805-50070E1 |
UVF46 BROWN,TRIM00,01,02,11,20 |
1 | ||
| 58805-50071E1 |
UVF46 BROWN,TRIM02,2# |
1 | ||
| 58805-50070E2 |
UVF46 DK.BROWN,TRIM07 |
1 | ||
| 58805-50080E2 |
UVF46 INTERIOR UPGRADE PACKAGE,DK.BROWN,TRIM07 |
1 | ||
| 58805-50080B0 |
UVF46 INTERIOR UPGRADE PACKAGE,GRAY,TRIM08,10,15,21 |
1 | ||
| 58805-50071E2 |
UVF46 BROWN,TRIM07 |
1 | ||
| 58805-50081E2 |
UVF46 INTERIOR UPGRADE PACKAGE,BROWN,TRIM07 |
1 | ||
| 58805-50070B1 |
UVF46 SILVER,TRIM05,06,14 |
1 | ||
| 58805-50081E1 |
UVF46 INTERIOR UPGRADE PACKAGE,BROWN,TRIM02,2# |
1 | ||
| 58805-50081B2 |
UVF46 INTERIOR UPGRADE PACKAGE,SILVER,TRIM05 |
1 | ||
| 58805-50071B1 |
UVF46 SILVER,TRIM05 |
1 | ||
| 58805-50081B0 |
UVF46 INTERIOR UPGRADE PACKAGE,GRAY,TRIM1# |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-5021010 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY,TRIM02 |
1 | ||
| 58810-50280A3 |
UVF46 MELLOW WHITE,TRIM05,07 |
1 | ||
| 58810-50280B1 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 58810-50300A3 |
UVF46 INTERIOR UPGRADE PACKAGE,MELLOW WHITE,TRIM05,07 |
1 | ||
| 58810-50280A4 |
UVF46 IVORY,TRIM02 |
1 | ||
| 58810-5021009 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE,TRIM05,07 |
1 | ||
| 58810-50300C1 |
UVF46 INTERIOR UPGRADE PACKAGE,BLACK,TRIM2# |
1 | ||
| 58810-50210B6 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),LT.GRAY,TRIM1# |
1 | ||
| 58810-50300B1 |
UVF46 INTERIOR UPGRADE PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 58810-50280C1 |
UVF46 BLACK,TRIM2# |
1 | ||
| 58810-5021110 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY,TRIM02 |
1 | ||
| 58810-5021109 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE,TRIM05,07 |
1 | ||
| 58810-50301A3 |
UVF46 INTERIOR UPGRADE PACKAGE,MELLOW WHITE,TRIM05,07 |
1 | ||
| 58810-50281B1 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 58810-50301B1 |
UVF46 INTERIOR UPGRADE PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 58810-50300A4 |
UVF46 INTERIOR UPGRADE PACKAGE,IVORY,TRIM02 |
1 | ||
| 58810-5021120 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK,TRIM2# |
1 | ||
| 58810-50211B6 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),LT.GRAY,TRIM1# |
1 | ||
| 58810-50281C1 |
UVF46 BLACK,TRIM2# |
1 | ||
| 58810-50301A4 |
UVF46 INTERIOR UPGRADE PACKAGE,IVORY,TRIM02 |
1 | ||
| 58810-50301C1 |
UVF46 INTERIOR UPGRADE PACKAGE,BLACK,TRIM2# |
1 | ||
| 58810-5021020 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK,TRIM2# |
1 | ||
| 58810-50281A4 |
UVF46 IVORY,TRIM02 |
1 | ||
| 58810-50281A3 |
UVF46 MELLOW WHITE,TRIM05,07 |
1 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-13082A0 |
UVF46 MELLOW WHITE |
6 | ||
| 58822A - PANEL, CONSOLE, UPPER REAR | ||||
| 58822-50100E2 |
UVF46 INTERIOR UPGRADE PACKAGE,DK.BROWN,TRIM07 |
1 | ||
| 58822-50100B0 |
UVF46 INTERIOR UPGRADE PACKAGE,GRAY,TRIM1# |
1 | ||
| 58822-50090B0 |
UVF46 GRAY,TRIM1# |
1 | ||
| 58822-50090B1 |
UVF46 SILVER,TRIM05 |
1 | ||
| 58822-50100E1 |
UVF46 INTERIOR UPGRADE PACKAGE,BROWN,TRIM02,2# |
1 | ||
| 58822-50090E1 |
UVF46 BROWN,TRIM02,2# |
1 | ||
| 58822-50101E2 |
UVF46 INTERIOR UPGRADE PACKAGE,BROWN,TRIM07 |
1 | ||
| 58822-50091B0 |
UVF46 GRAY,TRIM1# |
1 | ||
| 58822-50101B2 |
UVF46 INTERIOR UPGRADE PACKAGE,SILVER,TRIM05 |
1 | ||
| 58822-50091E2 |
UVF46 BROWN,TRIM07 |
1 | ||
| 58822-50091B1 |
UVF46 SILVER,TRIM05 |
1 | ||
| 58822-50090E2 |
UVF46 DK.BROWN,TRIM07 |
1 | ||
| 58822-50100B2 |
UVF46 INTERIOR UPGRADE PACKAGE,SILVER,TRIM05 |
1 | ||
| 58822-50101E1 |
UVF46 INTERIOR UPGRADE PACKAGE,BROWN,TRIM02,2# |
1 | ||
| 58822-50101B0 |
UVF46 INTERIOR UPGRADE PACKAGE,GRAY,TRIM1# |
1 | ||
| 58822-50091E1 |
UVF46 BROWN,TRIM02,2# |
1 | ||
| 58826A - POCKET, CONSOLE BOX, LOWER | ||||
| 58826-50020 |
UVF46 |
1 | ||
| 58826-50010 |
UVF46 WITH(REAR POWER SEAT)&WITH(REAR DISPLAY:ROOF) |
1 | ||
| 58834A - COVER, CONSOLE, LOWER | ||||
| 58834-50040 |
UVF46 |
1 | ||
| 58834-50050 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE) |
1 | ||
| 58836B - PAD, CONSOLE BOX SILENCER, NO.1 | ||||
| 58836-50010 |
UVF46 |
5 | ||
| 58836B - PAD, CONSOLE BOX SILENCER, NO.1 | ||||
| 58836-50010 |
UVF46 |
5 | ||
| 58836B - PAD, CONSOLE BOX SILENCER, NO.1 | ||||
| 58836-50010 |
UVF46 |
5 | ||
| 58836B - PAD, CONSOLE BOX SILENCER, NO.1 | ||||
| 58836-50010 |
UVF46 |
5 | ||
| 58836B - PAD, CONSOLE BOX SILENCER, NO.1 | ||||
| 58836-50010 |
UVF46 |
5 | ||
| 58872A - CUSHION, CONSOLE BOX, NO.2 | ||||
| 58872-50020 |
UVF46 |
1 | ||
| 58873 - CUSHION, CONSOLE BOX, NO.3 | ||||
| 58873-50010 |
UVF46 |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-50050B4 |
UVF46 MELLOW WHITE,TRIM08 |
1 | ||
| 58903-50050L2 |
UVF46 IVORY(BROWN),TRIM02 |
1 | ||
| 58903-50050P2 |
UVF46 WATER WHITE(SILVER),TRIM14 |
1 | ||
| 58903-50060B7 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V)&ACCESSORY CONNECTOR-WITHOUT,MELLOW WHITE(SILVER),TRIM05 |
1 | ||
| 58903-50050L3 |
UVF46 MELLOW WHITE(DK.BROWN),TRIM07 |
1 | ||
| 58903-50050B1 |
UVF46 LT.GRAY,TRIM10 |
1 | ||
| 58903-50050B5 |
UVF46 BLACK,TRIM21 |
1 | ||
| 58903-50060L0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER)&ACCESSORY CONNECTOR-WITHOUT,MELLOW WHITE(DK.BROWN),TRIM07 |
1 | ||
| 58903-50060B0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V)&ACCESSORY CONNECTOR-WITHOUT,LT.GRAY,TRIM10 |
1 | ||
| 58903-50060E3 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V)&ACCESSORY CONNECTOR-WITHOUT,BLACK,TRIM2# |
1 | ||
| 58903-50050B9 |
UVF46 MELLOW WHITE(GRAY),TRIM15 |
1 | ||
| 58903-50060E9 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V)&ACCESSORY CONNECTOR-WITHOUT,IVORY(BROWN),TRIM02 |
1 | ||
| 58903-50070B0 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),GRAY,TRIM10 |
1 | ||
| 58903-50060B7 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER)&ACCESSORY CONNECTOR-WITHOUT,MELLOW WHITE(SILVER),TRIM05 |
1 | ||
| 58903-50050P0 |
UVF46 MELLOW WHITE(SILVER),TRIM05 |
1 | ||
| 58903-50070B0 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),GRAY,TRIM10 |
1 | ||
| 58903-50060L0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V)&ACCESSORY CONNECTOR-WITHOUT,MELLOW WHITE(DK.BROWN),TRIM07 |
1 | ||
| 58903-50050E5 |
UVF46 BLACK,TRIM20 |
1 | ||
| 58903-50060E3 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER)&ACCESSORY CONNECTOR-WITHOUT,BLACK,TRIM2# |
1 | ||
| 58903-50060E9 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER)&ACCESSORY CONNECTOR-WITHOUT,IVORY(BROWN),TRIM02 |
1 | ||
| 58903-50060B0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER)&ACCESSORY CONNECTOR-WITHOUT,LT.GRAY,TRIM10 |
1 | ||
| 58903-50070B6 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),BLACK,TRIM21 |
1 | ||
| 58903-50070B8 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),WATER WHITE(GRAY),TRIM15 |
1 | ||
| 58903-50060B9 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER)&ACCESSORY CONNECTOR-WITHOUT,WATER WHITE(SILVER),TRIM14 |
1 | ||
| 58903-50070B0 |
UVF46 INTERIOR UPGRADE PACKAGE,GRAY,TRIM10 |
1 | ||
| 58903-50060B9 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V)&ACCESSORY CONNECTOR-WITHOUT,WATER WHITE(SILVER),TRIM14 |
1 | ||
| 58903-50070E9 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),IVORY(BROWN),TRIM02 |
1 | ||
| 58903-50070E2 |
UVF46 INTERIOR UPGRADE PACKAGE,BLACK,TRIM20 |
1 | ||
| 58903-50070B6 |
UVF46 INTERIOR UPGRADE PACKAGE,BLACK,TRIM21 |
1 | ||
| 58903-50070B9 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),MELLOW WHITE(SILVER),TRIM05 |
1 | ||
| 58903-50070B5 |
UVF46 INTERIOR UPGRADE PACKAGE,GRAY,TRIM08 |
1 | ||
| 58903-50070B6 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),BLACK,TRIM21 |
1 | ||
| 58903-50070E2 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),BLACK,TRIM20 |
1 | ||
| 58903-50070L3 |
UVF46 INTERIOR UPGRADE PACKAGE,MELLOW WHITE(DK.BROWN),TRIM07 |
1 | ||
| 58903-50070B9 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),MELLOW WHITE(SILVER),TRIM05 |
1 | ||
| 58903-50070E9 |
UVF46 INTERIOR UPGRADE PACKAGE,IVORY(BROWN),TRIM02 |
1 | ||
| 58903-50070B5 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),GRAY,TRIM08 |
1 | ||
| 58903-50070E2 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),BLACK,TRIM20 |
1 | ||
| 58903-50070B8 |
UVF46 INTERIOR UPGRADE PACKAGE,WATER WHITE(GRAY),TRIM15 |
1 | ||
| 58903-50070P1 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),MELLOW WHITE(SILVER),TRIM14 |
1 | ||
| 58903-50060B4 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V)&ACCESSORY CONNECTOR-WITHOUT,BLACK/MELLOW WHITE,TRIM08 |
1 | ||
| 58903-50070E9 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),IVORY(BROWN),TRIM02 |
1 | ||
| 58903-50070B9 |
UVF46 INTERIOR UPGRADE PACKAGE,MELLOW WHITE(SILVER),TRIM05 |
1 | ||
| 58903-50070L3 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),MELLOW WHITE(DK.BROWN),TRIM07 |
1 | ||
| 58903-50070L3 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),MELLOW WHITE(DK.BROWN),TRIM07 |
1 | ||
| 58903-50070P1 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),MELLOW WHITE(SILVER),TRIM14 |
1 | ||
| 58903-50060B6 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER)&ACCESSORY CONNECTOR-WITHOUT,WATER WHITE(GRAY),TRIM15 |
1 | ||
| 58903-50060B4 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER)&ACCESSORY CONNECTOR-WITHOUT,BLACK/MELLOWWHITE,TRIM08 |
1 | ||
| 58903-50070P1 |
UVF46 INTERIOR UPGRADE PACKAGE,MELLOW WHITE(SILVER),TRIM14 |
1 | ||
| 58903-50060B6 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V)&ACCESSORY CONNECTOR-WITHOUT,WATER WHITE(GRAY),TRIM15 |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-50330A3 |
UVF46 IVORY,TRIM02 |
1 | ||
| 58905-50330A1 |
UVF46 MELLOW WHITE,TRIM05,07 |
1 | ||
| 58905-50330B1 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 58905-50330C1 |
UVF46 BLACK,TRIM2# |
1 | ||
| 58905-50340A1 |
UVF46 INTERIOR UPGRADE PACKAGE,MELLOW WHITE,TRIM05,07 |
1 | ||
| 58905-50340C1 |
UVF46 INTERIOR UPGRADE PACKAGE,BLACK,TRIM2# |
1 | ||
| 58905-50340A3 |
UVF46 INTERIOR UPGRADE PACKAGE,IVORY,TRIM02 |
1 | ||
| 58905-50340B1 |
UVF46 INTERIOR UPGRADE PACKAGE,LIGHT GRAY,TRIM1# |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-50060 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE) |
1 | ||
| 58907-50050 |
UVF46 |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-50050A3 |
UVF46 WATER WHITE,TRIM14,15 |
1 | ||
| 58908-50051B0 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 58908-50050A2 |
UVF46 IVORY,TRIM00,02,06 |
1 | ||
| 58908-50051A2 |
UVF46 IVORY,TRIM02 |
1 | ||
| 58908-50050A1 |
UVF46 MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 58908-50050B0 |
UVF46 LT.GRAY,TRIM10,11 |
1 | ||
| 58908-50050C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 58908-50051A1 |
UVF46 MELLOW WHITE,TRIM05,07 |
1 | ||
| 58908-50051C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 58913A - PANEL, BOX, NO.3 | ||||
| 58913-50030A3 |
UVF46 WATER WHITE,TRIM14,15 |
1 | ||
| 58913-50030A2 |
UVF46 IVORY,TRIM02 |
1 | ||
| 58913-50030A1 |
UVF46 MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 58913-50030C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 58913-50030B0 |
UVF46 LT.GRAY,TRIM10 |
1 | ||
| 58919B - PLATE, CONSOLE BOX | ||||
| 58919-50020A1 |
UVF46 ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 58919-50020A3 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),WATER WHITE,TRIM14,15 |
1 | ||
| 58919-50020B0 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),LT.GRAY,TRIM10 |
1 | ||
| 58919-50020C0 |
UVF46 ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),BLACK,TRIM2# |
1 | ||
| 58919-50020A1 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 58919-50020A2 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),IVORY,TRIM02 |
1 | ||
| 58919-50020C0 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),BLACK,TRIM2# |
1 | ||
| 58919-50020B0 |
UVF46 ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),LT.GRAY,TRIM10 |
1 | ||
| 58919-50030A1 |
UVF46 ACCESSORY CONNECTOR-WITH(AC100V/115V),MELLOW WHITE,TRIM05,07 |
1 | ||
| 58919-50030A1 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),MELLOW WHITE,TRIM05,07 |
1 | ||
| 58919-50050 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR) |
1 | ||
| 58919-50030C0 |
UVF46 ACCESSORY CONNECTOR-WITH(AC100V/115V),BLACK,TRIM2# |
1 | ||
| 58919-50030A2 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),IVORY,TRIM02 |
1 | ||
| 58919-50030B0 |
UVF46 ACCESSORY CONNECTOR-WITH(AC100V/115V),LT.GRAY,TRIM1# |
1 | ||
| 58919-50030A2 |
UVF46 ACCESSORY CONNECTOR-WITH(AC100V/115V),IVORY,TRIM02 |
1 | ||
| 58919-50020A3 |
UVF46 ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),WATER WHITE,TRIM14,15 |
1 | ||
| 58919-50040 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR) |
1 | ||
| 58919-50030C0 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),BLACK,TRIM2# |
1 | ||
| 58919-50020A2 |
UVF46 ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),IVORY,TRIM02 |
1 | ||
| 58919-50030B0 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),LT.GRAY,TRIM1# |
1 | ||
| 58919B - PLATE, CONSOLE BOX | ||||
| 58919-50020A1 |
UVF46 ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 58919-50020A3 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),WATER WHITE,TRIM14,15 |
1 | ||
| 58919-50020B0 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),LT.GRAY,TRIM10 |
1 | ||
| 58919-50020C0 |
UVF46 ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),BLACK,TRIM2# |
1 | ||
| 58919-50020A1 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 58919-50020A2 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),IVORY,TRIM02 |
1 | ||
| 58919-50020C0 |
UVF46 INTERIOR UPGRADE PACKAGE&ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),BLACK,TRIM2# |
1 | ||
| 58919-50020B0 |
UVF46 ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),LT.GRAY,TRIM10 |
1 | ||
| 58919-50030A1 |
UVF46 ACCESSORY CONNECTOR-WITH(AC100V/115V),MELLOW WHITE,TRIM05,07 |
1 | ||
| 58919-50030A1 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),MELLOW WHITE,TRIM05,07 |
1 | ||
| 58919-50050 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR) |
1 | ||
| 58919-50030C0 |
UVF46 ACCESSORY CONNECTOR-WITH(AC100V/115V),BLACK,TRIM2# |
1 | ||
| 58919-50030A2 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),IVORY,TRIM02 |
1 | ||
| 58919-50030B0 |
UVF46 ACCESSORY CONNECTOR-WITH(AC100V/115V),LT.GRAY,TRIM1# |
1 | ||
| 58919-50030A2 |
UVF46 ACCESSORY CONNECTOR-WITH(AC100V/115V),IVORY,TRIM02 |
1 | ||
| 58919-50020A3 |
UVF46 ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),WATER WHITE,TRIM14,15 |
1 | ||
| 58919-50040 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&ACCESSORY CONNECTOR-WITH(DC12V & VTR) |
1 | ||
| 58919-50030C0 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),BLACK,TRIM2# |
1 | ||
| 58919-50020A2 |
UVF46 ASH TRAY-FRONT 1,REAR 2&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER),IVORY,TRIM02 |
1 | ||
| 58919-50030B0 |
UVF46 INTERIOR UPGRADE PACKAGE&ACCESSORY CONNECTOR-WITH(AC100V/115V),LT.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90159-50327 | None epc.PartDetail.None | |||
| 90467-10201 | None epc.PartDetail.None | |||
| 90467-10203 | None epc.PartDetail.None | |||
| 90467-12080 | None epc.PartDetail.None | |||
| 90468-04157 | None epc.PartDetail.None | |||
| 90468-04177 | None epc.PartDetail.None | |||
| 90468-05060 | None epc.PartDetail.None | |||
| 91651-60618 | None epc.PartDetail.None | |||
| 93540-15016 | None epc.PartDetail.None | |||
| 93568-54512 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 7404 | ||||
| 8121 | ||||
| 8202 | ||||
| 8221 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 3(0911- )
W(REAR DISPLAY:CONSOLE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55421D - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55422-50120B1 |
UVF46 SILVER,TRIM05 |
1 | ||
| 55422-50120E0 |
UVF46 BROWN,TRIM02,2# |
1 | ||
| 55422-50120B0 |
UVF46 GRAY,TRIM1# |
1 | ||
| 55422-50120E1 |
UVF46 DK.BROWN,TRIM07 |
1 | ||
| 55435C - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-50090A1 |
UVF46 MELLOW WHITE,TRIM05,07 |
1 | ||
| 55435-50090A3 |
UVF46 IVORY,TRIM02 |
1 | ||
| 55435-50090B1 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 55435-50090C2 |
UVF46 BLACK,TRIM2# |
1 | ||
| 55435-50100A3 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(LOWER),IVORY,TRIM02 |
1 | ||
| 55435-50100B1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(LOWER),LT.GRAY,TRIM1# |
1 | ||
| 55435-50100A3 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),IVORY,TRIM02 |
1 | ||
| 55435-50100A1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),MELLOWWHITE,TRIM05,07 |
1 | ||
| 55435-50100C1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),BLACK,TRIM2# |
1 | ||
| 55435-50100A1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(LOWER),MELLOW WHITE,TRIM05,07 |
1 | ||
| 55435-50100B1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),LT.GRAY,TRIM1# |
1 | ||
| 55435-50100C1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(LOWER),BLACK,TRIM2# |
1 | ||
| 55436C - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-50050A1 |
UVF46 MELLOW WHITE,TRIM05,07 |
1 | ||
| 55436-50060A1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),MELLOWWHITE,TRIM05,07 |
1 | ||
| 55436-50050C2 |
UVF46 BLACK,TRIM2# |
1 | ||
| 55436-50050B1 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 55436-50060C1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(LOWER),BLACK,TRIM2# |
1 | ||
| 55436-50060C1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),BLACK,TRIM2# |
1 | ||
| 55436-50060B1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),LT.GRAY,TRIM1# |
1 | ||
| 55436-50060A1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(LOWER),MELLOW WHITE,TRIM05,07 |
1 | ||
| 55436-50050A3 |
UVF46 IVORY,TRIM02 |
1 | ||
| 55436-50060A3 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(LOWER),IVORY,TRIM02 |
1 | ||
| 55436-50060A3 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),IVORY,TRIM02 |
1 | ||
| 55436-50060B1 |
UVF46 INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(LOWER),LT.GRAY,TRIM1# |
1 | ||
| 55440C - BOX ASSY, INSTRUMENT PANEL | ||||
| 55441-50090 |
UVF46 |
1 | ||
| 55557D - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-53030 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE) |
2 | ||
| 55620B - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-50040B2 |
UVF46 SILVER,TRIM05,06,14 |
1 | ||
| 55620-50040B0 |
UVF46 GRAY,TRIM08,10,15,21 |
1 | ||
| 55620-50040E2 |
UVF46 DK.BROWN,TRIM07 |
1 | ||
| 55620-50041E1 |
UVF46 BROWN,TRIM02,2# |
1 | ||
| 55620-50041B2 |
UVF46 SILVER,TRIM05 |
1 | ||
| 55620-50040E1 |
UVF46 BROWN,TRIM00,01,02,11,20 |
1 | ||
| 55620-50041E2 |
UVF46 BROWN,TRIM07 |
1 | ||
| 55620-50041B0 |
UVF46 GRAY,TRIM1# |
1 | ||
| 55635A - SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.2 | ||||
| 55635-50020 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
4 | ||
| 55635-50020 |
UVF46 |
4 | ||
| 55635-50020 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V) |
4 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-50330E1 |
UVF46 DK.BROWN,TRIM07 |
1 | ||
| 58804-50320E0 |
UVF46 ASH TRAY-FRONT 1,REAR 2,BROWN,TRIM02,20 |
1 | ||
| 58804-50320B0 |
UVF46 ASH TRAY-FRONT 1,REAR 2,GRAY,TRIM08,1#,21 |
1 | ||
| 58804-50330B0 |
UVF46 GRAY,TRIM08,1#,21 |
1 | ||
| 58804-50330E0 |
UVF46 BROWN,TRIM02,20 |
1 | ||
| 58804-50330B1 |
UVF46 SILVER,TRIM05 |
1 | ||
| 58804-50320E1 |
UVF46 ASH TRAY-FRONT 1,REAR 2,DK.BROWN,TRIM07 |
1 | ||
| 58804-50320B1 |
UVF46 ASH TRAY-FRONT 1,REAR 2,SILVER,TRIM05 |
1 | ||
| 58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR | ||||
| 58805-50070B0 |
UVF46 GRAY,TRIM08,10,15,21 |
1 | ||
| 58805-50080B2 |
UVF46 INTERIOR UPGRADE PACKAGE,SILVER,TRIM05,06,14 |
1 | ||
| 58805-50071B0 |
UVF46 GRAY,TRIM1# |
1 | ||
| 58805-50080E1 |
UVF46 INTERIOR UPGRADE PACKAGE,BROWN,TRIM00,01,02,11,20 |
1 | ||
| 58805-50070E1 |
UVF46 BROWN,TRIM00,01,02,11,20 |
1 | ||
| 58805-50071E1 |
UVF46 BROWN,TRIM02,2# |
1 | ||
| 58805-50070E2 |
UVF46 DK.BROWN,TRIM07 |
1 | ||
| 58805-50080E2 |
UVF46 INTERIOR UPGRADE PACKAGE,DK.BROWN,TRIM07 |
1 | ||
| 58805-50080B0 |
UVF46 INTERIOR UPGRADE PACKAGE,GRAY,TRIM08,10,15,21 |
1 | ||
| 58805-50071E2 |
UVF46 BROWN,TRIM07 |
1 | ||
| 58805-50081E2 |
UVF46 INTERIOR UPGRADE PACKAGE,BROWN,TRIM07 |
1 | ||
| 58805-50070B1 |
UVF46 SILVER,TRIM05,06,14 |
1 | ||
| 58805-50081E1 |
UVF46 INTERIOR UPGRADE PACKAGE,BROWN,TRIM02,2# |
1 | ||
| 58805-50081B2 |
UVF46 INTERIOR UPGRADE PACKAGE,SILVER,TRIM05 |
1 | ||
| 58805-50071B1 |
UVF46 SILVER,TRIM05 |
1 | ||
| 58805-50081B0 |
UVF46 INTERIOR UPGRADE PACKAGE,GRAY,TRIM1# |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-5021010 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY,TRIM02 |
1 | ||
| 58810-50280A3 |
UVF46 MELLOW WHITE,TRIM05,07 |
1 | ||
| 58810-50280B1 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 58810-50300A3 |
UVF46 INTERIOR UPGRADE PACKAGE,MELLOW WHITE,TRIM05,07 |
1 | ||
| 58810-50280A4 |
UVF46 IVORY,TRIM02 |
1 | ||
| 58810-5021009 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE,TRIM05,07 |
1 | ||
| 58810-50300C1 |
UVF46 INTERIOR UPGRADE PACKAGE,BLACK,TRIM2# |
1 | ||
| 58810-50210B6 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),LT.GRAY,TRIM1# |
1 | ||
| 58810-50300B1 |
UVF46 INTERIOR UPGRADE PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 58810-50280C1 |
UVF46 BLACK,TRIM2# |
1 | ||
| 58810-5021110 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY,TRIM02 |
1 | ||
| 58810-5021109 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE,TRIM05,07 |
1 | ||
| 58810-50301A3 |
UVF46 INTERIOR UPGRADE PACKAGE,MELLOW WHITE,TRIM05,07 |
1 | ||
| 58810-50281B1 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 58810-50301B1 |
UVF46 INTERIOR UPGRADE PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 58810-50300A4 |
UVF46 INTERIOR UPGRADE PACKAGE,IVORY,TRIM02 |
1 | ||
| 58810-5021120 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK,TRIM2# |
1 | ||
| 58810-50211B6 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),LT.GRAY,TRIM1# |
1 | ||
| 58810-50281C1 |
UVF46 BLACK,TRIM2# |
1 | ||
| 58810-50301A4 |
UVF46 INTERIOR UPGRADE PACKAGE,IVORY,TRIM02 |
1 | ||
| 58810-50301C1 |
UVF46 INTERIOR UPGRADE PACKAGE,BLACK,TRIM2# |
1 | ||
| 58810-5021020 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK,TRIM2# |
1 | ||
| 58810-50281A4 |
UVF46 IVORY,TRIM02 |
1 | ||
| 58810-50281A3 |
UVF46 MELLOW WHITE,TRIM05,07 |
1 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-13082A0 |
UVF46 MELLOW WHITE |
6 | ||
| 58822A - PANEL, CONSOLE, UPPER REAR | ||||
| 58822-50100E2 |
UVF46 INTERIOR UPGRADE PACKAGE,DK.BROWN,TRIM07 |
1 | ||
| 58822-50100B0 |
UVF46 INTERIOR UPGRADE PACKAGE,GRAY,TRIM1# |
1 | ||
| 58822-50090B0 |
UVF46 GRAY,TRIM1# |
1 | ||
| 58822-50090B1 |
UVF46 SILVER,TRIM05 |
1 | ||
| 58822-50100E1 |
UVF46 INTERIOR UPGRADE PACKAGE,BROWN,TRIM02,2# |
1 | ||
| 58822-50090E1 |
UVF46 BROWN,TRIM02,2# |
1 | ||
| 58822-50101E2 |
UVF46 INTERIOR UPGRADE PACKAGE,BROWN,TRIM07 |
1 | ||
| 58822-50091B0 |
UVF46 GRAY,TRIM1# |
1 | ||
| 58822-50101B2 |
UVF46 INTERIOR UPGRADE PACKAGE,SILVER,TRIM05 |
1 | ||
| 58822-50091E2 |
UVF46 BROWN,TRIM07 |
1 | ||
| 58822-50091B1 |
UVF46 SILVER,TRIM05 |
1 | ||
| 58822-50090E2 |
UVF46 DK.BROWN,TRIM07 |
1 | ||
| 58822-50100B2 |
UVF46 INTERIOR UPGRADE PACKAGE,SILVER,TRIM05 |
1 | ||
| 58822-50101E1 |
UVF46 INTERIOR UPGRADE PACKAGE,BROWN,TRIM02,2# |
1 | ||
| 58822-50101B0 |
UVF46 INTERIOR UPGRADE PACKAGE,GRAY,TRIM1# |
1 | ||
| 58822-50091E1 |
UVF46 BROWN,TRIM02,2# |
1 | ||
| 58826A - POCKET, CONSOLE BOX, LOWER | ||||
| 58826-50020 |
UVF46 |
1 | ||
| 58826-50010 |
UVF46 WITH(REAR POWER SEAT)&WITH(REAR DISPLAY:ROOF) |
1 | ||
| 58834A - COVER, CONSOLE, LOWER | ||||
| 58834-50040 |
UVF46 |
1 | ||
| 58834-50050 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE) |
1 | ||
| 58865A - LENS, FRONT CONSOLE BOX, NO.1 | ||||
| 58865-50020 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE) |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-50060 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE) |
1 | ||
| 58907-50050 |
UVF46 |
1 | ||
| 58913A - PANEL, BOX, NO.3 | ||||
| 58913-50030A3 |
UVF46 WATER WHITE,TRIM14,15 |
1 | ||
| 58913-50030A2 |
UVF46 IVORY,TRIM02 |
1 | ||
| 58913-50030A1 |
UVF46 MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 58913-50030C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 58913-50030B0 |
UVF46 LT.GRAY,TRIM10 |
1 | ||
| 58920A - ARMREST ASSY, REAR CONSOLE | ||||
| 58920-50241B4 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),LT.GRAY,TRIM1# |
1 | ||
| 58920-5024005 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE,TRIM05,07 |
1 | ||
| 58920-5024006 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY,TRIM02 |
1 | ||
| 58920-5024106 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY,TRIM02 |
1 | ||
| 58920-50240C7 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK,TRIM2# |
1 | ||
| 58920-50241C7 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK,TRIM2# |
1 | ||
| 58920-50240B4 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),LT.GRAY,TRIM1# |
1 | ||
| 58920-5024105 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE,TRIM05,07 |
1 | ||
| 58989A - RETAINER, CONSOLE BOX | ||||
| 58989-30020 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE) |
4 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-50040 |
UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE) |
1 | ||
| Common parts | ||||
| 90119-06833 | None epc.PartDetail.None | |||
| 90159-50327 | None epc.PartDetail.None | |||
| 90467-10201 | None epc.PartDetail.None | |||
| 90467-12080 | None epc.PartDetail.None | |||
| 90468-04157 | None epc.PartDetail.None | |||
| 90468-04177 | None epc.PartDetail.None | |||
| 91651-60618 | None epc.PartDetail.None | |||
| 93540-54010 | None epc.PartDetail.None | |||
| 93568-54512 | None epc.PartDetail.None | |||
| 93568-55012 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 7404 | ||||
| 8121 | ||||
| 8202 | ||||
| 8221 | ||||
| 8401 | ||||
ILLUST NO. 3 OF 3(0911- )
W/O(REAR SEAT CONSOLE BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 589F6 - BRACKET, REAR SEAT CONSOLE BOX, LWR | ||||
| 589F6-50030 |
UVF46 |
1 | ||
| Common parts | ||||
| 90119-06018 | None epc.PartDetail.None | |||
| 90119-06833 | None epc.PartDetail.None | |||
ILLUST NO. 3 OF 3(0704-0911)
W(REAR SEAT CONSOLE BOX & OTTOMAN)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55635A - SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.2 | ||||
| 55635-50020 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
4 | ||
| 55635-50020 |
UVF46 |
4 | ||
| 55635-50020 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V) |
4 | ||
| 58623F - SILENCER, CENTER CONSOLE | ||||
| 58623-50010 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V) |
1 | ||
| 58623-50010 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
1 | ||
| 58812A - BOX, CONSOLE, LOWER | ||||
| 58812-50050 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V) |
1 | ||
| 58812-50050 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
1 | ||
| 58813 - BOX, CONSOLE, UPPER | ||||
| 58813-50030 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V) |
1 | ||
| 58813-50030 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-50060 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V) |
1 | ||
| 58901-50060 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
1 | ||
| 589A0 - TABLE ASSY, REAR SEAT CONSOLE | ||||
| 589A0-50030A4 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY/BROWN,TRIM02 |
1 | ||
| 589A0-50030A2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE/SILVER,TRIM05 |
1 | ||
| 589A0-50030A3 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE/BROWN,TRIM07 |
1 | ||
| 589A0-50030A3 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE/BROWN,TRIM07 |
1 | ||
| 589A0-50030A8 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE/SILVER,TRIM14 |
1 | ||
| 589A0-50030A8 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE/SILVER,TRIM14 |
1 | ||
| 589A0-50030A2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE/SILVER,TRIM05 |
1 | ||
| 589A0-50030B1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),LT.GRAY/GRAY,TRIM10 |
1 | ||
| 589A0-50030A4 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY/BROWN,TRIM02 |
1 | ||
| 589A0-50030A1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE/GRAY,TRIM08 |
1 | ||
| 589A0-50030B1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),LT.GRAY/GRAY,TRIM10 |
1 | ||
| 589A0-50030C0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK/BROWN,TRIM2# |
1 | ||
| 589A0-50030C0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK/BROWN,TRIM2# |
1 | ||
| 589A0-50030A1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE/GRAY,TRIM08 |
1 | ||
| 589A0-50030A7 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE/GRAY,TRIM15 |
1 | ||
| 589A0-50030A7 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE/GRAY,TRIM15 |
1 | ||
| 589AC - PLUG, REAR SEAT CONSOLE TABLE, NO.3 | ||||
| 589AC-50010 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
2 | ||
| 589AC-50010 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V) |
2 | ||
| 589E0 - ARMREST ASSY, REAR SEAT CONSOLE | ||||
| 589E0-50040A0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 589E0-50040A1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY,TRIM00,02,06 |
1 | ||
| 589E0-50040A2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE,TRIM14,15 |
1 | ||
| 589E0-50040A0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 589E0-50040C0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK,TRIM2# |
1 | ||
| 589E0-50040C0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK,TRIM2# |
1 | ||
| 589E0-50041A0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE,TRIM05,07 |
1 | ||
| 589E0-50040A1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY,TRIM00,02,06 |
1 | ||
| 589E0-50040A2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE,TRIM14,15 |
1 | ||
| 589E0-50040B0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),LIGHT GRAY,TRIM10,11 |
1 | ||
| 589E0-50041C0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK,TRIM2# |
1 | ||
| 589E0-50041A1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY,TRIM02 |
1 | ||
| 589E0-50041A0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE,TRIM05,07 |
1 | ||
| 589E0-50041A1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY,TRIM02 |
1 | ||
| 589E0-50041B0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),LIGHT GRAY,TRIM1# |
1 | ||
| 589E0-50041C0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK,TRIM2# |
1 | ||
| 589E0-50040B0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),LIGHT GRAY,TRIM10,11 |
1 | ||
| 589E0-50041B0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),LIGHT GRAY,TRIM1# |
1 | ||
| 589E1 - COVER, REAR SEAT CONSOLE ARMREST TRAY | ||||
| 589E1-50010 |
UVF46 REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
1 | ||
| 589E3 - BASE, REAR SEAT CONSOLE ARMREST | ||||
| 589E3-50050 |
UVF46 REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V) |
1 | ||
| 589E3-50060 |
UVF46 REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
1 | ||
| 589E3 - BASE, REAR SEAT CONSOLE ARMREST | ||||
| 589E3-50050 |
UVF46 REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V) |
1 | ||
| 589E3-50060 |
UVF46 REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
1 | ||
| 589E4 - COVER, REAR SEAT CONSOLE ARMREST | ||||
| 589E4-50020 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V) |
1 | ||
| 589E4-50020 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
1 | ||
| 589E5 - GARNISH, REAR SEAT CONSOLE ARMREST, RH | ||||
| 589E5-50030A3 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE,TRIM05,07 |
1 | ||
| 589E5-50030B1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),LT.GRAY,TRIM1# |
1 | ||
| 589E5-50030C1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK,TRIM2# |
1 | ||
| 589E5-50030A4 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY,TRIM02 |
1 | ||
| 589E5-50030B1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),LT.GRAY,TRIM1# |
1 | ||
| 589E5-50030A3 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE,TRIM05,07 |
1 | ||
| 589E5-50030A4 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY,TRIM02 |
1 | ||
| 589E5-50030C1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK,TRIM2# |
1 | ||
| 589E6 - GARNISH, REAR SEAT CONSOLE ARMREST, LH | ||||
| 589E6-50030A3 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE,TRIM05,07 |
1 | ||
| 589E6-50030A3 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE,TRIM05,07 |
1 | ||
| 589E6-50030B1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),LT.GRAY,TRIM1# |
1 | ||
| 589E6-50030A4 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY,TRIM02 |
1 | ||
| 589E6-50030C1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK,TRIM2# |
1 | ||
| 589E6-50030A4 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY,TRIM02 |
1 | ||
| 589E6-50030B1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),LT.GRAY,TRIM1# |
1 | ||
| 589E6-50030C1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK,TRIM2# |
1 | ||
| 589E9 - COVER, REAR SEAT CONSOLE TABLE, FR | ||||
| 589E9-50010A1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 589E9-50010A1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 589E9-50010A2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY,TRIM02 |
1 | ||
| 589E9-50010C0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK,TRIM2# |
1 | ||
| 589E9-50010A3 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE,TRIM14,15 |
1 | ||
| 589E9-50010A2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY,TRIM02 |
1 | ||
| 589E9-50010A3 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE,TRIM14,15 |
1 | ||
| 589E9-50010B0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),LT.GRAY,TRIM10 |
1 | ||
| 589E9-50010B0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),LT.GRAY,TRIM10 |
1 | ||
| 589E9-50010C0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK,TRIM2# |
1 | ||
| 589F0 - BOX ASSY, REAR SEAT CONSOLE | ||||
| 589F0-50020B2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),LT.GRAY/GRAY,TRIM1# |
1 | ||
| 589F0-5002007 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),B/MELLOW WHITE(SILVER),TRIM05 |
1 | ||
| 589F0-5002002 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE/BROWN,TRIM07 |
1 | ||
| 589F0-5002003 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY/BROWN,TRIM02 |
1 | ||
| 589F0-50020C2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK/BROWN,TRIM2# |
1 | ||
| 589F0-50020B2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),LT.GRAY/GRAY,TRIM1# |
1 | ||
| 589F0-5002007 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),B/MELLOW WHITE(SILVER),TRIM05 |
1 | ||
| 589F0-5002002 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE/BROWN,TRIM07 |
1 | ||
| 589F0-5002003 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY/BROWN,TRIM02 |
1 | ||
| 589F0-50020C2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK/BROWN,TRIM2# |
1 | ||
| 589F4 - PANEL, REAR SEAT CONSOLE BOX, RR | ||||
| 589F4-50010A2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY,TRIM02 |
1 | ||
| 589F4-50010A3 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE,TRIM14,15 |
1 | ||
| 589F4-50010A1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 589F4-50010B0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),LT.GRAY,TRIM10 |
1 | ||
| 589F4-50010C0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK,TRIM2# |
1 | ||
| 589F4-50010C0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK,TRIM2# |
1 | ||
| 589F4-50010B0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),LT.GRAY,TRIM10 |
1 | ||
| 589F4-50010A2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY,TRIM02 |
1 | ||
| 589F4-50010A1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 589F4-50010A3 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE,TRIM14,15 |
1 | ||
| 589F5 - BRACKET, REAR SEAT CONSOLE BOX, UPR | ||||
| 589F5-50010 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
1 | ||
| 589F5-50010 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V) |
1 | ||
| 589F6 - BRACKET, REAR SEAT CONSOLE BOX, LWR | ||||
| 589F6-50030 |
UVF46 |
1 | ||
| 589F8 - COVER, REAR SEAT CONSOLE BOX, LH | ||||
| 589F8-50010A2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY,TRIM02 |
1 | ||
| 589F8-50010A3 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE,TRIM14,15 |
1 | ||
| 589F8-50010A1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 589F8-50010A2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY,TRIM02 |
1 | ||
| 589F8-50010B0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),LT.GRAY,TRIM10 |
1 | ||
| 589F8-50010C0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK,TRIM2# |
1 | ||
| 589F8-50010A3 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE,TRIM14,15 |
1 | ||
| 589F8-50010B0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),LT.GRAY,TRIM10 |
1 | ||
| 589F8-50010C0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK,TRIM2# |
1 | ||
| 589F8-50010A1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 589F9 - COVER, REAR SEAT CONSOLE BOX, LWR | ||||
| 589F9-50020 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V) |
1 | ||
| 589F9-50020 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
1 | ||
| 589G0 - PANEL ASSY, REAR SEAT CONSOLE | ||||
| 589G0-50010B0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),GRAY,TRIM08,1#,21 |
1 | ||
| 589G0-50010B2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),SILVER,TRIM05 |
1 | ||
| 589G0-50010E1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BROWN,TRIM02,20 |
1 | ||
| 589G0-50010E1 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BROWN,TRIM02,20 |
1 | ||
| 589G0-50010E2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),DK.BROWN,TRIM07 |
1 | ||
| 589G0-50010B0 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),GRAY,TRIM08,1#,21 |
1 | ||
| 589G0-50010B2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),SILVER,TRIM05 |
1 | ||
| 589G0-50010E2 |
UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),DK.BROWN,TRIM07 |
1 | ||
| Common parts | ||||
| 90105-08253 | None epc.PartDetail.None | |||
| 90105-08328 | None epc.PartDetail.None | |||
| 90119-06018 | None epc.PartDetail.None | |||
| 90119-06833 | None epc.PartDetail.None | |||
| 90159-50322 | None epc.PartDetail.None | |||
| 90179-06274 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 8121 | ||||
| 8202 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
