UVF46L-AEXGHA (2008)
Toyota Lexus Ls600hl

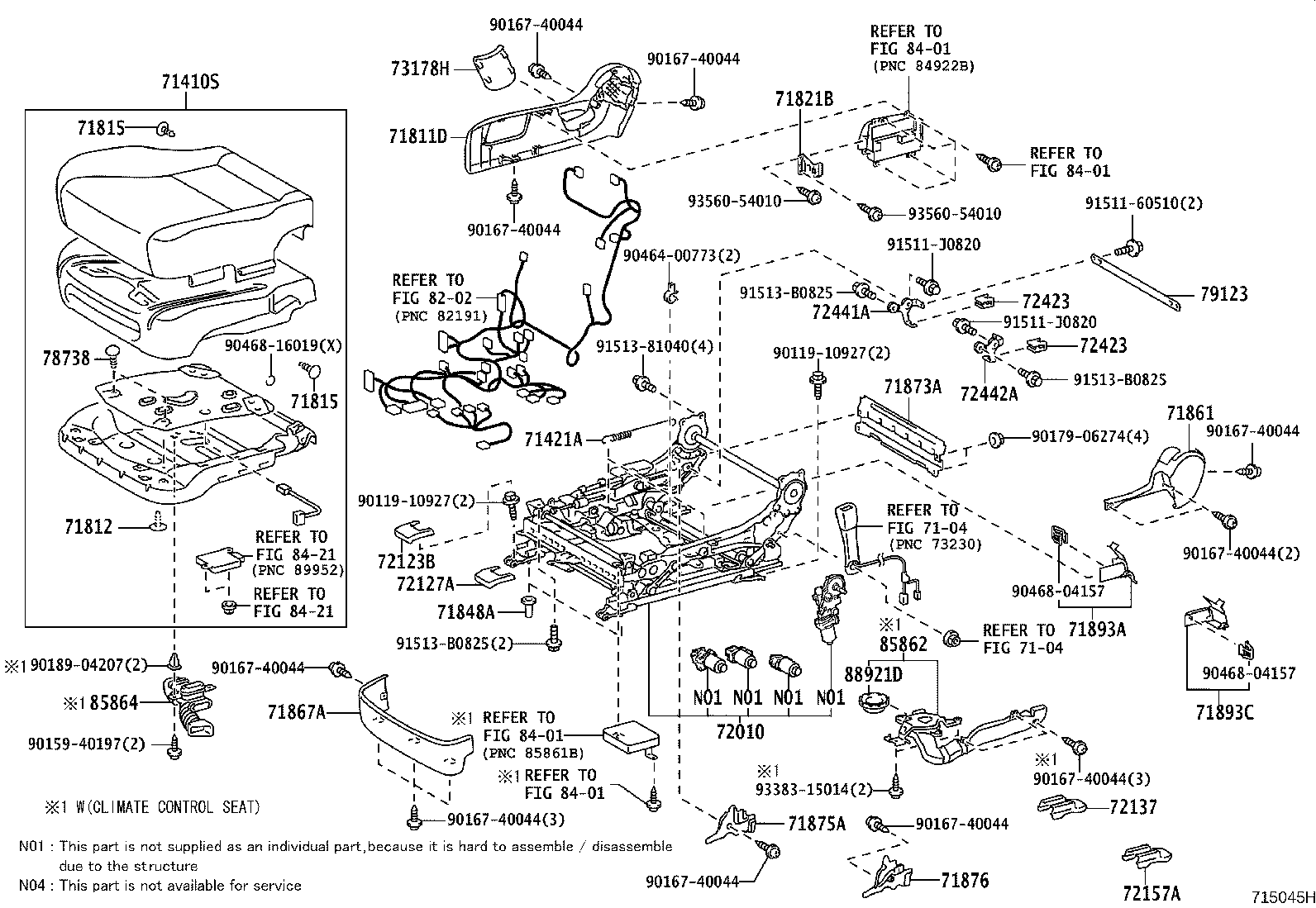

ILLUST NO. 4 OF 4(0704-1109)
PASSENGER SIDE(CUSHION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71001-50U50A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 71001-5AN90A0 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 71001-50U50A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71001-50U50B0 |
UVF46 LT.GRAY,TRIM10,12 |
1 | ||
| 71001-50U70B0 |
UVF46 INTERIOR PACKAGE,LT.GRAY,TRIM10,12 |
1 | ||
| 71001-50U70C0 |
UVF46 INTERIOR PACKAGE,BLACK,TRIM2# |
1 | ||
| 71001-50U70A0 |
UVF46 INTERIOR PACKAGE,IVORY,TRIM00 |
1 | ||
| 71001-50U50C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71001-50U70A1 |
UVF46 INTERIOR PACKAGE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71421A - SPRING, FRONT SEAT CUSHION | ||||
| 71421-50040 |
UVF46 |
4 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-50110B0 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71811-50110A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 71811-50110C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71811-50110A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90467-05161C0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK |
14 | ||
| 90467-05161C0 |
UVF46 BLACK |
18 | ||
| 90467-05161C0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK |
14 | ||
| 71815 - CLIP (FOR FRONT SEAT CUSHION COVER SET) | ||||
| 90467-06020C0 |
UVF46 INTERIOR PACKAGE,BLACK |
2 | ||
| 90467-06020C0 |
UVF46 BLACK |
4 | ||
| 71815 - CLIP (FOR FRONT SEAT CUSHION COVER SET) | ||||
| 90467-06020C0 |
UVF46 INTERIOR PACKAGE,BLACK |
2 | ||
| 90467-06020C0 |
UVF46 BLACK |
4 | ||
| 71821B - BRACKET, FRONT SEAT SHIELD SET, NO.1 | ||||
| 71821-50010 |
UVF46 |
2 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-33010 |
UVF46 INTERIOR PACKAGE |
4 | ||
| 71848-33010 |
UVF46 |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-50040A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 71861-50040B0 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71861-50040A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71861-50040C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-50040A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71867-50040A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 71867-50040B0 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71867-50040C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-50030 |
UVF46 |
2 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-50020B0 |
UVF46 LT.GRAY,TRIM1# |
2 | ||
| 71875-50020A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
2 | ||
| 71875-50020A0 |
UVF46 IVORY,TRIM00 |
2 | ||
| 71875-50020C0 |
UVF46 BLACK,TRIM2# |
2 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-50020A0 |
UVF46 IVORY,TRIM00 |
2 | ||
| 71876-50020B0 |
UVF46 LT.GRAY,TRIM1# |
2 | ||
| 71876-50020A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
2 | ||
| 71876-50020C0 |
UVF46 BLACK,TRIM2# |
2 | ||
| 71893A - SHIELD, POWER ADJUSTER, FRONT RH | ||||
| 71893-50010 |
UVF46 |
1 | ||
| 71893C - SHIELD, POWER ADJUSTER, INNER RH | ||||
| 71894-50010 |
UVF46 |
1 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-50111 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER) |
1 | ||
| 72010-50111 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER) |
1 | ||
| 72010-50160 |
UVF46 |
1 | ||
| 72123B - COVER, SEAT TRACK BRACKET, OUTER FRONT | ||||
| 72127-50040A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 72127-50040C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 72127-50040A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 72127-50040B0 |
UVF46 LT.GRAY,TRIM10,12 |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-50040B0 |
UVF46 LT.GRAY,TRIM10,12 |
1 | ||
| 72127-50040A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 72127-50040C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 72127-50040A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-50040B0 |
UVF46 LT.GRAY,TRIM10,12 |
1 | ||
| 72137-50040A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 72137-50040A1 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 72137-50040A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 72137-50040C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-50040A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 72157-50040C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 72157-50040B0 |
UVF46 LT.GRAY,TRIM10,12 |
1 | ||
| 72157-50040A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 72157-50040A1 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 72423 - HOOK, VERTICAL ADJUSTER SPRING | ||||
| 72423-50010 |
UVF46 |
4 | ||
| 72423 - HOOK, VERTICAL ADJUSTER SPRING | ||||
| 72423-50010 |
UVF46 |
4 | ||
| 72441A - LINK, FRONT SEAT TRAVEL, NO.1 | ||||
| 72441-50020 |
UVF46 |
2 | ||
| 72442A - LINK, FRONT SEAT TRAVEL, NO.2 | ||||
| 72442-50020 |
UVF46 |
2 | ||
| 73178H - CAP, SEAT BELT ANCHOR COVER, RH | ||||
| 73178-50060B0 |
UVF46 LT.GRAY,TRIM10,12 |
1 | ||
| 73178-50060A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 73178-50060A1 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 73178-50060A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 73178-50060C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 78738 - PIN, SUB SEAT CUSHION PIN | ||||
| 78738-0C010 |
UVF46 |
2 | ||
| 79123 - PLATE, NO.1 SEAT CUSHION | ||||
| 79123-50010 |
UVF46 |
2 | ||
| 85862 - BLOWER, SEAT CLIMATE CONTROL, RH | ||||
| 85862-50052 |
UVF46 |
1 | ||
| 85864 - CONTROLLER, SEAT CLIMATE CONTROL,RH | ||||
| 85864-50061 |
UVF46 |
1 | ||
| 88921D - FILTER, AIR, NO.1 | ||||
| 88921-50020 |
UVF46 |
2 | ||
| Common parts | ||||
| 90119-10927 | None epc.PartDetail.None | |||
| 90159-40197 | None epc.PartDetail.None | |||
| 90167-40044 | None epc.PartDetail.None | |||
| 90179-06274 | None epc.PartDetail.None | |||
| 90189-04207 | None epc.PartDetail.None | |||
| 90464-00773 | None epc.PartDetail.None | |||
| 90468-04157 | None epc.PartDetail.None | |||
| 90468-16019 | None epc.PartDetail.None | |||
| 91511-60510 | None epc.PartDetail.None | |||
| 91511-J0820 | None epc.PartDetail.None | |||
| 91513-81040 | None epc.PartDetail.None | |||
| 91513-B0825 | None epc.PartDetail.None | |||
| 93383-15014 | None epc.PartDetail.None | |||
| 93560-54010 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
ILLUST NO. 3 OF 4(0704- )
DRIVER SIDE(CUSHION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-50080 |
UVF46 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-50611A2 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71072-50581A4 |
UVF46 NEW IVORY,TRIM00 |
1 | ||
| 71072-50611A2 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00 |
1 | ||
| 71072-50611A2 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71072-50611A2 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),IVORY,TRIM00 |
1 | ||
| 71072-50581B2 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71072-50581C2 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71072-50650A0 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 71072-50611A2 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00 |
1 | ||
| 71072-50611A3 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71072-50581A5 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71072-50611A2 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71072-50611A2 |
UVF46 INTERIOR PACKAGE,IVORY,TRIM00 |
1 | ||
| 71072-50611A2 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71072-50611A3 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71072-50611B1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),LIGHT GRAY,TRIM1# |
1 | ||
| 71072-50611A3 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71072-50611A3 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71072-50611A3 |
UVF46 INTERIOR PACKAGE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71072-50611A3 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71072-50611A3 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71072-50611A3 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71072-50611A2 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),IVORY,TRIM00 |
1 | ||
| 71072-50611B1 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LIGHT GRAY,TRIM1# |
1 | ||
| 71072-50611B1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),LIGHT GRAY,TRIM1# |
1 | ||
| 71072-50611C1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71072-50611B1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LIGHT GRAY,TRIM1# |
1 | ||
| 71072-50611A3 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71072-50611B1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LIGHT GRAY,TRIM1# |
1 | ||
| 71072-50611B1 |
UVF46 INTERIOR PACKAGE,LIGHT GRAY,TRIM1# |
1 | ||
| 71072-50611B1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LIGHT GRAY,TRIM1# |
1 | ||
| 71072-50611B1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LIGHT GRAY,TRIM1# |
1 | ||
| 71072-50611C1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71072-50611B1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LIGHT GRAY,TRIM1# |
1 | ||
| 71072-50611C1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71072-50611C1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71072-50611C1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71072-50611C1 |
UVF46 INTERIOR PACKAGE,BLACK,TRIM2# |
1 | ||
| 71072-50611C1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2# |
1 | ||
| 71072-50611C1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71072-50611C1 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2# |
1 | ||
| 71421A - SPRING, FRONT SEAT CUSHION | ||||
| 71421-50040 |
UVF46 |
4 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-50171 |
UVF46 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90467-05161C0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK |
14 | ||
| 90467-05161C0 |
UVF46 BLACK |
18 | ||
| 90467-05161C0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK |
14 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-50120B0 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71812-50120A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71812-50120C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71812-50120A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 71815 - CLIP (FOR FRONT SEAT CUSHION COVER SET) | ||||
| 90467-06020C0 |
UVF46 INTERIOR PACKAGE,BLACK |
2 | ||
| 90467-06020C0 |
UVF46 BLACK |
4 | ||
| 71815 - CLIP (FOR FRONT SEAT CUSHION COVER SET) | ||||
| 90467-06020C0 |
UVF46 INTERIOR PACKAGE,BLACK |
2 | ||
| 90467-06020C0 |
UVF46 BLACK |
4 | ||
| 71821B - BRACKET, FRONT SEAT SHIELD SET, NO.1 | ||||
| 71821-50010 |
UVF46 |
2 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-50030C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71832-50030A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 71832-50030B0 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71832-50030A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-33010 |
UVF46 |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-50040B0 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71862-50040A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71862-50040C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71862-50040A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-50040A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 71868-50040B0 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71868-50040C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71868-50040A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-50030 |
UVF46 |
2 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-50020B0 |
UVF46 LT.GRAY,TRIM1# |
2 | ||
| 71875-50020A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
2 | ||
| 71875-50020A0 |
UVF46 IVORY,TRIM00 |
2 | ||
| 71875-50020C0 |
UVF46 BLACK,TRIM2# |
2 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-50020A0 |
UVF46 IVORY,TRIM00 |
2 | ||
| 71876-50020B0 |
UVF46 LT.GRAY,TRIM1# |
2 | ||
| 71876-50020A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
2 | ||
| 71876-50020C0 |
UVF46 BLACK,TRIM2# |
2 | ||
| 71894A - SHIELD, POWER ADJUSTER, FRONT LH | ||||
| 71893-50020 |
UVF46 |
1 | ||
| 71894C - SHIELD, POWER ADJUSTER, INNER LH | ||||
| 71894-50020 |
UVF46 |
1 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-50120 |
UVF46 |
1 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-50120 |
UVF46 |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72128-50030A1 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 72128-50030A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 72128-50030B0 |
UVF46 LT.GRAY,TRIM10,12 |
1 | ||
| 72128-50030A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 72128-50030C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72127-50050B0 |
UVF46 LT.GRAY,TRIM10,12 |
1 | ||
| 72127-50050A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 72127-50050A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 72127-50050C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-50050A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 72137-50050B0 |
UVF46 LT.GRAY,TRIM10,12 |
1 | ||
| 72137-50050A1 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 72137-50050A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 72137-50050C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-50050B0 |
UVF46 LT.GRAY,TRIM10,12 |
1 | ||
| 72158-50050C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 72158-50050A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 72158-50050A1 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 72158-50050A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 72423 - HOOK, VERTICAL ADJUSTER SPRING | ||||
| 72423-50010 |
UVF46 |
4 | ||
| 72423 - HOOK, VERTICAL ADJUSTER SPRING | ||||
| 72423-50010 |
UVF46 |
4 | ||
| 72441A - LINK, FRONT SEAT TRAVEL, NO.1 | ||||
| 72441-50020 |
UVF46 |
2 | ||
| 72442A - LINK, FRONT SEAT TRAVEL, NO.2 | ||||
| 72442-50020 |
UVF46 |
2 | ||
| 73179A - CAP, SEAT BELT ANCHOR COVER, LH | ||||
| 73179-50020C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 73179-50020A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 73179-50020B0 |
UVF46 LT.GRAY,TRIM10,12 |
1 | ||
| 73179-50020A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 73179-50020A1 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 79123 - PLATE, NO.1 SEAT CUSHION | ||||
| 79123-50010 |
UVF46 |
2 | ||
| 85863 - BLOWER, SEAT CLIMATE CONTROL, LH | ||||
| 85863-50052 |
UVF46 |
1 | ||
| 85865 - CONTROLLER, SEAT CLIMATE CONTROL,LH | ||||
| 85865-50061 |
UVF46 |
1 | ||
| 88921D - FILTER, AIR, NO.1 | ||||
| 88921-50020 |
UVF46 |
2 | ||
| Common parts | ||||
| 90119-10927 | None epc.PartDetail.None | |||
| 90159-40197 | None epc.PartDetail.None | |||
| 90167-40044 | None epc.PartDetail.None | |||
| 90179-06274 | None epc.PartDetail.None | |||
| 90189-04207 | None epc.PartDetail.None | |||
| 90464-00773 | None epc.PartDetail.None | |||
| 90468-04157 | None epc.PartDetail.None | |||
| 90468-16019 | None epc.PartDetail.None | |||
| 91511-60510 | None epc.PartDetail.None | |||
| 91511-J0820 | None epc.PartDetail.None | |||
| 91513-81040 | None epc.PartDetail.None | |||
| 91513-B0825 | None epc.PartDetail.None | |||
| 93313-14010 | None epc.PartDetail.None | |||
| 93383-15014 | None epc.PartDetail.None | |||
| 93560-14010 | None epc.PartDetail.None | |||
| 93560-54010 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||

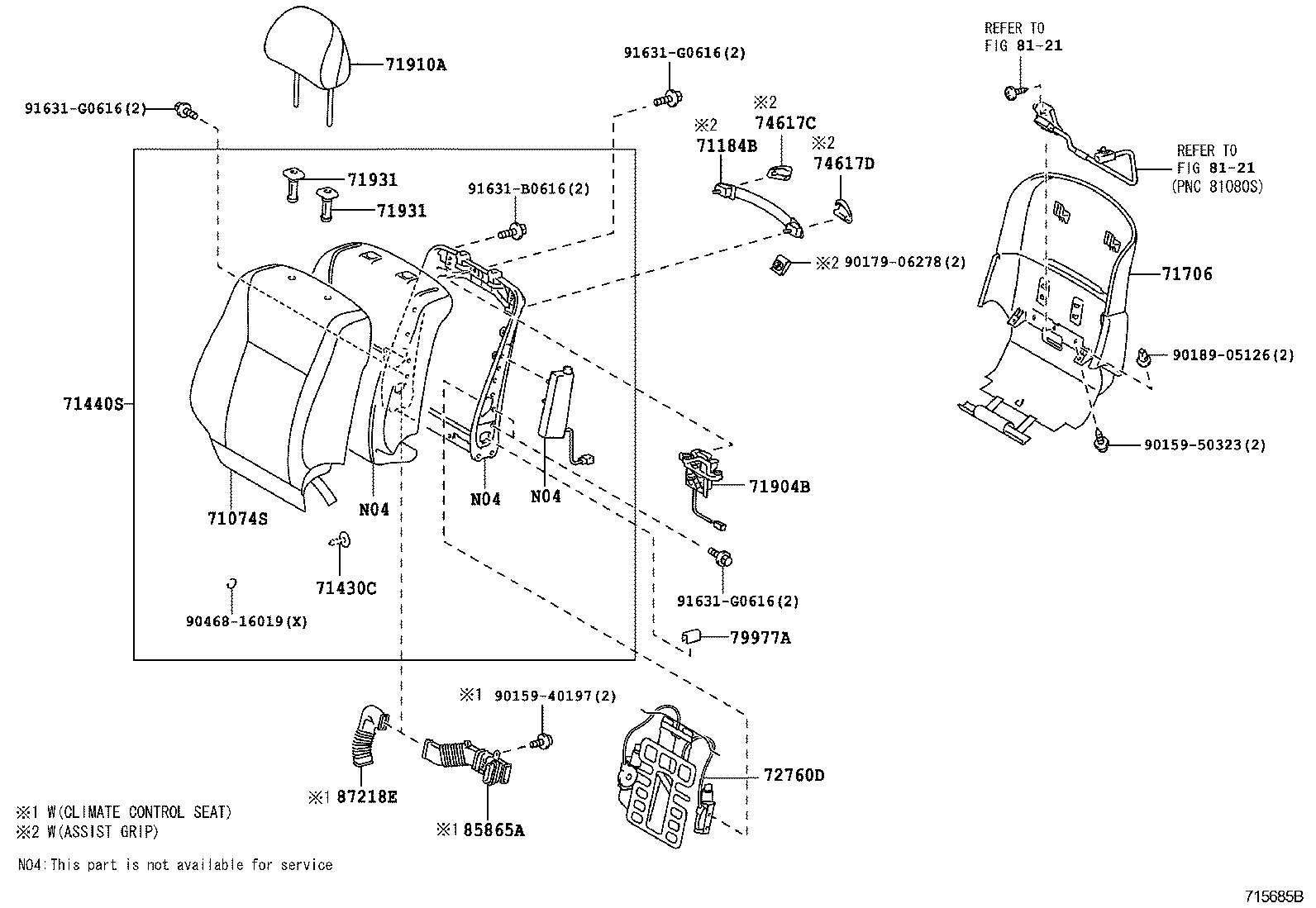

ILLUST NO. 1 OF 4(0704-0911)
DRIVER SIDE(BACK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-50B80A0 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 71074-50B40A2 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),IVORY,TRIM00 |
1 | ||
| 71074-50A40A2 |
UVF46 NEW IVORY,TRIM00 |
1 | ||
| 71074-50B40A2 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71074-50B40A2 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71074-50A40B1 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71074-50A40A3 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71074-50B40A3 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71074-50B40A2 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00 |
1 | ||
| 71074-50A40C1 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71074-50B40A3 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71074-50B40A3 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71074-50B40A3 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71074-50B40A3 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71074-50B40A2 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71074-50B40A2 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71074-50B40A2 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),IVORY,TRIM00 |
1 | ||
| 71074-50B40B1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),LIGHT GRAY,TRIM1# |
1 | ||
| 71074-50B40A2 |
UVF46 INTERIOR PACKAGE,IVORY,TRIM00 |
1 | ||
| 71074-50B40B1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LIGHT GRAY,TRIM1# |
1 | ||
| 71074-50B40A3 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71074-50B40B1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LIGHT GRAY,TRIM1# |
1 | ||
| 71074-50B40C1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71074-50B40C1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71074-50B40B1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LIGHT GRAY,TRIM1# |
1 | ||
| 71074-50B40A3 |
UVF46 INTERIOR PACKAGE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71074-50B40A3 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71074-50B40B1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LIGHT GRAY,TRIM1# |
1 | ||
| 71074-50B40A2 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00 |
1 | ||
| 71074-50B40C1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71074-50B40C1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71074-50B40B1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),LIGHT GRAY,TRIM1# |
1 | ||
| 71074-50B40C1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71074-50B40A3 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71074-50B40C1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2# |
1 | ||
| 71074-50B40C1 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2# |
1 | ||
| 71074-50B40B1 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LIGHT GRAY,TRIM1# |
1 | ||
| 71074-50B40B1 |
UVF46 INTERIOR PACKAGE,LIGHT GRAY,TRIM1# |
1 | ||
| 71074-50B40B1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LIGHT GRAY,TRIM1# |
1 | ||
| 71074-50B40C1 |
UVF46 INTERIOR PACKAGE,BLACK,TRIM2# |
1 | ||
| 71074-50B40C1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71184B - SUPPORT, FRONT SEAT BACK, LH | ||||
| 71026-50010A1 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71026-50010A0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,IVORY,TRIM00 |
1 | ||
| 71026-50010C0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,BLACK,TRIM2# |
1 | ||
| 71026-50010A1 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 71026-50010B0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,LT.GRAY,TRIM1# |
1 | ||
| 71430C - CLIP | ||||
| 90467-05161C0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK |
4 | ||
| 90467-05161C0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK |
4 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-50C80B2 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71440-50C80A5 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71440-50C80C2 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71440-50F10A2 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),IVORY,TRIM00 |
1 | ||
| 71440-50F10A3 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71440-50F10A2 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00 |
1 | ||
| 71440-50F10A2 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71440-50F10A2 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71440-50F10A2 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71440-50F10A3 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71440-50F60A0 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 71440-50F10A2 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),IVORY,TRIM00 |
1 | ||
| 71440-50F10A2 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71440-50F10A3 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71440-50C80A4 |
UVF46 IVORY,TRIM00 |
1 | ||
| 71440-50F10A2 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00 |
1 | ||
| 71440-50F10A2 |
UVF46 INTERIOR PACKAGE,IVORY,TRIM00 |
1 | ||
| 71440-50F10A3 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71440-50F10A3 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71440-50F10B1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),LT.GRAY,TRIM1# |
1 | ||
| 71440-50F10A3 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71440-50F10B1 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LT.GRAY,TRIM1# |
1 | ||
| 71440-50F10B1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
1 | ||
| 71440-50F10A3 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71440-50F10B1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
1 | ||
| 71440-50F10A3 |
UVF46 INTERIOR PACKAGE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71440-50F10C1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71440-50F10A3 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71440-50F10B1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LT.GRAY,TRIM1# |
1 | ||
| 71440-50F10B1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
1 | ||
| 71440-50F10C1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71440-50F10C1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71440-50F10B1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
1 | ||
| 71440-50F10B1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),LT.GRAY,TRIM1# |
1 | ||
| 71440-50F10C1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71440-50F10C1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71440-50F10C1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71440-50F10C1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2# |
1 | ||
| 71440-50F10C1 |
UVF46 INTERIOR PACKAGE,BLACK,TRIM2# |
1 | ||
| 71440-50F10B1 |
UVF46 INTERIOR PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 71440-50F10C1 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71706-50010A2 |
UVF46 IVORY,TRIM00 |
1 | ||
| 71706-50020A3 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71706-50010A3 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71706-50020B1 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,LT.GRAY,TRIM1# |
1 | ||
| 71706-50010C1 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71706-50010B1 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71706-50020C1 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,BLACK,TRIM2# |
1 | ||
| 71706-50020A2 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,IVORY,TRIM00 |
1 | ||
| 71904B - ADJUSTER SUB-ASSY, FRONT SEAT HEADREST | ||||
| 71904-50180 |
UVF46 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-50571A0 |
UVF46 IVORY,TRIM00 |
2 | ||
| 71910-50680A0 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 71910-50571B0 |
UVF46 LT.GRAY,TRIM1# |
2 | ||
| 71910-50651A0 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00,LH SEAT |
1 | ||
| 71910-50571A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651A0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
2 | ||
| 71910-50651A0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),IVORY,TRIM00 |
2 | ||
| 71910-50651A0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
2 | ||
| 71910-50651A0 |
UVF46 INTERIOR PACKAGE,IVORY,TRIM00 |
2 | ||
| 71910-50651A1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651A0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
2 | ||
| 71910-50651A1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651A1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651A0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00 |
2 | ||
| 71910-50651A0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
2 | ||
| 71910-50651A0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),IVORY,TRIM00 |
2 | ||
| 71910-50651A1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651A1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651B0 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LT.GRAY,TRIM1#,LH SEAT |
1 | ||
| 71910-50651B0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),LT.GRAY,TRIM1# |
2 | ||
| 71910-50651B0 |
UVF46 INTERIOR PACKAGE,LT.GRAY,TRIM1# |
2 | ||
| 71910-50651B0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),LT.GRAY,TRIM1# |
2 | ||
| 71910-50571C0 |
UVF46 BLACK,TRIM2# |
2 | ||
| 71910-50651B0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
2 | ||
| 71910-50651B0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
2 | ||
| 71910-50651B0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
2 | ||
| 71910-50651A1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651C0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
2 | ||
| 71910-50651A1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651A1 |
UVF46 INTERIOR PACKAGE,MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50671B0 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LT.GRAY,TRIM1#,RH SEAT |
1 | ||
| 71910-50651C0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
2 | ||
| 71910-50651A1 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05,LH SEAT |
1 | ||
| 71910-50651C0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
2 | ||
| 71910-50671C0 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2#,RH SEAT |
1 | ||
| 71910-50651C0 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2#,LH SEAT |
1 | ||
| 71910-50651B0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
2 | ||
| 71910-50651C0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),BLACK,TRIM2# |
2 | ||
| 71910-50671A0 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00,RH SEAT |
1 | ||
| 71910-50651C0 |
UVF46 INTERIOR PACKAGE,BLACK,TRIM2# |
2 | ||
| 71910-50651C0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),BLACK,TRIM2# |
2 | ||
| 71910-50651C0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
2 | ||
| 71910-50651B0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LT.GRAY,TRIM1# |
2 | ||
| 71910-50671A1 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05,RH SEAT |
1 | ||
| 71910-50651C0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-50060A1 |
UVF46 W/O(LOCK),PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 71931-50060A1 |
UVF46 W/O(LOCK),KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05 |
2 | ||
| 71931-50060A1 |
UVF46 W/O(LOCK),MELLOW WHITE,TRIM01,05 |
4 | ||
| 71931-50060B0 |
UVF46 W/O(LOCK),KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LT.GRAY,TRIM1# |
2 | ||
| 71931-50060A0 |
UVF46 W/O(LOCK),KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00 |
2 | ||
| 71931-50060A0 |
UVF46 W/O(LOCK),IVORY,TRIM00 |
4 | ||
| 71931-50060B0 |
UVF46 W/O(LOCK),LT.GRAY,TRIM1# |
4 | ||
| 71931-50060C0 |
UVF46 W/O(LOCK),BLACK,TRIM2# |
4 | ||
| 71931-50060C0 |
UVF46 W/O(LOCK),KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-50060A1 |
UVF46 W/O(LOCK),PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 71931-50060A1 |
UVF46 W/O(LOCK),KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05 |
2 | ||
| 71931-50060A1 |
UVF46 W/O(LOCK),MELLOW WHITE,TRIM01,05 |
4 | ||
| 71931-50060B0 |
UVF46 W/O(LOCK),KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LT.GRAY,TRIM1# |
2 | ||
| 71931-50060A0 |
UVF46 W/O(LOCK),KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00 |
2 | ||
| 71931-50060A0 |
UVF46 W/O(LOCK),IVORY,TRIM00 |
4 | ||
| 71931-50060B0 |
UVF46 W/O(LOCK),LT.GRAY,TRIM1# |
4 | ||
| 71931-50060C0 |
UVF46 W/O(LOCK),BLACK,TRIM2# |
4 | ||
| 71931-50060C0 |
UVF46 W/O(LOCK),KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2# |
2 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-50060 |
UVF46 |
1 | ||
| 72760-50080 |
UVF46 |
1 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-50020A1 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 74617-50020C0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,BLACK,TRIM2# |
2 | ||
| 74617-50020B0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,LT.GRAY,TRIM1# |
2 | ||
| 74617-50020A0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,IVORY,TRIM00 |
2 | ||
| 74617-50020A1 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,MELLOW WHITE,TRIM01,05 |
2 | ||
| 74617D - PLUG, ASSIST GRIP | ||||
| 74618-50020B0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,LT.GRAY,TRIM1# |
2 | ||
| 74618-50020A1 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 74618-50020C0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,BLACK,TRIM2# |
2 | ||
| 74618-50020A1 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,MELLOW WHITE,TRIM01,05 |
2 | ||
| 74618-50020A0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,IVORY,TRIM00 |
2 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-50010 |
UVF46 |
2 | ||
| 85865A - CONTROLLER, SEAT CLIMATE CONTROL, LH | ||||
| 85865-50070 |
UVF46 |
1 | ||
| 87218E - DUCT, AIR, RR NO.6 | ||||
| 87218-50050 |
UVF46 |
1 | ||
| Common parts | ||||
| 90159-40197 | None epc.PartDetail.None | |||
| 90159-50323 | None epc.PartDetail.None | |||
| 90179-06278 | None epc.PartDetail.None | |||
| 90189-05126 | None epc.PartDetail.None | |||
| 90468-16019 | None epc.PartDetail.None | |||
| 91631-B0616 | None epc.PartDetail.None | |||
| 91631-G0616 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 8121 | ||||

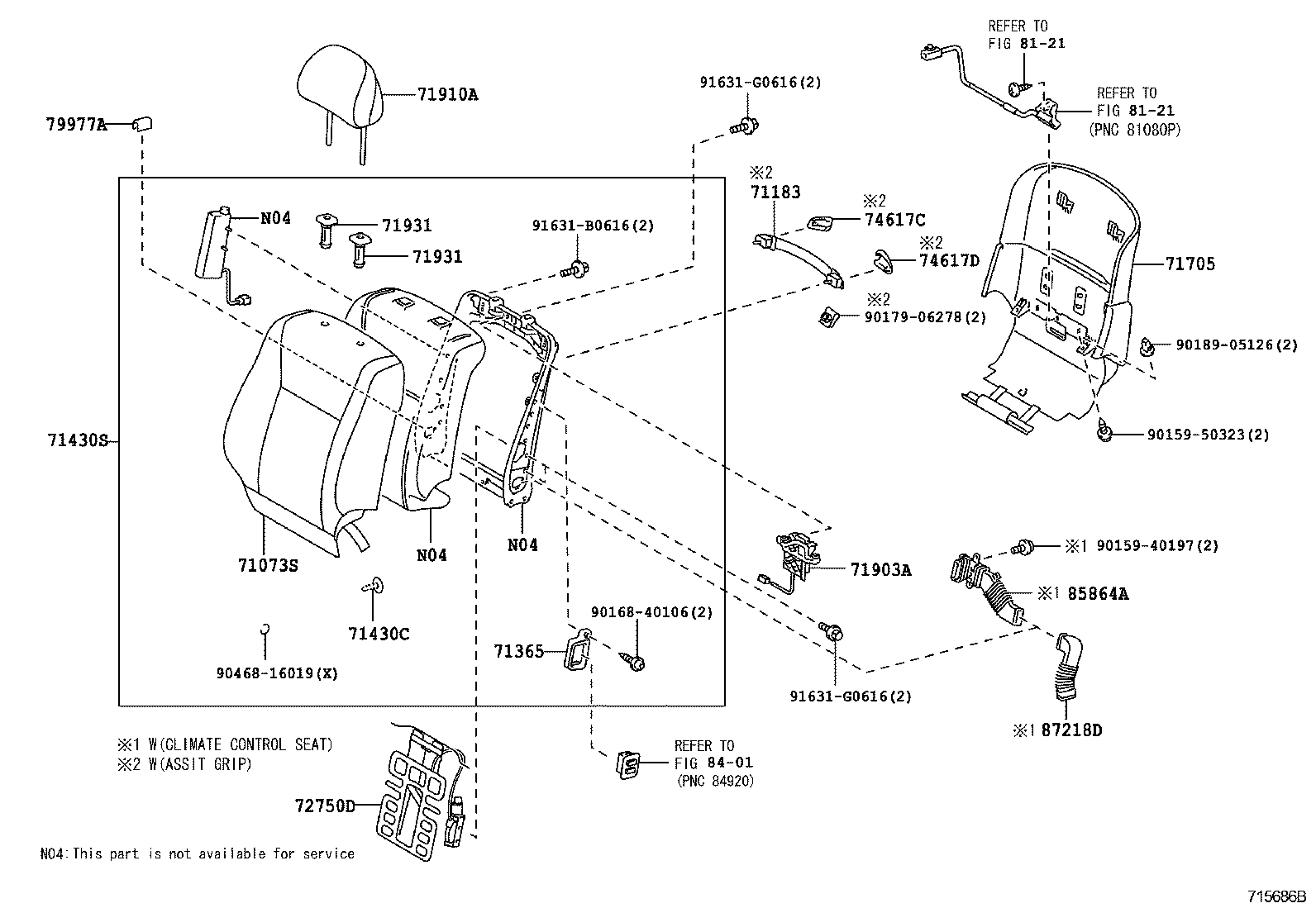

ILLUST NO. 2 OF 4(0704-0911)
PASSENGER SIDE(BACK)-LUMBER SUPORT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-50C50B1 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71073-50C50A2 |
UVF46 NEW IVORY,TRIM00 |
1 | ||
| 71073-50D20A0 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 71073-50C50C1 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71073-50C80A2 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),IVORY,TRIM00 |
1 | ||
| 71073-50C50A3 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71073-50C80A2 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71073-50C80A2 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71073-50C80A2 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),IVORY,TRIM00 |
1 | ||
| 71073-50C80A2 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00 |
1 | ||
| 71073-50C80A2 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71073-50C80A3 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71073-50C80A2 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71073-50C80A3 |
UVF46 INTERIOR PACKAGE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71073-50C80B1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LIGHT GRAY,TRIM1# |
1 | ||
| 71073-50C80A3 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71073-50C80A3 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71073-50C80A3 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71073-50C80B1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LIGHT GRAY,TRIM1# |
1 | ||
| 71073-50C80B1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LIGHT GRAY,TRIM1# |
1 | ||
| 71073-50C80A3 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71073-50C80B1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LIGHT GRAY,TRIM1# |
1 | ||
| 71073-50C80A3 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71073-50C80C1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71073-50C80C1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71073-50C80B1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LIGHT GRAY,TRIM1# |
1 | ||
| 71073-50C80A3 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71073-50C80B1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),LIGHT GRAY,TRIM1# |
1 | ||
| 71073-50C80A2 |
UVF46 INTERIOR PACKAGE,IVORY,TRIM00 |
1 | ||
| 71073-50C90A3 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71073-50C90B1 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LIGHT GRAY,TRIM1# |
1 | ||
| 71073-50C80C1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71073-50C80C1 |
UVF46 INTERIOR PACKAGE,BLACK,TRIM2# |
1 | ||
| 71073-50C80B1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),LIGHT GRAY,TRIM1# |
1 | ||
| 71073-50C80C1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71073-50C90A2 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00 |
1 | ||
| 71073-50C80B1 |
UVF46 INTERIOR PACKAGE,LIGHT GRAY,TRIM1# |
1 | ||
| 71073-50C80C1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71073-50C80C1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71073-50C90C1 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2# |
1 | ||
| 71073-50C80C1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2# |
1 | ||
| 71183 - SUPPORT, FRONT SEAT BACK, RH | ||||
| 71025-50010B0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,LT.GRAY,TRIM1# |
1 | ||
| 71025-50010A0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,IVORY,TRIM00 |
1 | ||
| 71025-50010A1 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71025-50010A1 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 71025-50010C0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,BLACK,TRIM2# |
1 | ||
| 71365 - BRACKET, FRONT SEAT SET, NO.5 | ||||
| 71365-50030 |
UVF46 |
1 | ||
| 71430C - CLIP | ||||
| 90467-05161C0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK |
4 | ||
| 90467-05161C0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK |
4 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-50D70A4 |
UVF46 IVORY,TRIM00 |
1 | ||
| 71430-50D70C2 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71430-50E40A2 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),IVORY,TRIM00 |
1 | ||
| 71430-50D70A5 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71430-50E80A0 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 71430-50E40A2 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71430-50E40A3 |
UVF46 INTERIOR PACKAGE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71430-50E40A2 |
UVF46 INTERIOR PACKAGE,IVORY,TRIM00 |
1 | ||
| 71430-50E40A2 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00 |
1 | ||
| 71430-50D70B2 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71430-50E40A3 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71430-50E40A2 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71430-50E40A2 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),IVORY,TRIM00 |
1 | ||
| 71430-50E40A2 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71430-50E40A3 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71430-50E40B1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),LT.GRAY,TRIM1# |
1 | ||
| 71430-50E40A3 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71430-50E40B1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
1 | ||
| 71430-50E40B1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
1 | ||
| 71430-50E40A3 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71430-50E40B1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LT.GRAY,TRIM1# |
1 | ||
| 71430-50E40A3 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71430-50E40A3 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71430-50E40C1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2# |
1 | ||
| 71430-50E40B1 |
UVF46 INTERIOR PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 71430-50E40B1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),LT.GRAY,TRIM1# |
1 | ||
| 71430-50E40C1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71430-50E40C1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71430-50E40B1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
1 | ||
| 71430-50E40A2 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71430-50E40C1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71430-50E40C1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71430-50E50A3 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71430-50E40C1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71430-50E40B1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
1 | ||
| 71430-50E50A2 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00 |
1 | ||
| 71430-50E40C1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71430-50E40C1 |
UVF46 INTERIOR PACKAGE,BLACK,TRIM2# |
1 | ||
| 71430-50E50C1 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2# |
1 | ||
| 71430-50E40A3 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71430-50E50B1 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LT.GRAY,TRIM1# |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-50230A3 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71705-50230A2 |
UVF46 IVORY,TRIM00 |
1 | ||
| 71705-50240C1 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,BLACK,TRIM2# |
1 | ||
| 71705-50230C1 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71705-50240A2 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,IVORY,TRIM00 |
1 | ||
| 71705-50240B1 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,LT.GRAY,TRIM1# |
1 | ||
| 71705-50230B1 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71705-50240A3 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71903A - ADJUSTER, FRONT SEAT HEADREST | ||||
| 71904-50180 |
UVF46 |
1 | ||
| 71904-50130 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-50571A0 |
UVF46 IVORY,TRIM00 |
2 | ||
| 71910-50680A0 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 71910-50571B0 |
UVF46 LT.GRAY,TRIM1# |
2 | ||
| 71910-50651A0 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00,LH SEAT |
1 | ||
| 71910-50571A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651A0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
2 | ||
| 71910-50651A0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),IVORY,TRIM00 |
2 | ||
| 71910-50651A0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
2 | ||
| 71910-50651A0 |
UVF46 INTERIOR PACKAGE,IVORY,TRIM00 |
2 | ||
| 71910-50651A1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651A0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
2 | ||
| 71910-50651A1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651A1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651A0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00 |
2 | ||
| 71910-50651A0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
2 | ||
| 71910-50651A0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),IVORY,TRIM00 |
2 | ||
| 71910-50651A1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651A1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651B0 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LT.GRAY,TRIM1#,LH SEAT |
1 | ||
| 71910-50651B0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),LT.GRAY,TRIM1# |
2 | ||
| 71910-50651B0 |
UVF46 INTERIOR PACKAGE,LT.GRAY,TRIM1# |
2 | ||
| 71910-50651B0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),LT.GRAY,TRIM1# |
2 | ||
| 71910-50571C0 |
UVF46 BLACK,TRIM2# |
2 | ||
| 71910-50651B0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
2 | ||
| 71910-50651B0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
2 | ||
| 71910-50651B0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
2 | ||
| 71910-50651A1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651C0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
2 | ||
| 71910-50651A1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651A1 |
UVF46 INTERIOR PACKAGE,MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50671B0 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LT.GRAY,TRIM1#,RH SEAT |
1 | ||
| 71910-50651C0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
2 | ||
| 71910-50651A1 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05,LH SEAT |
1 | ||
| 71910-50651C0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
2 | ||
| 71910-50671C0 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2#,RH SEAT |
1 | ||
| 71910-50651C0 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2#,LH SEAT |
1 | ||
| 71910-50651B0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
2 | ||
| 71910-50651C0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),BLACK,TRIM2# |
2 | ||
| 71910-50671A0 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00,RH SEAT |
1 | ||
| 71910-50651C0 |
UVF46 INTERIOR PACKAGE,BLACK,TRIM2# |
2 | ||
| 71910-50651C0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),BLACK,TRIM2# |
2 | ||
| 71910-50651C0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
2 | ||
| 71910-50651B0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LT.GRAY,TRIM1# |
2 | ||
| 71910-50671A1 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05,RH SEAT |
1 | ||
| 71910-50651C0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-50060A1 |
UVF46 W/O(LOCK),PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 71931-50060A1 |
UVF46 W/O(LOCK),KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05 |
2 | ||
| 71931-50060A1 |
UVF46 W/O(LOCK),MELLOW WHITE,TRIM01,05 |
4 | ||
| 71931-50060B0 |
UVF46 W/O(LOCK),KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LT.GRAY,TRIM1# |
2 | ||
| 71931-50060A0 |
UVF46 W/O(LOCK),KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00 |
2 | ||
| 71931-50060A0 |
UVF46 W/O(LOCK),IVORY,TRIM00 |
4 | ||
| 71931-50060B0 |
UVF46 W/O(LOCK),LT.GRAY,TRIM1# |
4 | ||
| 71931-50060C0 |
UVF46 W/O(LOCK),BLACK,TRIM2# |
4 | ||
| 71931-50060C0 |
UVF46 W/O(LOCK),KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-50060A1 |
UVF46 W/O(LOCK),PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 71931-50060A1 |
UVF46 W/O(LOCK),KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05 |
2 | ||
| 71931-50060A1 |
UVF46 W/O(LOCK),MELLOW WHITE,TRIM01,05 |
4 | ||
| 71931-50060B0 |
UVF46 W/O(LOCK),KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LT.GRAY,TRIM1# |
2 | ||
| 71931-50060A0 |
UVF46 W/O(LOCK),KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00 |
2 | ||
| 71931-50060A0 |
UVF46 W/O(LOCK),IVORY,TRIM00 |
4 | ||
| 71931-50060B0 |
UVF46 W/O(LOCK),LT.GRAY,TRIM1# |
4 | ||
| 71931-50060C0 |
UVF46 W/O(LOCK),BLACK,TRIM2# |
4 | ||
| 71931-50060C0 |
UVF46 W/O(LOCK),KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-50070 |
UVF46 |
1 | ||
| 72750-50100 |
UVF46 |
1 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-50020A1 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 74617-50020C0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,BLACK,TRIM2# |
2 | ||
| 74617-50020B0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,LT.GRAY,TRIM1# |
2 | ||
| 74617-50020A0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,IVORY,TRIM00 |
2 | ||
| 74617-50020A1 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,MELLOW WHITE,TRIM01,05 |
2 | ||
| 74617D - PLUG, ASSIST GRIP | ||||
| 74618-50020B0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,LT.GRAY,TRIM1# |
2 | ||
| 74618-50020A1 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 74618-50020C0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,BLACK,TRIM2# |
2 | ||
| 74618-50020A1 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,MELLOW WHITE,TRIM01,05 |
2 | ||
| 74618-50020A0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,IVORY,TRIM00 |
2 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-50010 |
UVF46 |
2 | ||
| 85864A - CONTROLLER, SEAT CLIMATE CONTROL, RH | ||||
| 85864-50080 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER) |
1 | ||
| 85864-50070 |
UVF46 |
1 | ||
| 87218D - DUCT, AIR, RR NO.6 | ||||
| 87218-50040 |
UVF46 |
1 | ||
| Common parts | ||||
| 90159-40197 | None epc.PartDetail.None | |||
| 90159-50323 | None epc.PartDetail.None | |||
| 90168-40106 | None epc.PartDetail.None | |||
| 90179-06278 | None epc.PartDetail.None | |||
| 90189-05126 | None epc.PartDetail.None | |||
| 90468-16019 | None epc.PartDetail.None | |||
| 91631-B0616 | None epc.PartDetail.None | |||
| 91631-G0616 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 4(0704- )
PASSENGER SIDE(BACK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-50C50B1 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71073-50C50A2 |
UVF46 NEW IVORY,TRIM00 |
1 | ||
| 71073-50D20A0 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 71073-50C50C1 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71073-50C80A2 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),IVORY,TRIM00 |
1 | ||
| 71073-50C50A3 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71073-50C80A2 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71073-50C80A2 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71073-50C80A2 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),IVORY,TRIM00 |
1 | ||
| 71073-50C80A2 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00 |
1 | ||
| 71073-50C80A2 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71073-50C80A3 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71073-50C80A2 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71073-50C80A3 |
UVF46 INTERIOR PACKAGE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71073-50C80B1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LIGHT GRAY,TRIM1# |
1 | ||
| 71073-50C80A3 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71073-50C80A3 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71073-50C80A3 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71073-50C80B1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LIGHT GRAY,TRIM1# |
1 | ||
| 71073-50C80B1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LIGHT GRAY,TRIM1# |
1 | ||
| 71073-50C80A3 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71073-50C80B1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LIGHT GRAY,TRIM1# |
1 | ||
| 71073-50C80A3 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71073-50C80C1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71073-50C80C1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71073-50C80B1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LIGHT GRAY,TRIM1# |
1 | ||
| 71073-50C80A3 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71073-50C80B1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),LIGHT GRAY,TRIM1# |
1 | ||
| 71073-50C80A2 |
UVF46 INTERIOR PACKAGE,IVORY,TRIM00 |
1 | ||
| 71073-50C90A3 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71073-50C90B1 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LIGHT GRAY,TRIM1# |
1 | ||
| 71073-50C80C1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71073-50C80C1 |
UVF46 INTERIOR PACKAGE,BLACK,TRIM2# |
1 | ||
| 71073-50C80B1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),LIGHT GRAY,TRIM1# |
1 | ||
| 71073-50C80C1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71073-50C90A2 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00 |
1 | ||
| 71073-50C80B1 |
UVF46 INTERIOR PACKAGE,LIGHT GRAY,TRIM1# |
1 | ||
| 71073-50C80C1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71073-50C80C1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71073-50C90C1 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2# |
1 | ||
| 71073-50C80C1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2# |
1 | ||
| 71365 - BRACKET, FRONT SEAT SET, NO.5 | ||||
| 71365-50030 |
UVF46 |
1 | ||
| 71430C - CLIP | ||||
| 90467-05161C0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK |
4 | ||
| 90467-05161C0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK |
4 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-50D70A4 |
UVF46 IVORY,TRIM00 |
1 | ||
| 71430-50D70C2 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71430-50E40A2 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),IVORY,TRIM00 |
1 | ||
| 71430-50D70A5 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71430-50E80A0 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 71430-50E40A2 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71430-50E40A3 |
UVF46 INTERIOR PACKAGE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71430-50E40A2 |
UVF46 INTERIOR PACKAGE,IVORY,TRIM00 |
1 | ||
| 71430-50E40A2 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00 |
1 | ||
| 71430-50D70B2 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71430-50E40A3 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71430-50E40A2 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71430-50E40A2 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),IVORY,TRIM00 |
1 | ||
| 71430-50E40A2 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71430-50E40A3 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71430-50E40B1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),LT.GRAY,TRIM1# |
1 | ||
| 71430-50E40A3 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71430-50E40B1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
1 | ||
| 71430-50E40B1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
1 | ||
| 71430-50E40A3 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71430-50E40B1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LT.GRAY,TRIM1# |
1 | ||
| 71430-50E40A3 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71430-50E40A3 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71430-50E40C1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2# |
1 | ||
| 71430-50E40B1 |
UVF46 INTERIOR PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 71430-50E40B1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),LT.GRAY,TRIM1# |
1 | ||
| 71430-50E40C1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71430-50E40C1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71430-50E40B1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
1 | ||
| 71430-50E40A2 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71430-50E40C1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71430-50E40C1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71430-50E50A3 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71430-50E40C1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71430-50E40B1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
1 | ||
| 71430-50E50A2 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00 |
1 | ||
| 71430-50E40C1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71430-50E40C1 |
UVF46 INTERIOR PACKAGE,BLACK,TRIM2# |
1 | ||
| 71430-50E50C1 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2# |
1 | ||
| 71430-50E40A3 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71430-50E50B1 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LT.GRAY,TRIM1# |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-50230A3 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71705-50230A2 |
UVF46 IVORY,TRIM00 |
1 | ||
| 71705-50240C1 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,BLACK,TRIM2# |
1 | ||
| 71705-50230C1 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71705-50240A2 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,IVORY,TRIM00 |
1 | ||
| 71705-50240B1 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,LT.GRAY,TRIM1# |
1 | ||
| 71705-50230B1 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71705-50240A3 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71903A - ADJUSTER, FRONT SEAT HEADREST | ||||
| 71904-50180 |
UVF46 |
1 | ||
| 71904-50130 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-50571A0 |
UVF46 IVORY,TRIM00 |
2 | ||
| 71910-50680A0 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 71910-50571B0 |
UVF46 LT.GRAY,TRIM1# |
2 | ||
| 71910-50651A0 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00,LH SEAT |
1 | ||
| 71910-50571A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651A0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
2 | ||
| 71910-50651A0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),IVORY,TRIM00 |
2 | ||
| 71910-50651A0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
2 | ||
| 71910-50651A0 |
UVF46 INTERIOR PACKAGE,IVORY,TRIM00 |
2 | ||
| 71910-50651A1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651A0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
2 | ||
| 71910-50651A1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651A1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651A0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00 |
2 | ||
| 71910-50651A0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
2 | ||
| 71910-50651A0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),IVORY,TRIM00 |
2 | ||
| 71910-50651A1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651A1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651B0 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LT.GRAY,TRIM1#,LH SEAT |
1 | ||
| 71910-50651B0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),LT.GRAY,TRIM1# |
2 | ||
| 71910-50651B0 |
UVF46 INTERIOR PACKAGE,LT.GRAY,TRIM1# |
2 | ||
| 71910-50651B0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),LT.GRAY,TRIM1# |
2 | ||
| 71910-50571C0 |
UVF46 BLACK,TRIM2# |
2 | ||
| 71910-50651B0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
2 | ||
| 71910-50651B0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
2 | ||
| 71910-50651B0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
2 | ||
| 71910-50651A1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651C0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
2 | ||
| 71910-50651A1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651A1 |
UVF46 INTERIOR PACKAGE,MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50671B0 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LT.GRAY,TRIM1#,RH SEAT |
1 | ||
| 71910-50651C0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
2 | ||
| 71910-50651A1 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05,LH SEAT |
1 | ||
| 71910-50651C0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
2 | ||
| 71910-50671C0 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2#,RH SEAT |
1 | ||
| 71910-50651C0 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2#,LH SEAT |
1 | ||
| 71910-50651B0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
2 | ||
| 71910-50651C0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),BLACK,TRIM2# |
2 | ||
| 71910-50671A0 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00,RH SEAT |
1 | ||
| 71910-50651C0 |
UVF46 INTERIOR PACKAGE,BLACK,TRIM2# |
2 | ||
| 71910-50651C0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),BLACK,TRIM2# |
2 | ||
| 71910-50651C0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
2 | ||
| 71910-50651B0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LT.GRAY,TRIM1# |
2 | ||
| 71910-50671A1 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05,RH SEAT |
1 | ||
| 71910-50651C0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2# |
2 | ||
| 71925A - COVER, FRONT SEAT HEADREST STAY,RH | ||||
| 71925-50010 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER) |
1 | ||
| 72380 - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 | ||||
| 72380-50070 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER) |
1 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-50010 |
UVF46 |
2 | ||
| 85820Z - MOTOR ASSY, POWER SEAT | ||||
| 85820-50180 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER) |
1 | ||
| 85864A - CONTROLLER, SEAT CLIMATE CONTROL, RH | ||||
| 85864-50080 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER) |
1 | ||
| 85864-50070 |
UVF46 |
1 | ||
| 87218D - DUCT, AIR, RR NO.6 | ||||
| 87218-50040 |
UVF46 |
1 | ||
| Common parts | ||||
| 90159-40197 | None epc.PartDetail.None | |||
| 90159-50323 | None epc.PartDetail.None | |||
| 90168-40043 | None epc.PartDetail.None | |||
| 90168-40106 | None epc.PartDetail.None | |||
| 90189-05126 | None epc.PartDetail.None | |||
| 90468-16019 | None epc.PartDetail.None | |||
| 91631-60816 | None epc.PartDetail.None | |||
| 91631-B0616 | None epc.PartDetail.None | |||
| 93313-14010 | None epc.PartDetail.None | |||
| 93313-14016 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(0911- )
DRIVER SIDE(BACK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-50B80A0 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 71074-50B40A2 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),IVORY,TRIM00 |
1 | ||
| 71074-50A40A2 |
UVF46 NEW IVORY,TRIM00 |
1 | ||
| 71074-50B40A2 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71074-50B40A2 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71074-50A40B1 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71074-50A40A3 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71074-50B40A3 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71074-50B40A2 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00 |
1 | ||
| 71074-50A40C1 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71074-50B40A3 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71074-50B40A3 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71074-50B40A3 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71074-50B40A3 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71074-50B40A2 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71074-50B40A2 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71074-50B40A2 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),IVORY,TRIM00 |
1 | ||
| 71074-50B40B1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),LIGHT GRAY,TRIM1# |
1 | ||
| 71074-50B40A2 |
UVF46 INTERIOR PACKAGE,IVORY,TRIM00 |
1 | ||
| 71074-50B40B1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LIGHT GRAY,TRIM1# |
1 | ||
| 71074-50B40A3 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71074-50B40B1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LIGHT GRAY,TRIM1# |
1 | ||
| 71074-50B40C1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71074-50B40C1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71074-50B40B1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LIGHT GRAY,TRIM1# |
1 | ||
| 71074-50B40A3 |
UVF46 INTERIOR PACKAGE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71074-50B40A3 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71074-50B40B1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LIGHT GRAY,TRIM1# |
1 | ||
| 71074-50B40A2 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00 |
1 | ||
| 71074-50B40C1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71074-50B40C1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71074-50B40B1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),LIGHT GRAY,TRIM1# |
1 | ||
| 71074-50B40C1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71074-50B40A3 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71074-50B40C1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2# |
1 | ||
| 71074-50B40C1 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2# |
1 | ||
| 71074-50B40B1 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LIGHT GRAY,TRIM1# |
1 | ||
| 71074-50B40B1 |
UVF46 INTERIOR PACKAGE,LIGHT GRAY,TRIM1# |
1 | ||
| 71074-50B40B1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LIGHT GRAY,TRIM1# |
1 | ||
| 71074-50B40C1 |
UVF46 INTERIOR PACKAGE,BLACK,TRIM2# |
1 | ||
| 71074-50B40C1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71184B - SUPPORT, FRONT SEAT BACK, LH | ||||
| 71026-50010A1 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71026-50010A0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,IVORY,TRIM00 |
1 | ||
| 71026-50010C0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,BLACK,TRIM2# |
1 | ||
| 71026-50010A1 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 71026-50010B0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,LT.GRAY,TRIM1# |
1 | ||
| 71430C - CLIP | ||||
| 90467-05161C0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK |
4 | ||
| 90467-05161C0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK |
4 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-50C80B2 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71440-50C80A5 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71440-50C80C2 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71440-50F10A2 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),IVORY,TRIM00 |
1 | ||
| 71440-50F10A3 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71440-50F10A2 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00 |
1 | ||
| 71440-50F10A2 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71440-50F10A2 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71440-50F10A2 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71440-50F10A3 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71440-50F60A0 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 71440-50F10A2 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),IVORY,TRIM00 |
1 | ||
| 71440-50F10A2 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71440-50F10A3 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71440-50C80A4 |
UVF46 IVORY,TRIM00 |
1 | ||
| 71440-50F10A2 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00 |
1 | ||
| 71440-50F10A2 |
UVF46 INTERIOR PACKAGE,IVORY,TRIM00 |
1 | ||
| 71440-50F10A3 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71440-50F10A3 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71440-50F10B1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),LT.GRAY,TRIM1# |
1 | ||
| 71440-50F10A3 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71440-50F10B1 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LT.GRAY,TRIM1# |
1 | ||
| 71440-50F10B1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
1 | ||
| 71440-50F10A3 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71440-50F10B1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
1 | ||
| 71440-50F10A3 |
UVF46 INTERIOR PACKAGE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71440-50F10C1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71440-50F10A3 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71440-50F10B1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LT.GRAY,TRIM1# |
1 | ||
| 71440-50F10B1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
1 | ||
| 71440-50F10C1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71440-50F10C1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71440-50F10B1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
1 | ||
| 71440-50F10B1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),LT.GRAY,TRIM1# |
1 | ||
| 71440-50F10C1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71440-50F10C1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71440-50F10C1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71440-50F10C1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2# |
1 | ||
| 71440-50F10C1 |
UVF46 INTERIOR PACKAGE,BLACK,TRIM2# |
1 | ||
| 71440-50F10B1 |
UVF46 INTERIOR PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 71440-50F10C1 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71706-50010A2 |
UVF46 IVORY,TRIM00 |
1 | ||
| 71706-50020A3 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71706-50010A3 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71706-50020B1 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,LT.GRAY,TRIM1# |
1 | ||
| 71706-50010C1 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71706-50010B1 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71706-50020C1 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,BLACK,TRIM2# |
1 | ||
| 71706-50020A2 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,IVORY,TRIM00 |
1 | ||
| 71904B - ADJUSTER SUB-ASSY, FRONT SEAT HEADREST | ||||
| 71904-50180 |
UVF46 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-50571A0 |
UVF46 IVORY,TRIM00 |
2 | ||
| 71910-50680A0 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 71910-50571B0 |
UVF46 LT.GRAY,TRIM1# |
2 | ||
| 71910-50651A0 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00,LH SEAT |
1 | ||
| 71910-50571A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651A0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
2 | ||
| 71910-50651A0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),IVORY,TRIM00 |
2 | ||
| 71910-50651A0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
2 | ||
| 71910-50651A0 |
UVF46 INTERIOR PACKAGE,IVORY,TRIM00 |
2 | ||
| 71910-50651A1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651A0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
2 | ||
| 71910-50651A1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651A1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651A0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00 |
2 | ||
| 71910-50651A0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
2 | ||
| 71910-50651A0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),IVORY,TRIM00 |
2 | ||
| 71910-50651A1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651A1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651B0 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LT.GRAY,TRIM1#,LH SEAT |
1 | ||
| 71910-50651B0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),LT.GRAY,TRIM1# |
2 | ||
| 71910-50651B0 |
UVF46 INTERIOR PACKAGE,LT.GRAY,TRIM1# |
2 | ||
| 71910-50651B0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),LT.GRAY,TRIM1# |
2 | ||
| 71910-50571C0 |
UVF46 BLACK,TRIM2# |
2 | ||
| 71910-50651B0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
2 | ||
| 71910-50651B0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
2 | ||
| 71910-50651B0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
2 | ||
| 71910-50651A1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651C0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
2 | ||
| 71910-50651A1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651A1 |
UVF46 INTERIOR PACKAGE,MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50671B0 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LT.GRAY,TRIM1#,RH SEAT |
1 | ||
| 71910-50651C0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
2 | ||
| 71910-50651A1 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05,LH SEAT |
1 | ||
| 71910-50651C0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
2 | ||
| 71910-50671C0 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2#,RH SEAT |
1 | ||
| 71910-50651C0 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2#,LH SEAT |
1 | ||
| 71910-50651B0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
2 | ||
| 71910-50651C0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),BLACK,TRIM2# |
2 | ||
| 71910-50671A0 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00,RH SEAT |
1 | ||
| 71910-50651C0 |
UVF46 INTERIOR PACKAGE,BLACK,TRIM2# |
2 | ||
| 71910-50651C0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),BLACK,TRIM2# |
2 | ||
| 71910-50651C0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
2 | ||
| 71910-50651B0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LT.GRAY,TRIM1# |
2 | ||
| 71910-50671A1 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05,RH SEAT |
1 | ||
| 71910-50651C0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-50060A1 |
UVF46 W/O(LOCK),PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 71931-50060A1 |
UVF46 W/O(LOCK),KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05 |
2 | ||
| 71931-50060A1 |
UVF46 W/O(LOCK),MELLOW WHITE,TRIM01,05 |
4 | ||
| 71931-50060B0 |
UVF46 W/O(LOCK),KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LT.GRAY,TRIM1# |
2 | ||
| 71931-50060A0 |
UVF46 W/O(LOCK),KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00 |
2 | ||
| 71931-50060A0 |
UVF46 W/O(LOCK),IVORY,TRIM00 |
4 | ||
| 71931-50060B0 |
UVF46 W/O(LOCK),LT.GRAY,TRIM1# |
4 | ||
| 71931-50060C0 |
UVF46 W/O(LOCK),BLACK,TRIM2# |
4 | ||
| 71931-50060C0 |
UVF46 W/O(LOCK),KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-50060A1 |
UVF46 W/O(LOCK),PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 71931-50060A1 |
UVF46 W/O(LOCK),KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05 |
2 | ||
| 71931-50060A1 |
UVF46 W/O(LOCK),MELLOW WHITE,TRIM01,05 |
4 | ||
| 71931-50060B0 |
UVF46 W/O(LOCK),KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LT.GRAY,TRIM1# |
2 | ||
| 71931-50060A0 |
UVF46 W/O(LOCK),KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00 |
2 | ||
| 71931-50060A0 |
UVF46 W/O(LOCK),IVORY,TRIM00 |
4 | ||
| 71931-50060B0 |
UVF46 W/O(LOCK),LT.GRAY,TRIM1# |
4 | ||
| 71931-50060C0 |
UVF46 W/O(LOCK),BLACK,TRIM2# |
4 | ||
| 71931-50060C0 |
UVF46 W/O(LOCK),KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2# |
2 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-50060 |
UVF46 |
1 | ||
| 72760-50080 |
UVF46 |
1 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-50020A1 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 74617-50020C0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,BLACK,TRIM2# |
2 | ||
| 74617-50020B0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,LT.GRAY,TRIM1# |
2 | ||
| 74617-50020A0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,IVORY,TRIM00 |
2 | ||
| 74617-50020A1 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,MELLOW WHITE,TRIM01,05 |
2 | ||
| 74617D - PLUG, ASSIST GRIP | ||||
| 74618-50020B0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,LT.GRAY,TRIM1# |
2 | ||
| 74618-50020A1 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 74618-50020C0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,BLACK,TRIM2# |
2 | ||
| 74618-50020A1 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,MELLOW WHITE,TRIM01,05 |
2 | ||
| 74618-50020A0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,IVORY,TRIM00 |
2 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-50010 |
UVF46 |
2 | ||
| 85865A - CONTROLLER, SEAT CLIMATE CONTROL, LH | ||||
| 85865-50070 |
UVF46 |
1 | ||
| 87218E - DUCT, AIR, RR NO.6 | ||||
| 87218-50050 |
UVF46 |
1 | ||
| Common parts | ||||
| 82711-10070 | None epc.PartDetail.None | |||
| 90159-40197 | None epc.PartDetail.None | |||
| 90159-50323 | None epc.PartDetail.None | |||
| 90179-06278 | None epc.PartDetail.None | |||
| 90189-05126 | None epc.PartDetail.None | |||
| 90468-16019 | None epc.PartDetail.None | |||
| 91631-B0616 | None epc.PartDetail.None | |||
| 91631-G0616 | None epc.PartDetail.None | |||
| 93313-14010 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 8121 | ||||
ILLUST NO. 2 OF 4(0911- )
PASSENGER SIDE(BACK)-LUMBER SUPORT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-50C50B1 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71073-50C50A2 |
UVF46 NEW IVORY,TRIM00 |
1 | ||
| 71073-50D20A0 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 71073-50C50C1 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71073-50C80A2 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),IVORY,TRIM00 |
1 | ||
| 71073-50C50A3 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71073-50C80A2 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71073-50C80A2 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71073-50C80A2 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),IVORY,TRIM00 |
1 | ||
| 71073-50C80A2 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00 |
1 | ||
| 71073-50C80A2 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71073-50C80A3 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71073-50C80A2 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71073-50C80A3 |
UVF46 INTERIOR PACKAGE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71073-50C80B1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LIGHT GRAY,TRIM1# |
1 | ||
| 71073-50C80A3 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71073-50C80A3 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71073-50C80A3 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71073-50C80B1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LIGHT GRAY,TRIM1# |
1 | ||
| 71073-50C80B1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LIGHT GRAY,TRIM1# |
1 | ||
| 71073-50C80A3 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71073-50C80B1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LIGHT GRAY,TRIM1# |
1 | ||
| 71073-50C80A3 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71073-50C80C1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71073-50C80C1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71073-50C80B1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LIGHT GRAY,TRIM1# |
1 | ||
| 71073-50C80A3 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71073-50C80B1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),LIGHT GRAY,TRIM1# |
1 | ||
| 71073-50C80A2 |
UVF46 INTERIOR PACKAGE,IVORY,TRIM00 |
1 | ||
| 71073-50C90A3 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71073-50C90B1 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LIGHT GRAY,TRIM1# |
1 | ||
| 71073-50C80C1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71073-50C80C1 |
UVF46 INTERIOR PACKAGE,BLACK,TRIM2# |
1 | ||
| 71073-50C80B1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),LIGHT GRAY,TRIM1# |
1 | ||
| 71073-50C80C1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71073-50C90A2 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00 |
1 | ||
| 71073-50C80B1 |
UVF46 INTERIOR PACKAGE,LIGHT GRAY,TRIM1# |
1 | ||
| 71073-50C80C1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71073-50C80C1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71073-50C90C1 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2# |
1 | ||
| 71073-50C80C1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2# |
1 | ||
| 71183 - SUPPORT, FRONT SEAT BACK, RH | ||||
| 71025-50010B0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,LT.GRAY,TRIM1# |
1 | ||
| 71025-50010A0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,IVORY,TRIM00 |
1 | ||
| 71025-50010A1 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71025-50010A1 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 71025-50010C0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,BLACK,TRIM2# |
1 | ||
| 71365 - BRACKET, FRONT SEAT SET, NO.5 | ||||
| 71365-50030 |
UVF46 |
1 | ||
| 71430C - CLIP | ||||
| 90467-05161C0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK |
4 | ||
| 90467-05161C0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK |
4 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-50D70A4 |
UVF46 IVORY,TRIM00 |
1 | ||
| 71430-50D70C2 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71430-50E40A2 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),IVORY,TRIM00 |
1 | ||
| 71430-50D70A5 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71430-50E80A0 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 71430-50E40A2 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71430-50E40A3 |
UVF46 INTERIOR PACKAGE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71430-50E40A2 |
UVF46 INTERIOR PACKAGE,IVORY,TRIM00 |
1 | ||
| 71430-50E40A2 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00 |
1 | ||
| 71430-50D70B2 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71430-50E40A3 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71430-50E40A2 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71430-50E40A2 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),IVORY,TRIM00 |
1 | ||
| 71430-50E40A2 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71430-50E40A3 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71430-50E40B1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),LT.GRAY,TRIM1# |
1 | ||
| 71430-50E40A3 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71430-50E40B1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
1 | ||
| 71430-50E40B1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
1 | ||
| 71430-50E40A3 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71430-50E40B1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LT.GRAY,TRIM1# |
1 | ||
| 71430-50E40A3 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71430-50E40A3 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71430-50E40C1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2# |
1 | ||
| 71430-50E40B1 |
UVF46 INTERIOR PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 71430-50E40B1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),LT.GRAY,TRIM1# |
1 | ||
| 71430-50E40C1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71430-50E40C1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71430-50E40B1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
1 | ||
| 71430-50E40A2 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
1 | ||
| 71430-50E40C1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71430-50E40C1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71430-50E50A3 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71430-50E40C1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71430-50E40B1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
1 | ||
| 71430-50E50A2 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00 |
1 | ||
| 71430-50E40C1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
1 | ||
| 71430-50E40C1 |
UVF46 INTERIOR PACKAGE,BLACK,TRIM2# |
1 | ||
| 71430-50E50C1 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2# |
1 | ||
| 71430-50E40A3 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71430-50E50B1 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LT.GRAY,TRIM1# |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-50230A3 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71705-50230A2 |
UVF46 IVORY,TRIM00 |
1 | ||
| 71705-50240C1 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,BLACK,TRIM2# |
1 | ||
| 71705-50230C1 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71705-50240A2 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,IVORY,TRIM00 |
1 | ||
| 71705-50240B1 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,LT.GRAY,TRIM1# |
1 | ||
| 71705-50230B1 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71705-50240A3 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71903A - ADJUSTER, FRONT SEAT HEADREST | ||||
| 71904-50180 |
UVF46 |
1 | ||
| 71904-50130 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-50571A0 |
UVF46 IVORY,TRIM00 |
2 | ||
| 71910-50680A0 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 71910-50571B0 |
UVF46 LT.GRAY,TRIM1# |
2 | ||
| 71910-50651A0 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00,LH SEAT |
1 | ||
| 71910-50571A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651A0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
2 | ||
| 71910-50651A0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),IVORY,TRIM00 |
2 | ||
| 71910-50651A0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
2 | ||
| 71910-50651A0 |
UVF46 INTERIOR PACKAGE,IVORY,TRIM00 |
2 | ||
| 71910-50651A1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651A0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
2 | ||
| 71910-50651A1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651A1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651A0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00 |
2 | ||
| 71910-50651A0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00 |
2 | ||
| 71910-50651A0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),IVORY,TRIM00 |
2 | ||
| 71910-50651A1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651A1 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651B0 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LT.GRAY,TRIM1#,LH SEAT |
1 | ||
| 71910-50651B0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),LT.GRAY,TRIM1# |
2 | ||
| 71910-50651B0 |
UVF46 INTERIOR PACKAGE,LT.GRAY,TRIM1# |
2 | ||
| 71910-50651B0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),LT.GRAY,TRIM1# |
2 | ||
| 71910-50571C0 |
UVF46 BLACK,TRIM2# |
2 | ||
| 71910-50651B0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
2 | ||
| 71910-50651B0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
2 | ||
| 71910-50651B0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
2 | ||
| 71910-50651A1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651C0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
2 | ||
| 71910-50651A1 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50651A1 |
UVF46 INTERIOR PACKAGE,MELLOW WHITE,TRIM01,05 |
2 | ||
| 71910-50671B0 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LT.GRAY,TRIM1#,RH SEAT |
1 | ||
| 71910-50651C0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
2 | ||
| 71910-50651A1 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05,LH SEAT |
1 | ||
| 71910-50651C0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
2 | ||
| 71910-50671C0 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2#,RH SEAT |
1 | ||
| 71910-50651C0 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2#,LH SEAT |
1 | ||
| 71910-50651B0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1# |
2 | ||
| 71910-50651C0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),BLACK,TRIM2# |
2 | ||
| 71910-50671A0 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00,RH SEAT |
1 | ||
| 71910-50651C0 |
UVF46 INTERIOR PACKAGE,BLACK,TRIM2# |
2 | ||
| 71910-50651C0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE&W(REAR DISPLAY),BLACK,TRIM2# |
2 | ||
| 71910-50651C0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM2# |
2 | ||
| 71910-50651B0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LT.GRAY,TRIM1# |
2 | ||
| 71910-50671A1 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05,RH SEAT |
1 | ||
| 71910-50651C0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-50060A1 |
UVF46 W/O(LOCK),PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 71931-50060A1 |
UVF46 W/O(LOCK),KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05 |
2 | ||
| 71931-50060A1 |
UVF46 W/O(LOCK),MELLOW WHITE,TRIM01,05 |
4 | ||
| 71931-50060B0 |
UVF46 W/O(LOCK),KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LT.GRAY,TRIM1# |
2 | ||
| 71931-50060A0 |
UVF46 W/O(LOCK),KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00 |
2 | ||
| 71931-50060A0 |
UVF46 W/O(LOCK),IVORY,TRIM00 |
4 | ||
| 71931-50060B0 |
UVF46 W/O(LOCK),LT.GRAY,TRIM1# |
4 | ||
| 71931-50060C0 |
UVF46 W/O(LOCK),BLACK,TRIM2# |
4 | ||
| 71931-50060C0 |
UVF46 W/O(LOCK),KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-50060A1 |
UVF46 W/O(LOCK),PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 71931-50060A1 |
UVF46 W/O(LOCK),KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05 |
2 | ||
| 71931-50060A1 |
UVF46 W/O(LOCK),MELLOW WHITE,TRIM01,05 |
4 | ||
| 71931-50060B0 |
UVF46 W/O(LOCK),KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),LT.GRAY,TRIM1# |
2 | ||
| 71931-50060A0 |
UVF46 W/O(LOCK),KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00 |
2 | ||
| 71931-50060A0 |
UVF46 W/O(LOCK),IVORY,TRIM00 |
4 | ||
| 71931-50060B0 |
UVF46 W/O(LOCK),LT.GRAY,TRIM1# |
4 | ||
| 71931-50060C0 |
UVF46 W/O(LOCK),BLACK,TRIM2# |
4 | ||
| 71931-50060C0 |
UVF46 W/O(LOCK),KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER),BLACK,TRIM2# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-50070 |
UVF46 |
1 | ||
| 72750-50100 |
UVF46 |
1 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-50020A1 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 74617-50020C0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,BLACK,TRIM2# |
2 | ||
| 74617-50020B0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,LT.GRAY,TRIM1# |
2 | ||
| 74617-50020A0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,IVORY,TRIM00 |
2 | ||
| 74617-50020A1 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,MELLOW WHITE,TRIM01,05 |
2 | ||
| 74617D - PLUG, ASSIST GRIP | ||||
| 74618-50020B0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,LT.GRAY,TRIM1# |
2 | ||
| 74618-50020A1 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 74618-50020C0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,BLACK,TRIM2# |
2 | ||
| 74618-50020A1 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,MELLOW WHITE,TRIM01,05 |
2 | ||
| 74618-50020A0 |
UVF46 KOREA SPEC&SEAT ASSIST GRIP-WITH,IVORY,TRIM00 |
2 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-50010 |
UVF46 |
2 | ||
| 85864A - CONTROLLER, SEAT CLIMATE CONTROL, RH | ||||
| 85864-50080 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER) |
1 | ||
| 85864-50070 |
UVF46 |
1 | ||
| 87218D - DUCT, AIR, RR NO.6 | ||||
| 87218-50040 |
UVF46 |
1 | ||
| Common parts | ||||
| 82711-10070 | None epc.PartDetail.None | |||
| 90159-40197 | None epc.PartDetail.None | |||
| 90159-50323 | None epc.PartDetail.None | |||
| 90168-40106 | None epc.PartDetail.None | |||
| 90179-06278 | None epc.PartDetail.None | |||
| 90189-05126 | None epc.PartDetail.None | |||
| 90468-16019 | None epc.PartDetail.None | |||
| 91631-B0616 | None epc.PartDetail.None | |||
| 91631-G0616 | None epc.PartDetail.None | |||
| 93313-14010 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||
ILLUST NO. 4 OF 4(1109- )
PASSENGER SIDE(CUSHION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71001-50U50A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 71001-5AN90A0 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 71001-50U50A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71001-50U50B0 |
UVF46 LT.GRAY,TRIM10,12 |
1 | ||
| 71001-50U70B0 |
UVF46 INTERIOR PACKAGE,LT.GRAY,TRIM10,12 |
1 | ||
| 71001-50U70C0 |
UVF46 INTERIOR PACKAGE,BLACK,TRIM2# |
1 | ||
| 71001-50U70A0 |
UVF46 INTERIOR PACKAGE,IVORY,TRIM00 |
1 | ||
| 71001-50U50C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71001-50U70A1 |
UVF46 INTERIOR PACKAGE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71421A - SPRING, FRONT SEAT CUSHION | ||||
| 71421-50040 |
UVF46 |
4 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-50110B0 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71811-50110A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 71811-50110C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71811-50110A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90467-05161C0 |
UVF46 KOREA SPEC&WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK |
14 | ||
| 90467-05161C0 |
UVF46 BLACK |
18 | ||
| 90467-05161C0 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK |
14 | ||
| 71815 - CLIP (FOR FRONT SEAT CUSHION COVER SET) | ||||
| 90467-06020C0 |
UVF46 INTERIOR PACKAGE,BLACK |
2 | ||
| 90467-06020C0 |
UVF46 BLACK |
4 | ||
| 71815 - CLIP (FOR FRONT SEAT CUSHION COVER SET) | ||||
| 90467-06020C0 |
UVF46 INTERIOR PACKAGE,BLACK |
2 | ||
| 90467-06020C0 |
UVF46 BLACK |
4 | ||
| 71821B - BRACKET, FRONT SEAT SHIELD SET, NO.1 | ||||
| 71821-50010 |
UVF46 |
2 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-33010 |
UVF46 INTERIOR PACKAGE |
4 | ||
| 71848-33010 |
UVF46 |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-50040A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 71861-50040B0 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71861-50040A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71861-50040C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-50040A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71867-50040A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 71867-50040B0 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71867-50040C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-50030 |
UVF46 |
2 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-50020B0 |
UVF46 LT.GRAY,TRIM1# |
2 | ||
| 71875-50020A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
2 | ||
| 71875-50020A0 |
UVF46 IVORY,TRIM00 |
2 | ||
| 71875-50020C0 |
UVF46 BLACK,TRIM2# |
2 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-50020A0 |
UVF46 IVORY,TRIM00 |
2 | ||
| 71876-50020B0 |
UVF46 LT.GRAY,TRIM1# |
2 | ||
| 71876-50020A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
2 | ||
| 71876-50020C0 |
UVF46 BLACK,TRIM2# |
2 | ||
| 71893A - SHIELD, POWER ADJUSTER, FRONT RH | ||||
| 71893-50010 |
UVF46 |
1 | ||
| 71893C - SHIELD, POWER ADJUSTER, INNER RH | ||||
| 71894-50010 |
UVF46 |
1 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-50111 |
UVF46 KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER) |
1 | ||
| 72010-50111 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN&W(REAR DISPLAY & REAR DVD PLAYER) |
1 | ||
| 72010-50160 |
UVF46 |
1 | ||
| 72123B - COVER, SEAT TRACK BRACKET, OUTER FRONT | ||||
| 72127-50040A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 72127-50040C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 72127-50040A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 72127-50040B0 |
UVF46 LT.GRAY,TRIM10,12 |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-50040B0 |
UVF46 LT.GRAY,TRIM10,12 |
1 | ||
| 72127-50040A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 72127-50040C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 72127-50040A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-50040B0 |
UVF46 LT.GRAY,TRIM10,12 |
1 | ||
| 72137-50040A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 72137-50040A1 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 72137-50040A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 72137-50040C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-50040A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 72157-50040C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 72157-50040B0 |
UVF46 LT.GRAY,TRIM10,12 |
1 | ||
| 72157-50040A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 72157-50040A1 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 72423 - HOOK, VERTICAL ADJUSTER SPRING | ||||
| 72423-50010 |
UVF46 |
4 | ||
| 72423 - HOOK, VERTICAL ADJUSTER SPRING | ||||
| 72423-50010 |
UVF46 |
4 | ||
| 72441A - LINK, FRONT SEAT TRAVEL, NO.1 | ||||
| 72441-50020 |
UVF46 |
2 | ||
| 72442A - LINK, FRONT SEAT TRAVEL, NO.2 | ||||
| 72442-50020 |
UVF46 |
2 | ||
| 73178H - CAP, SEAT BELT ANCHOR COVER, RH | ||||
| 73178-50060B0 |
UVF46 LT.GRAY,TRIM10,12 |
1 | ||
| 73178-50060A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 73178-50060A1 |
UVF46 PEBBLE BEACH EDITION,MELLOW WHITE,TRIM20 |
1 | ||
| 73178-50060A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 73178-50060C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 78738 - PIN, SUB SEAT CUSHION PIN | ||||
| 78738-0C010 |
UVF46 |
2 | ||
| 79123 - PLATE, NO.1 SEAT CUSHION | ||||
| 79123-50010 |
UVF46 |
2 | ||
| 85862 - BLOWER, SEAT CLIMATE CONTROL, RH | ||||
| 85862-50052 |
UVF46 |
1 | ||
| 85864 - CONTROLLER, SEAT CLIMATE CONTROL,RH | ||||
| 85864-50061 |
UVF46 |
1 | ||
| 88921D - FILTER, AIR, NO.1 | ||||
| 88921-50020 |
UVF46 |
2 | ||
| Common parts | ||||
| 90119-10927 | None epc.PartDetail.None | |||
| 90167-40044 | None epc.PartDetail.None | |||
| 90179-06274 | None epc.PartDetail.None | |||
| 90189-04207 | None epc.PartDetail.None | |||
| 90464-00773 | None epc.PartDetail.None | |||
| 90468-04157 | None epc.PartDetail.None | |||
| 90468-16019 | None epc.PartDetail.None | |||
| 91511-60510 | None epc.PartDetail.None | |||
| 91511-J0820 | None epc.PartDetail.None | |||
| 91513-81040 | None epc.PartDetail.None | |||
| 91513-B0825 | None epc.PartDetail.None | |||
| 93313-14010 | None epc.PartDetail.None | |||
| 93383-15014 | None epc.PartDetail.None | |||
| 93560-14010 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
