UVF46L-AEXGHA (2007)
Toyota Lexus Ls600hl

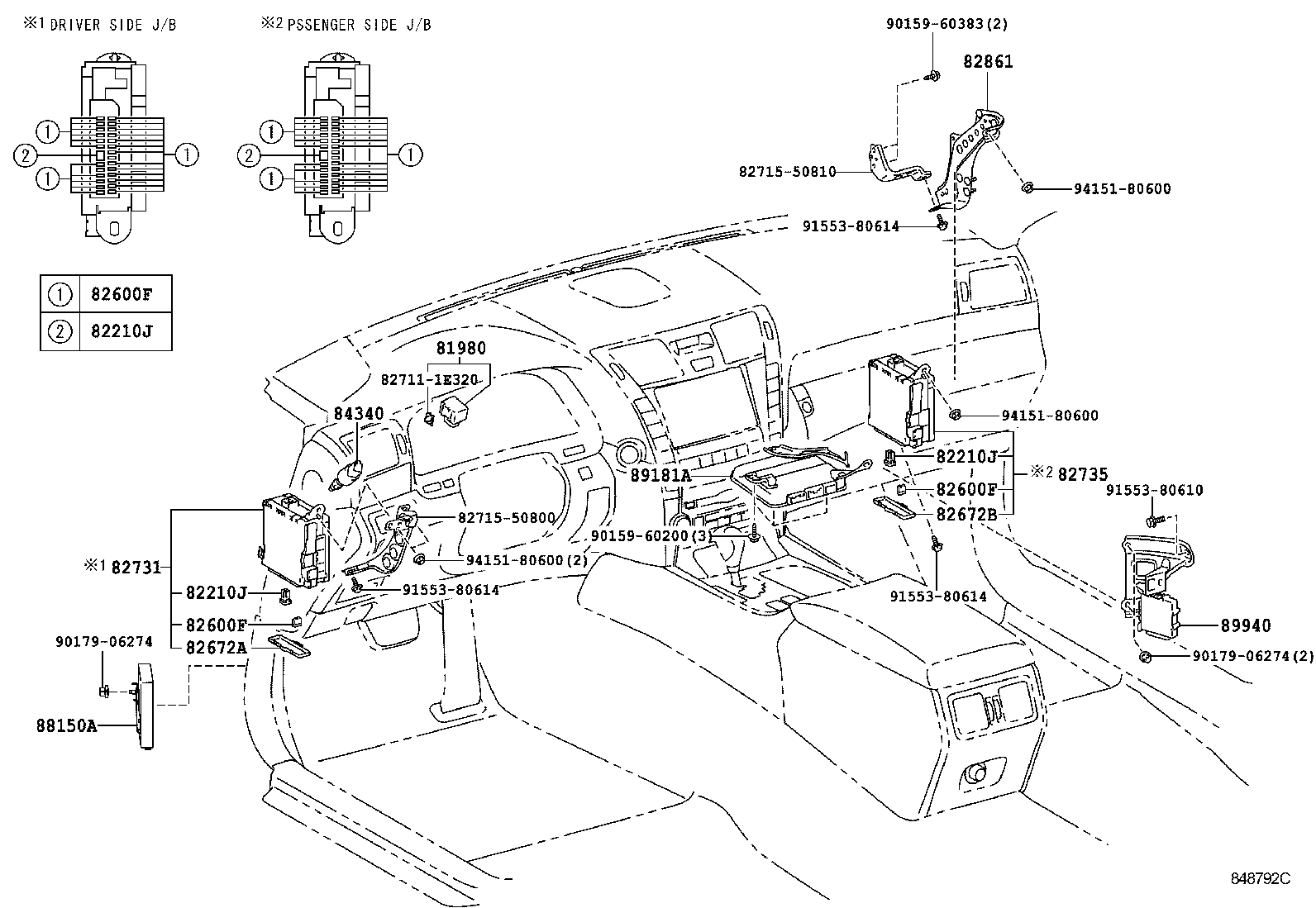

ILLUST NO. 4 OF 9(0704- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50042 |
UVF46 KOREA SPEC |
1 | ||
| 81980-50061 |
UVF46 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
UVF46 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
UVF46 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08296 |
UVF46 50A,TERM.:FEMALE,RED |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
UVF46 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
UVF46 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08296 |
UVF46 50A,TERM.:FEMALE,RED |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
UVF46 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
UVF46 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08296 |
UVF46 50A,TERM.:FEMALE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09015 |
UVF46 2A,MINI FUSE,AIR BAG MANUAL ON-OFF SWITCH-WITH(RETRO-CUT) |
1 | ||
| 90982-09021 |
UVF46 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
UVF46 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
UVF46 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
UVF46 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
UVF46 25A,MINI FUSE |
1 | ||
| 90982-09021 |
UVF46 10A,MINI FUSE,RED |
1 | ||
| 90982-09015 |
UVF46 2A,MINI FUSE,AIR BAG MANUAL ON-OFF SWITCH-WITH(RETRO-CUT) |
1 | ||
| 90982-09019 |
UVF46 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
UVF46 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
UVF46 25A,MINI FUSE |
1 | ||
| 90982-09022 |
UVF46 15A,MINI FUSE,BLUE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09015 |
UVF46 2A,MINI FUSE,AIR BAG MANUAL ON-OFF SWITCH-WITH(RETRO-CUT) |
1 | ||
| 90982-09021 |
UVF46 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
UVF46 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
UVF46 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
UVF46 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
UVF46 25A,MINI FUSE |
1 | ||
| 90982-09021 |
UVF46 10A,MINI FUSE,RED |
1 | ||
| 90982-09015 |
UVF46 2A,MINI FUSE,AIR BAG MANUAL ON-OFF SWITCH-WITH(RETRO-CUT) |
1 | ||
| 90982-09019 |
UVF46 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
UVF46 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
UVF46 25A,MINI FUSE |
1 | ||
| 90982-09022 |
UVF46 15A,MINI FUSE,BLUE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09015 |
UVF46 2A,MINI FUSE,AIR BAG MANUAL ON-OFF SWITCH-WITH(RETRO-CUT) |
1 | ||
| 90982-09021 |
UVF46 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
UVF46 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
UVF46 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
UVF46 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
UVF46 25A,MINI FUSE |
1 | ||
| 90982-09021 |
UVF46 10A,MINI FUSE,RED |
1 | ||
| 90982-09015 |
UVF46 2A,MINI FUSE,AIR BAG MANUAL ON-OFF SWITCH-WITH(RETRO-CUT) |
1 | ||
| 90982-09019 |
UVF46 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
UVF46 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
UVF46 25A,MINI FUSE |
1 | ||
| 90982-09022 |
UVF46 15A,MINI FUSE,BLUE |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-50240 |
UVF46 |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-50250 |
UVF46 |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82730-50531 |
UVF46 KOREA SPEC |
1 | ||
| 82730-50510 |
UVF46 CANADA SPEC |
1 | ||
| 82730-50540 |
UVF46 |
1 | ||
| 82730-50530 |
UVF46 KOREA SPEC |
1 | ||
| 82730-50541 |
UVF46 |
1 | ||
| 82730-50511 |
UVF46 CANADA SPEC |
1 | ||
| 82730-50521 |
UVF46 USA POSSESSIONS SPEC |
1 | ||
| 82730-50520 |
UVF46 USA POSSESSIONS SPEC |
1 | ||
| 82735 - BLOCK, PASSENGER SIDE JUNCTION | ||||
| 82730-50490 |
UVF46 |
1 | ||
| 82861 - BRACKET, COMPUTER INTEGRATION, NO.1 | ||||
| 82861-50010 |
UVF46 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30110 |
UVF46 |
1 | ||
| 88150A - COMPUTER ASSY, DRIVING SUPPORT | ||||
| 88150-50030 |
UVF46 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *PB) |
1 | ||
| 88150-50030 |
UVF46 PRE-COLLISION SYSTEM-WITH(*PSB) |
1 | ||
| 89181A - COMPUTER, STEERING CONTROL | ||||
| 89181-50070 |
UVF46 STABILIZER-ACTIVE STABILIZER SUSPENSION |
1 | ||
| 89181-50050 |
UVF46 |
1 | ||
| 89940 - COMPUTER ASSY, HEADLAMP SWIVEL | ||||
| 89940-50190 |
UVF46 |
1 | ||
| 89940-50170 |
UVF46 HEADLAMP-LED & HALOGEN & *AFLS & INFRARED |
1 | ||
| 89940-50210 |
UVF46 KOREA SPEC&HEADLAMP-DISCHARGE & HALOGEN |
1 | ||
| 89940-50170 |
UVF46 HEADLAMP-LED & HALOGEN & *AFLS |
1 | ||
| Common parts | ||||
| 82711-1E320 | ||||
| 82715-50800 | ||||
| 82715-50810 | ||||
| 90159-60200 | ||||
| 90159-60383 | ||||
| 90179-06274 | ||||
| 91553-80610 | ||||
| 91553-80614 | ||||
| 94151-80600 | ||||

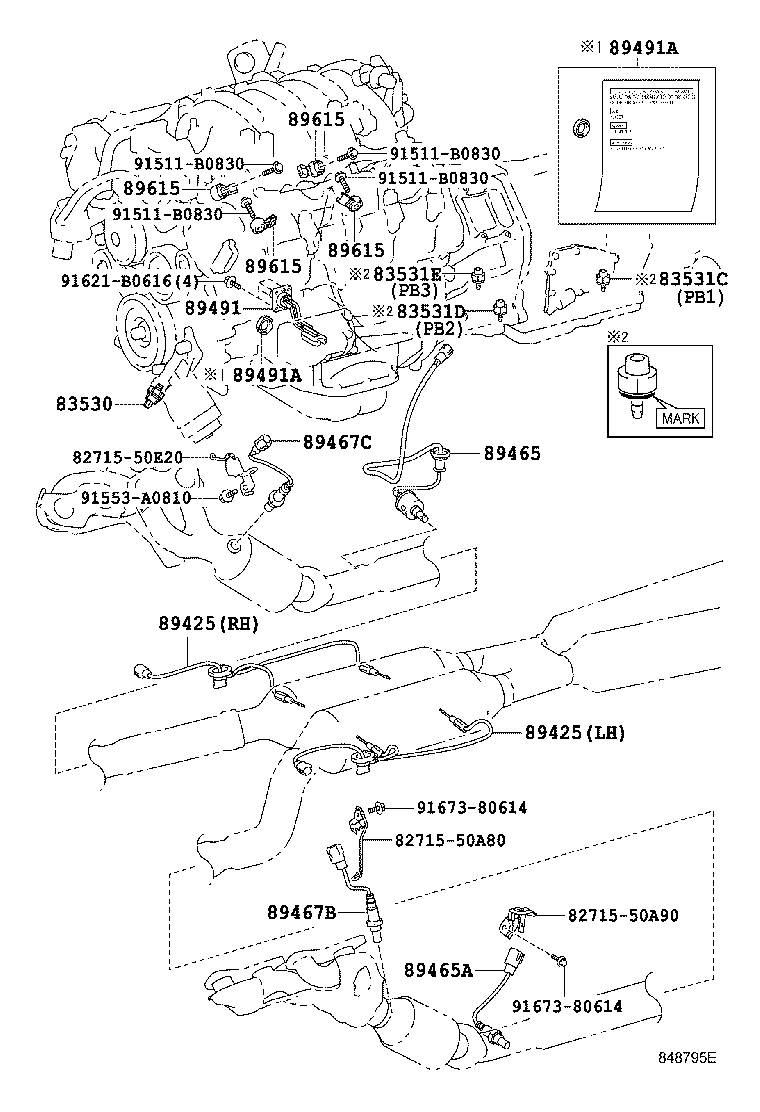

ILLUST NO. 1 OF 9(0704- )
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
UVF46 |
1 | ||
| 83531C - SWITCH, OIL PRESSURE, (PB1) | ||||
| 83531-30011 |
UVF46 MARK = BLUE |
1 | ||
| 83531D - SWITCH, OIL PRESSURE, (PB2) | ||||
| 83531-30011 |
UVF46 MARK = BLUE |
1 | ||
| 83531E - SWITCH, OIL PRESSURE, (PB3) | ||||
| 83531-30021 |
UVF46 MARK = PURPLE |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-50040 |
UVF46 RH |
1 | ||
| 89425-50050 |
UVF46 LH |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-50040 |
UVF46 RH |
1 | ||
| 89425-50050 |
UVF46 LH |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-50170 |
UVF46 |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-50200 |
UVF46 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-50030 |
UVF46 |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-50040 |
UVF46 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-50050 |
UVF46 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
UVF46 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
UVF46 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
UVF46 |
4 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
UVF46 |
4 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
UVF46 |
4 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
UVF46 |
4 | ||
| Common parts | ||||
| 82715-50A80 | ||||
| 82715-50A90 | ||||
| 82715-50E20 | ||||
| 91511-B0830 | ||||
| 91553-A0810 | ||||
| 91621-B0616 | ||||
| 91673-80614 | ||||
ILLUST NO. 2 OF 9(0704- )
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28380A - RESISTER, FUEL PUMP | ||||
| 23080-38010 |
2URFSE..UVF46 |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-30020 |
UVF46 |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-30080 |
UVF46 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-50160 |
UVF46 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||

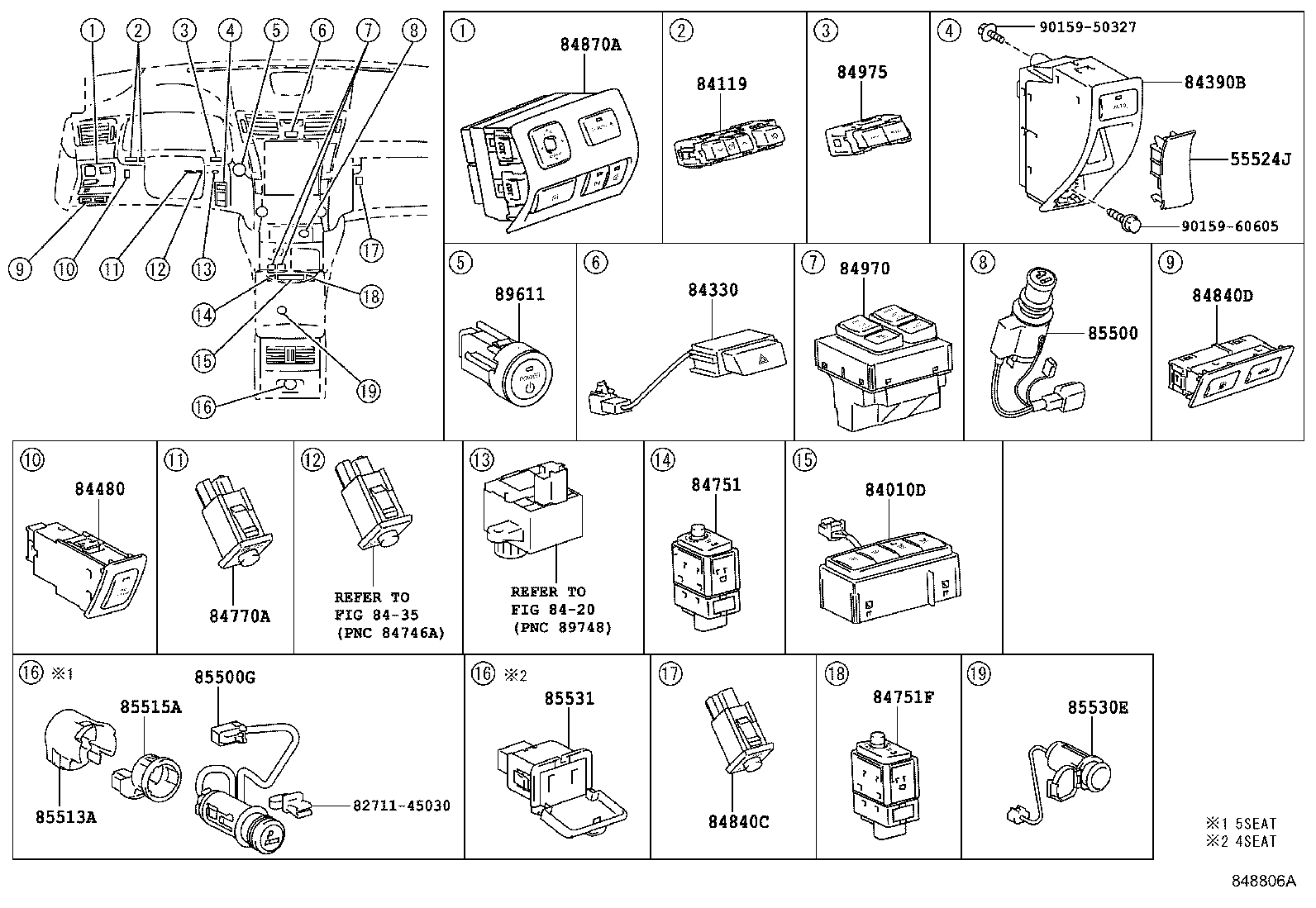

ILLUST NO. 5 OF 9(0704-0911)
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55524J - COVER, SWITCH BASE HOLE | ||||
| 55539-50050A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 55539-50050C0 |
UVF46 BLACK,TRIM05,2# |
1 | ||
| 55539-50050A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 55539-50050B0 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 84010D - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-50150 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 84010-50170 |
UVF46 WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 84010-50150 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN |
1 | ||
| 84010-50180 |
UVF46 |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-50270 |
UVF46 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84330-50010 |
UVF46 |
1 | ||
| 84390B - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-50010A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 84390-50010A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 84390-50010B0 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 84390-50010C0 |
UVF46 BLACK,TRIM05,2# |
1 | ||
| 84480 - SWITCH ASSY, MAIN | ||||
| 84480-50010A0 |
UVF46 REAR SEAT ADJUSTER-OTTOMAN,IVORY,TRIM00 |
1 | ||
| 84480-50010A1 |
UVF46 REAR SEAT ADJUSTER-OTTOMAN,MELLOW WHITE,TRIM01,05 |
1 | ||
| 84480-50010C0 |
UVF46 REAR SEAT ADJUSTER-OTTOMAN,BLACK,TRIM05,2# |
1 | ||
| 84480-50010B0 |
UVF46 REAR SEAT ADJUSTER-OTTOMAN,LT.GRAY,TRIM1# |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-50131 |
UVF46 |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-50141 |
UVF46 |
1 | ||
| 84770A - SWITCH ASSY, PRE-COLLISION SYSTEM CANCEL | ||||
| 84770-50010 |
UVF46 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *PB) |
1 | ||
| 84840C - SWITCH ASSY, LUGGAGE DOOR OPENING, CANCEL | ||||
| 84840-24020 |
UVF46 |
1 | ||
| 84840D - SWITCH ASSY, LUGGAGE DOOR OPENING | ||||
| 84840-50030B0 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 84840-50030A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 84840-50030A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 84840-50030C0 |
UVF46 BLACK,TRIM05,2# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-50490A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 84870-50490A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 84870-50510A0 |
UVF46 HEADLAMP-DISCHARGE & HALOGEN,IVORY,TRIM00 |
1 | ||
| 84870-50510C0 |
UVF46 HEADLAMP-DISCHARGE & HALOGEN,BLACK,TRIM05,2# |
1 | ||
| 84870-50490B0 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 84870-50510A1 |
UVF46 HEADLAMP-DISCHARGE & HALOGEN,MELLOW WHITE,TRIM01,05 |
1 | ||
| 84870-50510B0 |
UVF46 HEADLAMP-DISCHARGE & HALOGEN,LT.GRAY,TRIM1# |
1 | ||
| 84870-50490C0 |
UVF46 BLACK,TRIM05,2# |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-50100 |
UVF46 |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-50030 |
UVF46 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-50080 |
UVF46 |
1 | ||
| 85500G - LIGHTER ASSY, CIGARETTE, REAR | ||||
| 85500-50070 |
UVF46 |
1 | ||
| 85500-50090 |
UVF46 REAR ARMREST-W/OTTOMAN CIGARETTE) |
1 | ||
| 85513A - COVER, CIGARETTE LIGHTER, REAR | ||||
| 85513-28010 |
UVF46 |
1 | ||
| 85515A - STAY, CIGARETTE LIGHTER BEZEL, REAR | ||||
| 85515-50020 |
UVF46 |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-50060 |
UVF46 CIGARETTE LIGHTER-FR:ACC RR:1 |
1 | ||
| 85530-50060 |
UVF46 |
1 | ||
| 85531 - SOCKET, POWER OUTLET | ||||
| 85530-50040A1 |
UVF46 REAR SEAT ADJUSTER-OTTOMAN,MELLOW WHITE,TRIM01,05 |
1 | ||
| 85530-50040A0 |
UVF46 REAR SEAT ADJUSTER-OTTOMAN,IVORY,TRIM00 |
1 | ||
| 85530-50040B0 |
UVF46 REAR SEAT ADJUSTER-OTTOMAN,LT.GRAY,TRIM1# |
1 | ||
| 85530-50040C0 |
UVF46 REAR SEAT ADJUSTER-OTTOMAN,BLACK,TRIM2# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-50020 |
UVF46 |
1 | ||
| Common parts | ||||
| 82711-45030 | ||||
| 90159-50327 | ||||
| 90159-60605 | ||||
| Linked diagrams | ||||
| 8420 | ||||
| 8435 | ||||

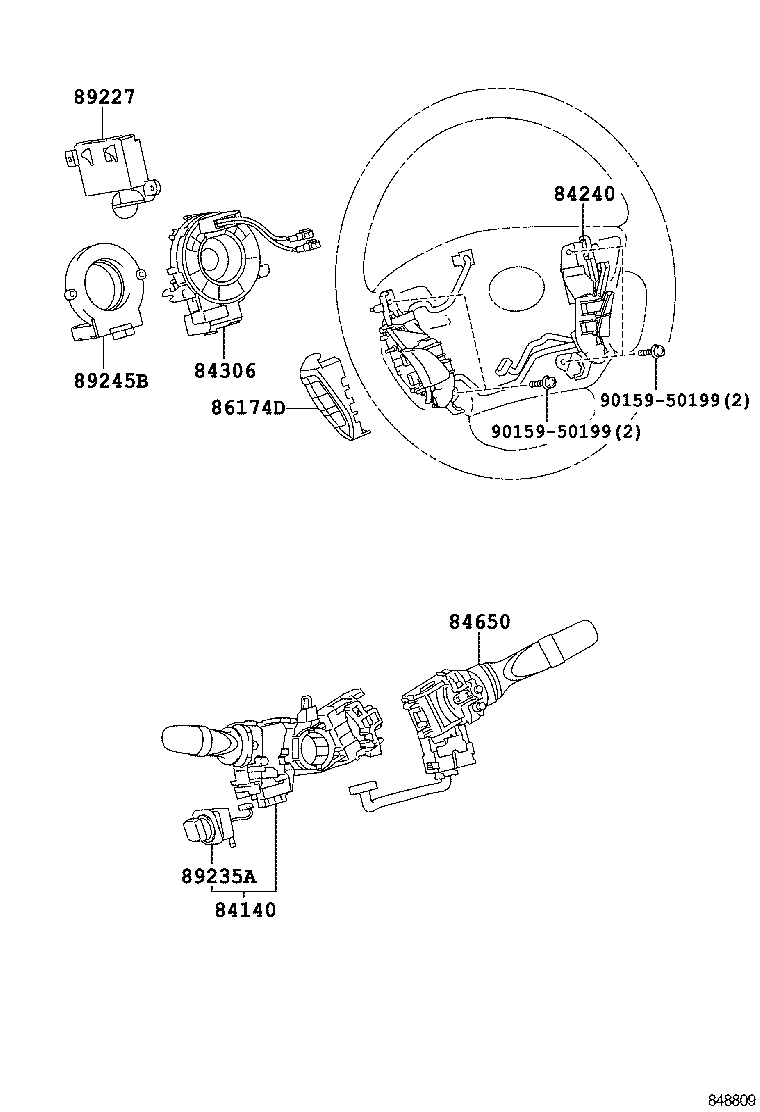

ILLUST NO. 6 OF 9(0704- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-50120 |
UVF46 |
1 | ||
| 84240 - SWITCH ASSY, STEERING PAD, W/MODULATOR | ||||
| 84240-50060 |
UVF46 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *PB) |
1 | ||
| 84240-50050 |
UVF46 |
1 | ||
| 84240-50060 |
UVF46 PRE-COLLISION SYSTEM-WITH(*PSB) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-50190 |
UVF46 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-50150 |
UVF46 |
1 | ||
| 86174D - CASE, SWITCH & VOLUME | ||||
| 86174-50070C0 |
UVF46 BLACK,TRIM05,1#,2# |
1 | ||
| 86174-50070E0 |
UVF46 ORCHID BROWN,TRIM00,01 |
1 | ||
| 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC | ||||
| 89227-33010 |
UVF46 |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-50090 |
UVF46 |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-30070 |
UVF46 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||

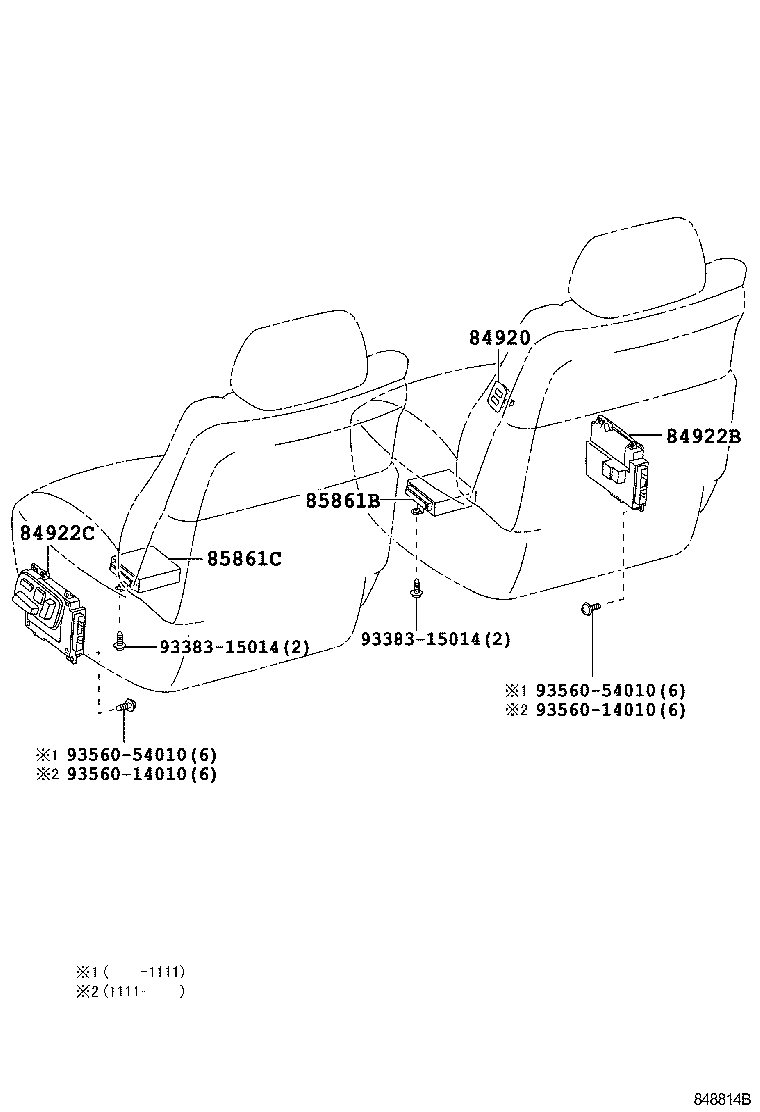

ILLUST NO. 7 OF 9(0704- )
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-50280A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 84920-50280B0 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 84920-50280A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 84920-50280C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84070-50120A0 |
UVF46 REAR SEAT ADJUSTER-OTTOMAN,IVORY,TRIM00 |
1 | ||
| 84070-50120B0 |
UVF46 REAR SEAT ADJUSTER-OTTOMAN,LT.GRAY,TRIM1# |
1 | ||
| 84070-50100B0 |
UVF46 KOREA SPEC&REAR SEAT ADJUSTER-OTTOMAN,LT.GRAY,TRIM1# |
1 | ||
| 84070-50100C0 |
UVF46 KOREA SPEC&REAR SEAT ADJUSTER-OTTOMAN,BLACK,TRIM2# |
1 | ||
| 84922-50050C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 84070-50100A1 |
UVF46 KOREA SPEC&REAR SEAT ADJUSTER-OTTOMAN,MELLOW WHITE,TRIM01,05 |
1 | ||
| 84070-50101A0 |
UVF46 KOREA SPEC&REAR SEAT ADJUSTER-OTTOMAN,IVORY,TRIM00 |
1 | ||
| 84070-50101B0 |
UVF46 KOREA SPEC&REAR SEAT ADJUSTER-OTTOMAN,LT.GRAY,TRIM1# |
1 | ||
| 84922-50050A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 84070-50120A1 |
UVF46 REAR SEAT ADJUSTER-OTTOMAN,MELLOW WHITE,TRIM01,05 |
1 | ||
| 84070-50120C0 |
UVF46 REAR SEAT ADJUSTER-OTTOMAN,BLACK,TRIM2# |
1 | ||
| 84070-50121A1 |
UVF46 REAR SEAT ADJUSTER-OTTOMAN,MELLOW WHITE,TRIM01,05 |
1 | ||
| 84070-50100A0 |
UVF46 KOREA SPEC&REAR SEAT ADJUSTER-OTTOMAN,IVORY,TRIM00 |
1 | ||
| 84070-50121B0 |
UVF46 REAR SEAT ADJUSTER-OTTOMAN,LT.GRAY,TRIM1# |
1 | ||
| 84070-50101C0 |
UVF46 KOREA SPEC&REAR SEAT ADJUSTER-OTTOMAN,BLACK,TRIM2# |
1 | ||
| 84922-50050A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 84922-50051A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 84070-50101A1 |
UVF46 KOREA SPEC&REAR SEAT ADJUSTER-OTTOMAN,MELLOW WHITE,TRIM01,05 |
1 | ||
| 84922-50050B0 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 84070-50121C0 |
UVF46 REAR SEAT ADJUSTER-OTTOMAN,BLACK,TRIM2# |
1 | ||
| 84922-50051B0 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 84070-50121A0 |
UVF46 REAR SEAT ADJUSTER-OTTOMAN,IVORY,TRIM00 |
1 | ||
| 84922-50051A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 84922-50051C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84070-50070C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 84070-50070A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 84070-50070B0 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 84070-50071C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 84070-50070A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 84070-50071A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 84070-50071B0 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 84070-50071A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 85861B - COMPUTER, SEAT CLIMATE CONTROL, FRONT RH | ||||
| 85861-50190 |
UVF46 |
1 | ||
| 85861-50191 |
UVF46 |
1 | ||
| 85861C - COMPUTER, SEAT CLIMATE CONTROL, FRONT LH | ||||
| 85861-50200 |
UVF46 |
1 | ||
| 85861-50201 |
UVF46 |
1 | ||
| Common parts | ||||
| 93383-15014 | ||||
| 93560-14010 | ||||
| 93560-54010 | ||||

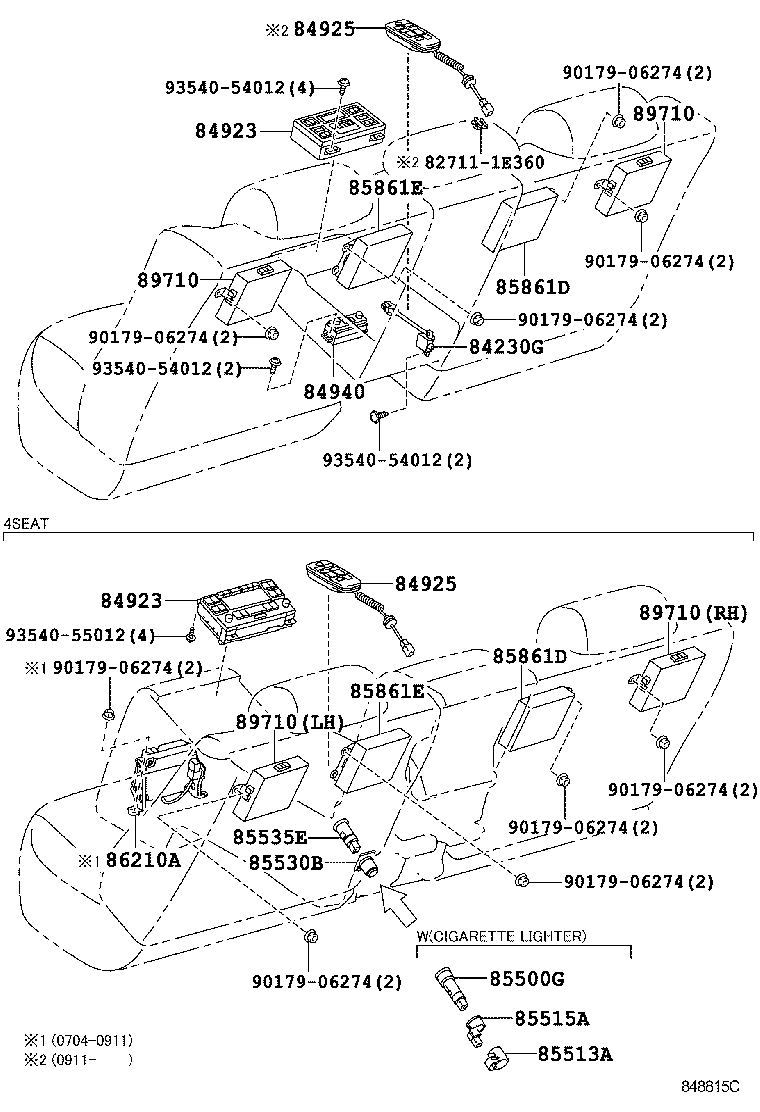

ILLUST NO. 8 OF 9(0704- )
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84230G - SWITCH ASSY, COURTESY LAMP | ||||
| 84230-50010 |
UVF46 |
1 | ||
| 84230-50010 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN |
1 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-50110 |
UVF46 |
1 | ||
| 84923-50160 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN |
1 | ||
| 84923-50120 |
UVF46 WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 84923-50140 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-50110 |
UVF46 |
1 | ||
| 84923-50160 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN |
1 | ||
| 84923-50120 |
UVF46 WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 84923-50140 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 84925 - SWITCH, SEAT VIBRATOR | ||||
| 84925-50010 |
UVF46 REAR ARMREST-W/OTTOMAN CIGARETTE)&REAR SEAT ADJUSTER-OTTOMAN |
1 | ||
| 84925-50010 |
UVF46 REAR ARMREST-WITH(W/OTTOMAN 12V)&REAR SEAT ADJUSTER-OTTOMAN |
1 | ||
| 84925 - SWITCH, SEAT VIBRATOR | ||||
| 84925-50010 |
UVF46 REAR ARMREST-W/OTTOMAN CIGARETTE)&REAR SEAT ADJUSTER-OTTOMAN |
1 | ||
| 84925-50010 |
UVF46 REAR ARMREST-WITH(W/OTTOMAN 12V)&REAR SEAT ADJUSTER-OTTOMAN |
1 | ||
| 84940 - SWITCH ASSY, CURTAIN | ||||
| 84940-50030 |
UVF46 WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 84940-50050 |
UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 84940-50020 |
UVF46 |
1 | ||
| 85500G - LIGHTER ASSY, CIGARETTE, REAR | ||||
| 85500-50070 |
UVF46 |
1 | ||
| 85500-50090 |
UVF46 REAR ARMREST-W/OTTOMAN CIGARETTE) |
1 | ||
| 85513A - COVER, CIGARETTE LIGHTER, REAR | ||||
| 85513-28010 |
UVF46 |
1 | ||
| 85515A - STAY, CIGARETTE LIGHTER BEZEL, REAR | ||||
| 85515-50020 |
UVF46 |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-42010 |
UVF46 REAR ARMREST-WITH(W/OTTOMAN 12V) |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-50030 |
UVF46 REAR ARMREST-WITH(W/OTTOMAN 12V) |
1 | ||
| 85861D - COMPUTER, SEAT CLIMATE CONTROL, REAR RH | ||||
| 85861-50210 |
UVF46 REAR SEAT ADJUSTER-OTTOMAN |
1 | ||
| 85861-50211 |
UVF46 REAR SEAT ADJUSTER-OTTOMAN |
1 | ||
| 85861-50211 |
UVF46 REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 85861-50230 |
UVF46 |
1 | ||
| 85861-50231 |
UVF46 |
1 | ||
| 85861-50210 |
UVF46 REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 85861D - COMPUTER, SEAT CLIMATE CONTROL, REAR RH | ||||
| 85861-50210 |
UVF46 REAR SEAT ADJUSTER-OTTOMAN |
1 | ||
| 85861-50211 |
UVF46 REAR SEAT ADJUSTER-OTTOMAN |
1 | ||
| 85861-50211 |
UVF46 REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 85861-50230 |
UVF46 |
1 | ||
| 85861-50231 |
UVF46 |
1 | ||
| 85861-50210 |
UVF46 REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 85861E - COMPUTER, SEAT CLIMATE CONTROL, REAR LH | ||||
| 85861-50220 |
UVF46 REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 85861-50220 |
UVF46 REAR SEAT ADJUSTER-OTTOMAN |
1 | ||
| 85861-50221 |
UVF46 REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 85861-50240 |
UVF46 |
1 | ||
| 85861-50221 |
UVF46 REAR SEAT ADJUSTER-OTTOMAN |
1 | ||
| 85861-50241 |
UVF46 |
1 | ||
| 85861E - COMPUTER, SEAT CLIMATE CONTROL, REAR LH | ||||
| 85861-50220 |
UVF46 REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 85861-50220 |
UVF46 REAR SEAT ADJUSTER-OTTOMAN |
1 | ||
| 85861-50221 |
UVF46 REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 85861-50240 |
UVF46 |
1 | ||
| 85861-50221 |
UVF46 REAR SEAT ADJUSTER-OTTOMAN |
1 | ||
| 85861-50241 |
UVF46 |
1 | ||
| 86210A - INVERTER ASSY, VOLTAGE | ||||
| 86210-50020 |
UVF46 REAR SEAT ADJUSTER-OTTOMAN |
1 | ||
| 89710 - COMPUTER ASSY, POSITION CONTROL | ||||
| 89710-50190 |
UVF46 WITH(REAR POWER SEAT) |
2 | ||
| 89710-50200 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE,RH |
1 | ||
| 89710-50190 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE,LH |
1 | ||
| 89710 - COMPUTER ASSY, POSITION CONTROL | ||||
| 89710-50190 |
UVF46 WITH(REAR POWER SEAT) |
2 | ||
| 89710-50200 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE,RH |
1 | ||
| 89710-50190 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE,LH |
1 | ||
| 89710 - COMPUTER ASSY, POSITION CONTROL | ||||
| 89710-50190 |
UVF46 WITH(REAR POWER SEAT) |
2 | ||
| 89710-50200 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE,RH |
1 | ||
| 89710-50190 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE,LH |
1 | ||
| 89710 - COMPUTER ASSY, POSITION CONTROL | ||||
| 89710-50190 |
UVF46 WITH(REAR POWER SEAT) |
2 | ||
| 89710-50200 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE,RH |
1 | ||
| 89710-50190 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE,LH |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90179-06274 | ||||
| 93540-54012 | ||||
| 93540-55012 | ||||

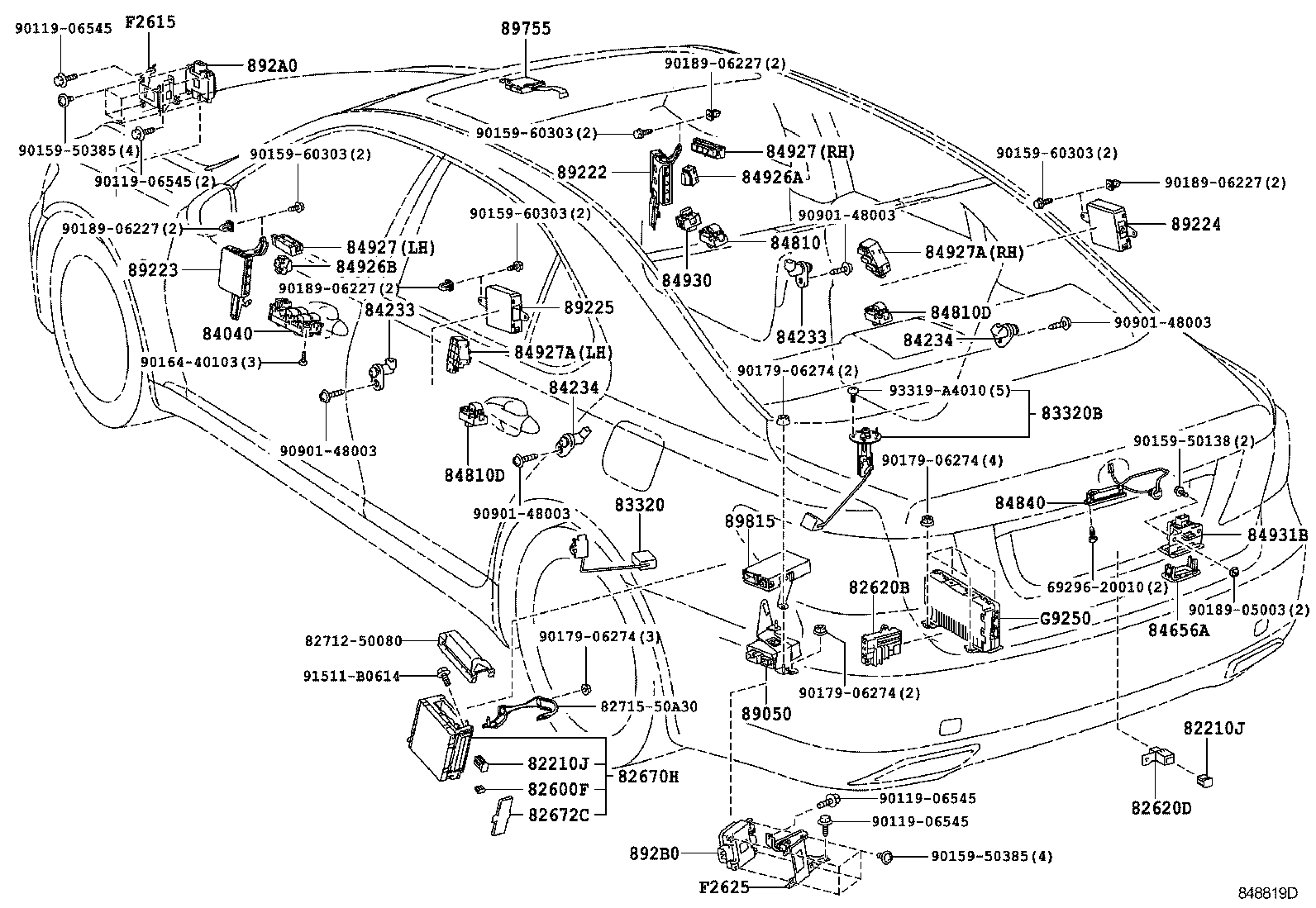

ILLUST NO. 9 OF 9(0704-0911)
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
UVF46 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
UVF46 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08296 |
UVF46 50A,TERM.:FEMALE,RED |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
UVF46 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
UVF46 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08296 |
UVF46 50A,TERM.:FEMALE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09015 |
UVF46 2A,MINI FUSE,AIR BAG MANUAL ON-OFF SWITCH-WITH(RETRO-CUT) |
1 | ||
| 90982-09021 |
UVF46 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
UVF46 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
UVF46 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
UVF46 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
UVF46 25A,MINI FUSE |
1 | ||
| 90982-09021 |
UVF46 10A,MINI FUSE,RED |
1 | ||
| 90982-09015 |
UVF46 2A,MINI FUSE,AIR BAG MANUAL ON-OFF SWITCH-WITH(RETRO-CUT) |
1 | ||
| 90982-09019 |
UVF46 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
UVF46 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
UVF46 25A,MINI FUSE |
1 | ||
| 90982-09022 |
UVF46 15A,MINI FUSE,BLUE |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-50120 |
UVF46 |
1 | ||
| 82620D - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-50160 |
UVF46 |
1 | ||
| 82670H - BLOCK ASSY, LUGGAGE ROOM JUNCTION | ||||
| 82670-50120 |
UVF46 |
1 | ||
| 82672C - COVER, JUNCTION BLOCK | ||||
| 82672-50260 |
UVF46 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-50120 |
UVF46 |
1 | ||
| 83320B - GAGE ASSY, FUEL SENDER, NO.2 | ||||
| 83320-80441 |
UVF46 |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-50120 |
UVF46 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-50190 |
UVF46 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-50190 |
UVF46 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-50190 |
UVF46 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-50190 |
UVF46 |
2 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-30110 |
UVF46 USA POSSESSIONS SPEC |
1 | ||
| 84656-30110 |
UVF46 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-50020 |
UVF46 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-50020 |
UVF46 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-50020 |
UVF46 |
2 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-21010 |
UVF46 |
1 | ||
| 84926A - SWITCH, HEIGHT ADJUSTABLE ANCHOR | ||||
| 84926-50090 |
UVF46 |
1 | ||
| 84926B - SWITCH, HEIGHT ADJUSTABLE ANCHOR | ||||
| 84926-50080 |
UVF46 |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-50080 |
UVF46 LH |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-50080 |
UVF46 LH |
1 | ||
| 84927A - SWITCH, REAR SEAT MEMORY | ||||
| 84927-50130 |
UVF46 REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,RH |
1 | ||
| 84927-50120 |
UVF46 REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LH |
1 | ||
| 84927-50130 |
UVF46 REAR SEAT ADJUSTER-OTTOMAN,RH |
1 | ||
| 84927-50120 |
UVF46 REAR SEAT ADJUSTER-OTTOMAN,LH |
1 | ||
| 84927A - SWITCH, REAR SEAT MEMORY | ||||
| 84927-50130 |
UVF46 REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,RH |
1 | ||
| 84927-50120 |
UVF46 REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LH |
1 | ||
| 84927-50130 |
UVF46 REAR SEAT ADJUSTER-OTTOMAN,RH |
1 | ||
| 84927-50120 |
UVF46 REAR SEAT ADJUSTER-OTTOMAN,LH |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-50060 |
UVF46 |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84930-50050 |
UVF46 |
1 | ||
| 84930-50050 |
UVF46 USA POSSESSIONS SPEC |
1 | ||
| 89050 - COMPUTER ASSY, PARKING BRAKE | ||||
| 89050-50010 |
UVF46 |
1 | ||
| 89222 - COMPUTER, MULTIPLEX NETWORK DOOR, FRONT RH | ||||
| 89223-50270 |
UVF46 |
1 | ||
| 89223 - COMPUTER, MULTIPLEX NETWORK DOOR, FRONT LH | ||||
| 89222-50280 |
UVF46 |
1 | ||
| 89224 - COMPUTER, MULTIPLEX NETWORK DOOR, REAR RH | ||||
| 89224-50121 |
UVF46 WITH(REAR POWER SEAT)&WITH(REAR COOLER) |
1 | ||
| 89224-50121 |
UVF46 WITH (OTTOMAN)&WITH(REAR COOLER) |
1 | ||
| 89224-50110 |
UVF46 |
1 | ||
| 89225 - COMPUTER, MULTIPLEX NETWORK DOOR, REAR LH | ||||
| 89225-50041 |
UVF46 WITH (OTTOMAN)&WITH(REAR COOLER) |
1 | ||
| 89225-50041 |
UVF46 WITH(REAR POWER SEAT)&WITH(REAR COOLER) |
1 | ||
| 89225-50030 |
UVF46 |
1 | ||
| 892A0 - COMPUTER ASSY, FRONT ACTIVE STABILIZER CONTROL | ||||
| 892A2-50010 |
UVF46 STABILIZER-ACTIVE STABILIZER SUSPENSION |
1 | ||
| 892B0 - COMPUTER ASSY, REAR ACTIVE STABILIZER CONTROL | ||||
| 892A2-50010 |
UVF46 STABILIZER-ACTIVE STABILIZER SUSPENSION |
1 | ||
| 89755 - TRANSMITTER, GARAGE DOOR OPENER | ||||
| 89755-0W111 |
UVF46 KOREA SPEC&MOON ROOF-WITHOUT |
1 | ||
| 89755-0W111 |
UVF46 |
1 | ||
| 89755-0W111 |
UVF46 KOREA SPEC |
1 | ||
| 89755-0W111 |
UVF46 MOON ROOF-WITHOUT |
1 | ||
| 89815 - COMPUTER, SEAT BELT CONTROL | ||||
| 89815-50020 |
UVF46 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *PB) |
1 | ||
| 89815-50020 |
UVF46 PRE-COLLISION SYSTEM-WITH(*PSB) |
1 | ||
| F2615 - BRACKET, FRONT ACTIVE STABILIZER COMPUTER | ||||
| F2615-50010 |
UVF46 STABILIZER-ACTIVE STABILIZER SUSPENSION |
1 | ||
| F2625 - BRACKET, REAR ACTIVE STABILIZER COMPUTER | ||||
| F2625-50011 |
UVF46 STABILIZER-ACTIVE STABILIZER SUSPENSION |
1 | ||
| G9250 - CONVERTER ASSY, POWER STEERING | ||||
| G9250-50030 |
UVF46 |
1 | ||
| Common parts | ||||
| 69296-20010 | ||||
| 82712-50080 | ||||
| 82715-50A30 | ||||
| 90119-06545 | ||||
| 90159-50138 | ||||
| 90159-50385 | ||||
| 90159-60303 | ||||
| 90164-40103 | ||||
| 90179-06274 | ||||
| 90189-05003 | ||||
| 90189-06227 | ||||
| 90901-48003 | ||||
| 91511-B0614 | ||||
| 93319-A4010 | ||||
ILLUST NO. 3 OF 9(0704- )
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02025 |
2URFSE..UVF46 |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02025 |
2URFSE..UVF46 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
UVF46 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
UVF46 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08296 |
UVF46 50A,TERM.:FEMALE,RED |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
UVF46 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
UVF46 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08296 |
UVF46 50A,TERM.:FEMALE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09015 |
UVF46 2A,MINI FUSE,AIR BAG MANUAL ON-OFF SWITCH-WITH(RETRO-CUT) |
1 | ||
| 90982-09021 |
UVF46 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
UVF46 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
UVF46 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
UVF46 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
UVF46 25A,MINI FUSE |
1 | ||
| 90982-09021 |
UVF46 10A,MINI FUSE,RED |
1 | ||
| 90982-09015 |
UVF46 2A,MINI FUSE,AIR BAG MANUAL ON-OFF SWITCH-WITH(RETRO-CUT) |
1 | ||
| 90982-09019 |
UVF46 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
UVF46 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
UVF46 25A,MINI FUSE |
1 | ||
| 90982-09022 |
UVF46 15A,MINI FUSE,BLUE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09015 |
UVF46 2A,MINI FUSE,AIR BAG MANUAL ON-OFF SWITCH-WITH(RETRO-CUT) |
1 | ||
| 90982-09021 |
UVF46 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
UVF46 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
UVF46 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
UVF46 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
UVF46 25A,MINI FUSE |
1 | ||
| 90982-09021 |
UVF46 10A,MINI FUSE,RED |
1 | ||
| 90982-09015 |
UVF46 2A,MINI FUSE,AIR BAG MANUAL ON-OFF SWITCH-WITH(RETRO-CUT) |
1 | ||
| 90982-09019 |
UVF46 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
UVF46 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
UVF46 25A,MINI FUSE |
1 | ||
| 90982-09022 |
UVF46 15A,MINI FUSE,BLUE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09015 |
UVF46 2A,MINI FUSE,AIR BAG MANUAL ON-OFF SWITCH-WITH(RETRO-CUT) |
1 | ||
| 90982-09021 |
UVF46 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
UVF46 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
UVF46 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
UVF46 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
UVF46 25A,MINI FUSE |
1 | ||
| 90982-09021 |
UVF46 10A,MINI FUSE,RED |
1 | ||
| 90982-09015 |
UVF46 2A,MINI FUSE,AIR BAG MANUAL ON-OFF SWITCH-WITH(RETRO-CUT) |
1 | ||
| 90982-09019 |
UVF46 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
UVF46 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
UVF46 25A,MINI FUSE |
1 | ||
| 90982-09022 |
UVF46 15A,MINI FUSE,BLUE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09015 |
UVF46 2A,MINI FUSE,AIR BAG MANUAL ON-OFF SWITCH-WITH(RETRO-CUT) |
1 | ||
| 90982-09021 |
UVF46 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
UVF46 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
UVF46 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
UVF46 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
UVF46 25A,MINI FUSE |
1 | ||
| 90982-09021 |
UVF46 10A,MINI FUSE,RED |
1 | ||
| 90982-09015 |
UVF46 2A,MINI FUSE,AIR BAG MANUAL ON-OFF SWITCH-WITH(RETRO-CUT) |
1 | ||
| 90982-09019 |
UVF46 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
UVF46 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
UVF46 25A,MINI FUSE |
1 | ||
| 90982-09022 |
UVF46 15A,MINI FUSE,BLUE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09015 |
UVF46 2A,MINI FUSE,AIR BAG MANUAL ON-OFF SWITCH-WITH(RETRO-CUT) |
1 | ||
| 90982-09021 |
UVF46 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
UVF46 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
UVF46 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
UVF46 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
UVF46 25A,MINI FUSE |
1 | ||
| 90982-09021 |
UVF46 10A,MINI FUSE,RED |
1 | ||
| 90982-09015 |
UVF46 2A,MINI FUSE,AIR BAG MANUAL ON-OFF SWITCH-WITH(RETRO-CUT) |
1 | ||
| 90982-09019 |
UVF46 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
UVF46 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
UVF46 25A,MINI FUSE |
1 | ||
| 90982-09022 |
UVF46 15A,MINI FUSE,BLUE |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-50140 |
UVF46 |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-50030 |
UVF46 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-50010 |
UVF46 |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82663-50081 |
UVF46 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-50320 |
UVF46 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-50140 |
UVF46 |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-50150 |
UVF46 |
1 | ||
| 82662D - COVER, RELAY BLOCK, UPPER, NO.4 | ||||
| 82662-50330 |
UVF46 |
1 | ||
| 82662F - COVER, RELAY BLOCK, UPPER, NO.8 | ||||
| 82662-50300 |
UVF46 |
1 | ||
| 82662G - COVER, RELAY BLOCK, UPPER, NO.9 | ||||
| 82662-50340 |
UVF46 |
1 | ||
| 82662H - COVER, RELAY BLOCK, UPPER, NO.10 | ||||
| 82662-50240 |
UVF46 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-50150 |
UVF46 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-50091 |
UVF46 |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-30240 |
UVF46 |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82663-50100 |
UVF46 |
1 | ||
| 82663E - COVER, RELAY BLOCK, LOWER, NO.7 | ||||
| 82663-50170 |
UVF46 |
1 | ||
| 82663F - COVER, RELAY BLOCK, LOWER, NO.8 | ||||
| 82663-50130 |
UVF46 |
1 | ||
| 82720 - BLOCK ASSY, ENGINE ROOM JUNCTION | ||||
| 82720-50081 |
UVF46 |
1 | ||
| 82721B - BLOCK, ENGINE ROOM JUNCTION | ||||
| 82735-50010 |
UVF46 |
1 | ||
| 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 | ||||
| 82743-50050 |
UVF46 |
1 | ||
| 82744 - BLOCK, ENGINE ROOM RELAY, NO.4 | ||||
| 82744-50020 |
UVF46 |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-02027 |
UVF46 WINDSHIELD DEICER-WITH |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04010 |
UVF46 |
1 | ||
| 85925D - RELAY, PTC HEATER | ||||
| 90987-02027 |
UVF46 |
2 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02025 |
UVF46 |
1 | ||
| 89219 - COMPUTER, MULTIPLEX NETWORK FRONT LAMP | ||||
| 89219-50051 |
UVF46 |
1 | ||
| Common parts | ||||
| 82657-50010 | ||||
| 82657-50020 | ||||
| 82657-50030 | ||||
| 82712-50070 | ||||
| 82715-50880 | ||||
| 90179-06274 | ||||
| 91553-80614 | ||||
| 91553-80618 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8414 | ||||
| 8419 | ||||
| 8433 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
