GVF50L-AEVGHA (2017)

Toyota Lexus Ls500/500h

Production Oct 2017 - Oct 2020
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1710-2010) ; (2010- )

HEATER CONTROL PANEL

diagram 55900 9046705172
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-50420

GVF5#,VXFA5#

 1
55900-50450

GVF5#,VXFA5#

KOREA SPEC

 1
55900-50500

GVF5#,VXFA5#

 1
55900-50430

GVF50,VXFA50

CANADA SPEC

 1
Common parts
90467-05172 None epc.PartDetail.None

(1710-2010)GVF50,VXFA50 ; (2010- )GVF50,VXFA50

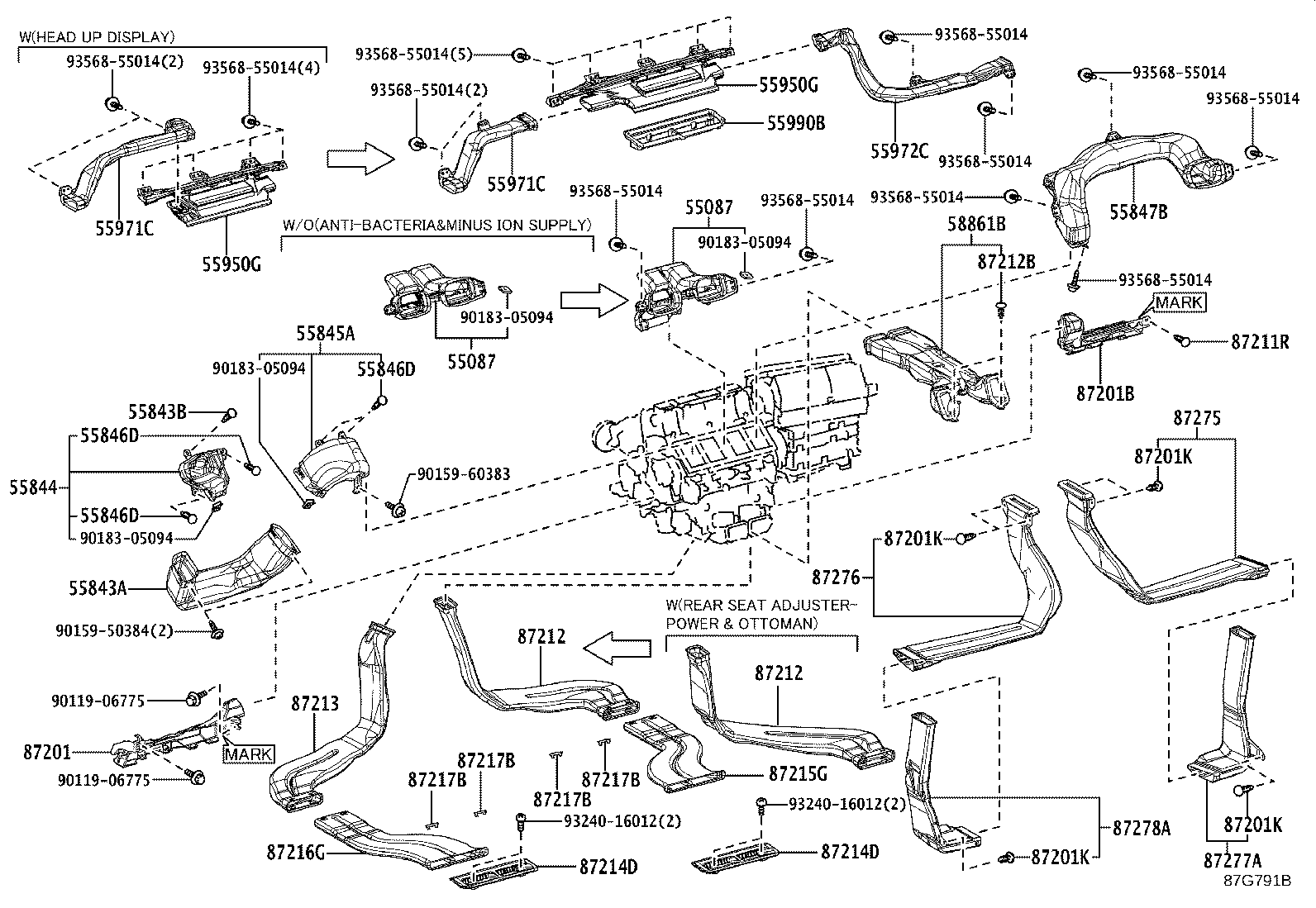

FRONT AIR DUCT

diagram 55087 55087 55843A 55843B 55844 55845A 55846D 55846D 55846D 55847B 55950G 55950G 55971C 55971C 55972C 55990B 58861B 87201 87201B 87201K 87201K 87201K 87201K 87211R 87212 87212 87212B 87213 87214D 87214D 87215G 87216G 87217B 87217B 87217B 87217B 87275 87276 87277A 87278A 9011906775 9011906775 9015950384 9015960383 9018305094 9018305094 9018305094 9018305094 9324016012 9324016012 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
55087 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.4
55087-50010

GVF5#,VXFA5#

KOREA SPEC

 1
55087-50020

GVF5#,VXFA5#

 1
55087-50020

GVF5#,VXFA5#

 1
55087 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.4
55087-50010

GVF5#,VXFA5#

KOREA SPEC

 1
55087-50020

GVF5#,VXFA5#

 1
55087-50020

GVF5#,VXFA5#

 1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-50090

GVF5#,VXFA5#

 1
55843-50090

GVF5#,VXFA5#

 1
55843B - CLIP, HEATER TO REGISTER DUCT
90467-08186C3

GVF5#,VXFA5#

BLACK

 1
90467-08186C3

GVF5#,VXFA5#

BLACK

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-50140

GVF5#,VXFA5#

 1
55844-50140

GVF5#,VXFA5#

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-50140

GVF5#,VXFA5#

 1
55845-50140

GVF5#,VXFA5#

 1
55846D - CLIP, HEATER TO REGISTER DUCT
90467-08186C3

GVF5#,VXFA5#

BLACK

 4
90467-08186C3

GVF5#,VXFA5#

BLACK

 4
55846D - CLIP, HEATER TO REGISTER DUCT
90467-08186C3

GVF5#,VXFA5#

BLACK

 4
90467-08186C3

GVF5#,VXFA5#

BLACK

 4
55846D - CLIP, HEATER TO REGISTER DUCT
90467-08186C3

GVF5#,VXFA5#

BLACK

 4
90467-08186C3

GVF5#,VXFA5#

BLACK

 4
55847B - DUCT, HEATER TO REGISTER, NO.5
55847-50050

GVF5#,VXFA5#

 1
55847-50050

GVF5#,VXFA5#

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-50070

GVF5#,VXFA5#

HEAD UP DISPLAY-WITH

 1
55950-50090

GVF5#,VXFA5#

 1
55950-50070

GVF5#,VXFA5#

HEAD UP DISPLAY-WITH

 1
55950-50090

GVF5#,VXFA5#

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-50070

GVF5#,VXFA5#

HEAD UP DISPLAY-WITH

 1
55950-50090

GVF5#,VXFA5#

 1
55950-50070

GVF5#,VXFA5#

HEAD UP DISPLAY-WITH

 1
55950-50090

GVF5#,VXFA5#

 1
55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-50110

GVF5#,VXFA5#

 1
55971-50070

GVF5#,VXFA5#

HEAD UP DISPLAY-WITH

 1
55971-50110

GVF5#,VXFA5#

 1
55971-50070

GVF5#,VXFA5#

HEAD UP DISPLAY-WITH

 1
55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-50110

GVF5#,VXFA5#

 1
55971-50070

GVF5#,VXFA5#

HEAD UP DISPLAY-WITH

 1
55971-50110

GVF5#,VXFA5#

 1
55971-50070

GVF5#,VXFA5#

HEAD UP DISPLAY-WITH

 1
55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-50090

GVF5#,VXFA5#

 1
55972-50090

GVF5#,VXFA5#

 1
55990B - NOZZLE ASSY, DEFROSTER, LOWER
55990-50010

GVF5#,VXFA5#

 1
55990-50010

GVF5#,VXFA5#

 1
58861B - DUCT, CONSOLE BOX, NO.1
58086-50020

GVF5#,VXFA5#

 1
58086-50020

GVF5#,VXFA5#

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87211-50241

GVF5#,VXFA5#

P/N LABEL=7DL

 1
87211-50241

GVF5#,VXFA5#

P/N LABEL=7DL

 1
87211-50240

GVF5#,VXFA5#

P/N LABEL=2DL

 1
87201B - DUCT SUB-ASSY, AIR, NO.2
87211-50251

GVF5#,VXFA5#

P/N LABEL=7PR

 1
87211-50250

GVF5#,VXFA5#

P/N LABEL=2PL

 1
87211-50251

GVF5#,VXFA5#

P/N LABEL=7PL

 1
87201K - CLIP (FOR AIR DUCT)
90467-08186C3

GVF5#,VXFA5#

BLACK,TRIM0#,1#,2#,3#,4#,5#

 6
90467-08186D1

GVF5#,VXFA5#

REAR SEAT ADJUSTER-POWER & OTTOMAN,CRIMSON,TRIM30,33

 6
90467-08186E8

GVF5#,VXFA5#

NOBLE BROWN,TRIM03,1#,4#,51,54,9#

 6
90467-08186C3

GVF5#,VXFA5#

BLACK,TRIM00,06,2#,3#,53

 6
90467-08186D1

GVF5#,VXFA5#

REAR SEAT ADJUSTER-POWER & OTTOMAN,CRIMSON,TRIM30,37

 6
87201K - CLIP (FOR AIR DUCT)
90467-08186C3

GVF5#,VXFA5#

BLACK,TRIM0#,1#,2#,3#,4#,5#

 6
90467-08186D1

GVF5#,VXFA5#

REAR SEAT ADJUSTER-POWER & OTTOMAN,CRIMSON,TRIM30,33

 6
90467-08186E8

GVF5#,VXFA5#

NOBLE BROWN,TRIM03,1#,4#,51,54,9#

 6
90467-08186C3

GVF5#,VXFA5#

BLACK,TRIM00,06,2#,3#,53

 6
90467-08186D1

GVF5#,VXFA5#

REAR SEAT ADJUSTER-POWER & OTTOMAN,CRIMSON,TRIM30,37

 6
87201K - CLIP (FOR AIR DUCT)
90467-08186C3

GVF5#,VXFA5#

BLACK,TRIM0#,1#,2#,3#,4#,5#

 6
90467-08186D1

GVF5#,VXFA5#

REAR SEAT ADJUSTER-POWER & OTTOMAN,CRIMSON,TRIM30,33

 6
90467-08186E8

GVF5#,VXFA5#

NOBLE BROWN,TRIM03,1#,4#,51,54,9#

 6
90467-08186C3

GVF5#,VXFA5#

BLACK,TRIM00,06,2#,3#,53

 6
90467-08186D1

GVF5#,VXFA5#

REAR SEAT ADJUSTER-POWER & OTTOMAN,CRIMSON,TRIM30,37

 6
87201K - CLIP (FOR AIR DUCT)
90467-08186C3

GVF5#,VXFA5#

BLACK,TRIM0#,1#,2#,3#,4#,5#

 6
90467-08186D1

GVF5#,VXFA5#

REAR SEAT ADJUSTER-POWER & OTTOMAN,CRIMSON,TRIM30,33

 6
90467-08186E8

GVF5#,VXFA5#

NOBLE BROWN,TRIM03,1#,4#,51,54,9#

 6
90467-08186C3

GVF5#,VXFA5#

BLACK,TRIM00,06,2#,3#,53

 6
90467-08186D1

GVF5#,VXFA5#

REAR SEAT ADJUSTER-POWER & OTTOMAN,CRIMSON,TRIM30,37

 6
87211R - CLIP, AIR DUCT
90467-05161C0

GVF5#,VXFA5#

BLACK

 1
90467-05161C0

GVF5#,VXFA5#

BLACK

 1
87212 - DUCT, AIR, REAR NO.1
87212-50090

GVF5#,VXFA5#

REAR SEAT ADJUSTER-POWER & OTTOMAN

 1
87212-50090

GVF5#,VXFA5#

REAR SEAT ADJUSTER-POWER & OTTOMAN

 1
87212-50070

GVF5#,VXFA5#

 1
87212-50070

GVF5#,VXFA5#

 1
87212 - DUCT, AIR, REAR NO.1
87212-50090

GVF5#,VXFA5#

REAR SEAT ADJUSTER-POWER & OTTOMAN

 1
87212-50090

GVF5#,VXFA5#

REAR SEAT ADJUSTER-POWER & OTTOMAN

 1
87212-50070

GVF5#,VXFA5#

 1
87212-50070

GVF5#,VXFA5#

 1
87212B - CLIP, AIR DUCT
90467-0504522

GVF5#,VXFA5#

BLACK

 2
90467-0504522

GVF5#,VXFA5#

BLACK

 2
87213 - DUCT, AIR, REAR NO.2
87213-50090

GVF50,VXFA50

 1
87213-50090

GVF50,VXFA50

 1
87214D - DUCT, AIR, REAR NO.3
87217-50070C0

GVF5#,VXFA5#

BLACK,TRIM0#,1#,2#,3#,4#

 2
87217-50070E0

GVF5#,VXFA5#

NOBLE BROWN,TRIM03,04,1#,4#,51,54,9#

 2
87217-50070C0

GVF5#,VXFA5#

BLACK,TRIM00,06,2#,3#,53

 2
87217-50070D1

GVF5#,VXFA5#

REAR SEAT ADJUSTER-POWER & OTTOMAN,CRIMSON,TRIM3#

 2
87217-50070D1

GVF5#,VXFA5#

REAR SEAT ADJUSTER-POWER & OTTOMAN,CRIMSON,TRIM3#

 2
87214D - DUCT, AIR, REAR NO.3
87217-50070C0

GVF5#,VXFA5#

BLACK,TRIM0#,1#,2#,3#,4#

 2
87217-50070E0

GVF5#,VXFA5#

NOBLE BROWN,TRIM03,04,1#,4#,51,54,9#

 2
87217-50070C0

GVF5#,VXFA5#

BLACK,TRIM00,06,2#,3#,53

 2
87217-50070D1

GVF5#,VXFA5#

REAR SEAT ADJUSTER-POWER & OTTOMAN,CRIMSON,TRIM3#

 2
87217-50070D1

GVF5#,VXFA5#

REAR SEAT ADJUSTER-POWER & OTTOMAN,CRIMSON,TRIM3#

 2
87215G - GUIDE, AIR DUCT, REAR RH
87215-50070

GVF5#,VXFA5#

 1
87215-50070

GVF5#,VXFA5#

 1
87216G - GUIDE, AIR DUCT, REAR LH
87216-50040

GVF5#,VXFA5#

 1
87216-50040

GVF5#,VXFA5#

 1
87217B - PLUG, AIR DUCT
90950-01693C1

GVF5#,VXFA5#

BLACK,TRIM00,06,2#,3#,53

 4
90950-01693D3

GVF5#,VXFA5#

REAR SEAT ADJUSTER-POWER & OTTOMAN,CRIMSON,TRIM3#

 4
90950-01693E6

GVF5#,VXFA5#

NOBLE BROWN,TRIM03,04,1#,4#,51,54,9#

 4
90950-01693D3

GVF5#,VXFA5#

REAR SEAT ADJUSTER-POWER & OTTOMAN,CRIMSON,TRIM3#

 4
90950-01693C1

GVF5#,VXFA5#

BLACK,TRIM0#,1#,2#,3#,4#

 4
87217B - PLUG, AIR DUCT
90950-01693C1

GVF5#,VXFA5#

BLACK,TRIM00,06,2#,3#,53

 4
90950-01693D3

GVF5#,VXFA5#

REAR SEAT ADJUSTER-POWER & OTTOMAN,CRIMSON,TRIM3#

 4
90950-01693E6

GVF5#,VXFA5#

NOBLE BROWN,TRIM03,04,1#,4#,51,54,9#

 4
90950-01693D3

GVF5#,VXFA5#

REAR SEAT ADJUSTER-POWER & OTTOMAN,CRIMSON,TRIM3#

 4
90950-01693C1

GVF5#,VXFA5#

BLACK,TRIM0#,1#,2#,3#,4#

 4
87217B - PLUG, AIR DUCT
90950-01693C1

GVF5#,VXFA5#

BLACK,TRIM00,06,2#,3#,53

 4
90950-01693D3

GVF5#,VXFA5#

REAR SEAT ADJUSTER-POWER & OTTOMAN,CRIMSON,TRIM3#

 4
90950-01693E6

GVF5#,VXFA5#

NOBLE BROWN,TRIM03,04,1#,4#,51,54,9#

 4
90950-01693D3

GVF5#,VXFA5#

REAR SEAT ADJUSTER-POWER & OTTOMAN,CRIMSON,TRIM3#

 4
90950-01693C1

GVF5#,VXFA5#

BLACK,TRIM0#,1#,2#,3#,4#

 4
87217B - PLUG, AIR DUCT
90950-01693C1

GVF5#,VXFA5#

BLACK,TRIM00,06,2#,3#,53

 4
90950-01693D3

GVF5#,VXFA5#

REAR SEAT ADJUSTER-POWER & OTTOMAN,CRIMSON,TRIM3#

 4
90950-01693E6

GVF5#,VXFA5#

NOBLE BROWN,TRIM03,04,1#,4#,51,54,9#

 4
90950-01693D3

GVF5#,VXFA5#

REAR SEAT ADJUSTER-POWER & OTTOMAN,CRIMSON,TRIM3#

 4
90950-01693C1

GVF5#,VXFA5#

BLACK,TRIM0#,1#,2#,3#,4#

 4
87275 - DUCT, FLOOR HEATER AIR, NO.1 RH
87275-50010

GVF5#,VXFA5#

 1
87275-50010

GVF5#,VXFA5#

 1
87276 - DUCT, FLOOR HEATER AIR, NO.1 LH
87276-50010

GVF5#,VXFA5#

 1
87276-50010

GVF5#,VXFA5#

 1
87277A - DUCT, FLOOR HEATER AIR, NO.2 RH
87277-50020

GVF5#,VXFA5#

 1
87277-50020

GVF5#,VXFA5#

 1
87278A - DUCT, FLOOR HEATER AIR, NO.2 LH
87278-50020

GVF5#,VXFA5#

 1
87278-50020

GVF5#,VXFA5#

 1
Common parts
90119-06775 None epc.PartDetail.None
90159-50384 None epc.PartDetail.None
90159-60383 None epc.PartDetail.None
90183-05094 None epc.PartDetail.None
93240-16012 None epc.PartDetail.None
93568-55014 None epc.PartDetail.None

(1710-2010)

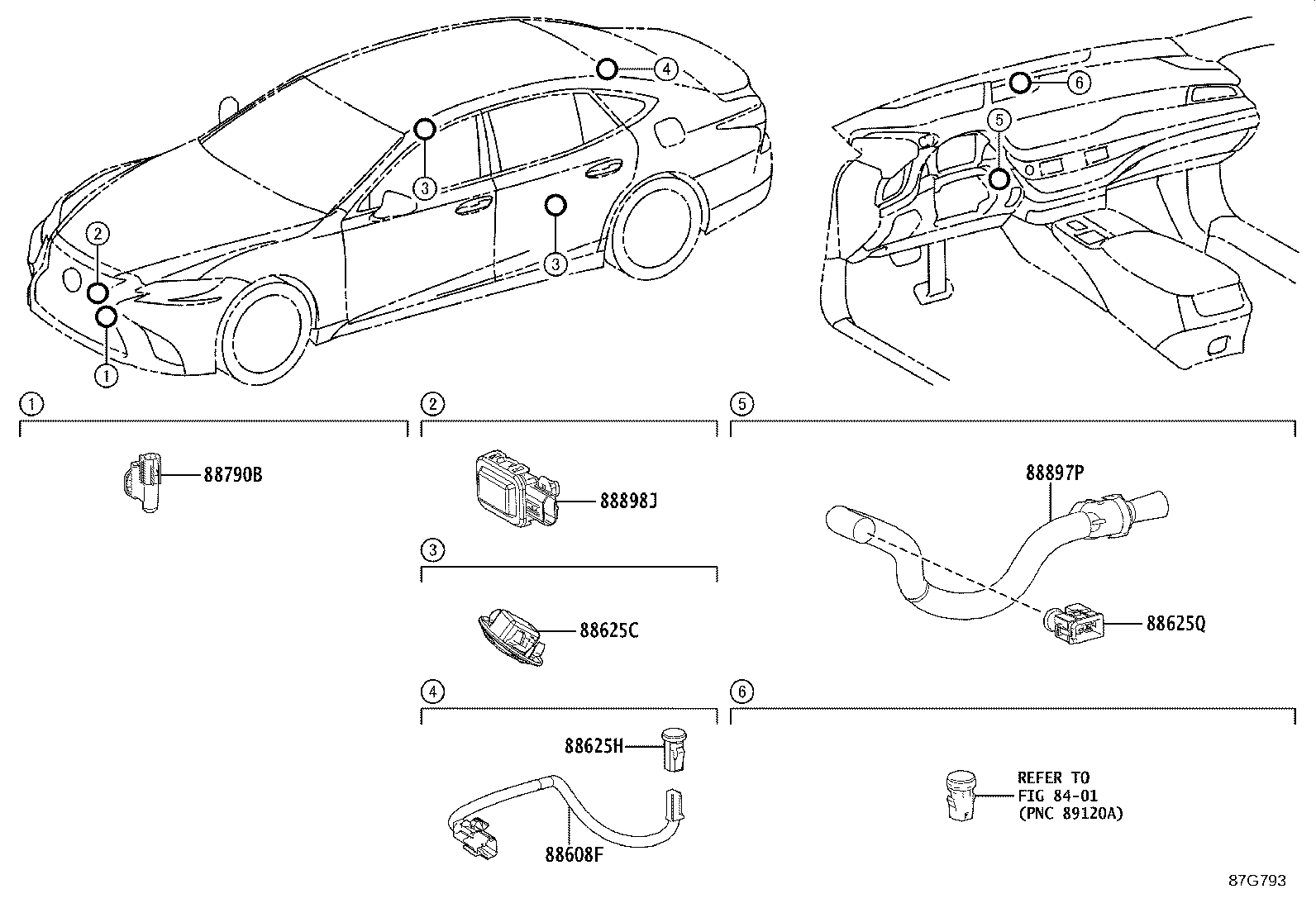

SENSOR

diagram 8401 88608F 88625C 88625H 88625Q 88790B 88897P 88898J
Part # Description Qty Price
88608F - HARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2
88608-50610

GVF5#,VXFA5#

"EXECUTIVE"*(E)

 1
88608-50610

GVF5#,VXFA5#

"VERSION L"*(L)

 1
88608-50610

GVF5#,VXFA5#

"VERSION L"*(L)

 1
88608-50610

GVF5#,VXFA5#

"EXECUTIVE"*(E)

 1
88625C - THERMISTOR, COOLER
88625-45020C0

GVF5#,VXFA5#

"VERSION L"*(L),BLACK

 2
88625-45020C0

GVF5#,VXFA5#

"EXECUTIVE"*(E),BLACK

 2
88625-45020C0

GVF5#,VXFA5#

"VERSION L"*(L),BLACK

 2
88625-45020C0

GVF5#,VXFA5#

"EXECUTIVE"*(E),BLACK

 2
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-47031

GVF5#,VXFA5#

"EXECUTIVE"*(E)

 1
88625-47031

GVF5#,VXFA5#

"EXECUTIVE"*(E)

 1
88625-47031

GVF5#,VXFA5#

"VERSION L"*(L)

 1
88625-47031

GVF5#,VXFA5#

"VERSION L"*(L)

 1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

GVF5#,VXFA5#

 1
88625-47021

GVF5#,VXFA5#

 1
88790B - THERMISTOR ASSY
88790-28100

GVF5#,VXFA5#

 1
88790-28100

GVF5#,VXFA5#

 1
88897P - ASPIRATOR
87201-11010

GVF5#,VXFA5#

 1
87201-11010

GVF5#,VXFA5#

 1
88898J - SENSOR, SMOG VENTILATION
88898-11011

GVF5#,VXFA5#

 1
88898-11010

GVF5#,VXFA5#

 1
Linked diagrams
8401

(2010- )

SENSOR

diagram 8401 88608F 88625C 88625H 88625Q 88688S 88790B 88790B 88897P 88898J 9046707220
Part # Description Qty Price
88608F - HARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2
88608-50610

GVF5#,VXFA5#

"EXECUTIVE"*(E)

 1
88608-50610

GVF5#,VXFA5#

"VERSION L"*(L)

 1
88608-50610

GVF5#,VXFA5#

"VERSION L"*(L)

 1
88608-50610

GVF5#,VXFA5#

"EXECUTIVE"*(E)

 1
88625C - THERMISTOR, COOLER
88625-45020C0

GVF5#,VXFA5#

"VERSION L"*(L),BLACK

 2
88625-45020C0

GVF5#,VXFA5#

"EXECUTIVE"*(E),BLACK

 2
88625-45020C0

GVF5#,VXFA5#

"VERSION L"*(L),BLACK

 2
88625-45020C0

GVF5#,VXFA5#

"EXECUTIVE"*(E),BLACK

 2
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-47031

GVF5#,VXFA5#

"EXECUTIVE"*(E)

 1
88625-47031

GVF5#,VXFA5#

"EXECUTIVE"*(E)

 1
88625-47031

GVF5#,VXFA5#

"VERSION L"*(L)

 1
88625-47031

GVF5#,VXFA5#

"VERSION L"*(L)

 1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

GVF5#,VXFA5#

 1
88625-47021

GVF5#,VXFA5#

 1
88790B - THERMISTOR ASSY
88790-28100

GVF5#,VXFA5#

 1
88790-28100

GVF5#,VXFA5#

 1
88790B - THERMISTOR ASSY
88790-28100

GVF5#,VXFA5#

 1
88790-28100

GVF5#,VXFA5#

 1
88897P - ASPIRATOR
87201-11010

GVF5#,VXFA5#

 1
87201-11010

GVF5#,VXFA5#

 1
88898J - SENSOR, SMOG VENTILATION
88898-11011

GVF5#,VXFA5#

 1
88898-11010

GVF5#,VXFA5#

 1
Common parts
90467-07220 None epc.PartDetail.None
Linked diagrams
8401
