GVF50L-AEVGHA (2017)

Toyota Lexus Ls500/500h

Production Oct 2017 - Oct 2020
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

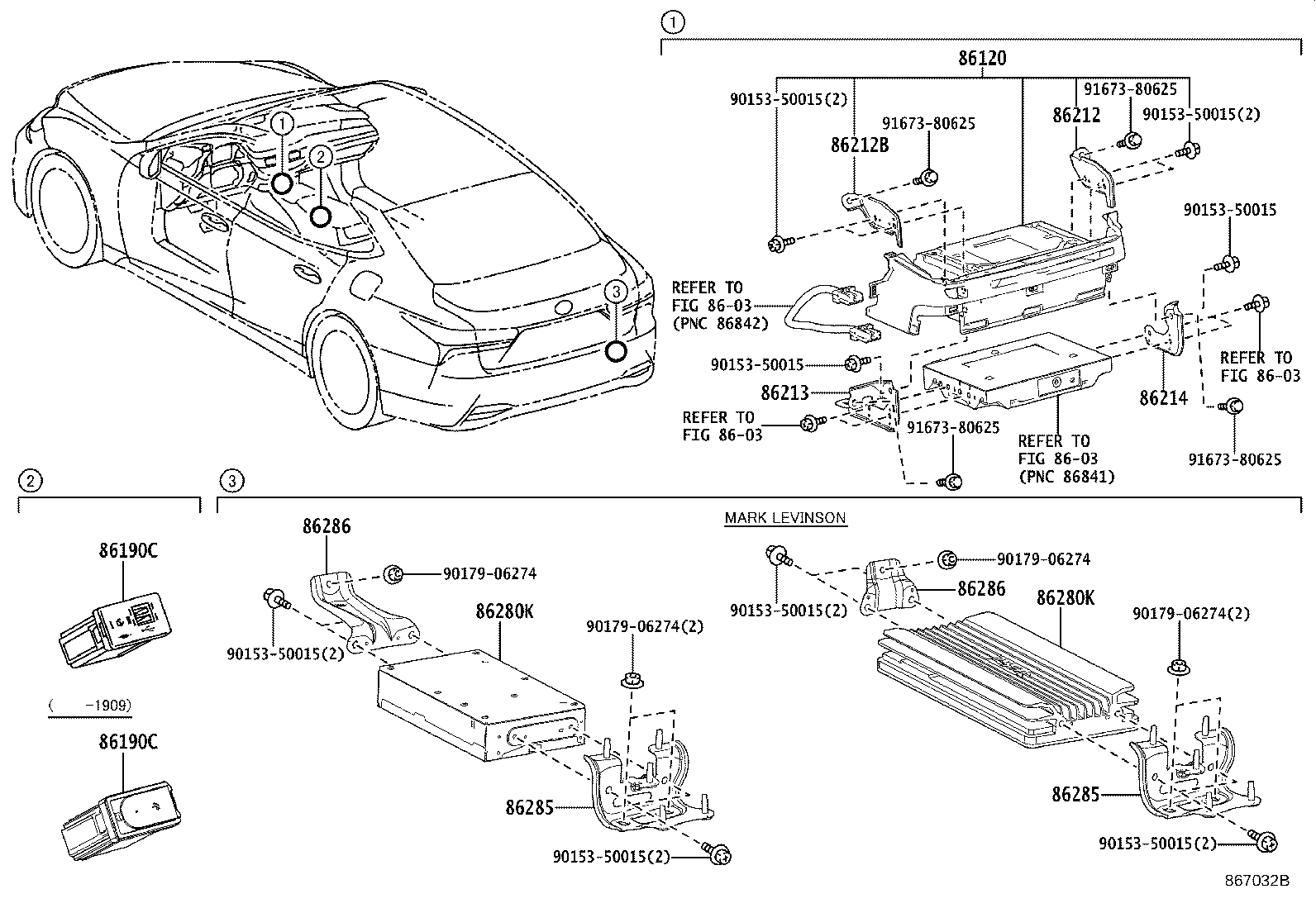

ILLUST NO. 1 OF 2(1710- )

Click highlighted areas on diagram

diagram 8603 8603 8603 8603 86120 86190C 86190C 86212 86212B 86213 86214 86280K 86280K 86285 86285 86286 86286 9015350015 9015350015 9015350015 9015350015 9015350015 9015350015 9015350015 9015350015 9017906274 9017906274 9017906274 9017906274 9167380625 9167380625 9167380625 9167380625
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-50W70

GVF5#,VXFA5#

PIONEER,KOREA SPEC

 1
86120-50W60

GVF5#,VXFA5#

PANASONIC

 1
86120-5A170

GVF5#,VXFA5#

PANASONIC

 1
86120-50W50

GVF5#,VXFA5#

PANASONIC,CANADA SPEC

 1
86120-50W70

GVF5#,VXFA5#

PIONEER,KOREA SPEC&MAYDAY SYSTEM-WITHOUT

 1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-11010

GVF5#,VXFA5#

 1
86190-24030

GVF5#,VXFA5#

 1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-11010

GVF5#,VXFA5#

 1
86190-24030

GVF5#,VXFA5#

 1
86212 - BRACKET, RADIO, NO.2
86212-50100

GVF5#,VXFA5#

 1
86212B - BRACKET, RADIO, NO.1
86211-50100

GVF5#,VXFA5#

 1
86213 - BRACKET, RADIO, NO.3
86211-50120

GVF5#,VXFA5#

 1
86214 - BRACKET, RADIO, NO.4
86212-50110

GVF5#,VXFA5#

 1
86280K - AMPLIFIER ASSY, STEREO COMPONENT
86280-0WE40

GVF5#,VXFA5#

AUDIO-DVD & MARKLEVINSON & 24SPEAKER

 1
86280-50370

GVF5#

 1
86280-50410

GVF5#,VXFA5#

AUDIO-DVD & MARKLEVINSON & 24SPEAKER

 1
86280-50371

GVF5#,VXFA5#

 1
86280K - AMPLIFIER ASSY, STEREO COMPONENT
86280-0WE40

GVF5#,VXFA5#

AUDIO-DVD & MARKLEVINSON & 24SPEAKER

 1
86280-50370

GVF5#

 1
86280-50410

GVF5#,VXFA5#

AUDIO-DVD & MARKLEVINSON & 24SPEAKER

 1
86280-50371

GVF5#,VXFA5#

 1
86285 - BRACKET, AMPLIFIER, NO.1
86285-50150

GVF5#,VXFA5#

 1
86285 - BRACKET, AMPLIFIER, NO.1
86285-50150

GVF5#,VXFA5#

 1
86286 - BRACKET, AMPLIFIER, NO.2
86286-50090

GVF5#,VXFA5#

 1
86286-50100

GVF5#,VXFA5#

AUDIO-DVD & MARKLEVINSON & 24SPEAKER

 1
86286 - BRACKET, AMPLIFIER, NO.2
86286-50090

GVF5#,VXFA5#

 1
86286-50100

GVF5#,VXFA5#

AUDIO-DVD & MARKLEVINSON & 24SPEAKER

 1
Common parts
90153-50015
90179-06274
91673-80625
Linked diagrams
8603

ILLUST NO. 2 OF 2(1710- )

Click highlighted areas on diagram

CONDENSER

diagram 86011R 86011V 9011906915 9011906A07
Part # Description Qty Price
86011R - CONDENSER, RADIO SETTING
90980-04189

GVF5#,VXFA5#

 1
86011V - CONDENSER, RADIO SETTING
90980-04204

GVF5#,VXFA5#

 1
Common parts
90119-06915
90119-06A07
